| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_104T01_9000001060_07686cztM0_level2.evt | modeM0/AS1G06_104T01_9000001060_07686cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,960,320 | 88,274,880 |
| Size | 574.1 MB | 84.2 MB |
| Events in quadrant A | 3,055,877 | 585,657 |
| Events in quadrant B | 3,175,736 | 597,696 |
| Events in quadrant C | 8,055,523 | 521,569 |
| Events in quadrant D | 3,531,999 | 544,308 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12741 | 3 |
| B | 0 | 12997 | 2 |
| C | 0 | 27922 | 2 |
| D | 0 | 14270 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6062 | 124 | 2.045530% |
| B | 6062 | 118 | 1.946552% |
| C | 6062 | 2210 | 36.456615% |
| D | 6062 | 180 | 2.969317% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7312 | 6064 | 13 | 13 | 0.18% | 0.21% |  |
| B | 7312 | 6063 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7312 | 6063 | 1986 | 1986 | 27.16% | 32.76% |  |
| D | 7312 | 6063 | 65 | 65 | 0.89% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 39670 | 248.95 | 773 | 757 | 156.3 |
| A | 13 | 248 | 33862 | 211.8 | 773 | 757 | 156.3 |
| A | 0 | 226 | 7375 | 42.34 | 773 | 757 | 156.3 |
| B | 0 | 219 | 67942 | 472.04 | 770 | 756 | 142.3 |
| B | 4 | 173 | 63776 | 442.77 | 770 | 756 | 142.3 |
| B | 0 | 229 | 19232 | 129.81 | 770 | 756 | 142.3 |
| C | 9 | 68 | 5330857 | 33884.44 | 686 | 690 | 157.3 |
| C | 8 | 208 | 35734 | 222.78 | 686 | 690 | 157.3 |
| C | 13 | 61 | 5321 | 29.44 | 686 | 690 | 157.3 |
| D | 13 | 104 | 269253 | 1477.37 | 752 | 731 | 181.8 |
| D | 1 | 83 | 164217 | 899.48 | 752 | 731 | 181.8 |
| D | 2 | 152 | 162549 | 890.3 | 752 | 731 | 181.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

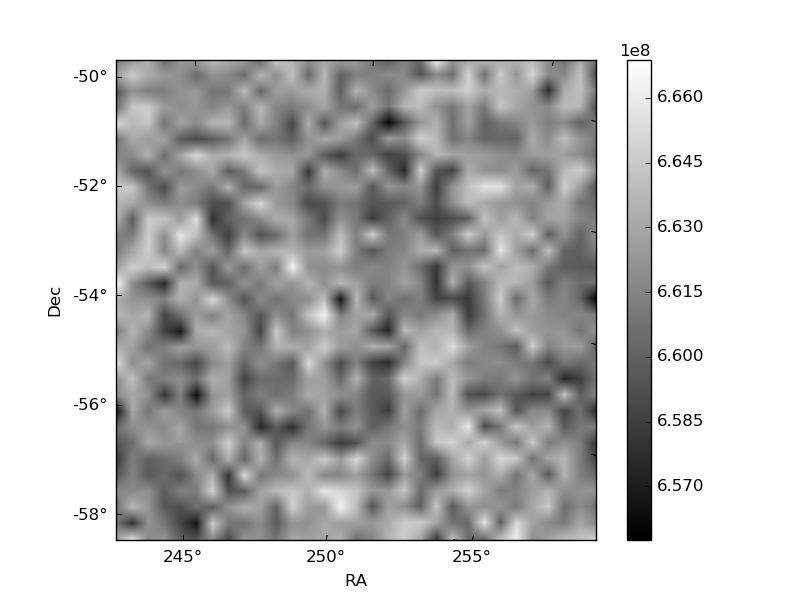

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

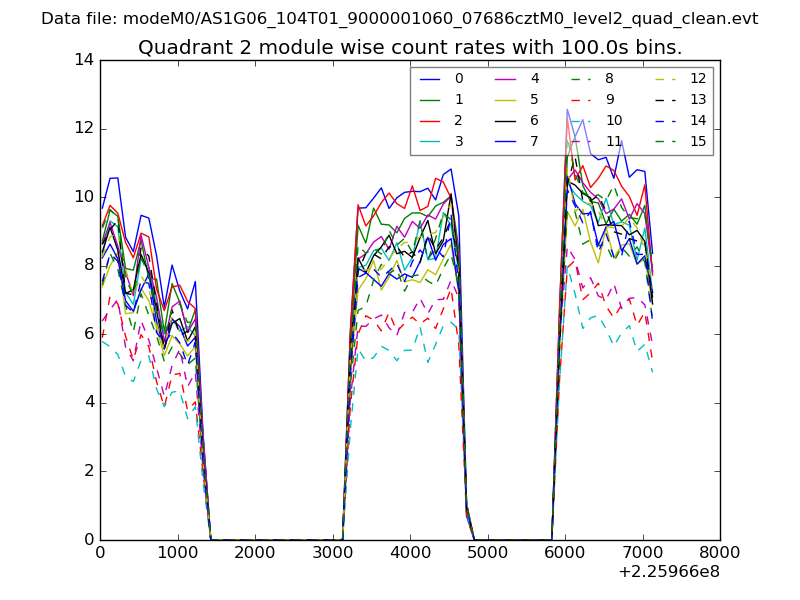

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

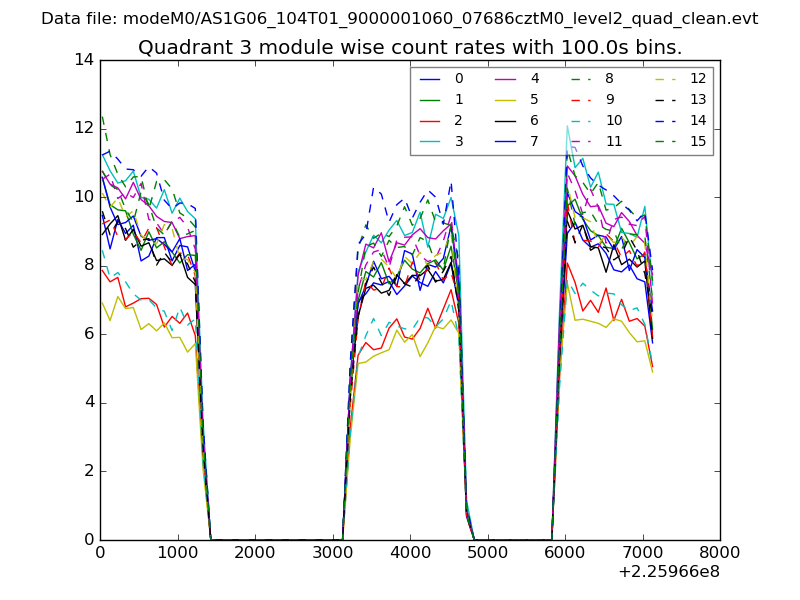

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

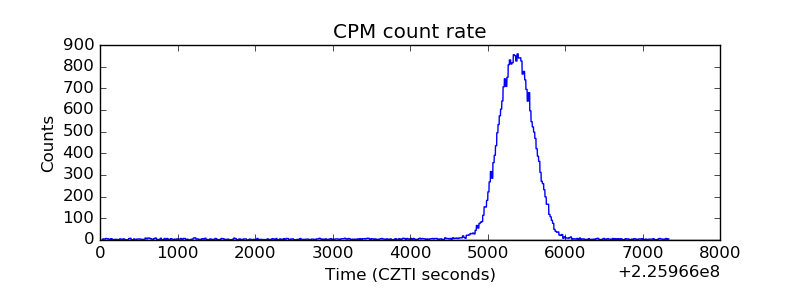

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

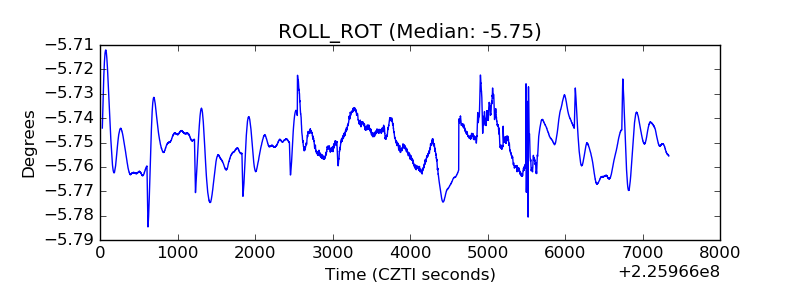

| _ROLL_ROT |  |
| _Roll_DEC |  |

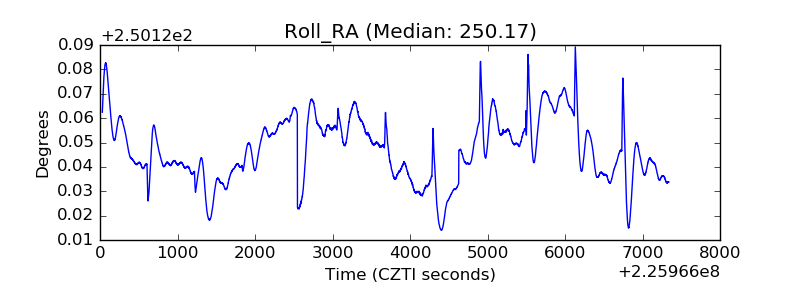

| _Roll_RA |  |

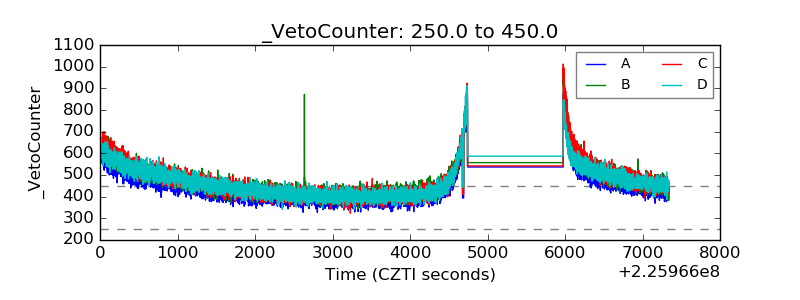

| Veto Counter |  |
