| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_104T01_9000001060_07690cztM0_level2.evt | modeM0/AS1G06_104T01_9000001060_07690cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,977,920 | 84,513,600 |
| Size | 526.4 MB | 80.6 MB |
| Events in quadrant A | 3,766,281 | 512,029 |
| Events in quadrant B | 4,179,922 | 518,810 |
| Events in quadrant C | 3,915,712 | 502,804 |
| Events in quadrant D | 4,321,256 | 479,138 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16577 | 4 |
| B | 0 | 17554 | 3 |
| C | 0 | 17044 | 3 |
| D | 0 | 18221 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7853 | 349 | 4.444161% |
| B | 7853 | 428 | 5.450146% |
| C | 7853 | 198 | 2.521329% |
| D | 7853 | 252 | 3.208965% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8293 | 7855 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8293 | 7855 | 33 | 33 | 0.40% | 0.42% |  |
| C | 8293 | 7856 | 4 | 4 | 0.05% | 0.05% |  |
| D | 8293 | 7856 | 25 | 25 | 0.30% | 0.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 17303 | 81.58 | 969 | 944 | 200.5 |
| A | 3 | 1 | 12804 | 59.15 | 969 | 944 | 200.5 |
| A | 0 | 226 | 9373 | 42.04 | 969 | 944 | 200.5 |
| B | 0 | 219 | 211581 | 1121.16 | 965 | 936 | 187.9 |
| B | 4 | 239 | 76581 | 402.62 | 965 | 936 | 187.9 |
| B | 4 | 173 | 70021 | 367.71 | 965 | 936 | 187.9 |
| C | 8 | 229 | 193258 | 875.88 | 941 | 945 | 219.6 |
| C | 1 | 16 | 23618 | 103.26 | 941 | 945 | 219.6 |
| C | 9 | 68 | 12981 | 54.82 | 941 | 945 | 219.6 |
| D | 2 | 152 | 390892 | 1677.55 | 943 | 911 | 232.5 |
| D | 1 | 83 | 97700 | 416.35 | 943 | 911 | 232.5 |
| D | 13 | 104 | 97076 | 413.66 | 943 | 911 | 232.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

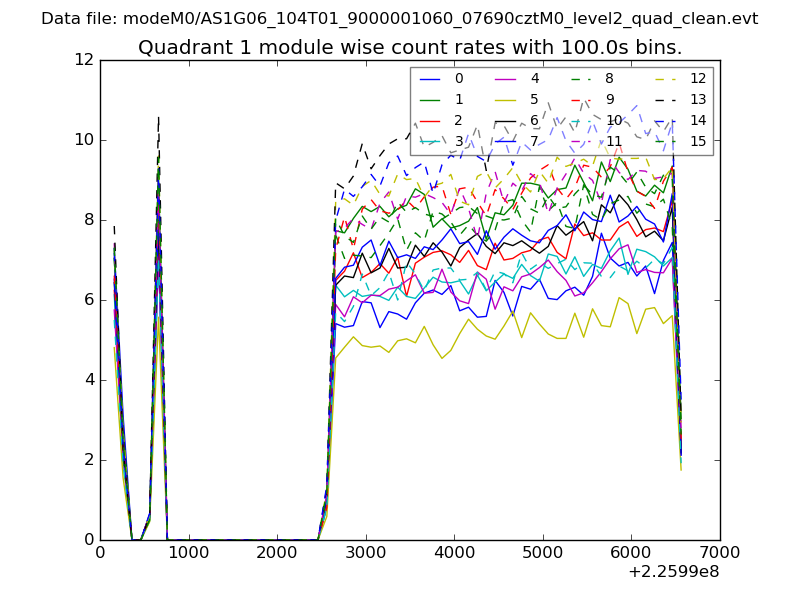

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

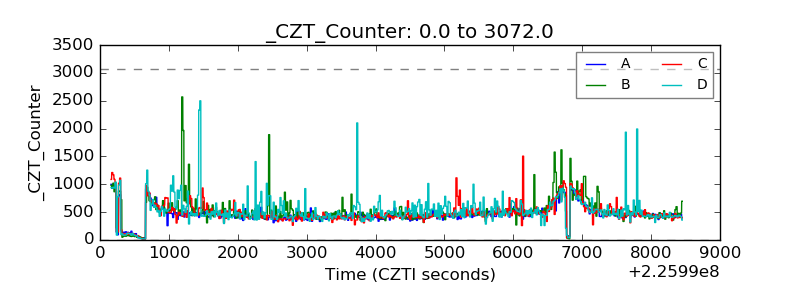

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

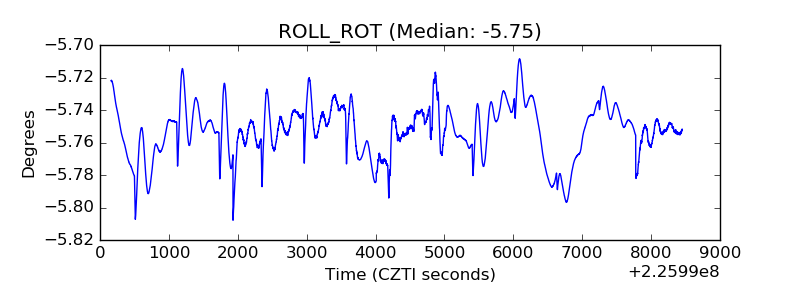

| _ROLL_ROT |  |
| _Roll_DEC |  |

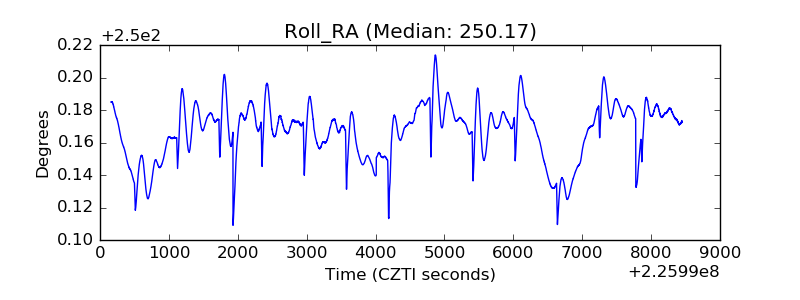

| _Roll_RA |  |

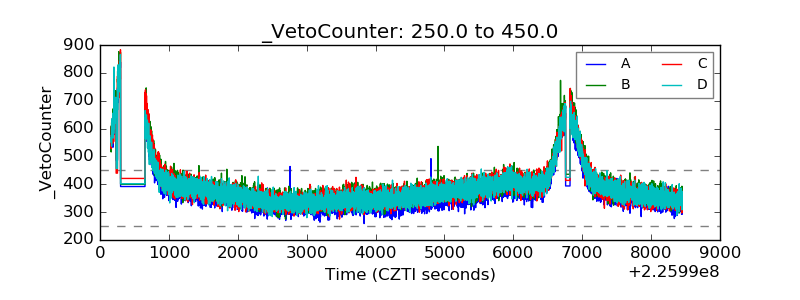

| Veto Counter |  |
