| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_104T01_9000001060_07691cztM0_level2.evt | modeM0/AS1G06_104T01_9000001060_07691cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,358,720 | 87,287,040 |
| Size | 525.8 MB | 83.2 MB |
| Events in quadrant A | 3,714,375 | 537,060 |
| Events in quadrant B | 4,021,102 | 540,441 |
| Events in quadrant C | 4,375,967 | 518,339 |
| Events in quadrant D | 4,053,982 | 502,080 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16414 | 3 |
| B | 0 | 17154 | 2 |
| C | 0 | 18322 | 2 |
| D | 0 | 17569 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7839 | 247 | 3.150912% |
| B | 7839 | 307 | 3.916316% |
| C | 7839 | 118 | 1.505294% |
| D | 7839 | 143 | 1.824212% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8229 | 7841 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8229 | 7841 | 13 | 13 | 0.16% | 0.17% |  |
| C | 8229 | 7841 | 10 | 10 | 0.12% | 0.13% |  |
| D | 8229 | 7841 | 18 | 18 | 0.22% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 27267 | 134.53 | 953 | 927 | 195.8 |
| A | 0 | 226 | 9112 | 41.8 | 953 | 927 | 195.8 |
| A | 12 | 194 | 8687 | 39.63 | 953 | 927 | 195.8 |
| B | 0 | 219 | 199026 | 1078.47 | 952 | 927 | 183.7 |
| B | 4 | 173 | 41588 | 221.36 | 952 | 927 | 183.7 |
| B | 4 | 80 | 21401 | 111.46 | 952 | 927 | 183.7 |
| C | 9 | 68 | 535602 | 2501.65 | 920 | 921 | 213.7 |
| C | 8 | 229 | 133660 | 621.06 | 920 | 921 | 213.7 |
| C | 1 | 16 | 55717 | 256.38 | 920 | 921 | 213.7 |
| D | 1 | 83 | 158990 | 693.84 | 923 | 893 | 227.9 |
| D | 13 | 104 | 124290 | 541.55 | 923 | 893 | 227.9 |
| D | 2 | 152 | 96863 | 421.18 | 923 | 893 | 227.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

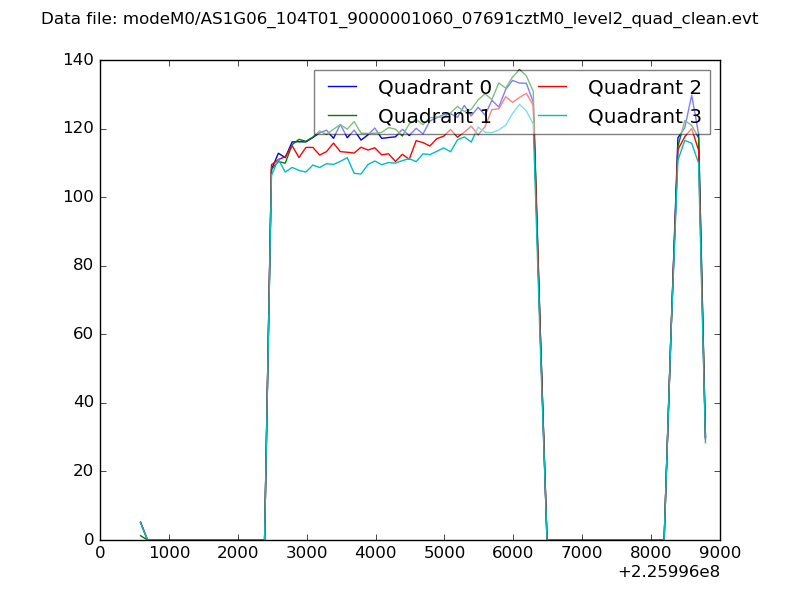

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

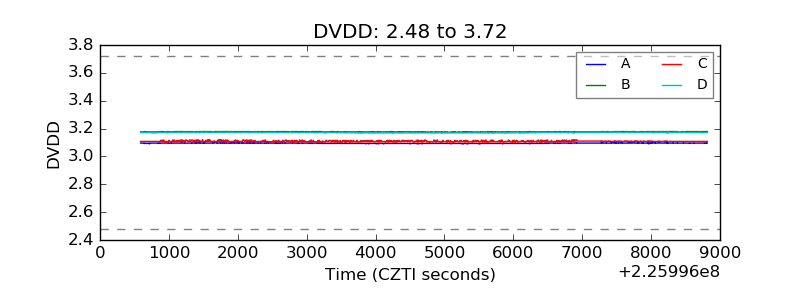

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

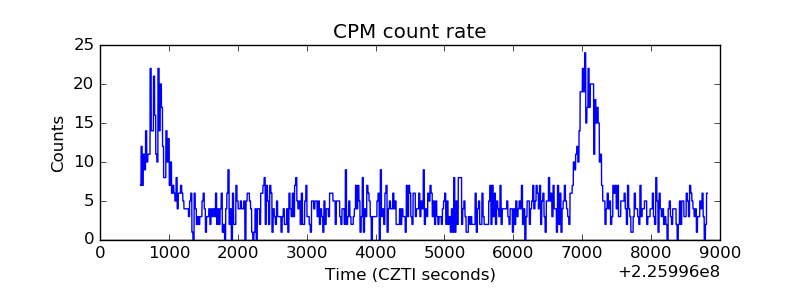

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
