| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_104T01_9000001060_07693cztM0_level2.evt | modeM0/AS1G06_104T01_9000001060_07693cztM0_level2_quad_clean.evt |
| Size (bytes) | 413,907,840 | 75,363,840 |
| Size | 394.7 MB | 71.9 MB |
| Events in quadrant A | 2,759,239 | 475,238 |
| Events in quadrant B | 3,054,764 | 480,228 |
| Events in quadrant C | 2,888,751 | 460,888 |
| Events in quadrant D | 3,416,530 | 438,694 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12433 | 2 |
| B | 0 | 13183 | 1 |
| C | 0 | 12640 | 1 |
| D | 0 | 14399 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6109 | 38 | 0.622033% |
| B | 6109 | 74 | 1.211328% |
| C | 6109 | 19 | 0.311017% |
| D | 6109 | 79 | 1.293174% |

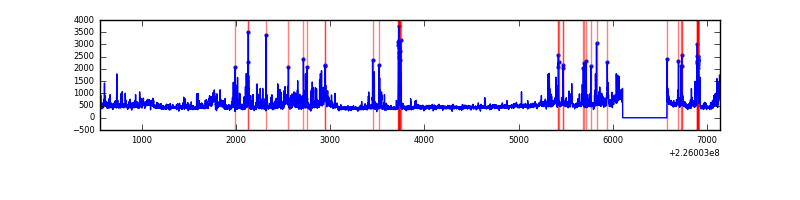

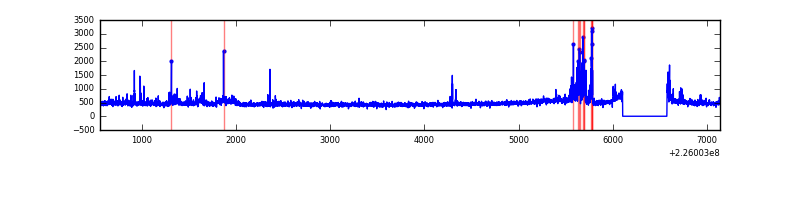

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6579 | 6110 | 1 | 1 | 0.02% | 0.02% |  |
| B | 6579 | 6110 | 13 | 13 | 0.20% | 0.21% |  |
| C | 6579 | 6110 | 6 | 6 | 0.09% | 0.10% |  |
| D | 6579 | 6110 | 53 | 53 | 0.81% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 13300 | 86.61 | 709 | 692 | 145.6 |
| A | 15 | 174 | 8850 | 56.04 | 709 | 692 | 145.6 |
| A | 0 | 226 | 6684 | 41.16 | 709 | 692 | 145.6 |
| B | 4 | 239 | 112122 | 808.04 | 712 | 696 | 137.9 |
| B | 0 | 219 | 69107 | 496.1 | 712 | 696 | 137.9 |
| B | 4 | 80 | 36631 | 260.59 | 712 | 696 | 137.9 |
| C | 9 | 68 | 70479 | 430.83 | 685 | 688 | 162.0 |
| C | 8 | 229 | 44762 | 272.08 | 685 | 688 | 162.0 |
| C | 1 | 16 | 37146 | 225.06 | 685 | 688 | 162.0 |
| D | 2 | 152 | 318351 | 1909.94 | 681 | 661 | 166.3 |
| D | 2 | 136 | 154111 | 922.53 | 681 | 661 | 166.3 |
| D | 1 | 83 | 135793 | 812.41 | 681 | 661 | 166.3 |

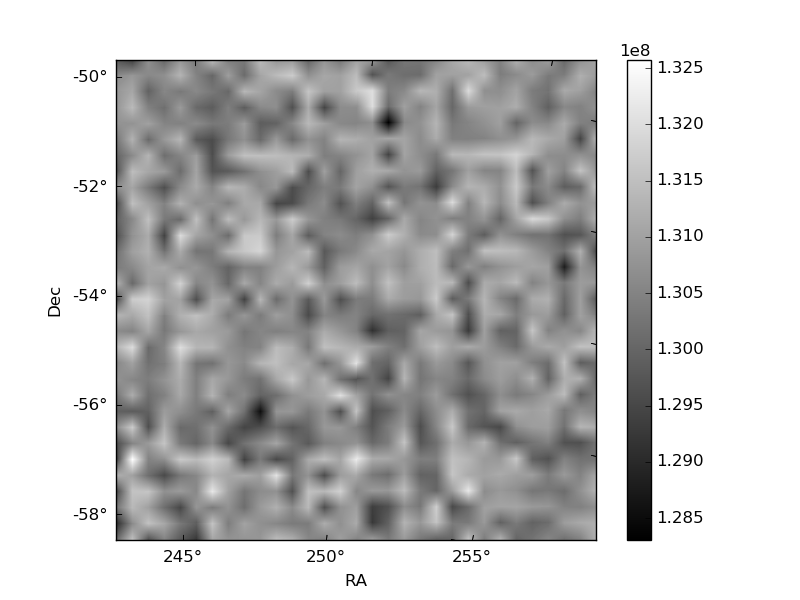

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

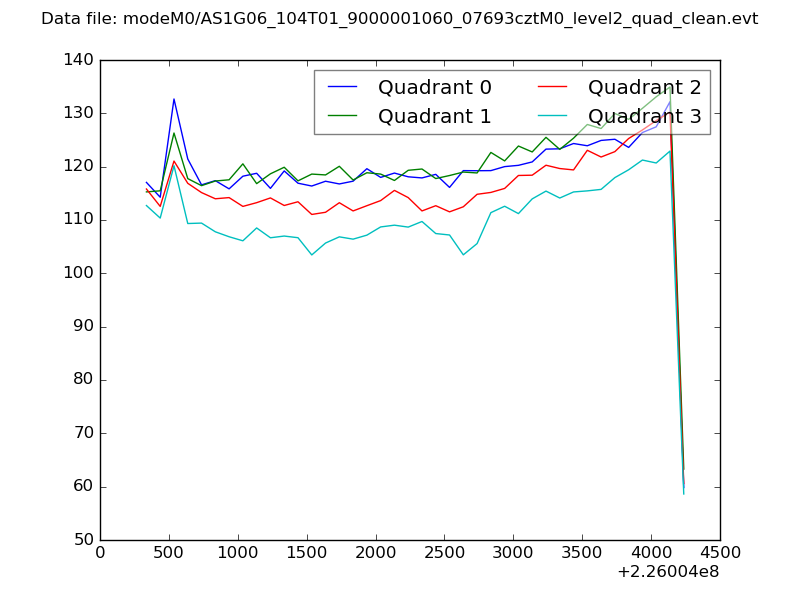

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

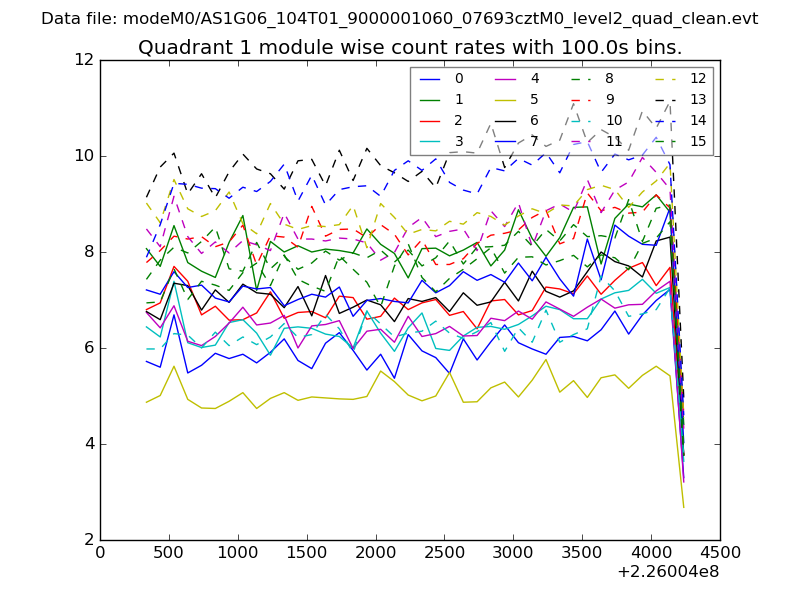

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

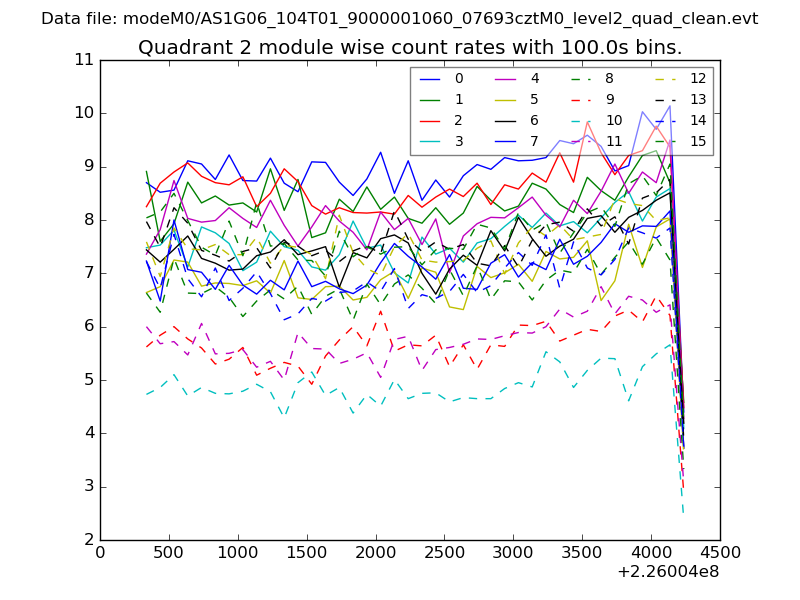

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

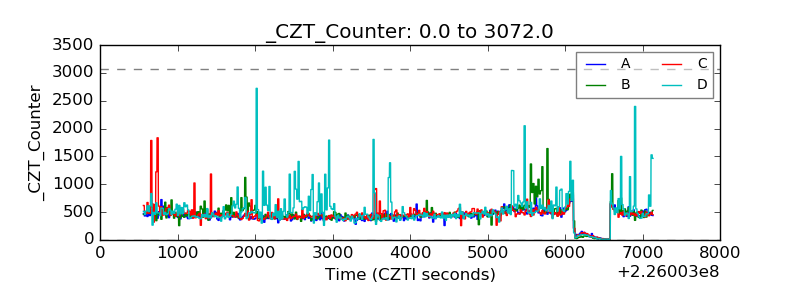

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

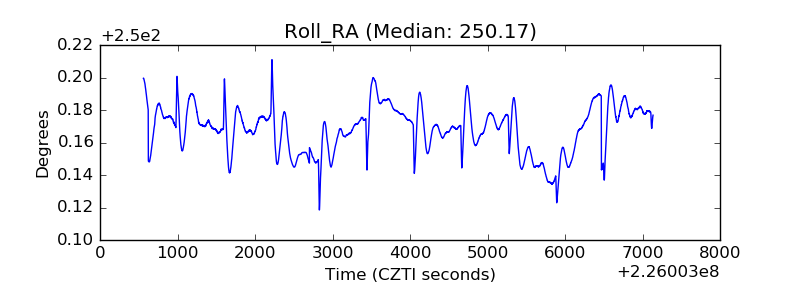

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
