| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_104T01_9000001060_07694cztM0_level2.evt | modeM0/AS1G06_104T01_9000001060_07694cztM0_level2_quad_clean.evt |
| Size (bytes) | 871,536,960 | 174,245,760 |
| Size | 831.2 MB | 166.2 MB |
| Events in quadrant A | 5,893,663 | 1,118,020 |
| Events in quadrant B | 6,367,921 | 1,135,424 |
| Events in quadrant C | 6,058,614 | 1,090,646 |
| Events in quadrant D | 7,199,188 | 1,040,375 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 266 | 0 |
| B | 0 | 266 | 0 |
| C | 0 | 266 | 0 |
| D | 0 | 266 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26340 | 4 |
| B | 0 | 27530 | 3 |
| C | 0 | 26498 | 3 |
| D | 0 | 30672 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12919 | 57 | 0.441211% |
| B | 12919 | 111 | 0.859200% |
| C | 12919 | 30 | 0.232216% |
| D | 12919 | 304 | 2.353123% |

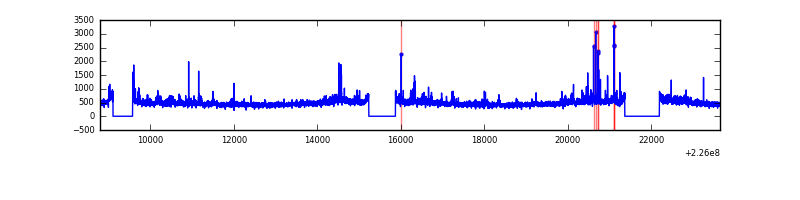

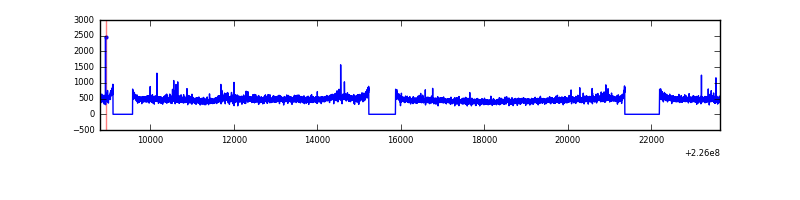

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14859 | 12922 | 6 | 6 | 0.04% | 0.05% |  |
| B | 14859 | 12922 | 8 | 8 | 0.05% | 0.06% |  |
| C | 14859 | 12922 | 1 | 1 | 0.01% | 0.01% |  |
| D | 14859 | 12922 | 179 | 179 | 1.20% | 1.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 30237 | 94.15 | 1506 | 1472 | 305.5 |
| A | 3 | 1 | 29467 | 91.63 | 1506 | 1472 | 305.5 |
| A | 15 | 174 | 15864 | 47.11 | 1506 | 1472 | 305.5 |
| B | 0 | 219 | 224831 | 768.23 | 1522 | 1485 | 290.7 |
| B | 4 | 173 | 78036 | 263.31 | 1522 | 1485 | 290.7 |
| B | 4 | 239 | 40410 | 133.89 | 1522 | 1485 | 290.7 |
| C | 8 | 229 | 263569 | 772.34 | 1461 | 1466 | 339.4 |
| C | 1 | 16 | 38772 | 109.93 | 1461 | 1466 | 339.4 |
| C | 8 | 208 | 34438 | 97.16 | 1461 | 1466 | 339.4 |
| D | 2 | 152 | 858355 | 2431.07 | 1442 | 1393 | 352.5 |
| D | 1 | 83 | 389112 | 1099.9 | 1442 | 1393 | 352.5 |
| D | 13 | 104 | 299128 | 844.63 | 1442 | 1393 | 352.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

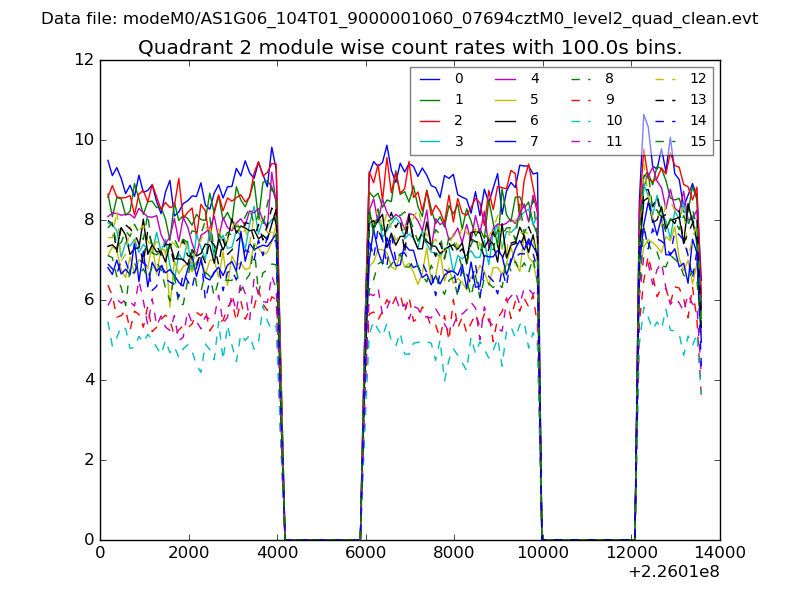

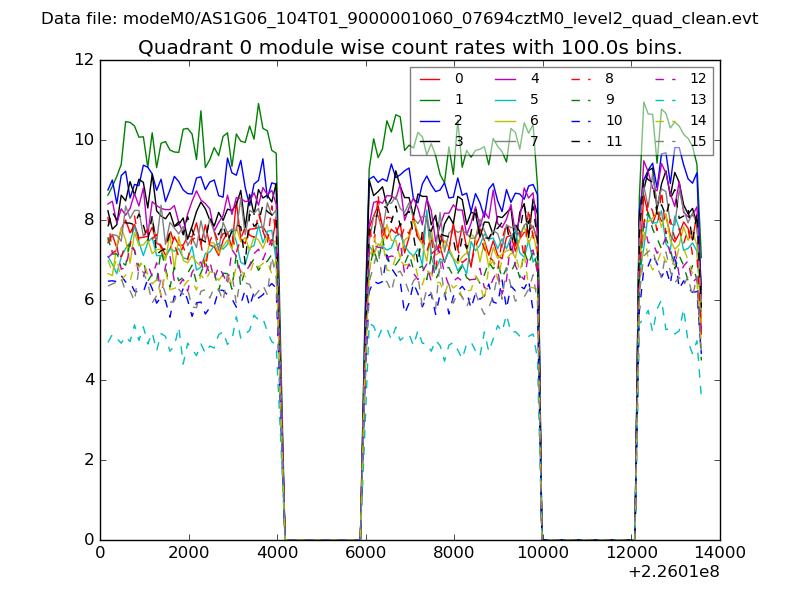

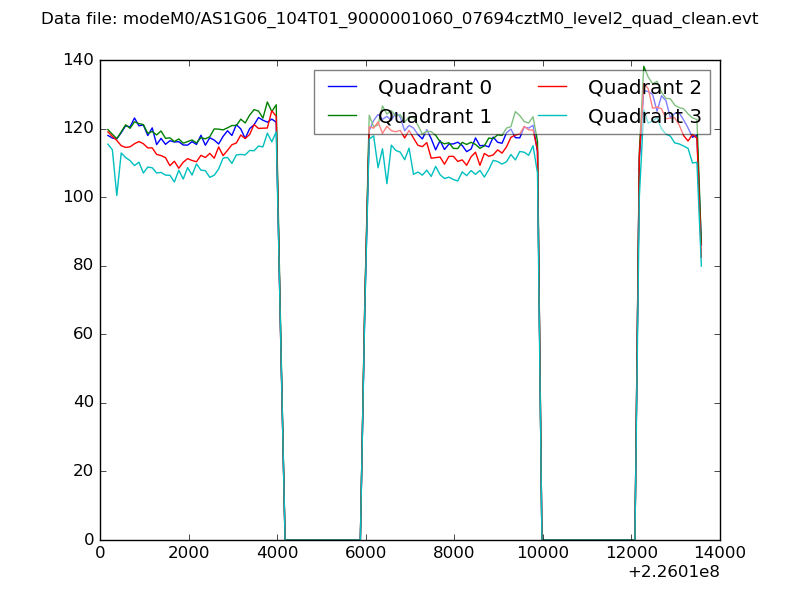

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

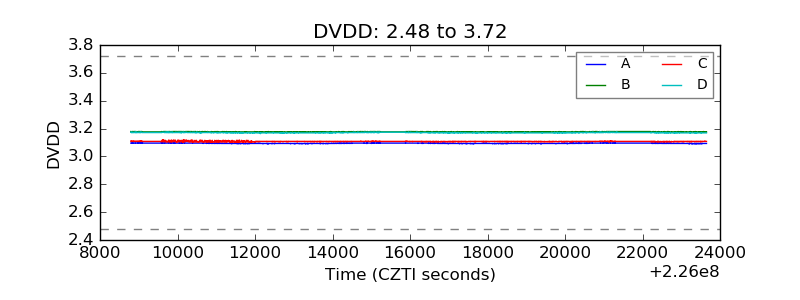

| D_VDD |  |

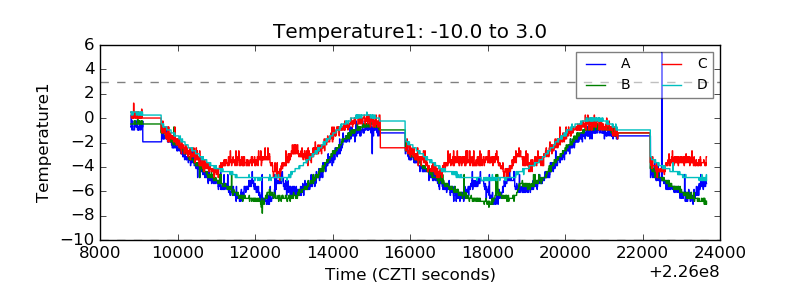

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

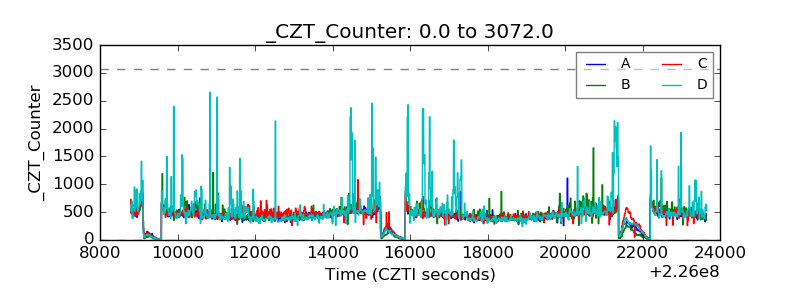

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
