| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_158T01_9000001064_07712cztM0_level2.evt | modeM0/AS1A02_158T01_9000001064_07712cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,395,072,000 | 253,039,680 |
| Size | 1.3 GB | 241.3 MB |
| Events in quadrant A | 9,297,000 | 1,599,098 |
| Events in quadrant B | 9,704,953 | 1,635,299 |
| Events in quadrant C | 9,991,571 | 1,609,545 |
| Events in quadrant D | 11,918,191 | 1,456,440 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 404 | 0 |
| B | 0 | 404 | 0 |
| C | 0 | 404 | 0 |
| D | 0 | 404 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41081 | 5 |
| B | 0 | 42072 | 4 |
| C | 0 | 42819 | 4 |
| D | 0 | 49257 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19794 | 84 | 0.424371% |
| B | 19794 | 187 | 0.944731% |
| C | 19794 | 238 | 1.202385% |
| D | 19794 | 1036 | 5.233909% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 23599 | 19798 | 0 | 0 | 0.00% | 0.00% |  |
| B | 23599 | 19797 | 42 | 42 | 0.18% | 0.21% |  |
| C | 23599 | 19798 | 102 | 102 | 0.43% | 0.52% |  |
| D | 23599 | 19797 | 888 | 888 | 3.76% | 4.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 154646 | 320.54 | 2359 | 2311 | 475.2 |
| A | 0 | 226 | 32506 | 63.54 | 2359 | 2311 | 475.2 |
| A | 12 | 194 | 20864 | 39.04 | 2359 | 2311 | 475.2 |
| B | 4 | 81 | 132640 | 288.35 | 2380 | 2322 | 452.0 |
| B | 4 | 239 | 105606 | 228.53 | 2380 | 2322 | 452.0 |
| B | 0 | 219 | 99064 | 214.05 | 2380 | 2322 | 452.0 |
| C | 9 | 68 | 893889 | 1660.09 | 2314 | 2324 | 537.1 |
| C | 8 | 229 | 44060 | 77.71 | 2314 | 2324 | 537.1 |
| C | 13 | 61 | 17894 | 28.99 | 2314 | 2324 | 537.1 |
| D | 12 | 221 | 2359787 | 4293.16 | 2247 | 2177 | 549.2 |
| D | 2 | 152 | 322463 | 583.23 | 2247 | 2177 | 549.2 |
| D | 13 | 105 | 290545 | 525.11 | 2247 | 2177 | 549.2 |

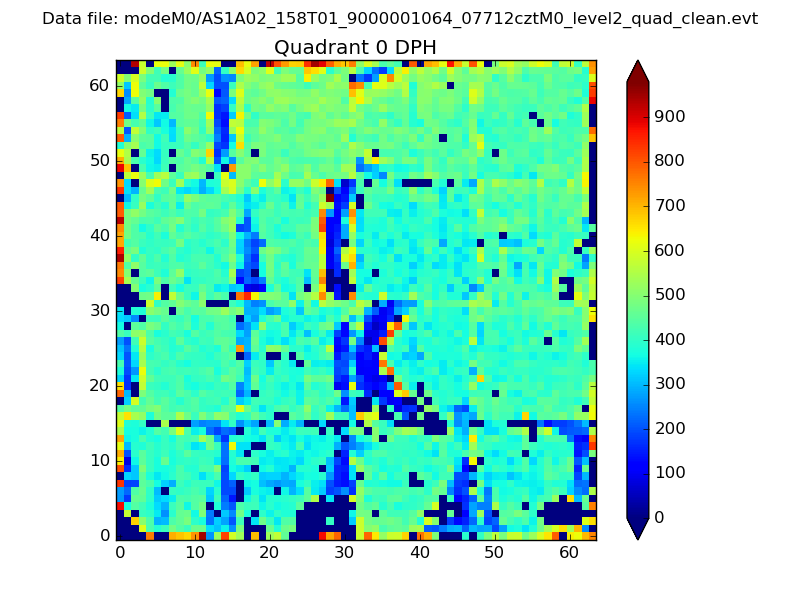

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

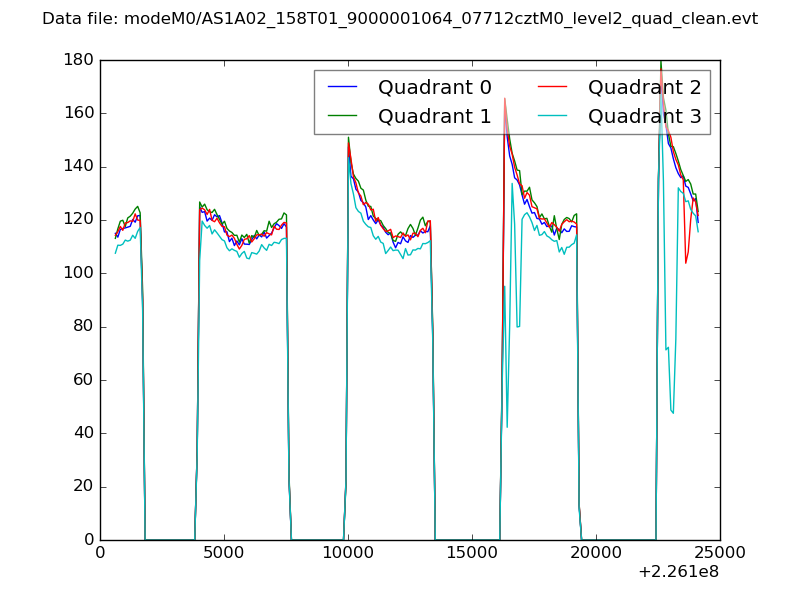

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

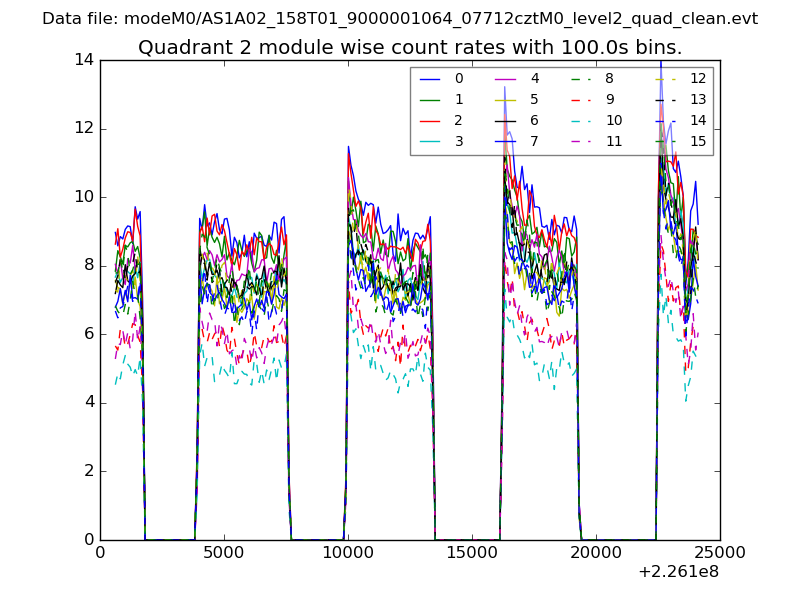

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

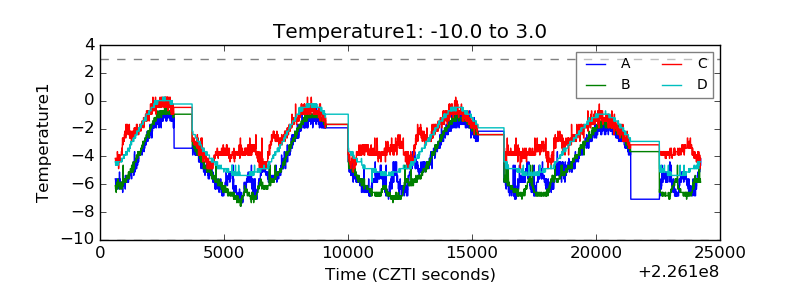

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

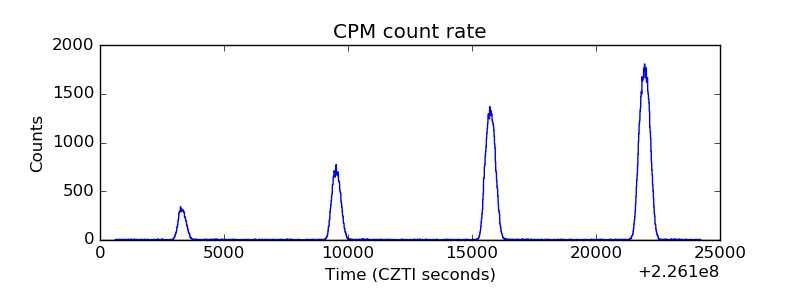

| _CPM_Rate |  |

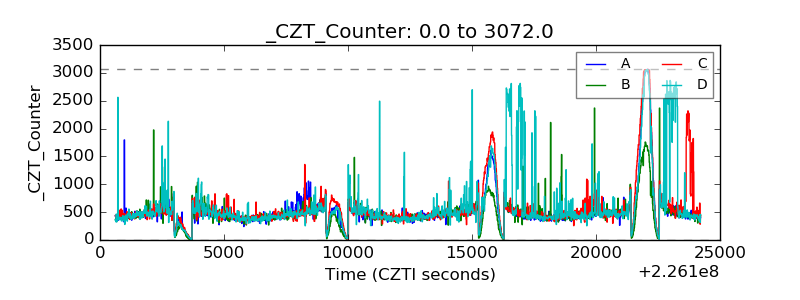

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

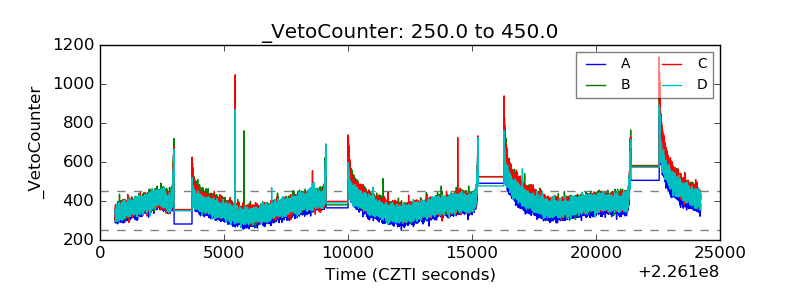

| Veto Counter |  |
