| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_158T01_9000001064_07716cztM0_level2.evt | modeM0/AS1A02_158T01_9000001064_07716cztM0_level2_quad_clean.evt |
| Size (bytes) | 416,174,400 | 79,951,680 |
| Size | 396.9 MB | 76.2 MB |
| Events in quadrant A | 3,077,044 | 503,785 |
| Events in quadrant B | 3,124,138 | 507,845 |
| Events in quadrant C | 2,953,360 | 495,698 |
| Events in quadrant D | 3,028,321 | 481,778 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13061 | 2 |
| B | 0 | 13076 | 1 |
| C | 0 | 12782 | 1 |
| D | 0 | 13049 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6185 | 159 | 2.570736% |
| B | 6185 | 140 | 2.263541% |
| C | 6185 | 107 | 1.729992% |
| D | 6185 | 140 | 2.263541% |

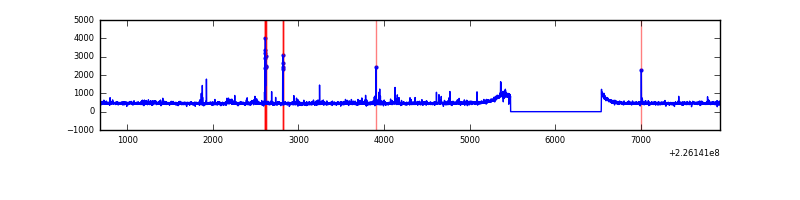

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7245 | 6185 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7245 | 6185 | 9 | 9 | 0.12% | 0.15% |  |
| C | 7245 | 6185 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7245 | 6185 | 14 | 14 | 0.19% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 86170 | 546.97 | 770 | 755 | 156.2 |
| A | 0 | 226 | 13167 | 79.48 | 770 | 755 | 156.2 |
| A | 15 | 234 | 10550 | 62.72 | 770 | 755 | 156.2 |
| B | 4 | 239 | 35394 | 238.03 | 767 | 751 | 145.5 |
| B | 0 | 214 | 35002 | 235.34 | 767 | 751 | 145.5 |
| B | 0 | 219 | 28659 | 191.75 | 767 | 751 | 145.5 |
| C | 9 | 68 | 13707 | 74.32 | 750 | 753 | 174.3 |
| C | 10 | 22 | 6093 | 30.64 | 750 | 753 | 174.3 |
| C | 13 | 61 | 5837 | 29.17 | 750 | 753 | 174.3 |
| D | 2 | 152 | 44781 | 235.64 | 758 | 734 | 186.9 |
| D | 1 | 52 | 29507 | 153.93 | 758 | 734 | 186.9 |
| D | 13 | 104 | 25008 | 129.86 | 758 | 734 | 186.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

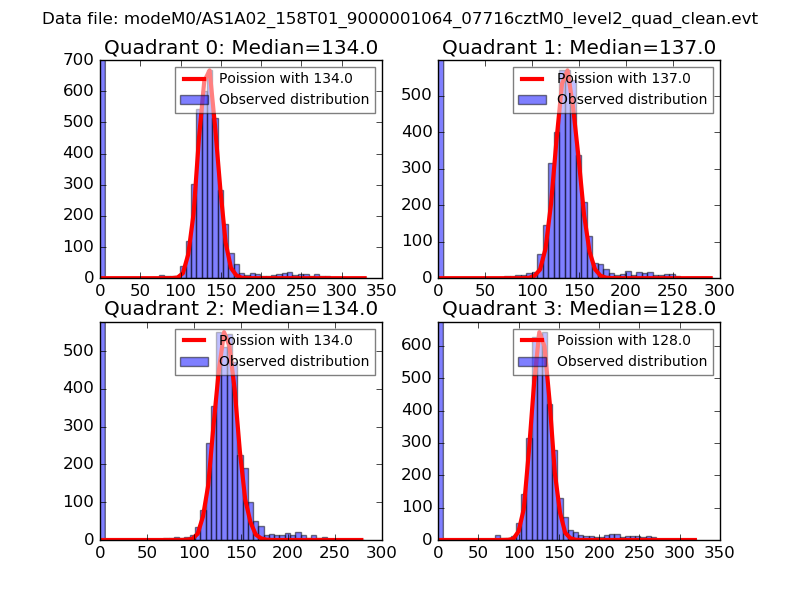

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

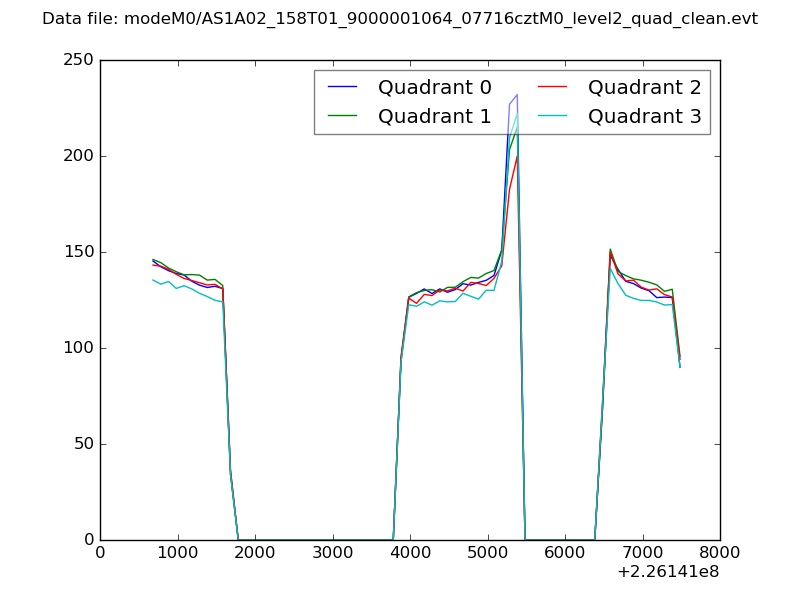

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

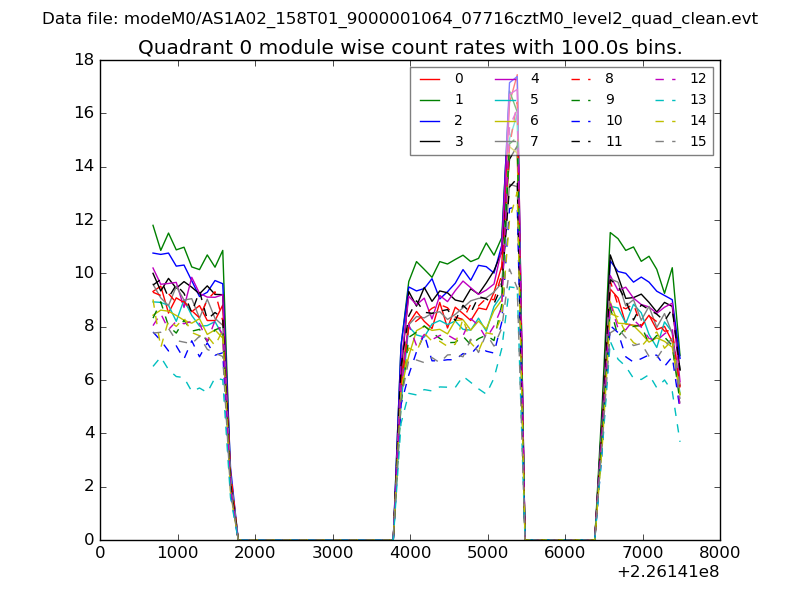

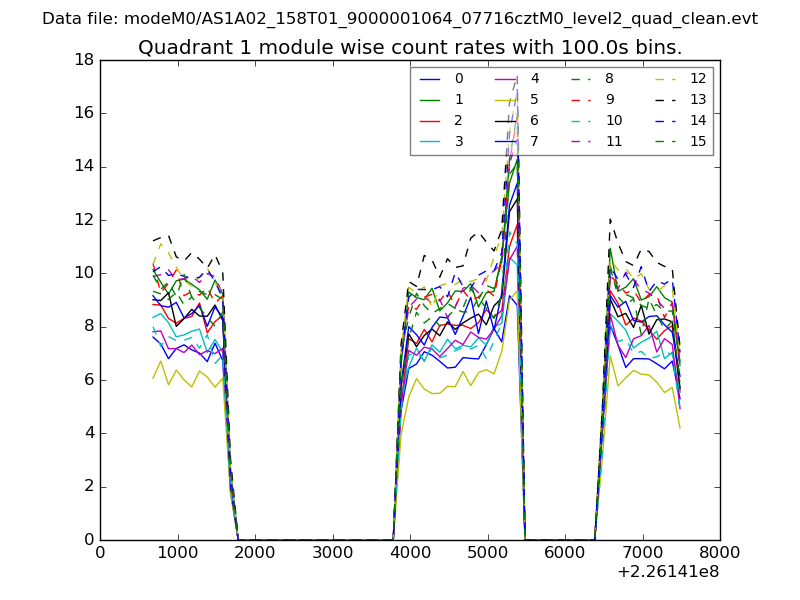

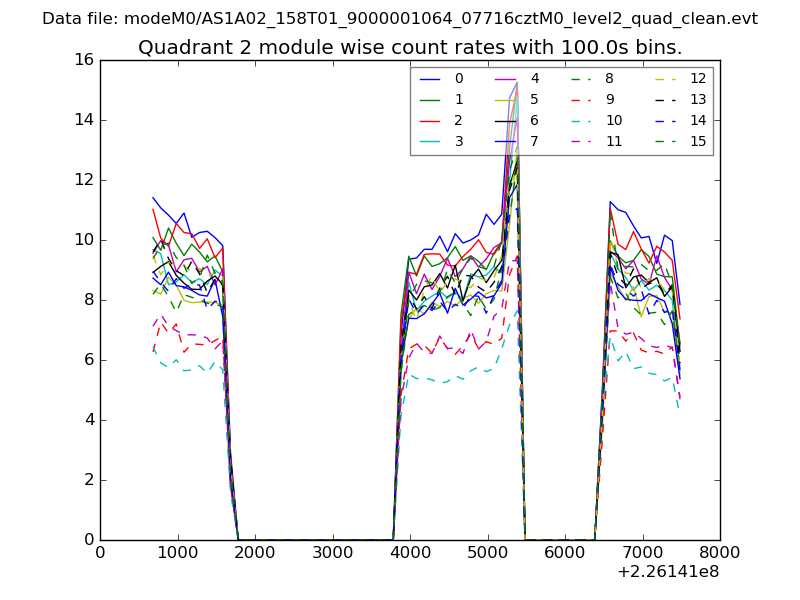

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

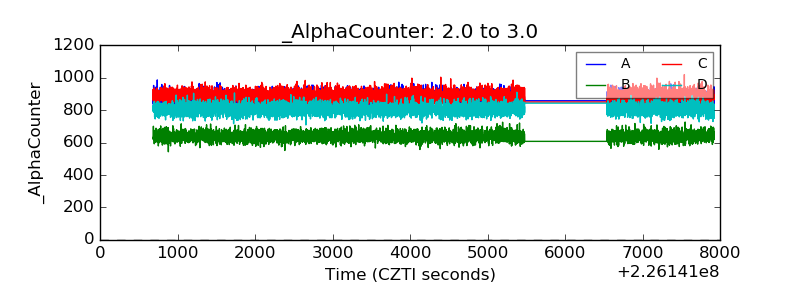

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

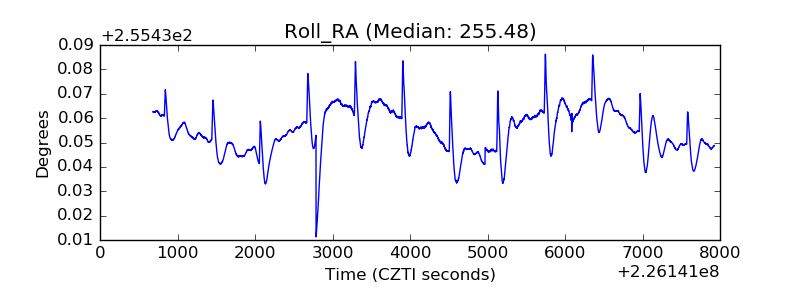

| _Roll_RA |  |
