| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_064T01_9000001066_07731cztM0_level2.evt | modeM0/AS1G06_064T01_9000001066_07731cztM0_level2_quad_clean.evt |
| Size (bytes) | 401,319,360 | 74,223,360 |
| Size | 382.7 MB | 70.8 MB |
| Events in quadrant A | 2,861,412 | 459,789 |
| Events in quadrant B | 2,944,174 | 466,475 |
| Events in quadrant C | 2,938,238 | 454,478 |
| Events in quadrant D | 2,989,333 | 435,121 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12622 | 2 |
| B | 0 | 12712 | 1 |
| C | 0 | 12821 | 1 |
| D | 0 | 13126 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6188 | 80 | 1.292825% |
| B | 6188 | 85 | 1.373626% |
| C | 6188 | 66 | 1.066580% |
| D | 6188 | 91 | 1.470588% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

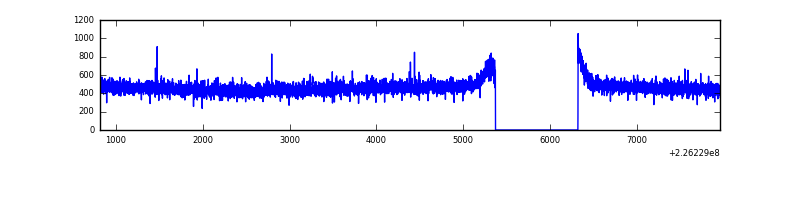

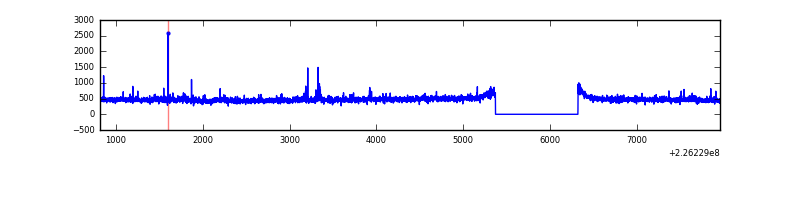

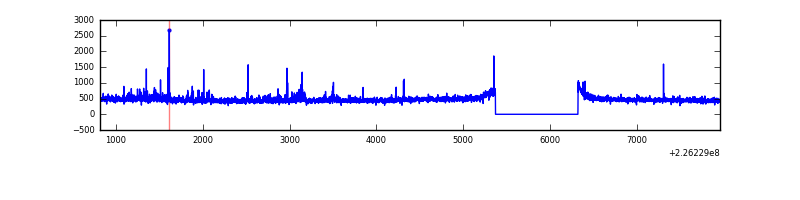

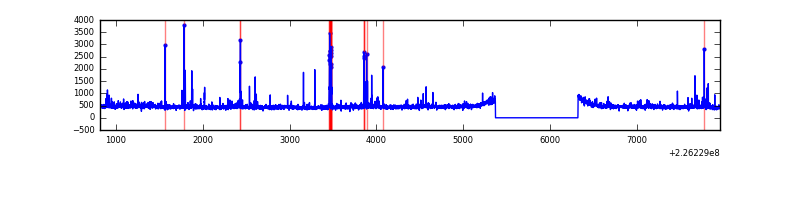

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7138 | 6188 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7138 | 6188 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7138 | 6189 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7138 | 6188 | 24 | 24 | 0.34% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 7541 | 44.56 | 740 | 724 | 153.0 |
| A | 0 | 226 | 7061 | 41.42 | 740 | 724 | 153.0 |
| A | 12 | 194 | 6368 | 36.89 | 740 | 724 | 153.0 |
| B | 0 | 214 | 25137 | 172.49 | 740 | 722 | 141.5 |
| B | 15 | 204 | 19540 | 132.95 | 740 | 722 | 141.5 |
| B | 12 | 111 | 13274 | 88.68 | 740 | 722 | 141.5 |
| C | 9 | 68 | 120133 | 718.7 | 720 | 721 | 166.2 |
| C | 12 | 4 | 10930 | 61.44 | 720 | 721 | 166.2 |
| C | 13 | 61 | 5563 | 29.14 | 720 | 721 | 166.2 |
| D | 7 | 55 | 79176 | 441.3 | 723 | 701 | 177.8 |
| D | 2 | 152 | 73053 | 406.86 | 723 | 701 | 177.8 |
| D | 13 | 105 | 45409 | 251.41 | 723 | 701 | 177.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

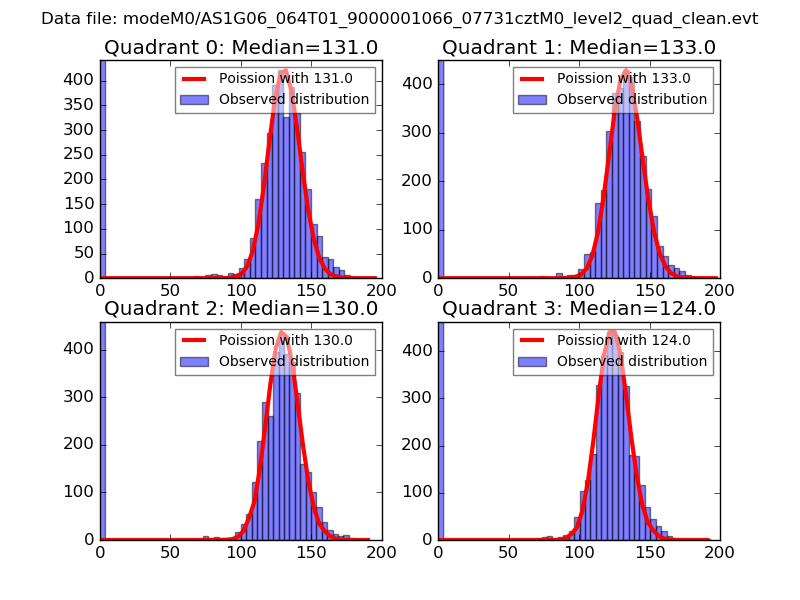

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

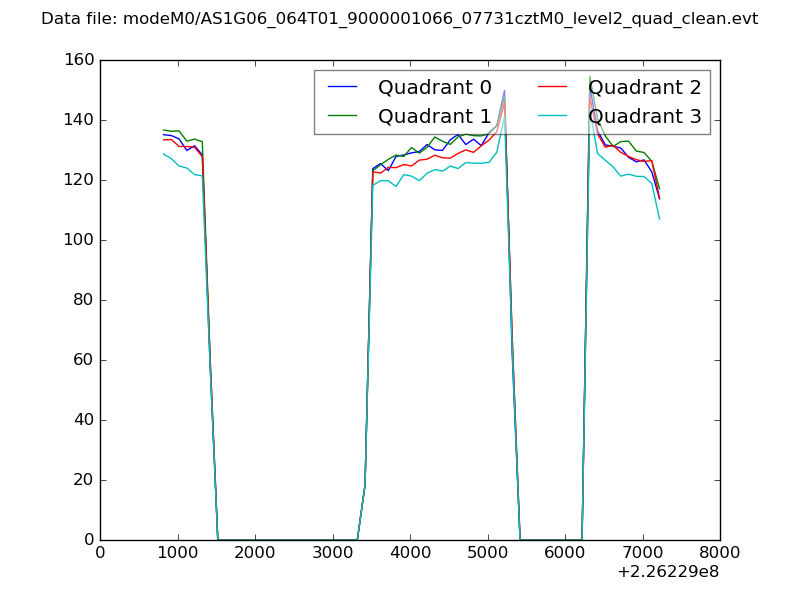

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

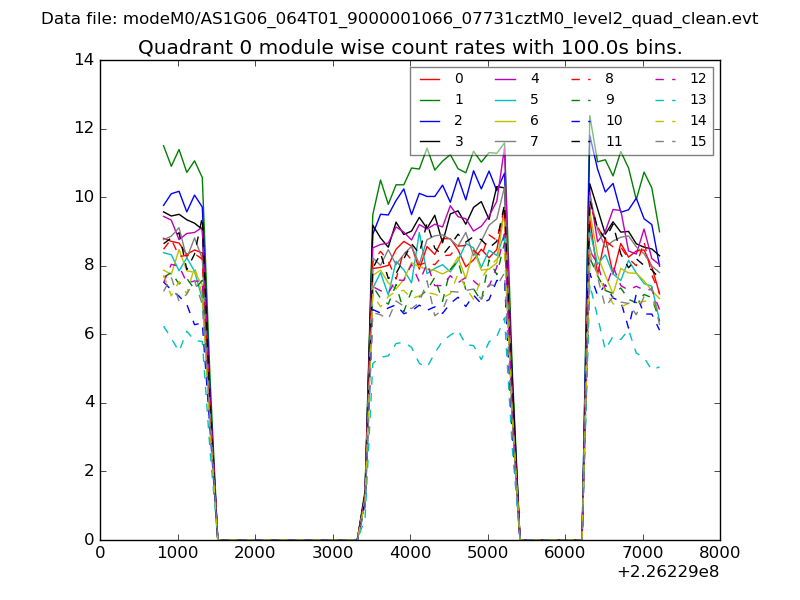

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

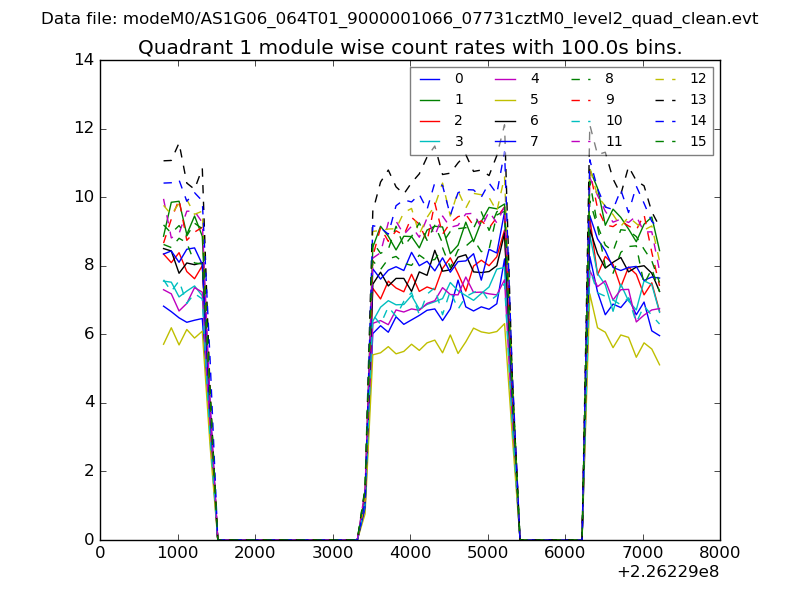

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

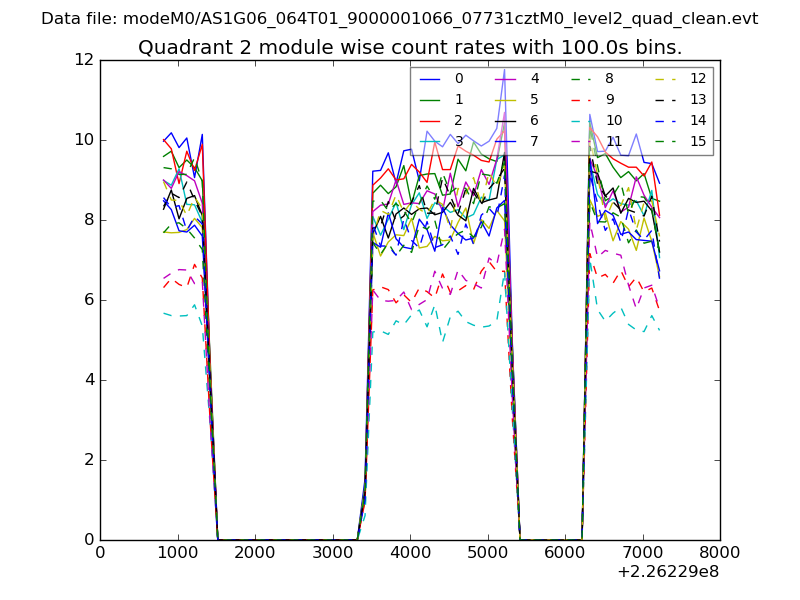

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

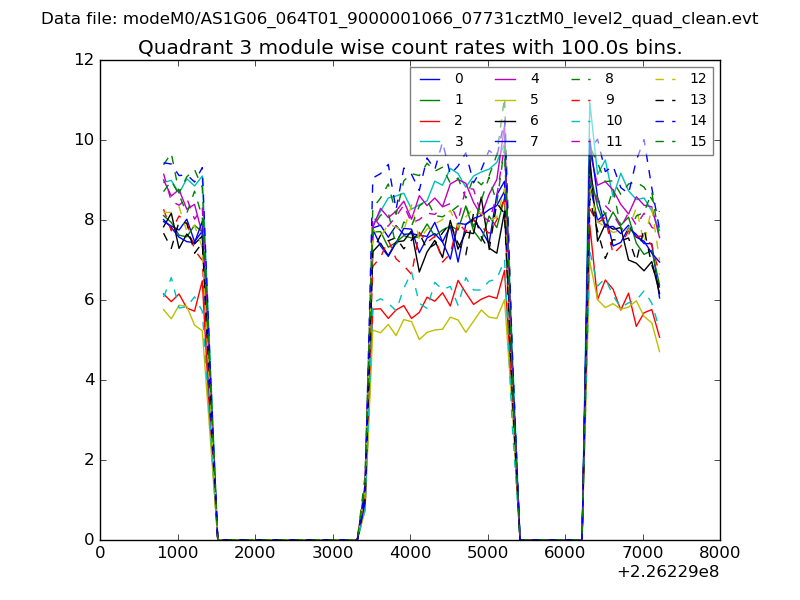

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

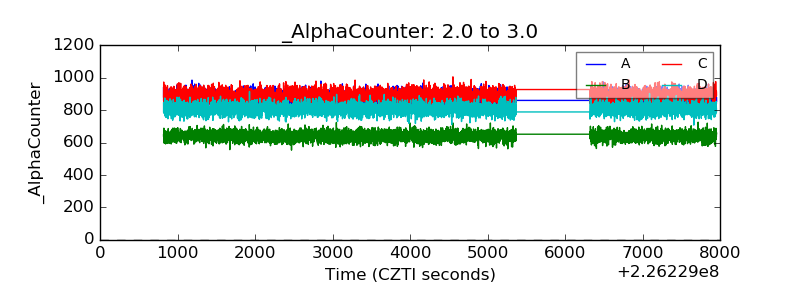

| Alpha Counter |  |
| _CPM_Rate |  |

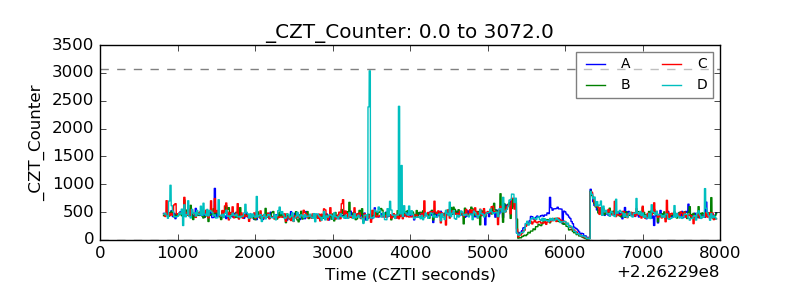

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

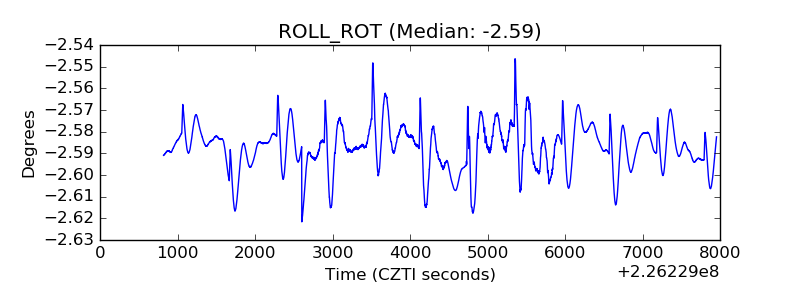

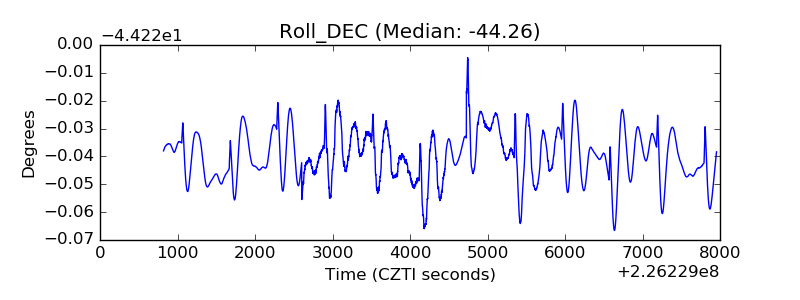

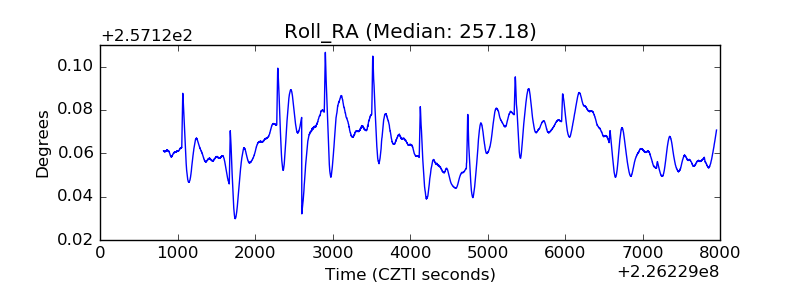

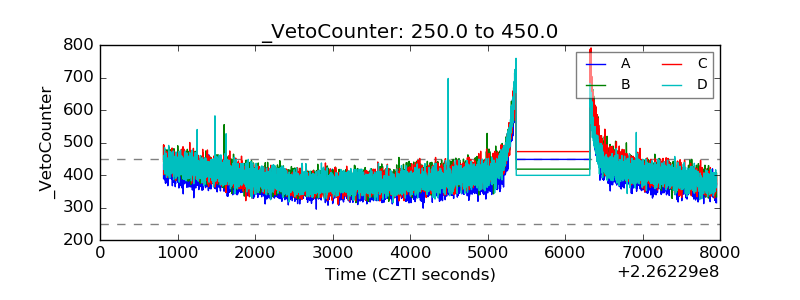

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
