| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_064T01_9000001066_07741cztM0_level2.evt | modeM0/AS1G06_064T01_9000001066_07741cztM0_level2_quad_clean.evt |
| Size (bytes) | 438,212,160 | 102,576,960 |
| Size | 417.9 MB | 97.8 MB |
| Events in quadrant A | 3,162,823 | 660,446 |
| Events in quadrant B | 3,339,091 | 680,690 |
| Events in quadrant C | 3,159,427 | 665,071 |
| Events in quadrant D | 3,147,722 | 626,672 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13989 | 3 |
| B | 0 | 14411 | 2 |
| C | 0 | 13902 | 2 |
| D | 0 | 14086 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6798 | 16 | 0.235363% |
| B | 6798 | 39 | 0.573698% |
| C | 6798 | 10 | 0.147102% |
| D | 6798 | 21 | 0.308914% |

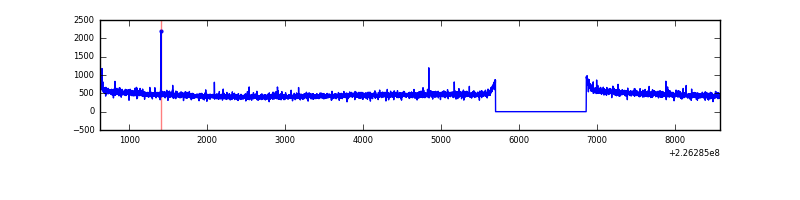

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7963 | 6799 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7963 | 6799 | 12 | 12 | 0.15% | 0.18% |  |
| C | 7963 | 6799 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7963 | 6799 | 13 | 13 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 17400 | 101.41 | 810 | 793 | 163.8 |
| A | 15 | 234 | 16072 | 93.3 | 810 | 793 | 163.8 |
| A | 0 | 226 | 8122 | 44.75 | 810 | 793 | 163.8 |
| B | 4 | 239 | 38648 | 241.62 | 824 | 803 | 156.6 |
| B | 4 | 81 | 37470 | 234.1 | 824 | 803 | 156.6 |
| B | 4 | 173 | 36407 | 227.32 | 824 | 803 | 156.6 |
| C | 12 | 4 | 10661 | 52.57 | 805 | 810 | 187.4 |
| C | 13 | 61 | 6217 | 28.85 | 805 | 810 | 187.4 |
| C | 9 | 243 | 4193 | 18.05 | 805 | 810 | 187.4 |
| D | 13 | 104 | 54904 | 279.17 | 795 | 772 | 193.9 |
| D | 8 | 230 | 26092 | 130.58 | 795 | 772 | 193.9 |
| D | 2 | 234 | 15938 | 78.21 | 795 | 772 | 193.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

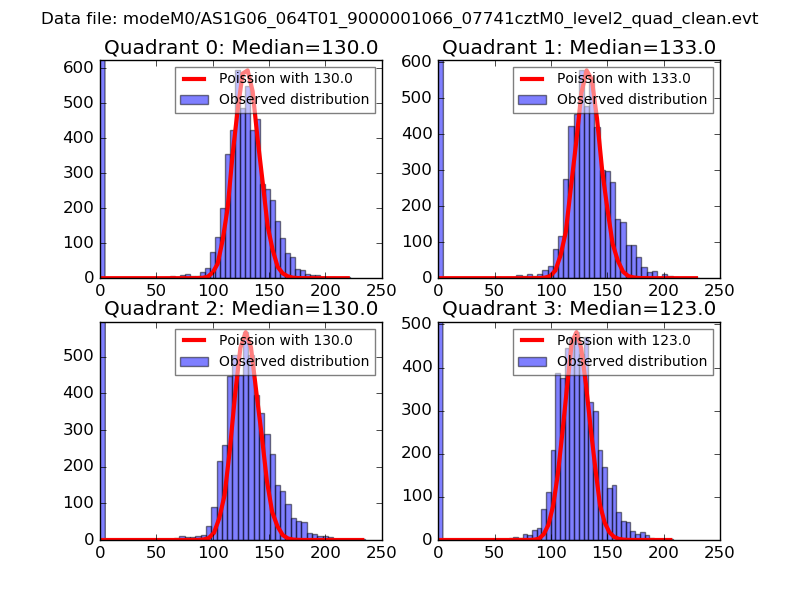

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

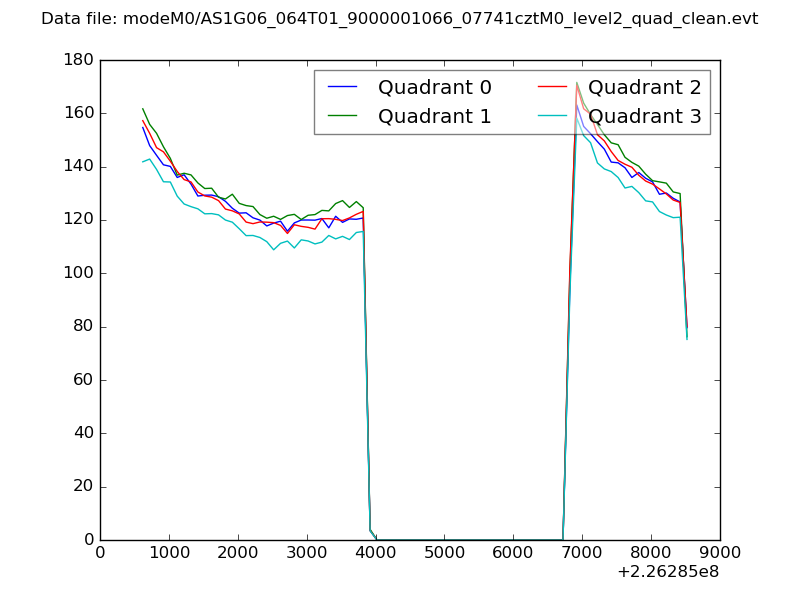

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

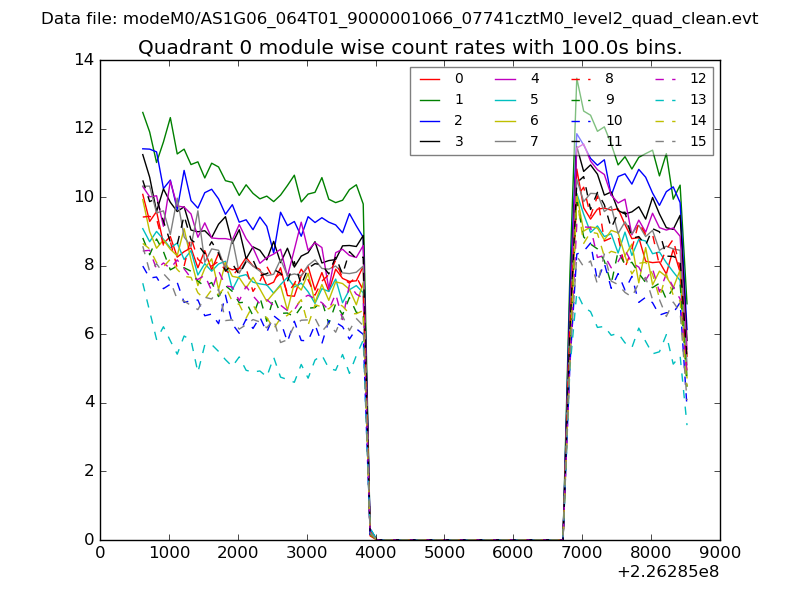

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

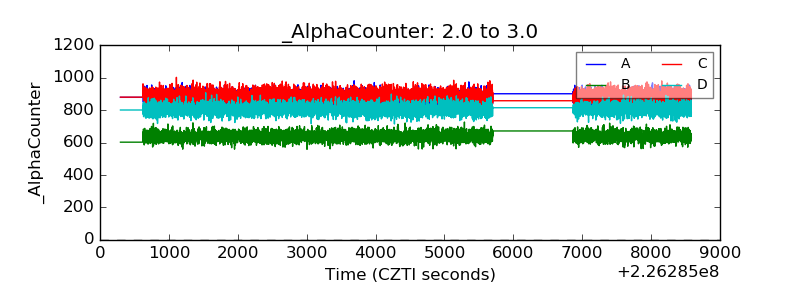

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

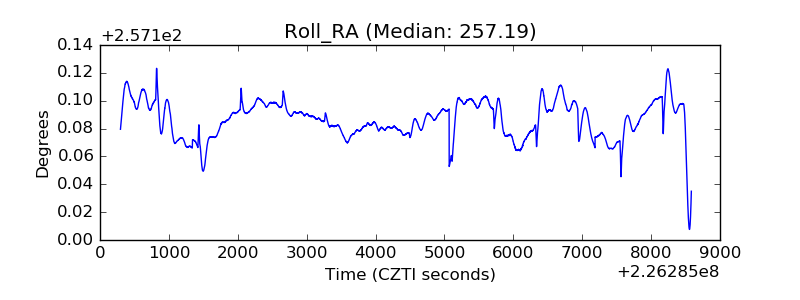

| _Roll_RA |  |
| Veto Counter |  |
