| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_064T01_9000001066_07744cztM0_level2.evt | modeM0/AS1G06_064T01_9000001066_07744cztM0_level2_quad_clean.evt |
| Size (bytes) | 395,694,720 | 85,023,360 |
| Size | 377.4 MB | 81.1 MB |
| Events in quadrant A | 2,857,848 | 545,140 |
| Events in quadrant B | 3,007,706 | 555,497 |
| Events in quadrant C | 2,830,970 | 545,120 |
| Events in quadrant D | 2,884,575 | 515,691 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12230 | 2 |
| B | 0 | 12709 | 1 |
| C | 0 | 12183 | 1 |
| D | 0 | 12490 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5923 | 60 | 1.013000% |
| B | 5923 | 81 | 1.367550% |
| C | 5923 | 35 | 0.590917% |
| D | 5923 | 47 | 0.793517% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7173 | 5924 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7173 | 5924 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7173 | 5924 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7173 | 5924 | 10 | 10 | 0.14% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 9171 | 56.71 | 736 | 721 | 149.0 |
| A | 8 | 15 | 9080 | 56.1 | 736 | 721 | 149.0 |
| A | 0 | 226 | 7077 | 42.66 | 736 | 721 | 149.0 |
| B | 0 | 219 | 81657 | 582.78 | 734 | 717 | 138.9 |
| B | 4 | 239 | 34830 | 245.62 | 734 | 717 | 138.9 |
| B | 4 | 81 | 33245 | 234.21 | 734 | 717 | 138.9 |
| C | 13 | 61 | 5376 | 27.82 | 724 | 730 | 167.0 |
| C | 12 | 4 | 3451 | 16.29 | 724 | 730 | 167.0 |
| C | 8 | 222 | 2355 | 9.73 | 724 | 730 | 167.0 |
| D | 2 | 152 | 83198 | 469.67 | 724 | 703 | 175.6 |
| D | 7 | 55 | 32863 | 183.1 | 724 | 703 | 175.6 |
| D | 2 | 234 | 14620 | 79.23 | 724 | 703 | 175.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

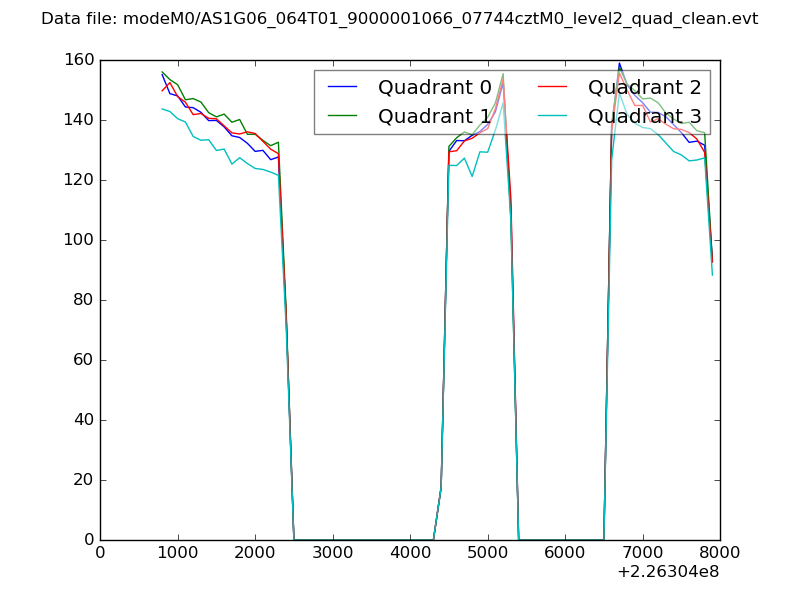

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

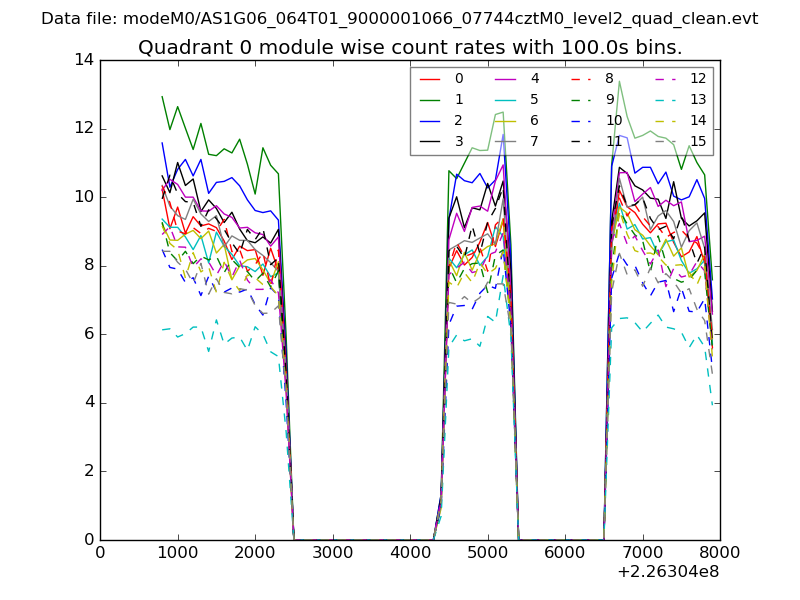

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

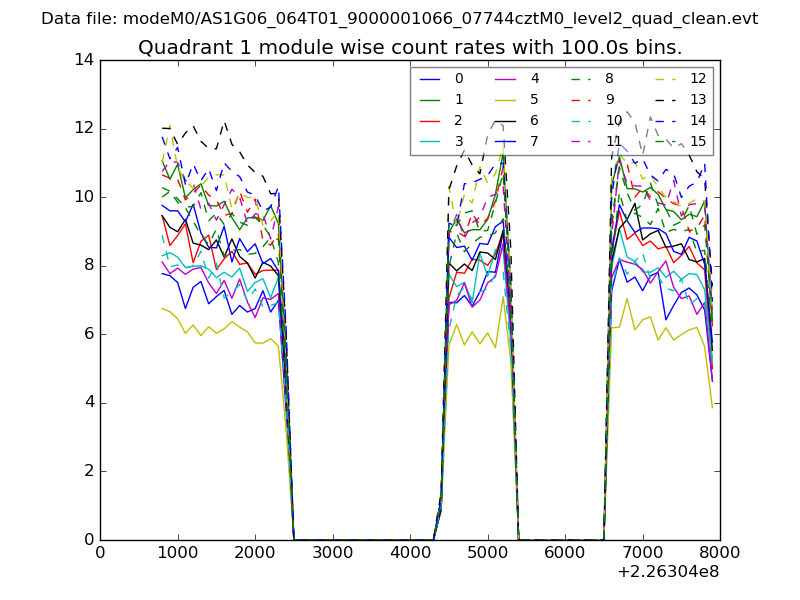

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

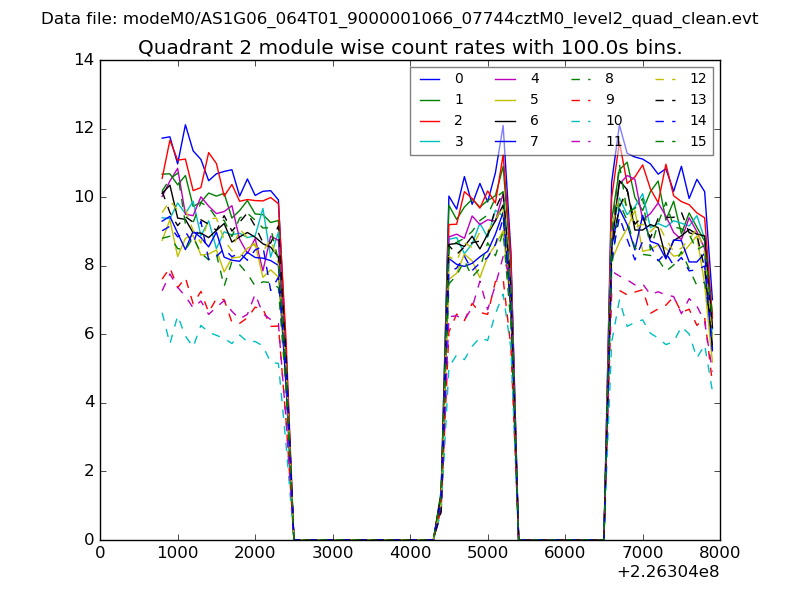

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

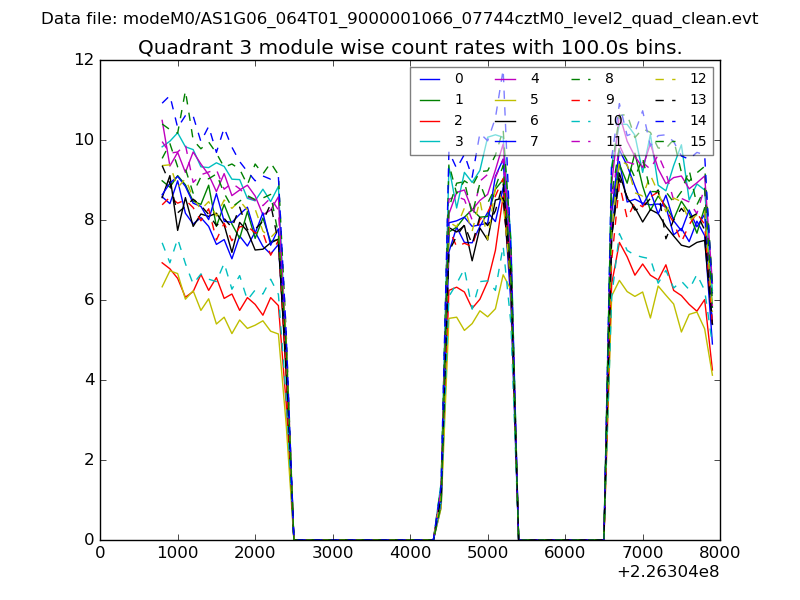

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

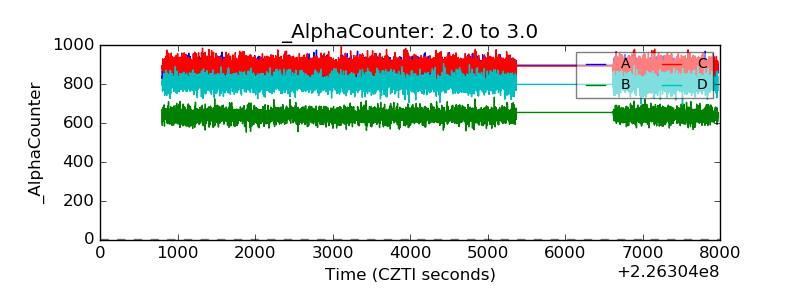

| Alpha Counter |  |

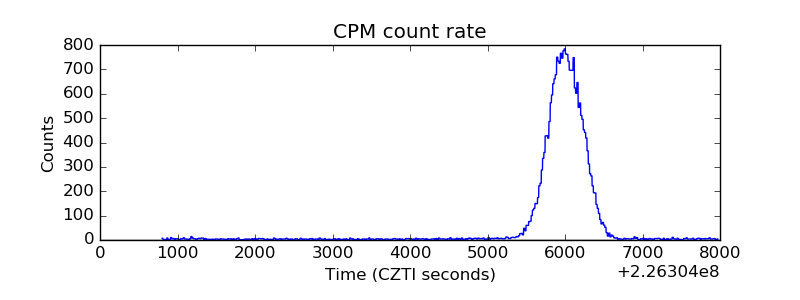

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

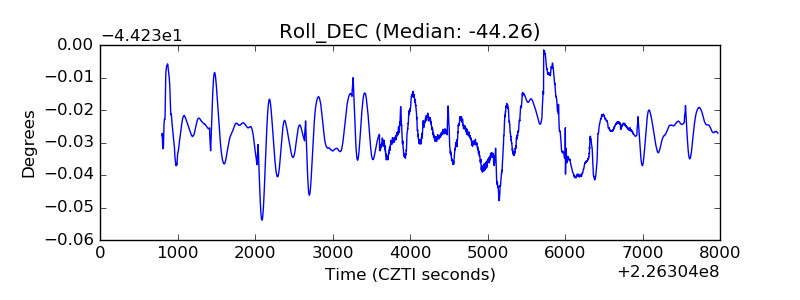

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
