| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_064T01_9000001066_07745cztM0_level2.evt | modeM0/AS1G06_064T01_9000001066_07745cztM0_level2_quad_clean.evt |
| Size (bytes) | 399,510,720 | 85,924,800 |
| Size | 381.0 MB | 81.9 MB |
| Events in quadrant A | 2,918,649 | 547,922 |
| Events in quadrant B | 3,030,644 | 558,882 |
| Events in quadrant C | 2,870,266 | 544,068 |
| Events in quadrant D | 2,859,832 | 520,460 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12647 | 2 |
| B | 0 | 12861 | 1 |
| C | 0 | 12597 | 1 |
| D | 0 | 12681 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6167 | 55 | 0.891844% |
| B | 6167 | 51 | 0.826982% |
| C | 6167 | 43 | 0.697260% |
| D | 6167 | 41 | 0.664829% |

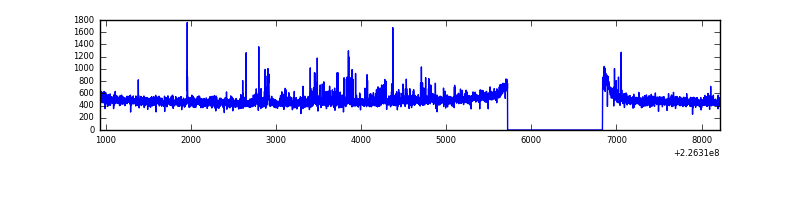

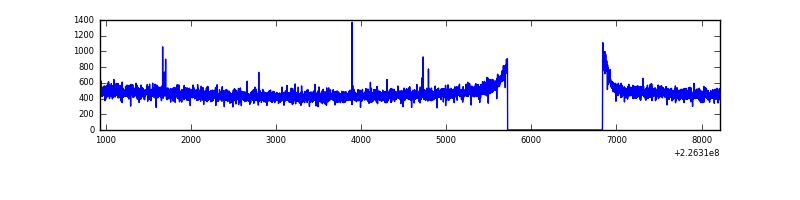

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7282 | 6168 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7282 | 6168 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7282 | 6168 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7282 | 6168 | 2 | 2 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 9785 | 59.53 | 749 | 732 | 152.1 |
| A | 15 | 234 | 9343 | 56.62 | 749 | 732 | 152.1 |
| A | 13 | 248 | 8443 | 50.7 | 749 | 732 | 152.1 |
| B | 4 | 239 | 49199 | 340.38 | 749 | 731 | 142.4 |
| B | 4 | 170 | 23638 | 160.87 | 749 | 731 | 142.4 |
| B | 4 | 81 | 18689 | 126.11 | 749 | 731 | 142.4 |
| C | 13 | 61 | 5510 | 28.22 | 734 | 738 | 169.1 |
| C | 12 | 4 | 3513 | 16.41 | 734 | 738 | 169.1 |
| C | 8 | 222 | 2318 | 9.34 | 734 | 738 | 169.1 |
| D | 13 | 104 | 20087 | 107.63 | 737 | 715 | 180.0 |
| D | 2 | 234 | 16432 | 87.33 | 737 | 715 | 180.0 |
| D | 7 | 55 | 12842 | 67.38 | 737 | 715 | 180.0 |

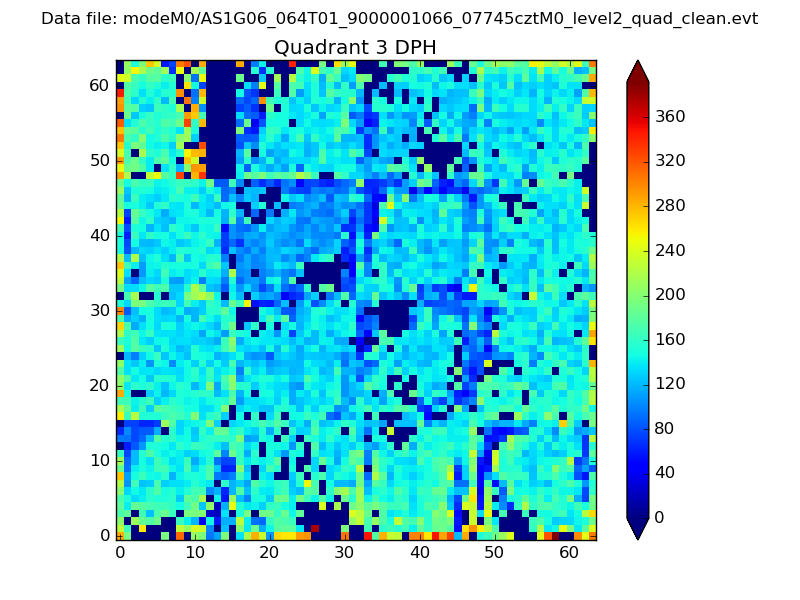

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

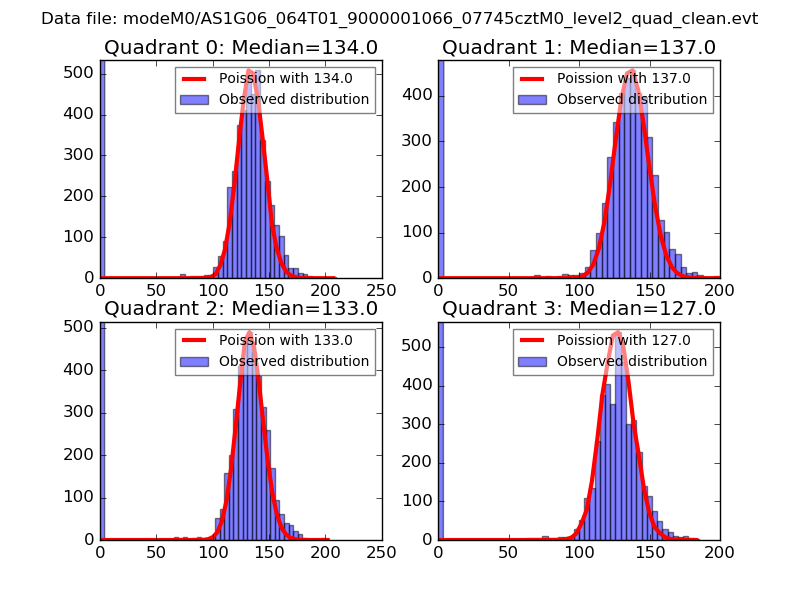

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

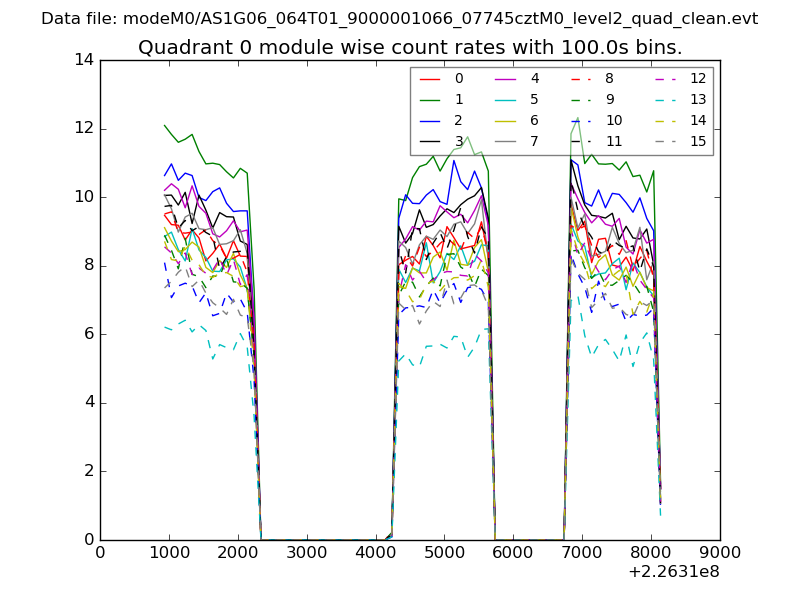

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

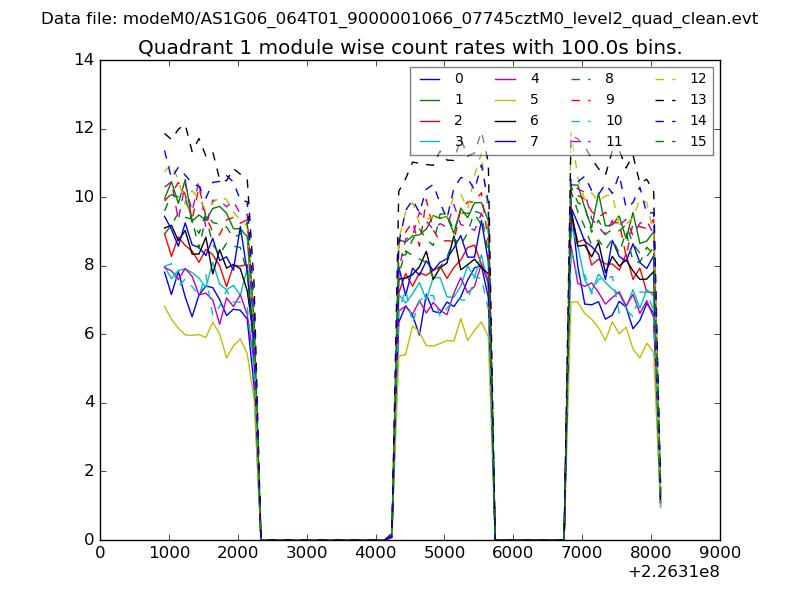

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

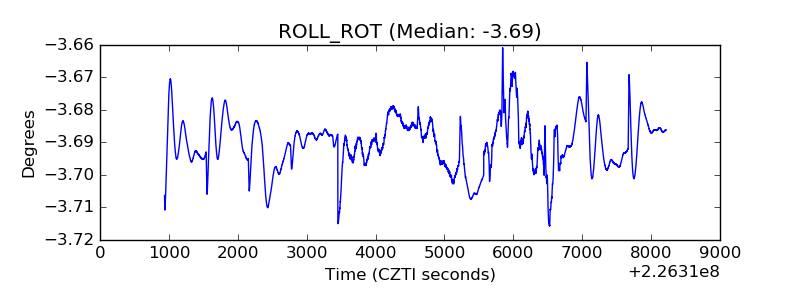

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

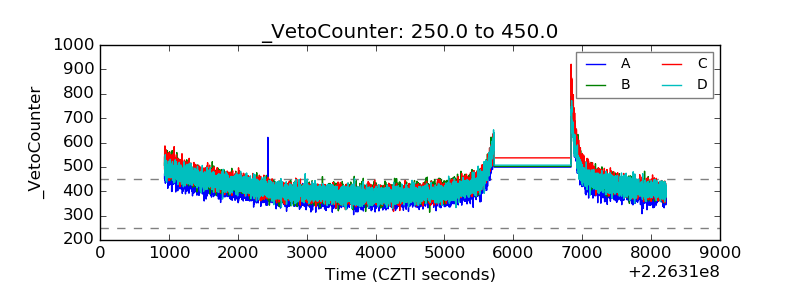

| Veto Counter |  |
