| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_064T01_9000001066_07746cztM0_level2.evt | modeM0/AS1G06_064T01_9000001066_07746cztM0_level2_quad_clean.evt |
| Size (bytes) | 443,396,160 | 85,055,040 |
| Size | 422.9 MB | 81.1 MB |
| Events in quadrant A | 3,238,380 | 531,487 |
| Events in quadrant B | 3,332,785 | 535,445 |
| Events in quadrant C | 3,144,456 | 522,826 |
| Events in quadrant D | 3,239,466 | 501,472 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14377 | 2 |
| B | 0 | 14438 | 1 |
| C | 0 | 14202 | 1 |
| D | 0 | 14495 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6957 | 128 | 1.839874% |
| B | 6957 | 131 | 1.882996% |
| C | 6957 | 102 | 1.466149% |
| D | 6957 | 126 | 1.811125% |

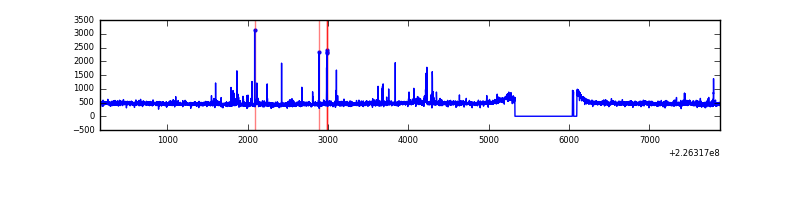

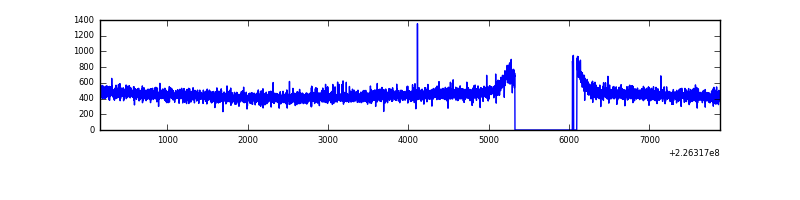

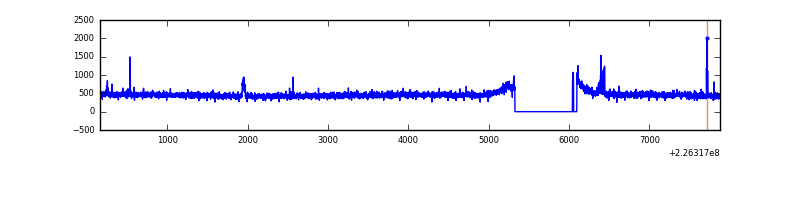

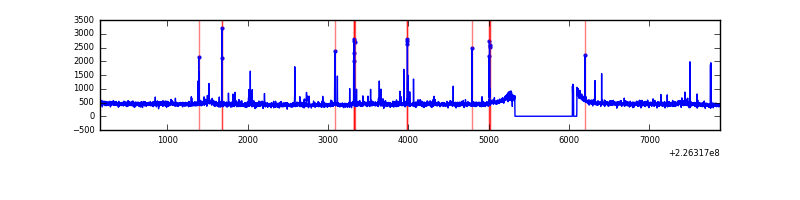

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7712 | 6957 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7712 | 6957 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7712 | 6958 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7712 | 6958 | 18 | 18 | 0.23% | 0.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 40369 | 235.98 | 824 | 805 | 167.7 |
| A | 15 | 234 | 16778 | 95.27 | 824 | 805 | 167.7 |
| A | 0 | 226 | 7629 | 40.7 | 824 | 805 | 167.7 |
| B | 4 | 239 | 68349 | 426.48 | 825 | 805 | 158.4 |
| B | 0 | 214 | 16453 | 98.8 | 825 | 805 | 158.4 |
| B | 12 | 111 | 14981 | 89.51 | 825 | 805 | 158.4 |
| C | 13 | 61 | 6113 | 28.51 | 805 | 809 | 186.0 |
| C | 8 | 222 | 2476 | 8.96 | 805 | 809 | 186.0 |
| C | 12 | 4 | 2217 | 7.57 | 805 | 809 | 186.0 |
| D | 2 | 16 | 28759 | 142.6 | 805 | 781 | 196.2 |
| D | 13 | 104 | 26877 | 133.0 | 805 | 781 | 196.2 |
| D | 2 | 234 | 23324 | 114.89 | 805 | 781 | 196.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

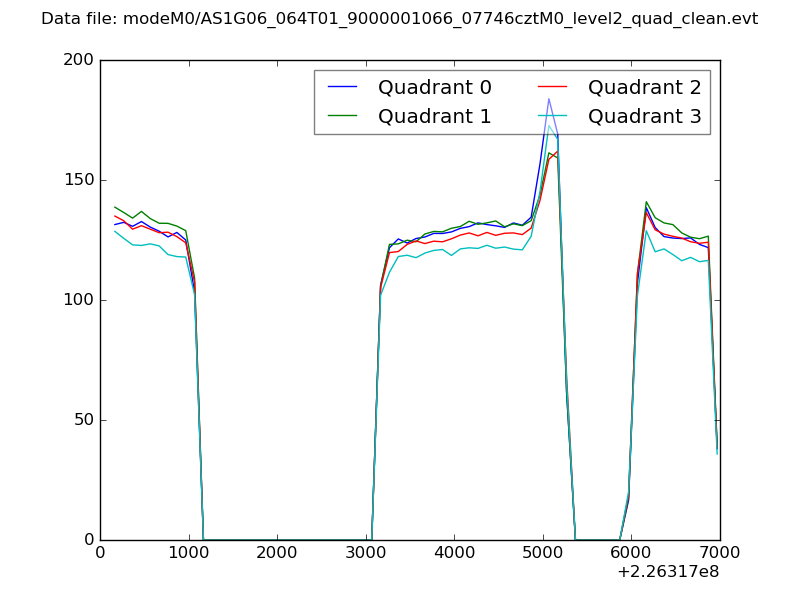

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

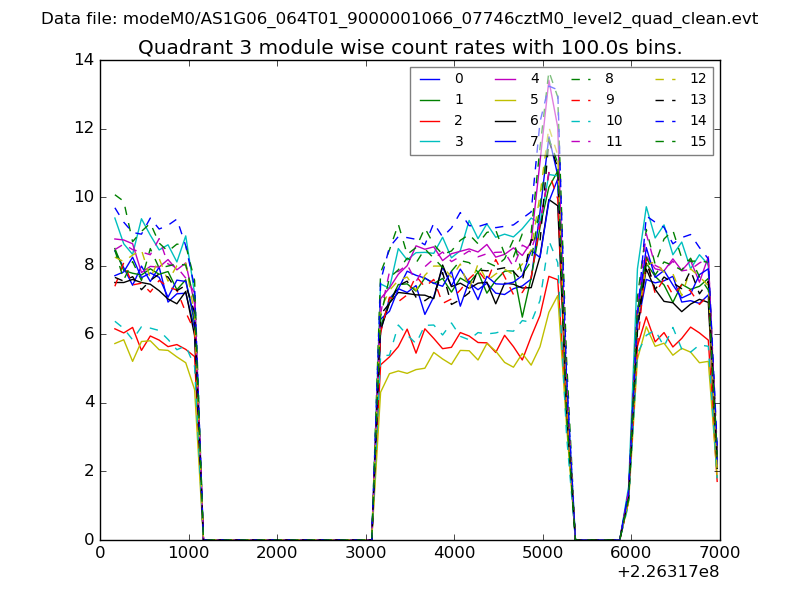

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

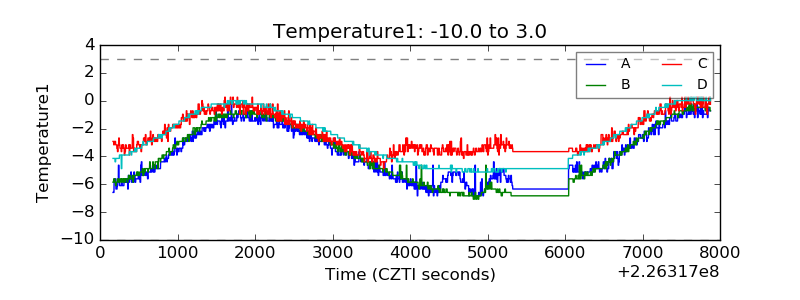

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

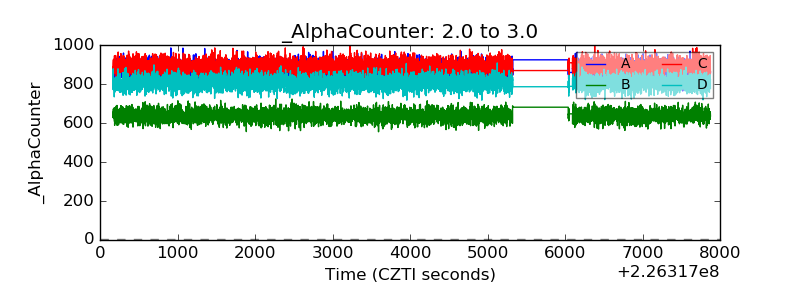

| Alpha Counter |  |

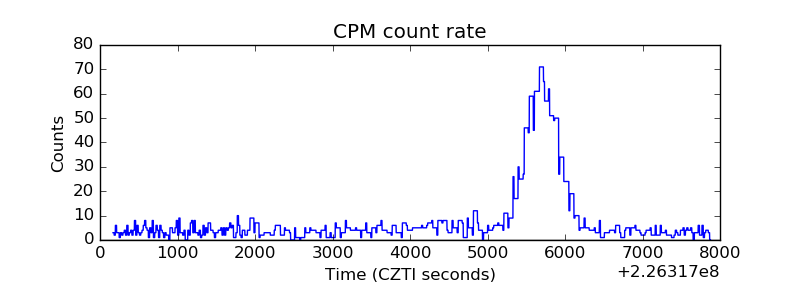

| _CPM_Rate |  |

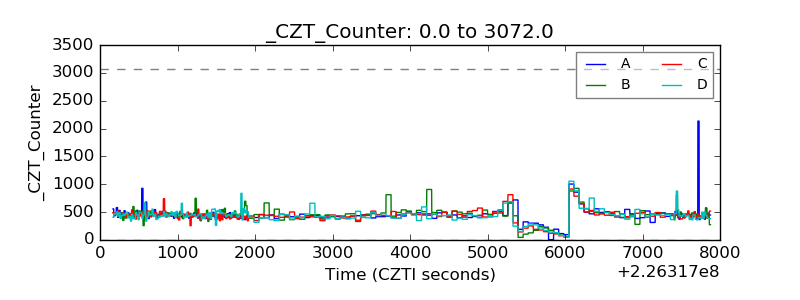

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

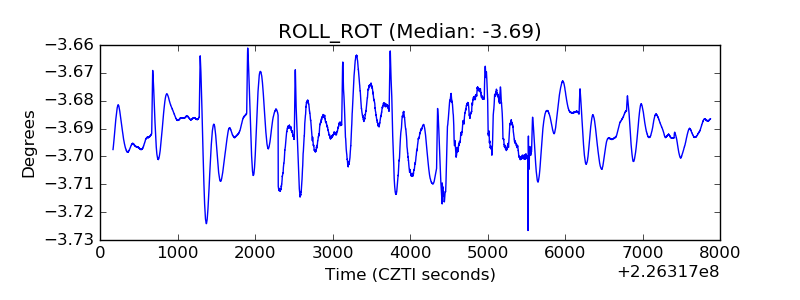

| _ROLL_ROT |  |

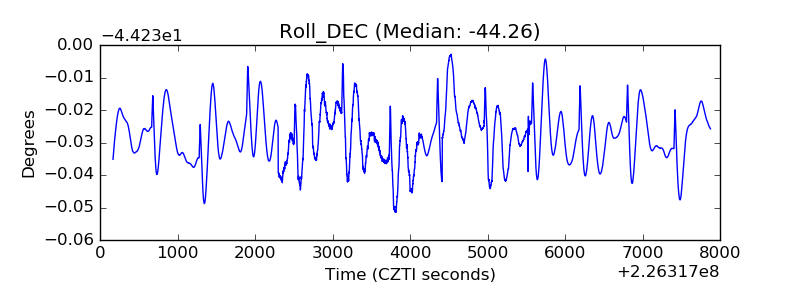

| _Roll_DEC |  |

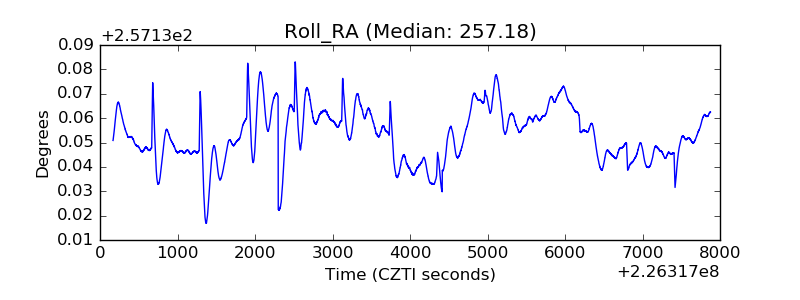

| _Roll_RA |  |
| Veto Counter |  |
