| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_064T01_9000001066_07752cztM0_level2.evt | modeM0/AS1G06_064T01_9000001066_07752cztM0_level2_quad_clean.evt |
| Size (bytes) | 791,521,920 | 162,720,000 |
| Size | 754.9 MB | 155.2 MB |
| Events in quadrant A | 5,574,169 | 1,051,104 |
| Events in quadrant B | 5,721,825 | 1,061,556 |
| Events in quadrant C | 5,165,961 | 1,034,833 |
| Events in quadrant D | 6,714,754 | 969,856 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 236 | 0 |
| B | 0 | 236 | 0 |
| C | 0 | 236 | 0 |
| D | 0 | 236 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24660 | 3 |
| B | 0 | 25000 | 2 |
| C | 0 | 23684 | 2 |
| D | 0 | 28615 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11733 | 153 | 1.304014% |
| B | 11733 | 95 | 0.809682% |
| C | 11733 | 28 | 0.238643% |
| D | 11733 | 442 | 3.767152% |

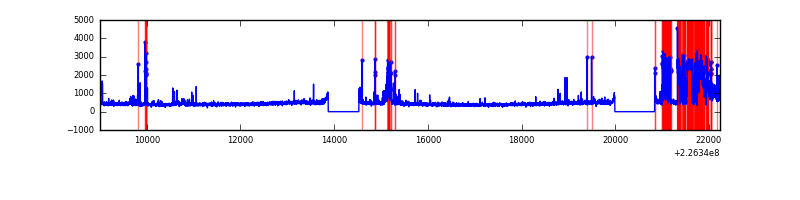

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13238 | 11734 | 67 | 67 | 0.51% | 0.57% |  |
| B | 13238 | 11733 | 10 | 10 | 0.08% | 0.09% |  |
| C | 13238 | 11735 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13238 | 11735 | 403 | 403 | 3.04% | 3.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 312029 | 1133.35 | 1351 | 1322 | 274.1 |
| A | 15 | 239 | 31268 | 109.23 | 1351 | 1322 | 274.1 |
| A | 0 | 226 | 13018 | 42.66 | 1351 | 1322 | 274.1 |
| B | 4 | 239 | 97655 | 368.69 | 1370 | 1337 | 261.2 |
| B | 0 | 229 | 95962 | 362.21 | 1370 | 1337 | 261.2 |
| B | 15 | 204 | 74024 | 278.23 | 1370 | 1337 | 261.2 |
| C | 12 | 4 | 10613 | 30.4 | 1319 | 1327 | 305.4 |
| C | 13 | 61 | 10207 | 29.07 | 1319 | 1327 | 305.4 |
| C | 8 | 222 | 6844 | 18.06 | 1319 | 1327 | 305.4 |
| D | 12 | 221 | 1366324 | 4291.28 | 1295 | 1255 | 318.1 |
| D | 2 | 16 | 203324 | 635.23 | 1295 | 1255 | 318.1 |
| D | 13 | 137 | 47606 | 145.71 | 1295 | 1255 | 318.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

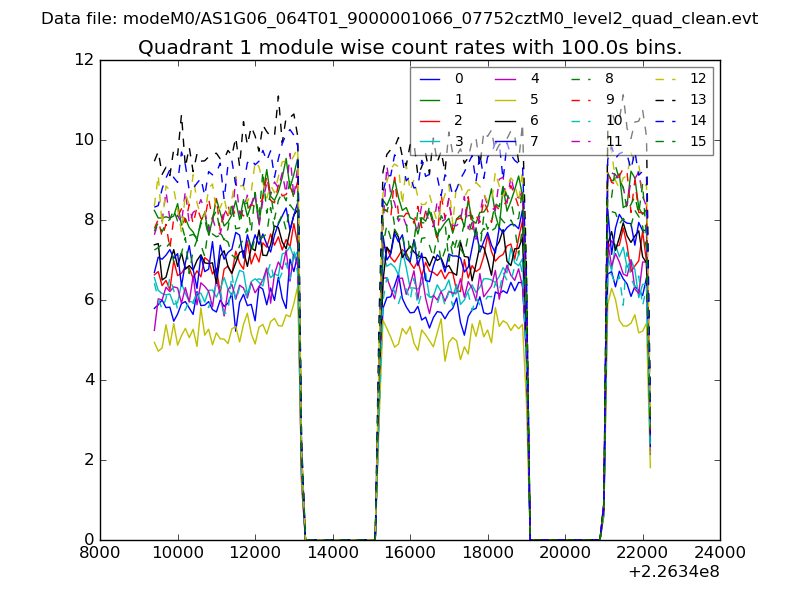

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

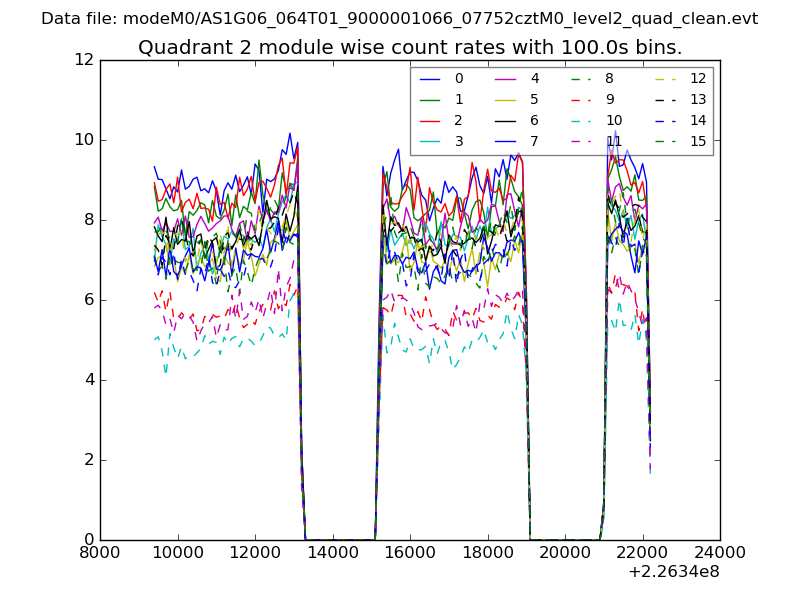

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

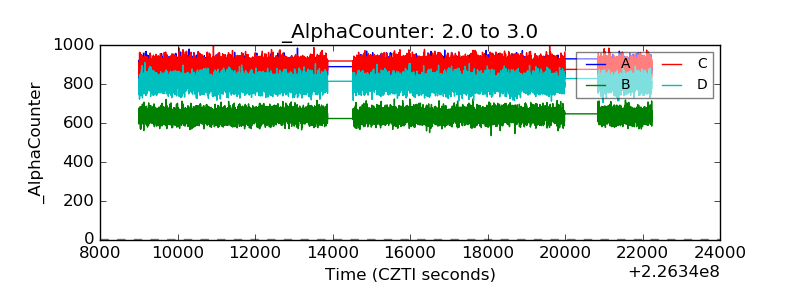

| Alpha Counter |  |

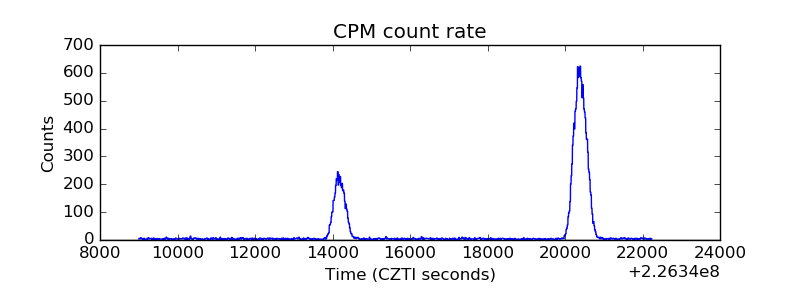

| _CPM_Rate |  |

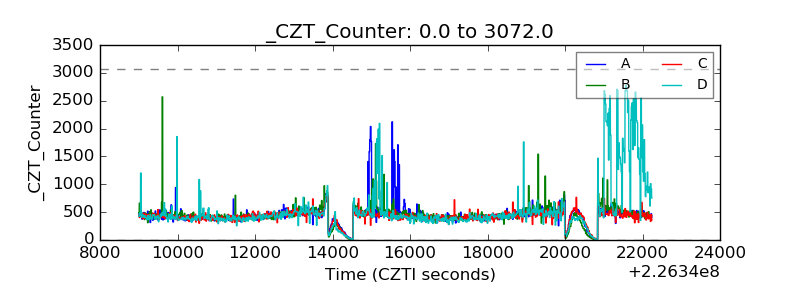

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

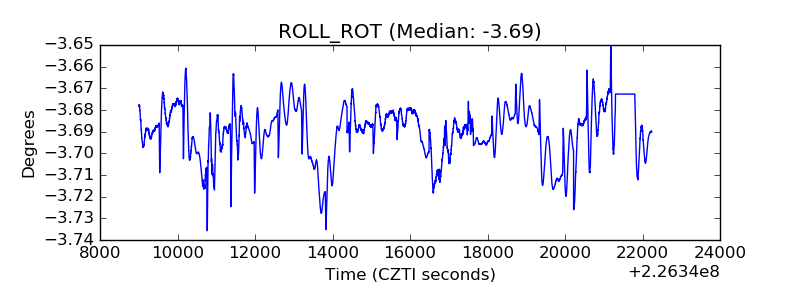

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

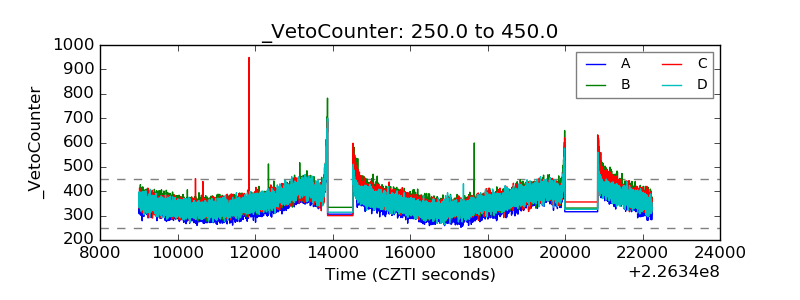

| Veto Counter |  |
