| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_064T01_9000001066_07757cztM0_level2.evt | modeM0/AS1G06_064T01_9000001066_07757cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,836,160 | 84,574,080 |
| Size | 389.9 MB | 80.7 MB |
| Events in quadrant A | 2,769,338 | 540,592 |
| Events in quadrant B | 3,039,803 | 551,514 |
| Events in quadrant C | 2,799,850 | 546,633 |
| Events in quadrant D | 3,371,849 | 510,747 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12038 | 2 |
| B | 0 | 12718 | 1 |
| C | 0 | 12049 | 1 |
| D | 0 | 13944 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5890 | 17 | 0.288625% |
| B | 5890 | 80 | 1.358234% |
| C | 5890 | 21 | 0.356537% |
| D | 5890 | 221 | 3.752122% |

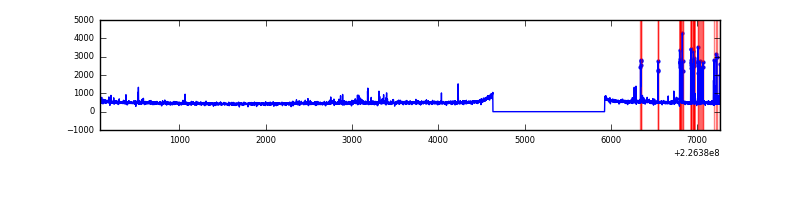

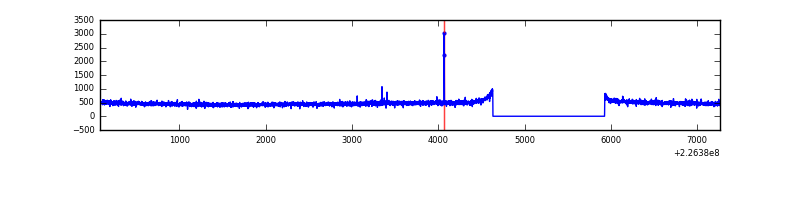

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7185 | 5891 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7185 | 5891 | 52 | 52 | 0.72% | 0.88% |  |
| C | 7185 | 5891 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7185 | 5891 | 182 | 182 | 2.53% | 3.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 112 | 6687 | 41.24 | 718 | 702 | 145.1 |
| A | 0 | 226 | 6645 | 40.95 | 718 | 702 | 145.1 |
| A | 12 | 194 | 6268 | 38.35 | 718 | 702 | 145.1 |
| B | 4 | 173 | 190747 | 1404.97 | 724 | 707 | 135.3 |
| B | 12 | 111 | 12739 | 88.95 | 724 | 707 | 135.3 |
| B | 11 | 111 | 10171 | 69.97 | 724 | 707 | 135.3 |
| C | 13 | 61 | 5466 | 28.7 | 715 | 719 | 165.4 |
| C | 8 | 222 | 4327 | 21.81 | 715 | 719 | 165.4 |
| C | 1 | 16 | 3840 | 18.87 | 715 | 719 | 165.4 |
| D | 12 | 221 | 591107 | 3473.6 | 699 | 677 | 170.0 |
| D | 12 | 233 | 56842 | 330.43 | 699 | 677 | 170.0 |
| D | 13 | 104 | 27061 | 155.22 | 699 | 677 | 170.0 |

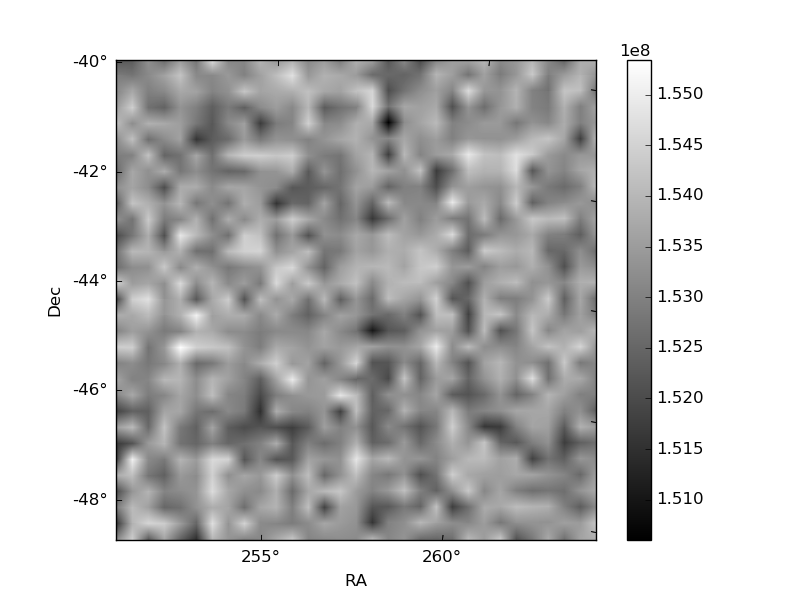

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

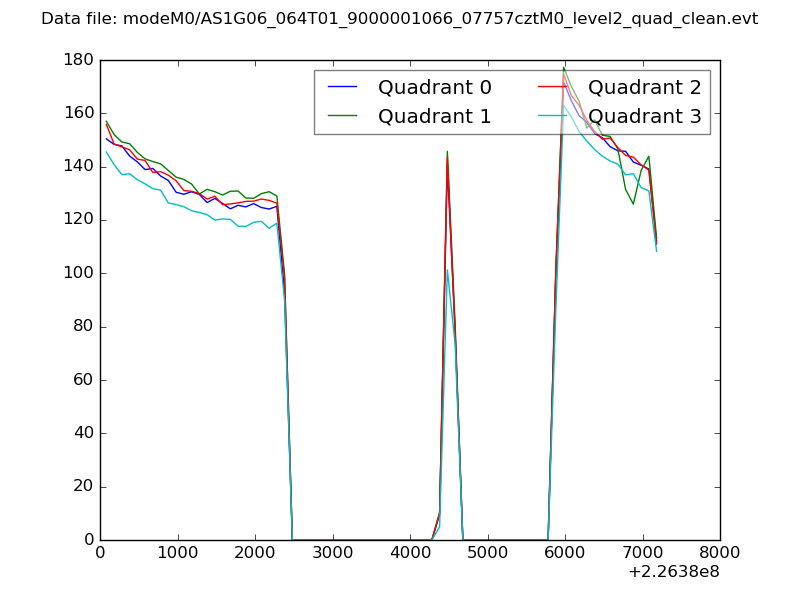

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

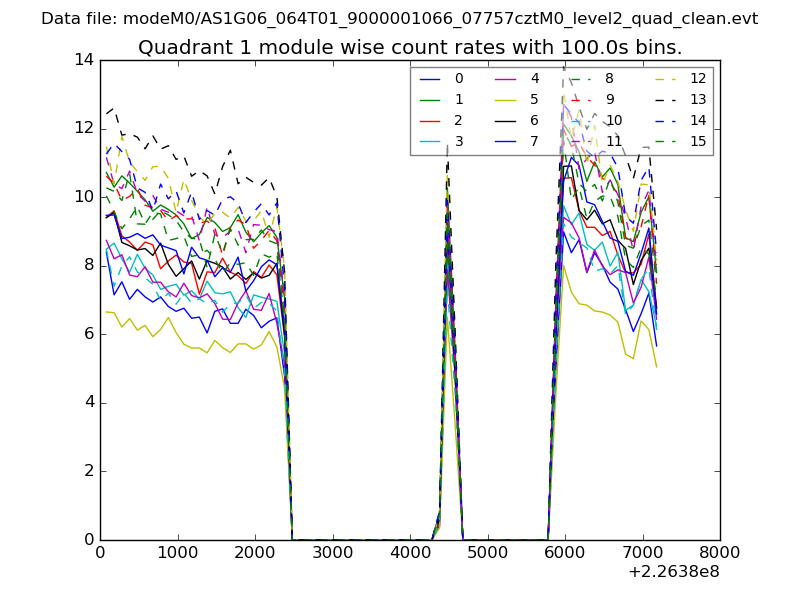

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

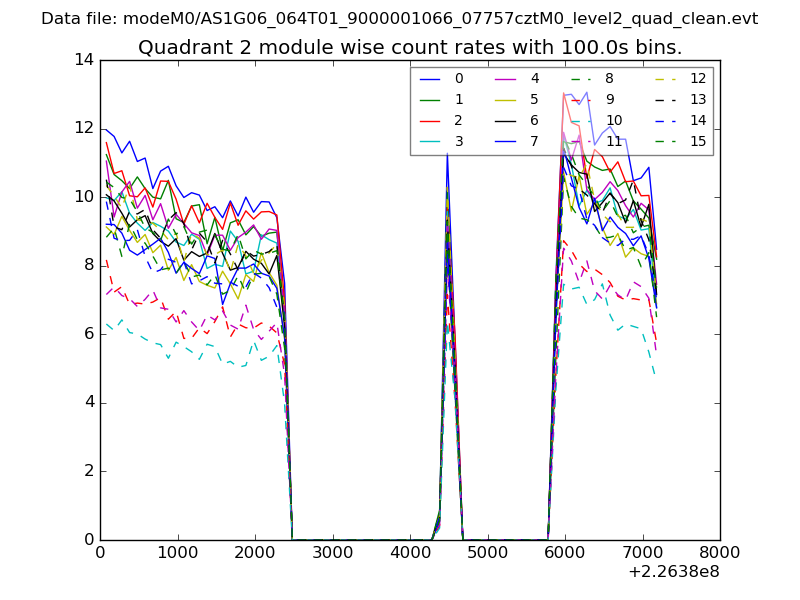

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

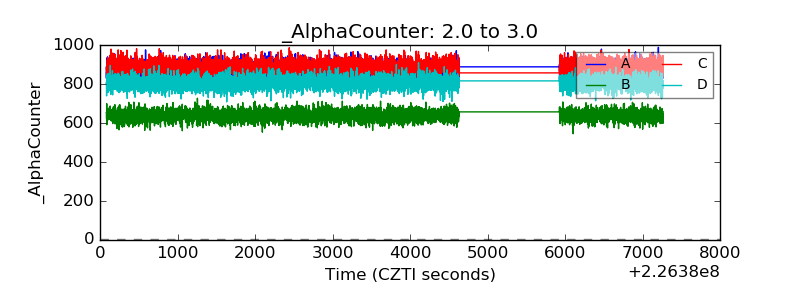

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

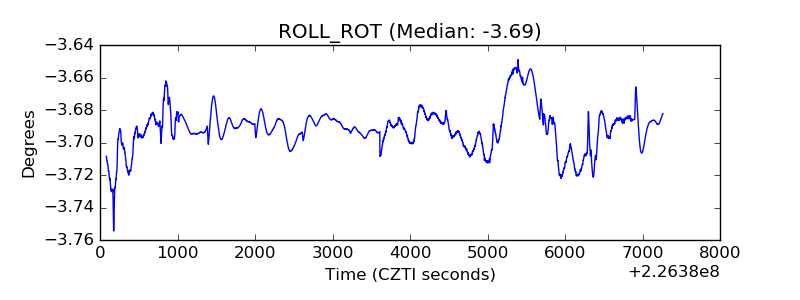

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
