| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_132T01_9000001068_07773cztM0_level2.evt | modeM0/AS1A02_132T01_9000001068_07773cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,356,800 | 94,481,280 |
| Size | 442.8 MB | 90.1 MB |
| Events in quadrant A | 3,191,547 | 602,192 |
| Events in quadrant B | 3,386,008 | 617,525 |
| Events in quadrant C | 3,182,105 | 610,032 |
| Events in quadrant D | 3,853,410 | 569,681 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13728 | 3 |
| B | 0 | 14232 | 2 |
| C | 0 | 13726 | 2 |
| D | 0 | 15866 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6626 | 62 | 0.935708% |
| B | 6626 | 93 | 1.403562% |
| C | 6626 | 23 | 0.347117% |
| D | 6626 | 107 | 1.614851% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7861 | 6626 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7861 | 6626 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7861 | 6627 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7861 | 6626 | 55 | 55 | 0.70% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7787 | 41.15 | 828 | 811 | 169.5 |
| A | 12 | 194 | 7307 | 38.32 | 828 | 811 | 169.5 |
| A | 2 | 79 | 6467 | 33.37 | 828 | 811 | 169.5 |
| B | 4 | 173 | 97536 | 613.02 | 835 | 817 | 157.8 |
| B | 12 | 111 | 15435 | 92.65 | 835 | 817 | 157.8 |
| B | 4 | 239 | 12336 | 73.01 | 835 | 817 | 157.8 |
| C | 1 | 16 | 9828 | 47.75 | 812 | 817 | 188.7 |
| C | 13 | 61 | 6196 | 28.51 | 812 | 817 | 188.7 |
| C | 14 | 67 | 3867 | 16.16 | 812 | 817 | 188.7 |
| D | 1 | 52 | 515421 | 2617.38 | 806 | 784 | 196.6 |
| D | 2 | 14 | 82042 | 413.27 | 806 | 784 | 196.6 |
| D | 2 | 152 | 80696 | 406.42 | 806 | 784 | 196.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

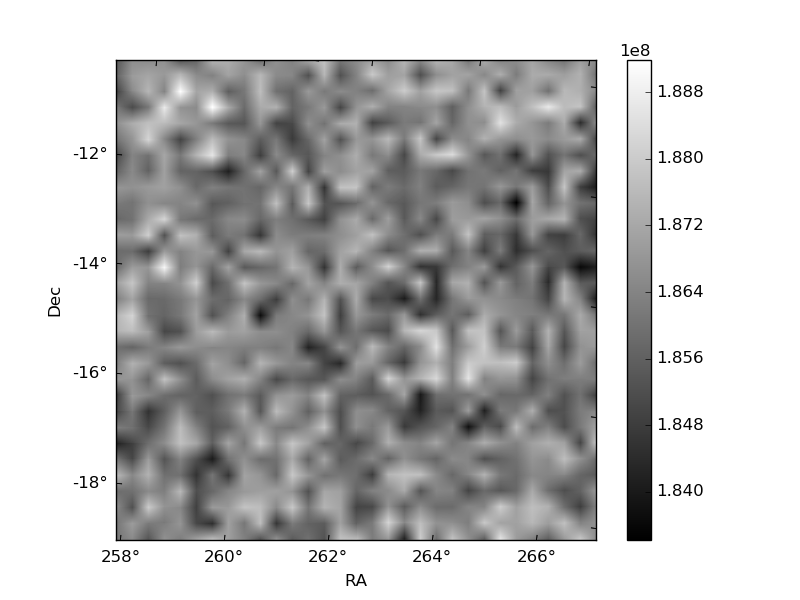

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

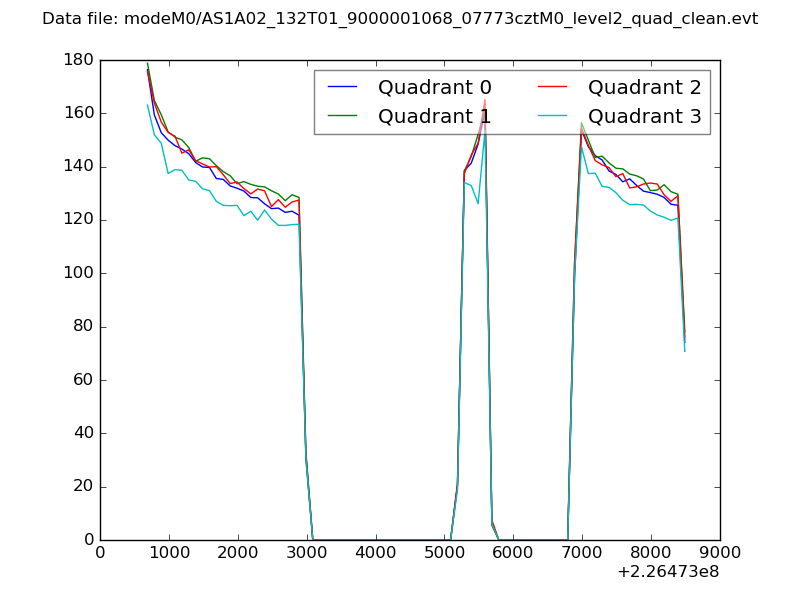

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

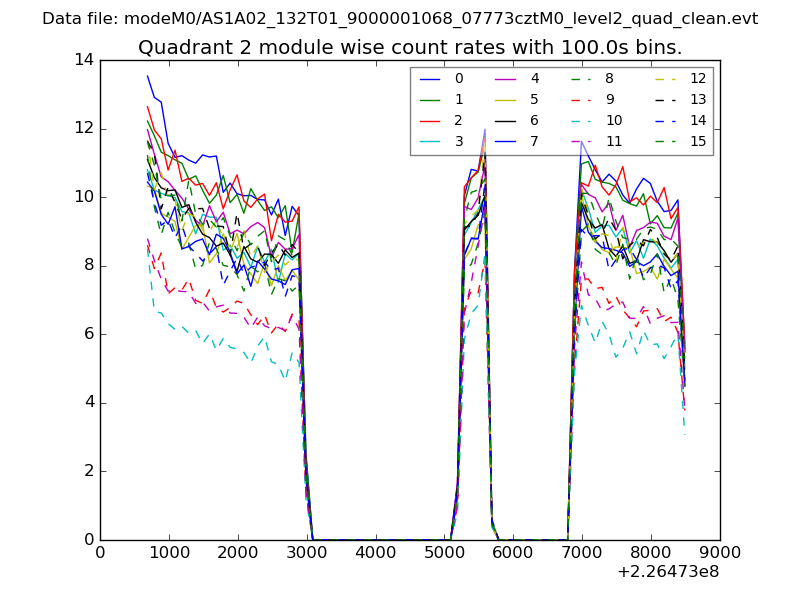

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

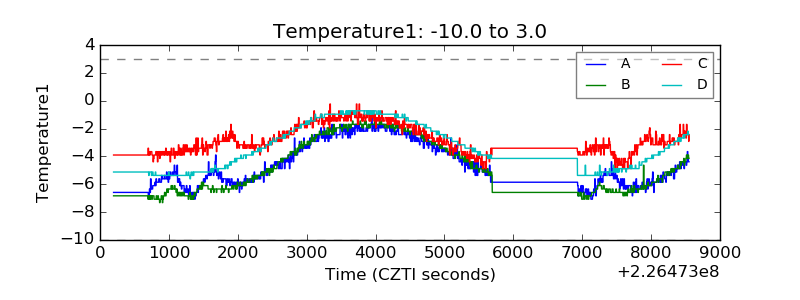

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

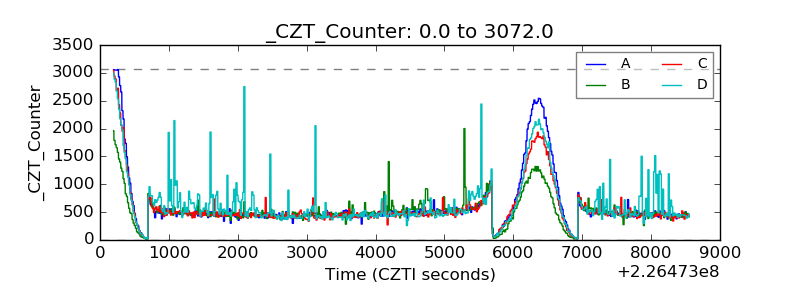

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

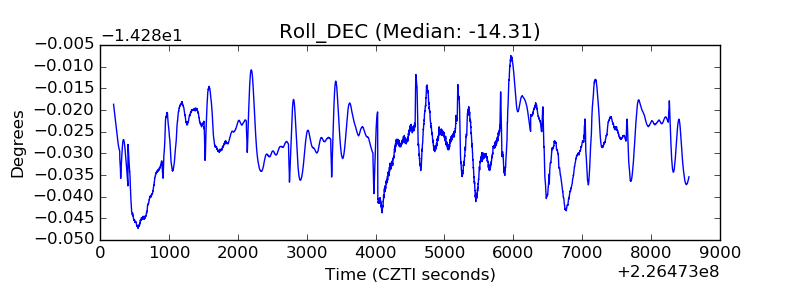

| _Roll_DEC |  |

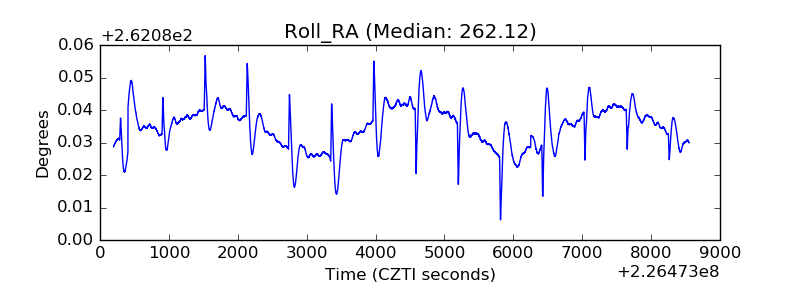

| _Roll_RA |  |

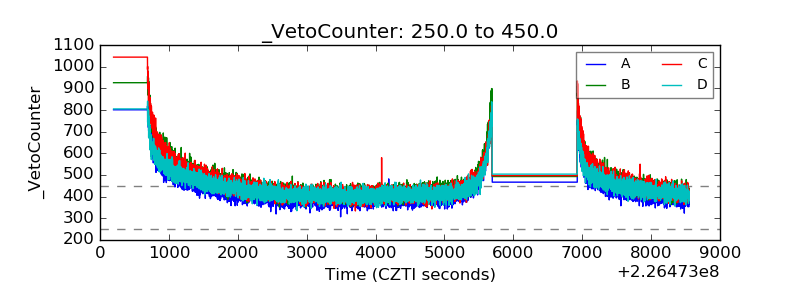

| Veto Counter |  |
