| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_132T01_9000001068_07776cztM0_level2.evt | modeM0/AS1A02_132T01_9000001068_07776cztM0_level2_quad_clean.evt |
| Size (bytes) | 540,696,960 | 90,702,720 |
| Size | 515.6 MB | 86.5 MB |
| Events in quadrant A | 3,652,042 | 555,421 |
| Events in quadrant B | 3,835,212 | 569,893 |
| Events in quadrant C | 3,628,142 | 566,850 |
| Events in quadrant D | 4,731,204 | 513,118 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16107 | 4 |
| B | 0 | 16402 | 3 |
| C | 0 | 16148 | 3 |
| D | 0 | 19396 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7776 | 207 | 2.662037% |
| B | 7776 | 213 | 2.739198% |
| C | 7776 | 145 | 1.864712% |
| D | 7776 | 496 | 6.378601% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8076 | 7776 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8076 | 7776 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8076 | 7776 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8076 | 7776 | 238 | 238 | 2.95% | 3.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 11158 | 52.36 | 944 | 920 | 195.5 |
| A | 0 | 226 | 9136 | 42.02 | 944 | 920 | 195.5 |
| A | 12 | 194 | 8427 | 38.39 | 944 | 920 | 195.5 |
| B | 4 | 81 | 37889 | 199.6 | 951 | 925 | 185.2 |
| B | 0 | 214 | 32858 | 172.44 | 951 | 925 | 185.2 |
| B | 4 | 239 | 23338 | 121.03 | 951 | 925 | 185.2 |
| C | 12 | 4 | 10860 | 45.58 | 926 | 928 | 217.9 |
| C | 13 | 61 | 7098 | 28.31 | 926 | 928 | 217.9 |
| C | 9 | 243 | 3341 | 11.07 | 926 | 928 | 217.9 |
| D | 1 | 52 | 983051 | 4351.28 | 908 | 878 | 225.7 |
| D | 12 | 221 | 92844 | 407.43 | 908 | 878 | 225.7 |
| D | 2 | 14 | 69085 | 302.17 | 908 | 878 | 225.7 |

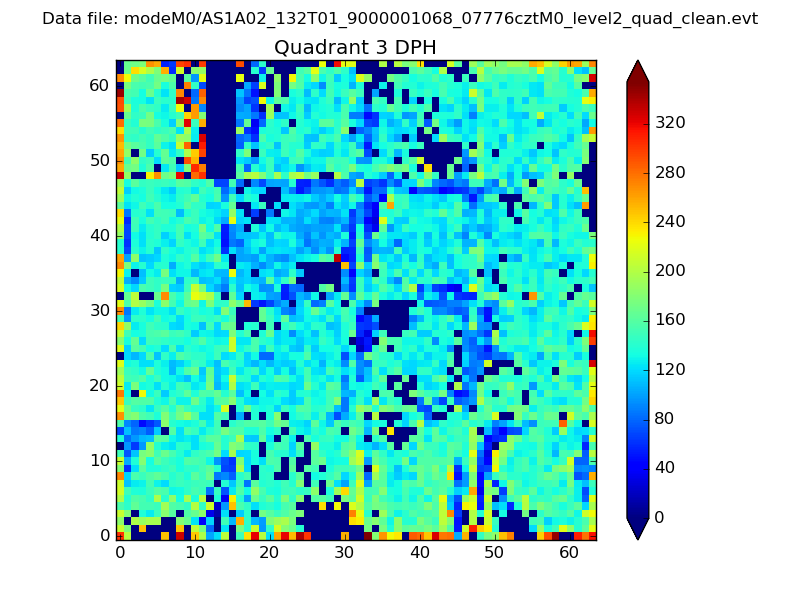

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

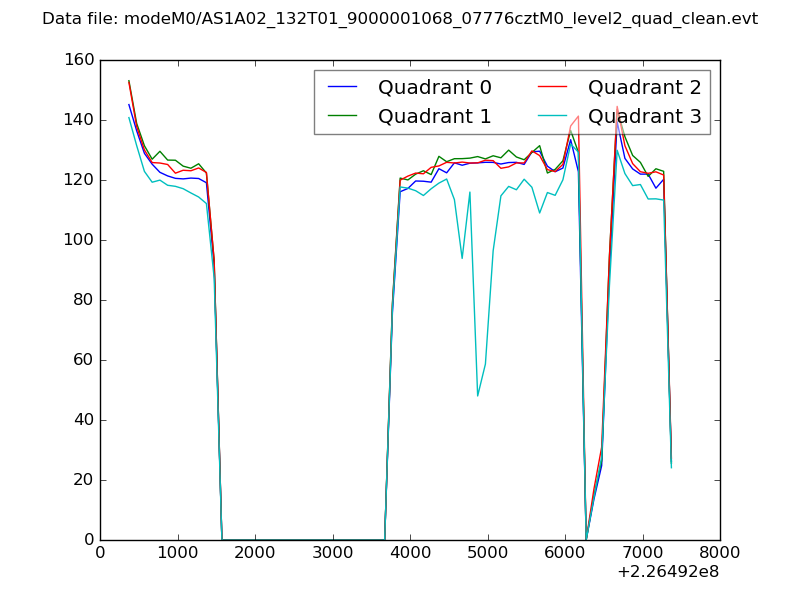

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

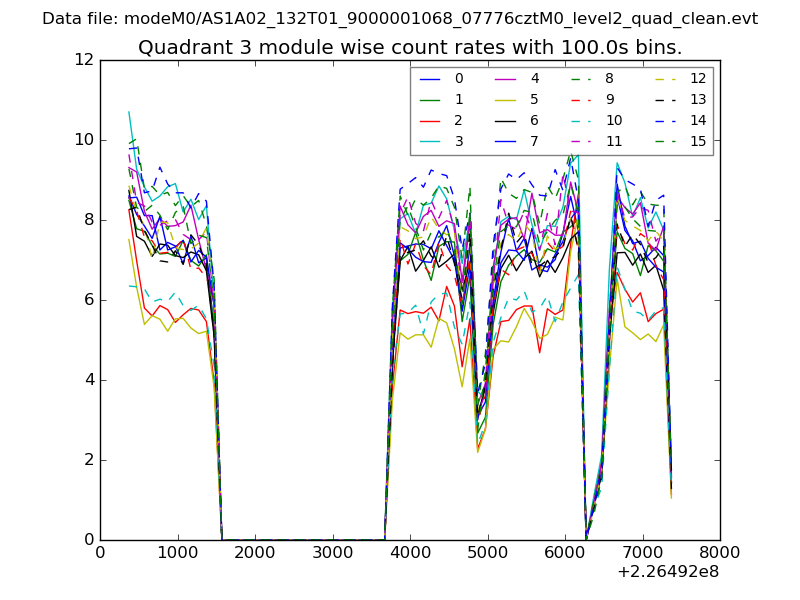

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

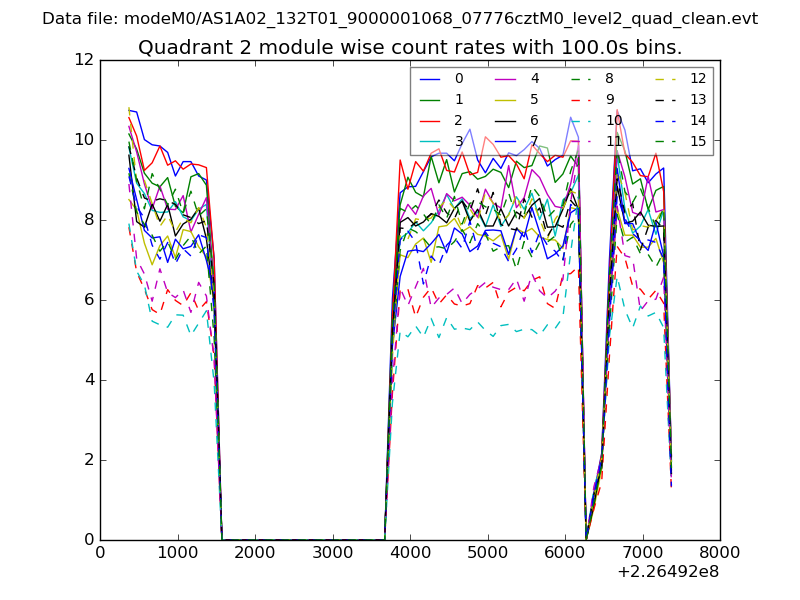

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

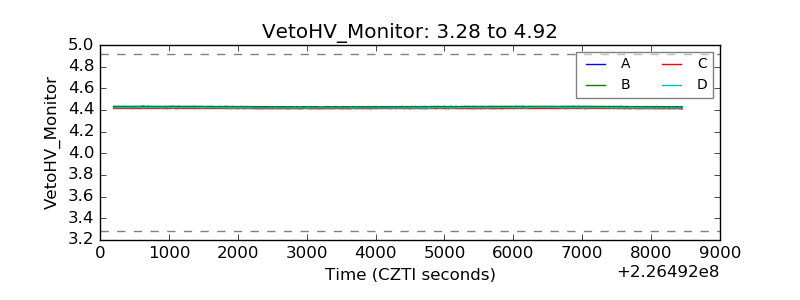

| Veto HV Monitor |  |
| Veto LLD |  |

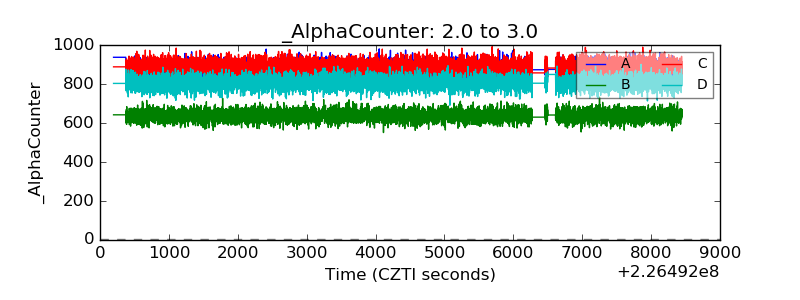

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

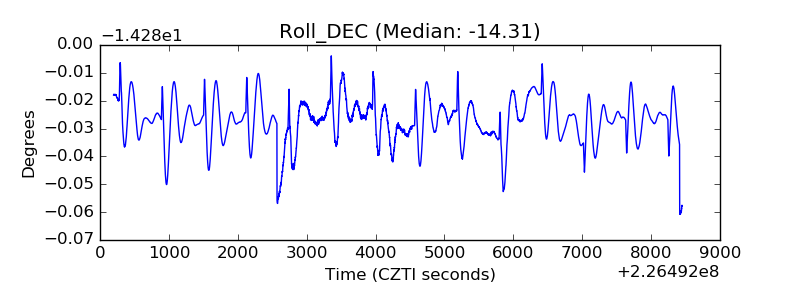

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
