| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_132T01_9000001068_07782cztM0_level2.evt | modeM0/AS1A02_132T01_9000001068_07782cztM0_level2_quad_clean.evt |
| Size (bytes) | 338,760,000 | 68,077,440 |
| Size | 323.1 MB | 64.9 MB |
| Events in quadrant A | 2,404,774 | 421,531 |
| Events in quadrant B | 2,556,005 | 430,948 |
| Events in quadrant C | 2,383,640 | 428,997 |
| Events in quadrant D | 2,553,997 | 409,047 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10801 | 1 |
| B | 0 | 11188 | 1 |
| C | 0 | 10732 | 1 |
| D | 0 | 11407 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5295 | 24 | 0.453258% |
| B | 5295 | 42 | 0.793201% |
| C | 5295 | 9 | 0.169972% |
| D | 5295 | 51 | 0.963173% |

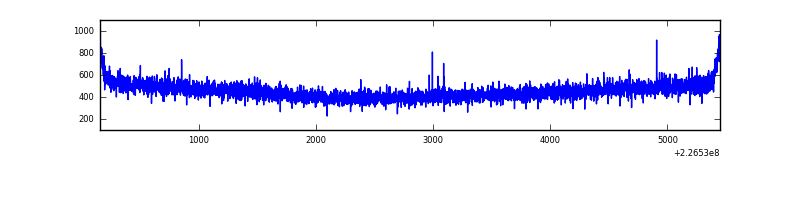

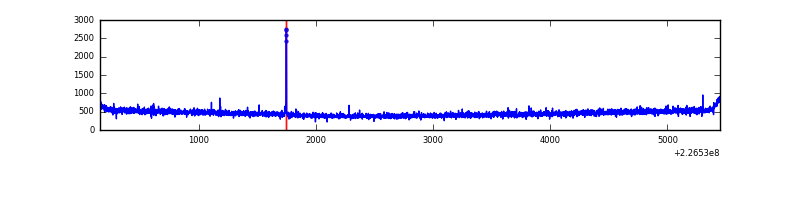

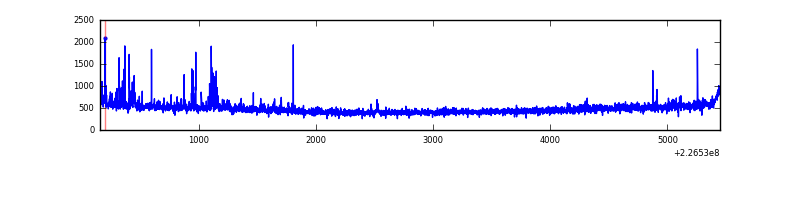

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5295 | 5295 | 4 | 4 | 0.08% | 0.08% |  |
| B | 5294 | 5294 | 1 | 1 | 0.02% | 0.02% |  |
| C | 5295 | 5295 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5294 | 5294 | 20 | 20 | 0.38% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 13166 | 99.3 | 620 | 607 | 126.5 |
| A | 0 | 226 | 5802 | 41.07 | 620 | 607 | 126.5 |
| A | 12 | 194 | 5521 | 38.85 | 620 | 607 | 126.5 |
| B | 4 | 239 | 58565 | 483.76 | 624 | 609 | 119.8 |
| B | 0 | 230 | 21157 | 171.52 | 624 | 609 | 119.8 |
| B | 0 | 214 | 17800 | 143.5 | 624 | 609 | 119.8 |
| C | 1 | 16 | 6607 | 41.92 | 608 | 610 | 143.1 |
| C | 13 | 61 | 4725 | 28.77 | 608 | 610 | 143.1 |
| C | 12 | 4 | 3303 | 18.82 | 608 | 610 | 143.1 |
| D | 13 | 104 | 136485 | 901.41 | 604 | 583 | 150.8 |
| D | 1 | 52 | 75043 | 493.88 | 604 | 583 | 150.8 |
| D | 2 | 14 | 21916 | 141.5 | 604 | 583 | 150.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

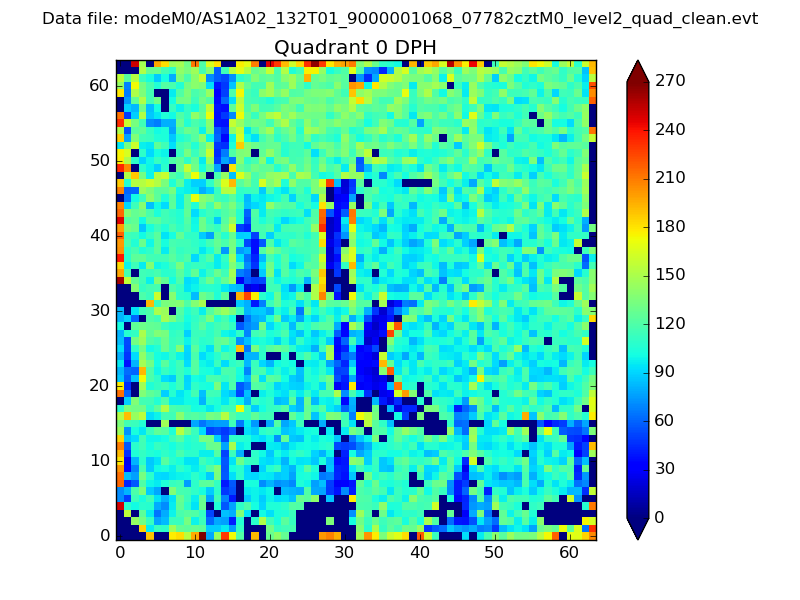

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

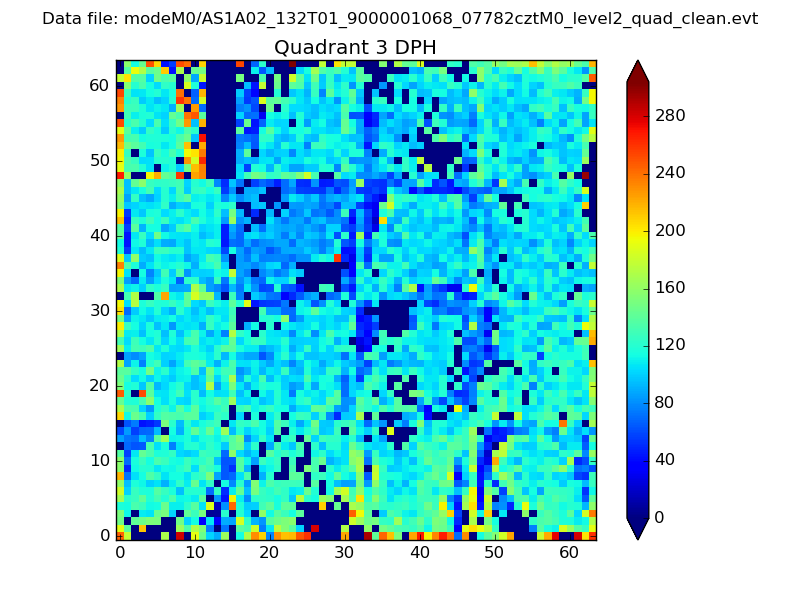

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

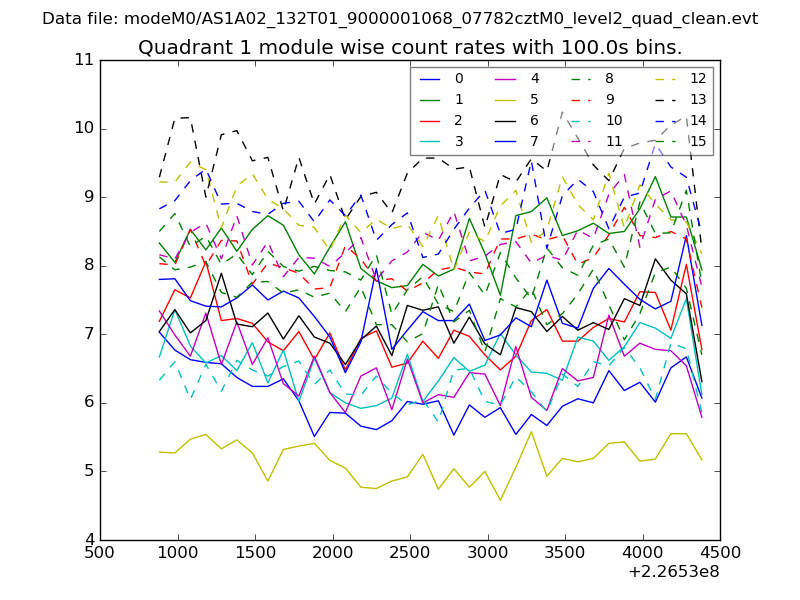

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

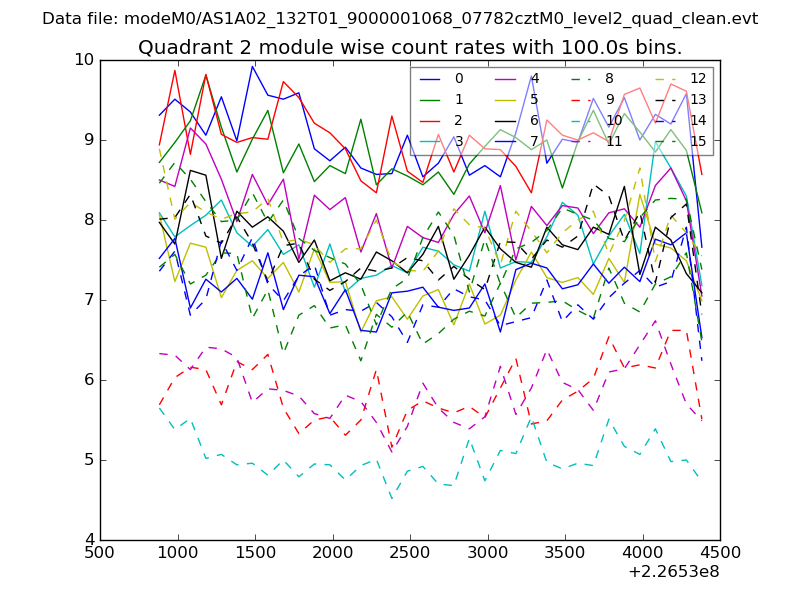

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

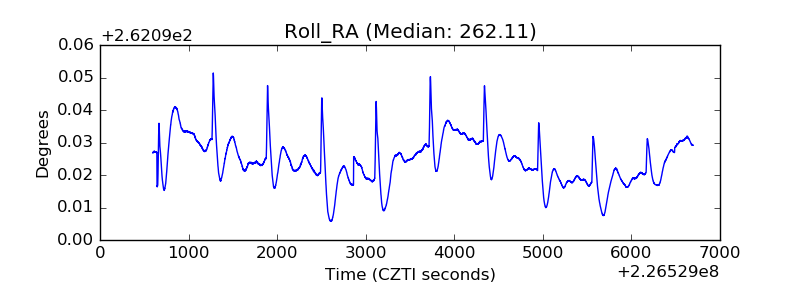

| _Roll_RA |  |
| Veto Counter |  |
