| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_169T01_9000001070_07787cztM0_level2.evt | modeM0/AS1G06_169T01_9000001070_07787cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,011,200 | 71,210,880 |
| Size | 442.5 MB | 67.9 MB |
| Events in quadrant A | 3,248,859 | 427,841 |
| Events in quadrant B | 3,363,107 | 438,531 |
| Events in quadrant C | 3,232,318 | 420,953 |
| Events in quadrant D | 3,751,150 | 399,692 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13926 | 3 |
| B | 0 | 14110 | 2 |
| C | 0 | 13962 | 2 |
| D | 0 | 15294 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6733 | 54 | 0.802020% |
| B | 6733 | 76 | 1.128769% |
| C | 6733 | 26 | 0.386158% |
| D | 6733 | 50 | 0.742611% |

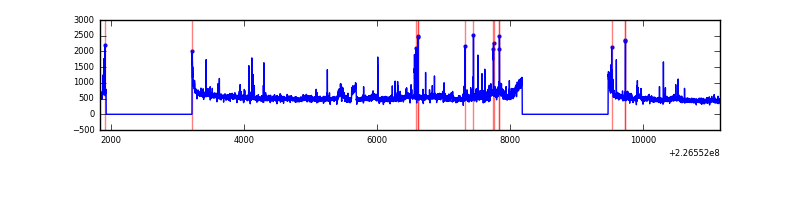

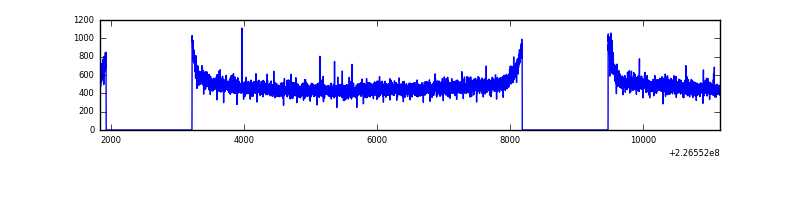

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9313 | 6734 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9313 | 6734 | 1 | 1 | 0.01% | 0.01% |  |
| C | 9313 | 6733 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9313 | 6735 | 14 | 14 | 0.15% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8059 | 42.07 | 844 | 826 | 171.9 |
| A | 12 | 194 | 7652 | 39.71 | 844 | 826 | 171.9 |
| A | 13 | 254 | 2985 | 12.56 | 844 | 826 | 171.9 |
| B | 12 | 111 | 16483 | 96.8 | 854 | 834 | 161.7 |
| B | 4 | 81 | 13391 | 77.68 | 854 | 834 | 161.7 |
| B | 11 | 111 | 12890 | 74.58 | 854 | 834 | 161.7 |
| C | 1 | 16 | 44603 | 231.32 | 817 | 821 | 189.3 |
| C | 13 | 61 | 6177 | 28.3 | 817 | 821 | 189.3 |
| C | 12 | 4 | 2957 | 11.29 | 817 | 821 | 189.3 |
| D | 1 | 52 | 424763 | 2149.02 | 807 | 780 | 197.3 |
| D | 12 | 221 | 128288 | 646.29 | 807 | 780 | 197.3 |
| D | 2 | 152 | 47813 | 238.39 | 807 | 780 | 197.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

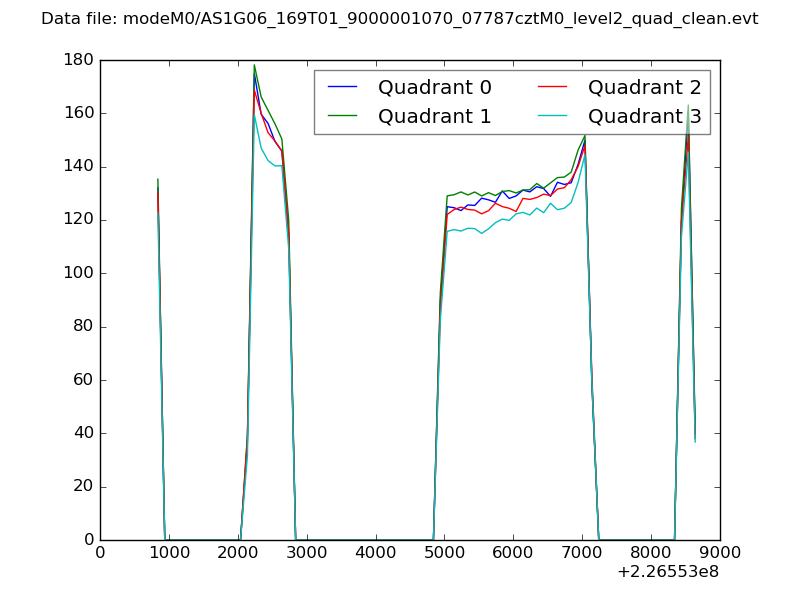

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

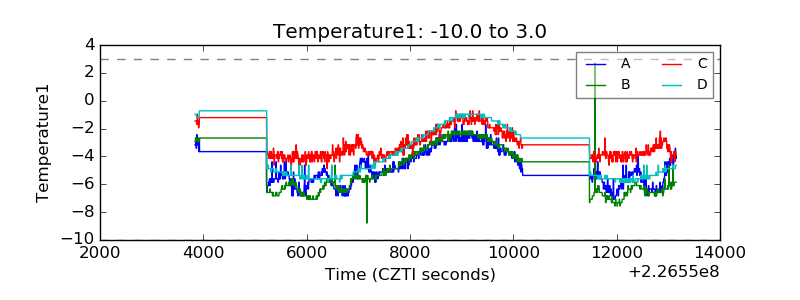

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

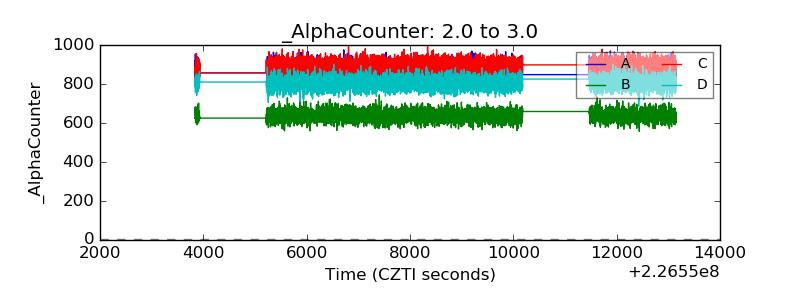

| Alpha Counter |  |

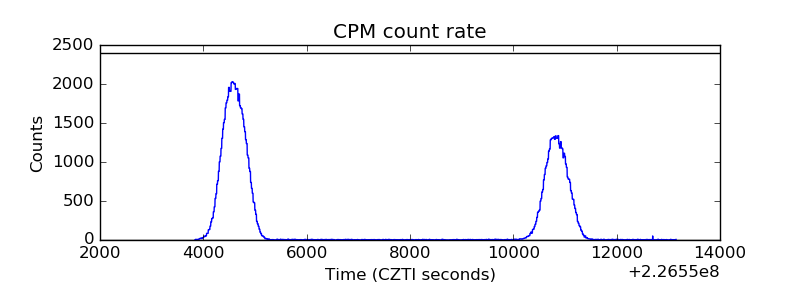

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

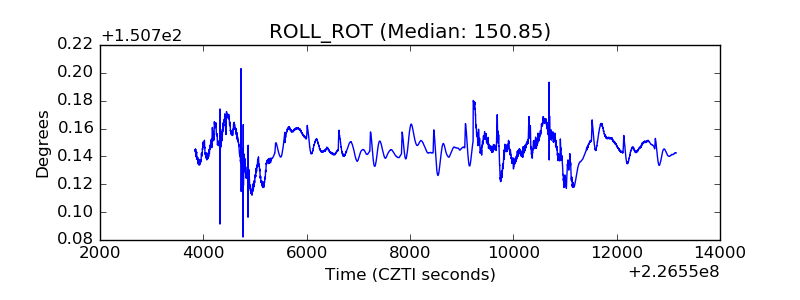

| _ROLL_ROT |  |

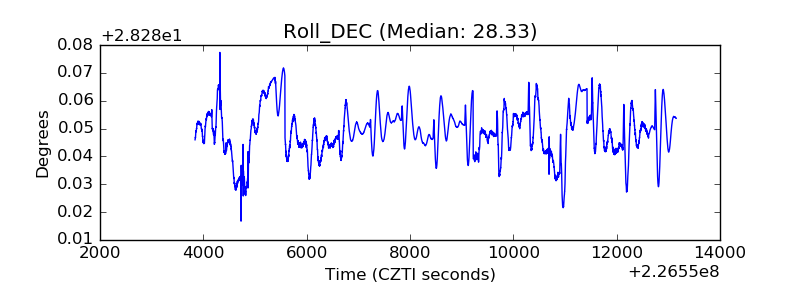

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
