| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_132T01_9000001072_07789cztM0_level2.evt | modeM0/AS1A02_132T01_9000001072_07789cztM0_level2_quad_clean.evt |
| Size (bytes) | 431,907,840 | 81,354,240 |
| Size | 411.9 MB | 77.6 MB |
| Events in quadrant A | 2,917,612 | 510,137 |
| Events in quadrant B | 3,094,324 | 522,865 |
| Events in quadrant C | 2,883,607 | 515,235 |
| Events in quadrant D | 3,761,366 | 480,486 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12757 | 2 |
| B | 0 | 13104 | 1 |
| C | 0 | 12733 | 1 |
| D | 0 | 15196 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6231 | 72 | 1.155513% |
| B | 6231 | 73 | 1.171562% |
| C | 6231 | 38 | 0.609854% |
| D | 6231 | 141 | 2.262879% |

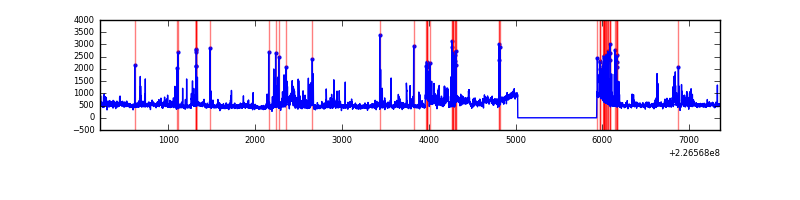

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7141 | 6231 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7141 | 6231 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7141 | 6231 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7141 | 6231 | 61 | 61 | 0.85% | 0.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 11826 | 71.67 | 754 | 738 | 154.7 |
| A | 0 | 226 | 7232 | 41.98 | 754 | 738 | 154.7 |
| A | 12 | 194 | 6529 | 37.43 | 754 | 738 | 154.7 |
| B | 4 | 81 | 61477 | 418.02 | 756 | 738 | 145.3 |
| B | 0 | 214 | 22472 | 149.58 | 756 | 738 | 145.3 |
| B | 0 | 219 | 21691 | 144.2 | 756 | 738 | 145.3 |
| C | 1 | 16 | 10321 | 56.18 | 735 | 737 | 170.6 |
| C | 13 | 61 | 5540 | 28.15 | 735 | 737 | 170.6 |
| C | 12 | 4 | 3352 | 15.33 | 735 | 737 | 170.6 |
| D | 1 | 52 | 456506 | 2546.58 | 732 | 710 | 179.0 |
| D | 13 | 137 | 282689 | 1575.45 | 732 | 710 | 179.0 |
| D | 2 | 152 | 184403 | 1026.31 | 732 | 710 | 179.0 |

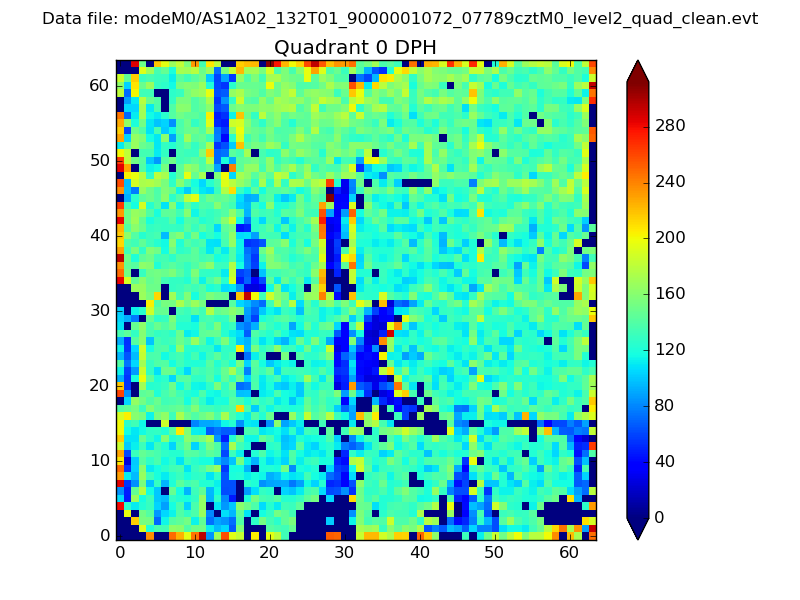

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

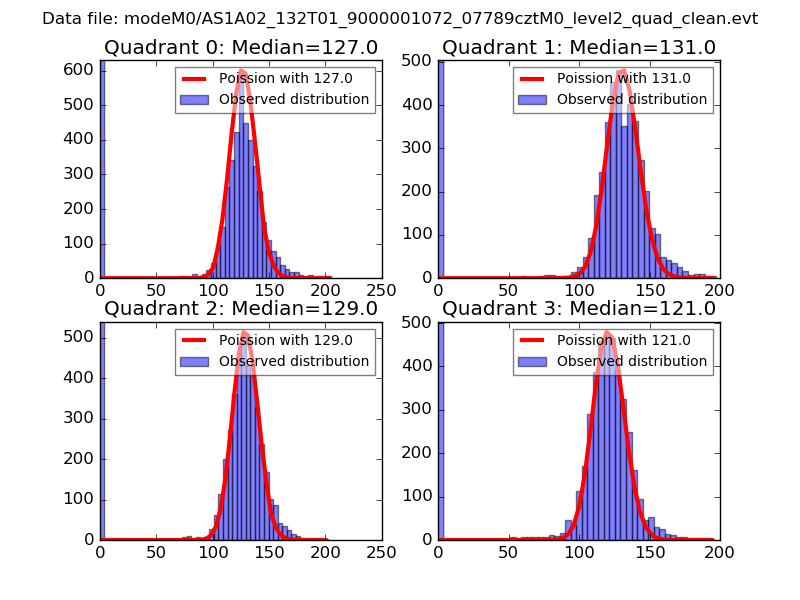

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

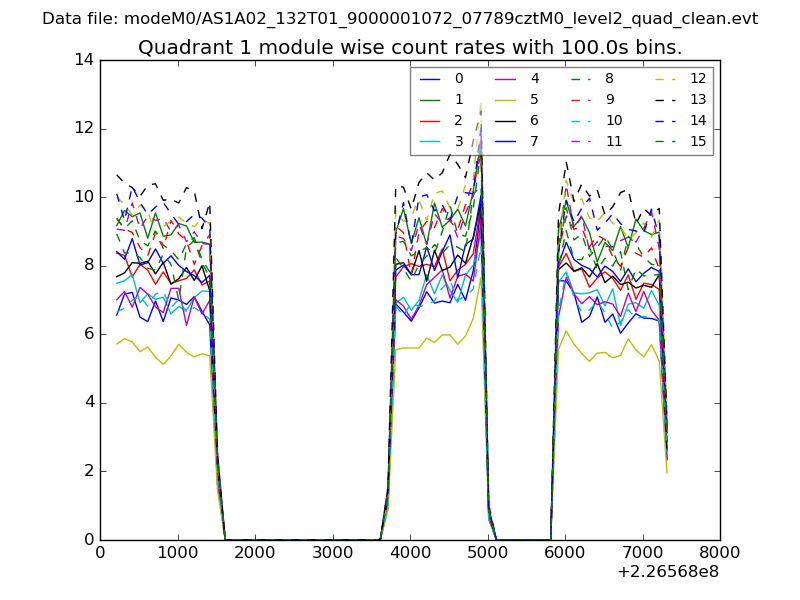

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

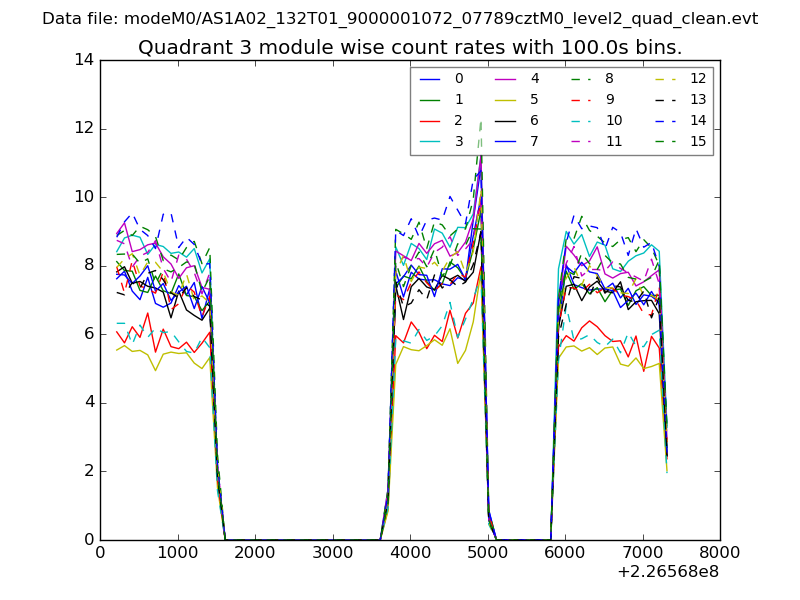

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

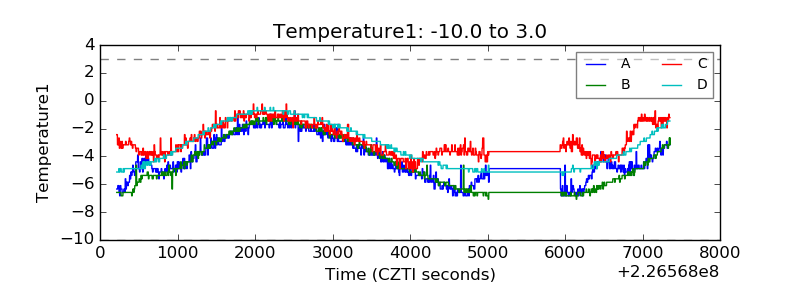

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

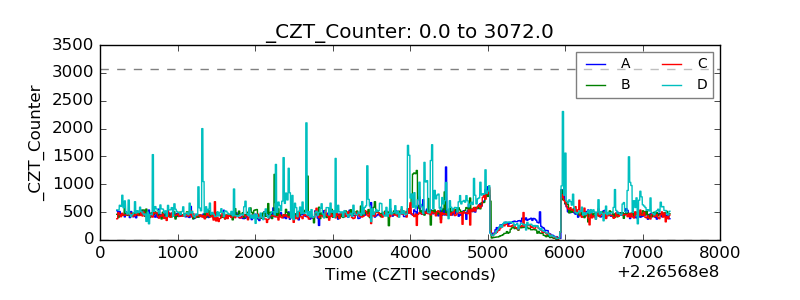

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

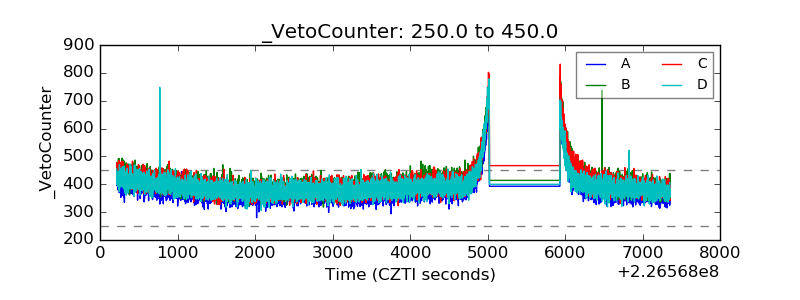

| Veto Counter |  |
