| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_032T01_9000001074_07803cztM0_level2.evt | modeM0/AS1G06_032T01_9000001074_07803cztM0_level2_quad_clean.evt |
| Size (bytes) | 413,694,720 | 94,098,240 |
| Size | 394.5 MB | 89.7 MB |
| Events in quadrant A | 2,786,491 | 610,004 |
| Events in quadrant B | 3,024,076 | 629,043 |
| Events in quadrant C | 3,016,485 | 605,833 |
| Events in quadrant D | 3,283,574 | 575,657 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12469 | 1 |
| B | 0 | 12990 | 0 |
| C | 0 | 13110 | 0 |
| D | 0 | 13988 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6151 | 16 | 0.260120% |
| B | 6151 | 63 | 1.024224% |
| C | 6151 | 35 | 0.569013% |
| D | 6151 | 28 | 0.455211% |

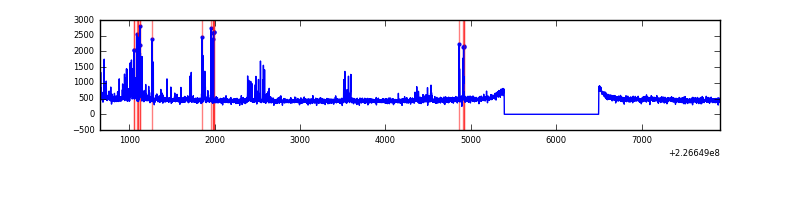

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7256 | 6152 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7256 | 6152 | 43 | 43 | 0.59% | 0.70% |  |
| C | 7256 | 6152 | 18 | 18 | 0.25% | 0.29% |  |
| D | 7256 | 6152 | 21 | 21 | 0.29% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 9106 | 57.9 | 721 | 706 | 145.1 |
| A | 0 | 226 | 6772 | 41.81 | 721 | 706 | 145.1 |
| A | 12 | 194 | 6521 | 40.08 | 721 | 706 | 145.1 |
| B | 4 | 239 | 149620 | 1084.54 | 726 | 709 | 137.3 |
| B | 0 | 219 | 27073 | 192.01 | 726 | 709 | 137.3 |
| B | 5 | 255 | 15946 | 110.97 | 726 | 709 | 137.3 |
| C | 4 | 254 | 229994 | 1400.64 | 710 | 714 | 163.7 |
| C | 1 | 16 | 15416 | 89.81 | 710 | 714 | 163.7 |
| C | 13 | 61 | 5341 | 28.27 | 710 | 714 | 163.7 |
| D | 2 | 152 | 488486 | 2824.29 | 707 | 682 | 172.7 |
| D | 2 | 14 | 56931 | 325.67 | 707 | 682 | 172.7 |
| D | 12 | 32 | 37820 | 215.02 | 707 | 682 | 172.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

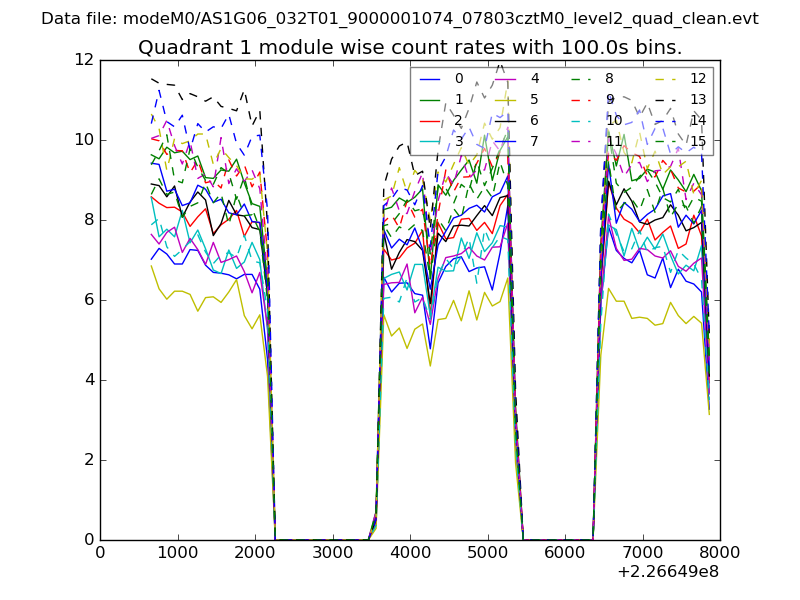

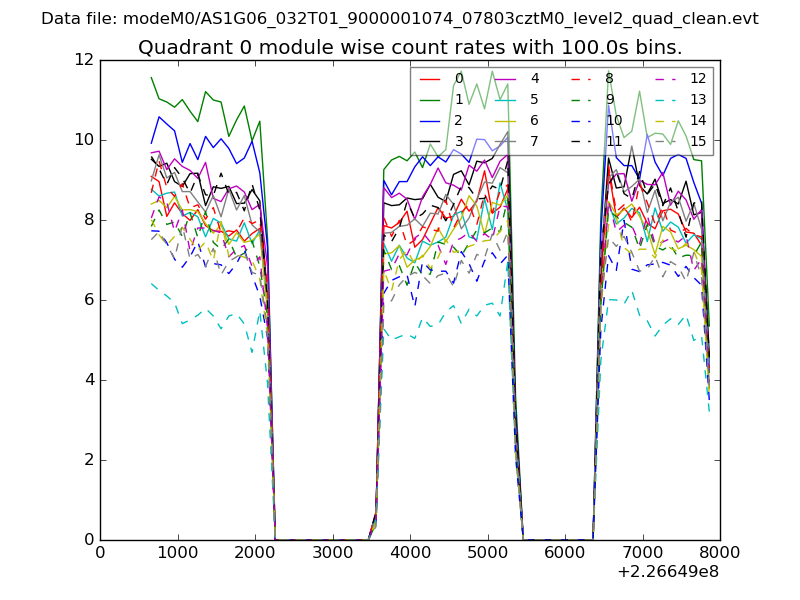

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

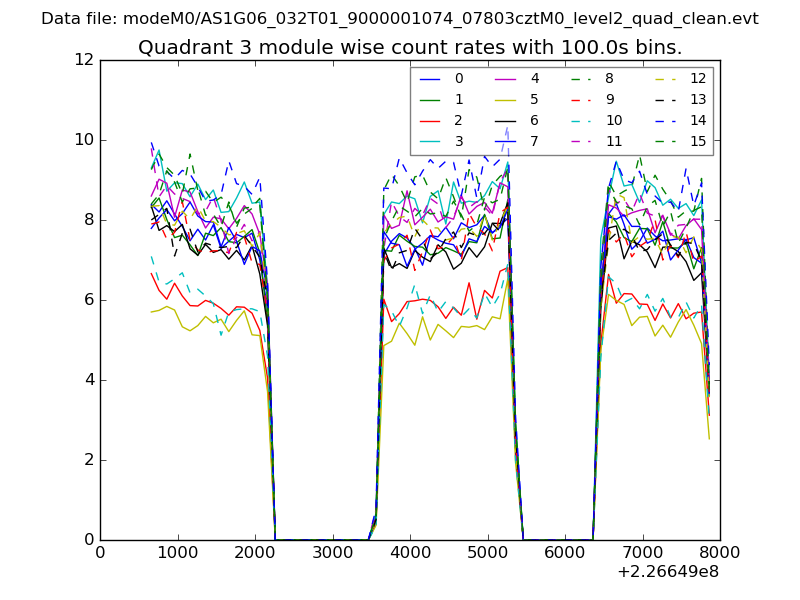

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

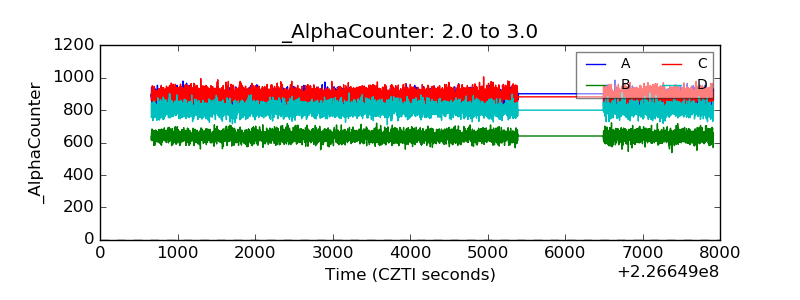

| Alpha Counter |  |

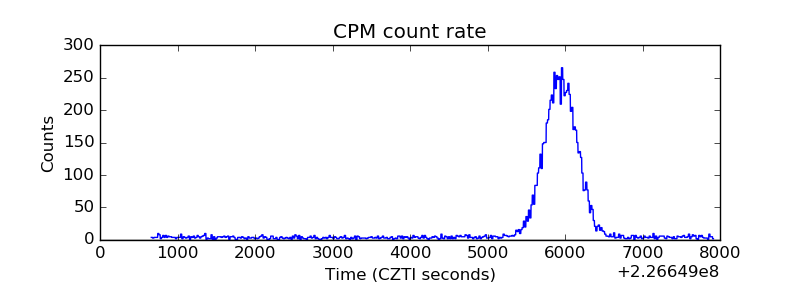

| _CPM_Rate |  |

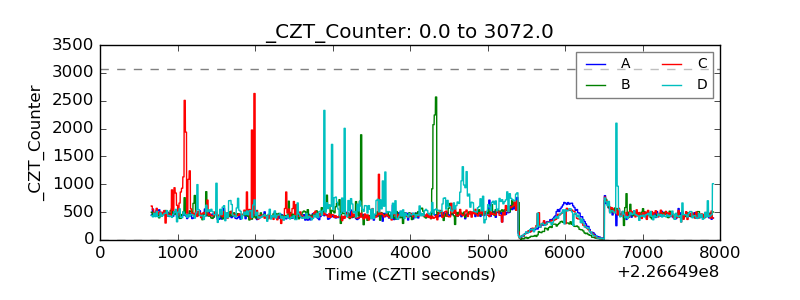

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

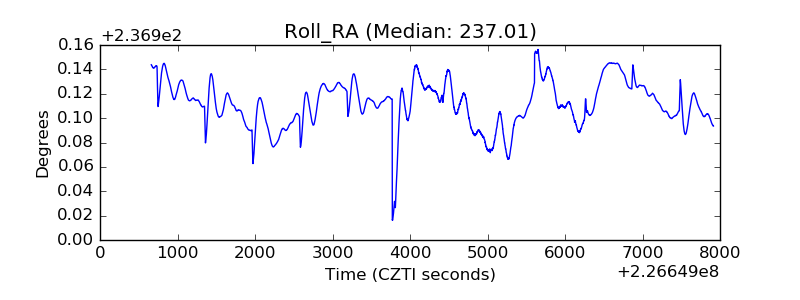

| _Roll_RA |  |
| Veto Counter |  |
