| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_032T01_9000001074_07814cztM0_level2.evt | modeM0/AS1G06_032T01_9000001074_07814cztM0_level2_quad_clean.evt |
| Size (bytes) | 798,684,480 | 180,705,600 |
| Size | 761.7 MB | 172.3 MB |
| Events in quadrant A | 5,374,508 | 1,172,287 |
| Events in quadrant B | 5,896,031 | 1,222,012 |
| Events in quadrant C | 5,345,246 | 1,171,860 |
| Events in quadrant D | 6,777,565 | 1,095,491 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23961 | 4 |
| B | 0 | 25219 | 3 |
| C | 0 | 23895 | 3 |
| D | 0 | 28524 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 240 | 0 |
| B | 0 | 240 | 0 |
| C | 0 | 240 | 0 |
| D | 0 | 240 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11730 | 40 | 0.341006% |
| B | 11730 | 93 | 0.792839% |
| C | 11730 | 15 | 0.127877% |
| D | 11730 | 357 | 3.043478% |

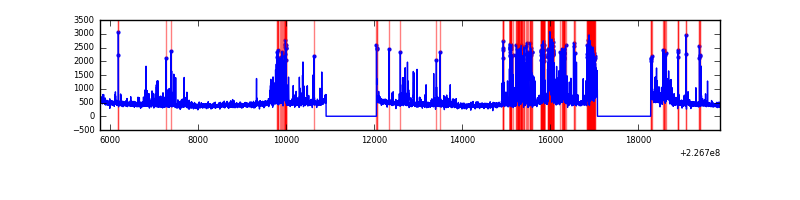

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

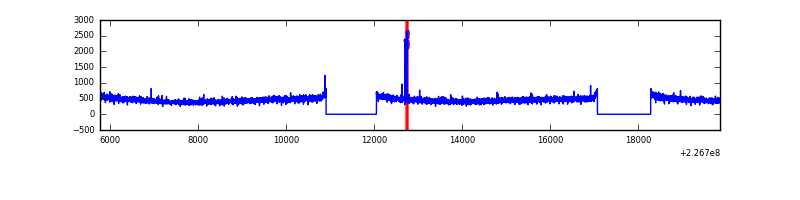

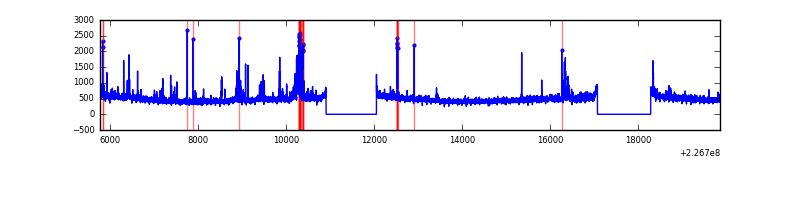

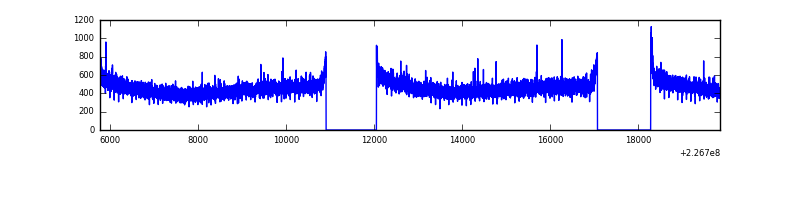

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14085 | 11731 | 13 | 13 | 0.09% | 0.11% |  |
| B | 14085 | 11730 | 33 | 33 | 0.23% | 0.28% |  |
| C | 14085 | 11732 | 0 | 0 | 0.00% | 0.00% |  |
| D | 14085 | 11731 | 262 | 262 | 1.86% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 65756 | 234.71 | 1364 | 1335 | 274.5 |
| A | 15 | 174 | 48140 | 170.53 | 1364 | 1335 | 274.5 |
| A | 0 | 226 | 12575 | 40.95 | 1364 | 1335 | 274.5 |
| B | 4 | 239 | 151557 | 578.98 | 1395 | 1362 | 259.4 |
| B | 10 | 246 | 83583 | 316.95 | 1395 | 1362 | 259.4 |
| B | 0 | 219 | 78940 | 299.05 | 1395 | 1362 | 259.4 |
| C | 1 | 16 | 53358 | 167.59 | 1353 | 1360 | 310.3 |
| C | 12 | 4 | 14470 | 42.25 | 1353 | 1360 | 310.3 |
| C | 13 | 61 | 10247 | 28.64 | 1353 | 1360 | 310.3 |
| D | 2 | 152 | 691458 | 2154.52 | 1319 | 1281 | 320.3 |
| D | 12 | 233 | 681429 | 2123.21 | 1319 | 1281 | 320.3 |
| D | 7 | 71 | 197420 | 612.28 | 1319 | 1281 | 320.3 |

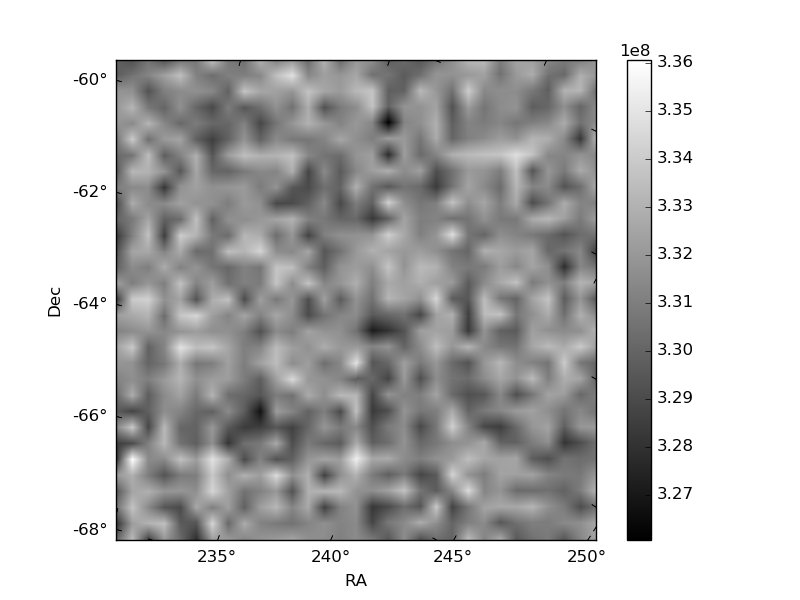

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

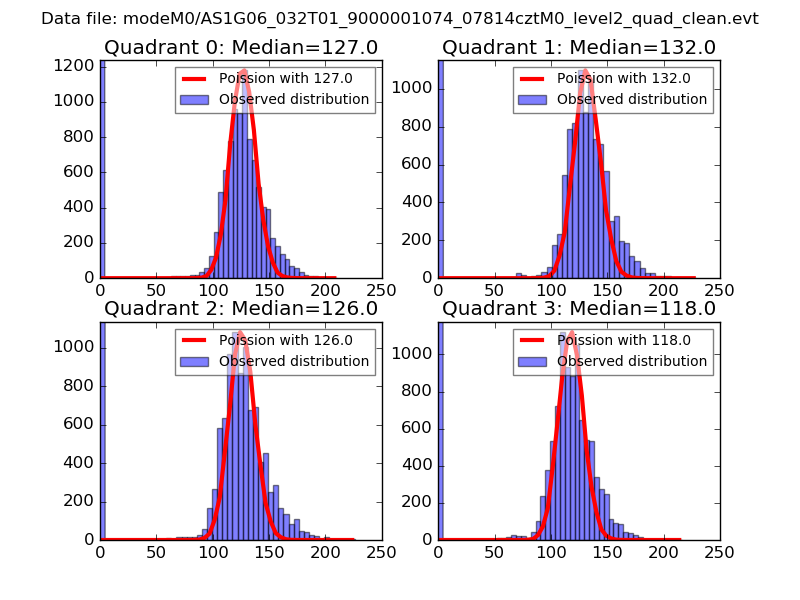

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

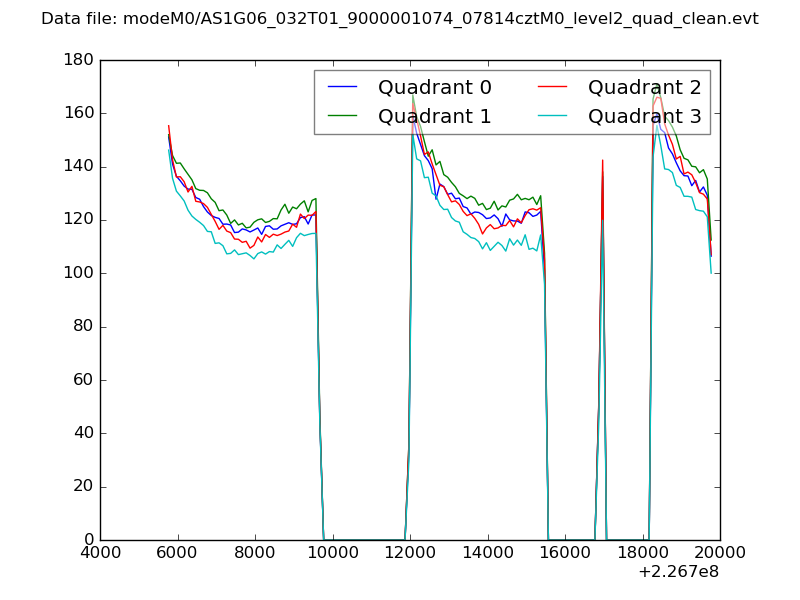

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

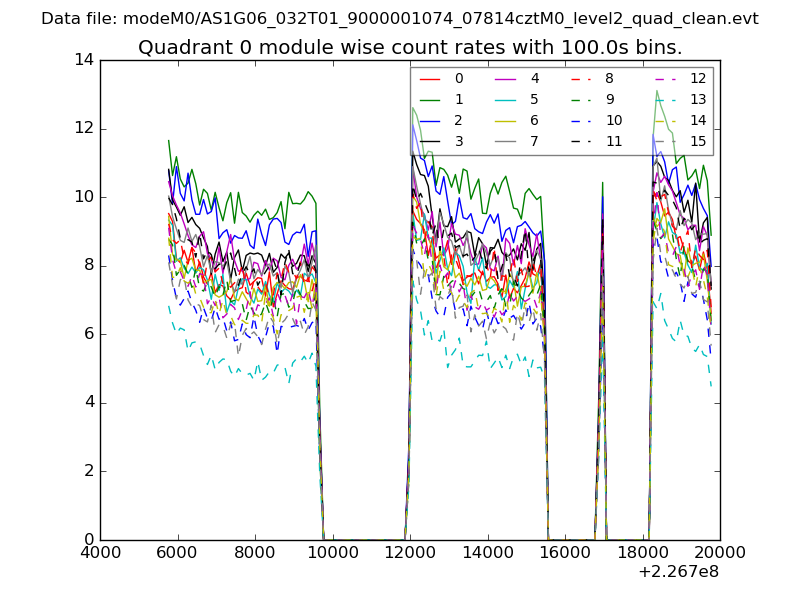

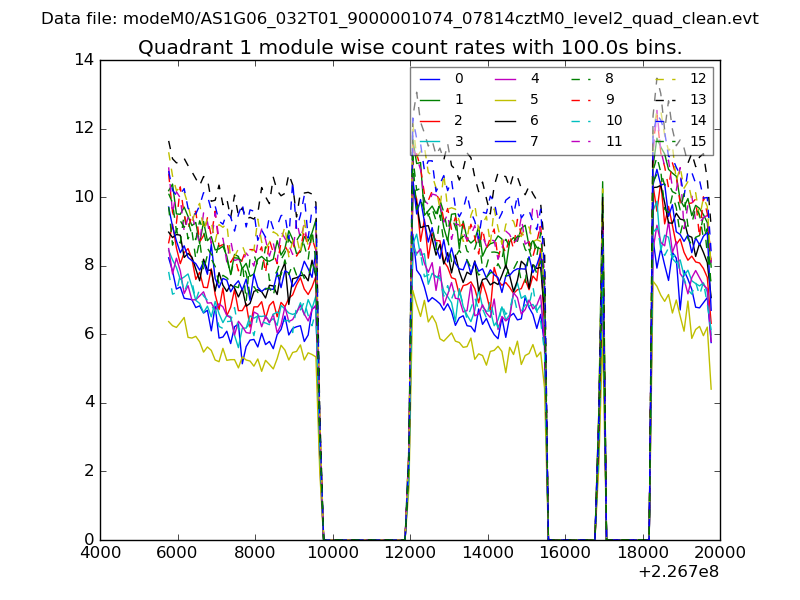

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

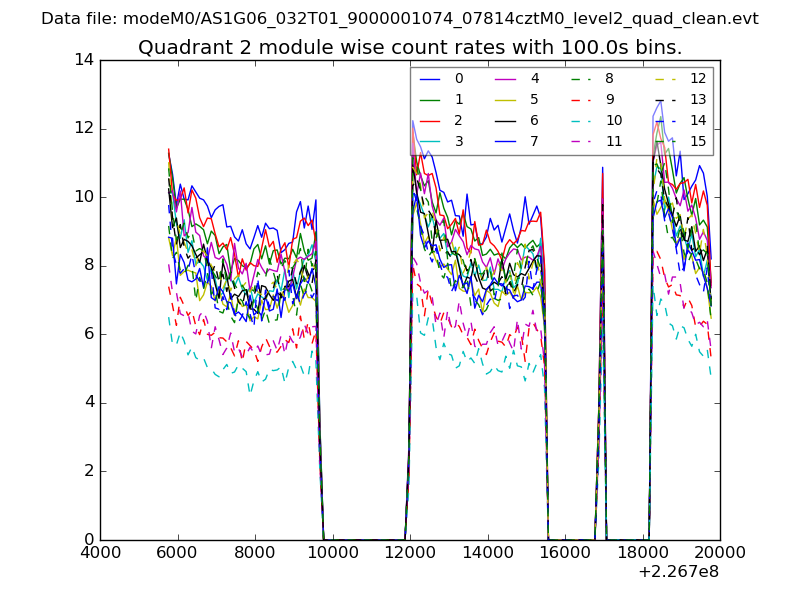

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

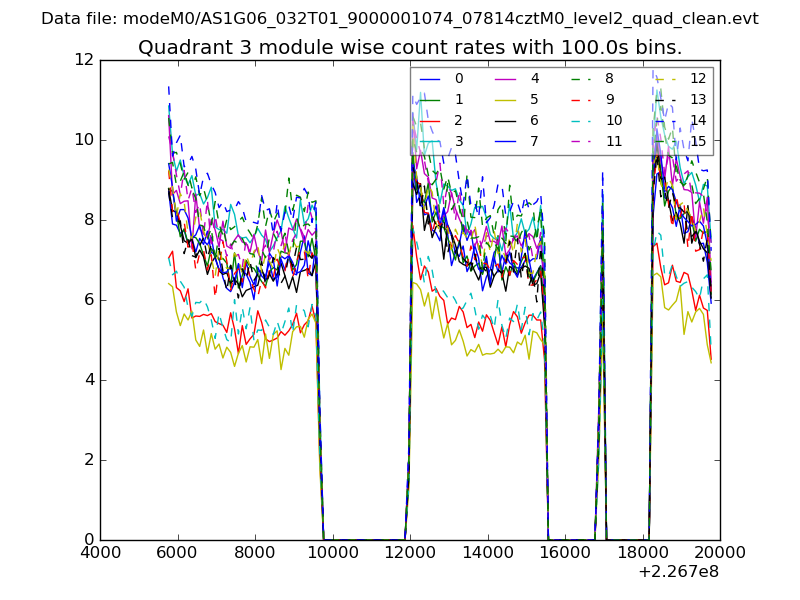

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

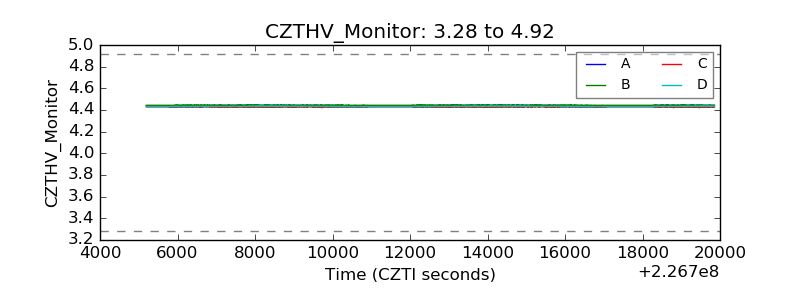

| CZT HV Monitor |  |

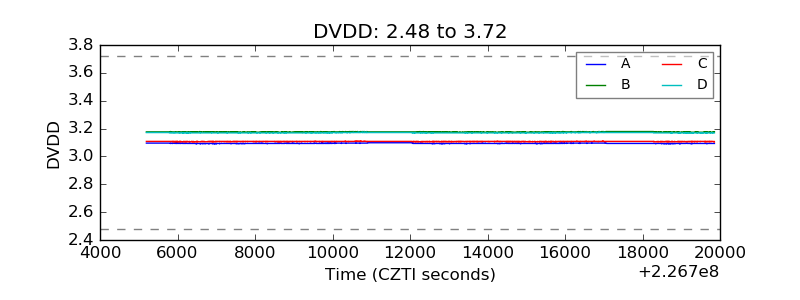

| D_VDD |  |

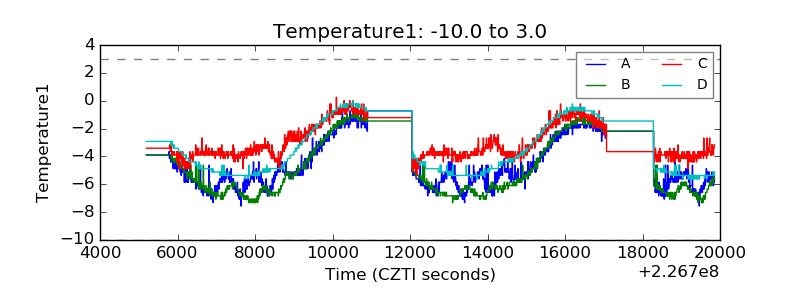

| Temperature 1 |  |
| Veto HV Monitor |  |

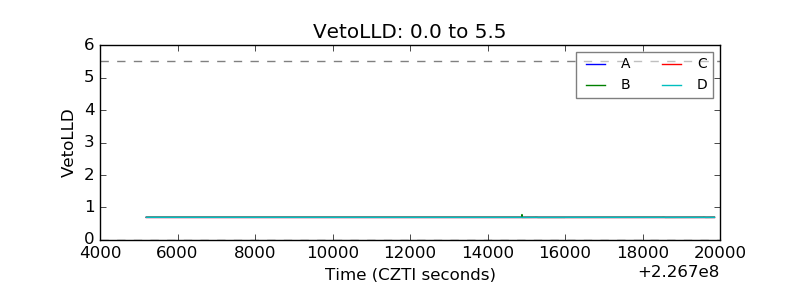

| Veto LLD |  |

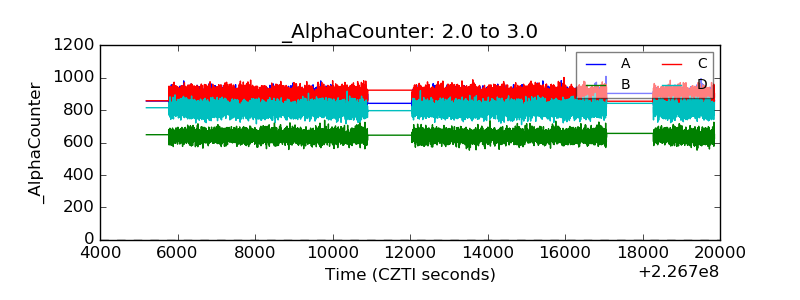

| Alpha Counter |  |

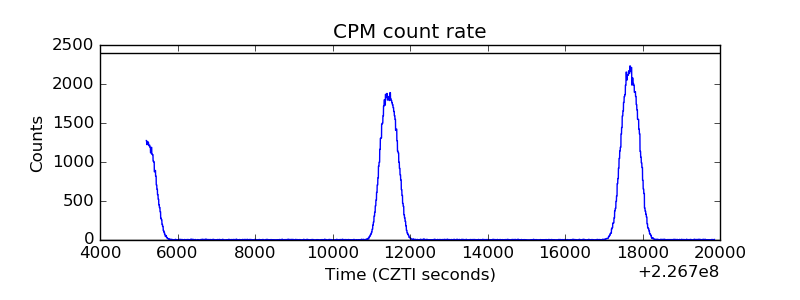

| _CPM_Rate |  |

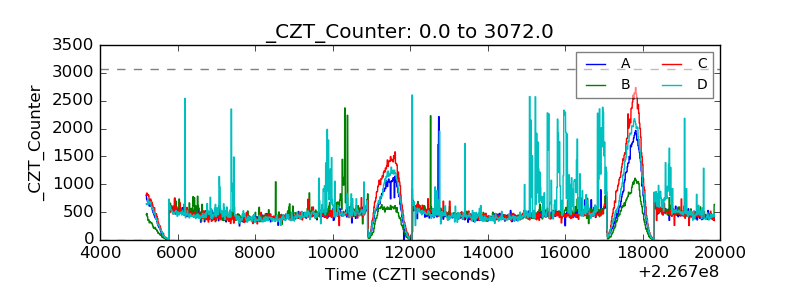

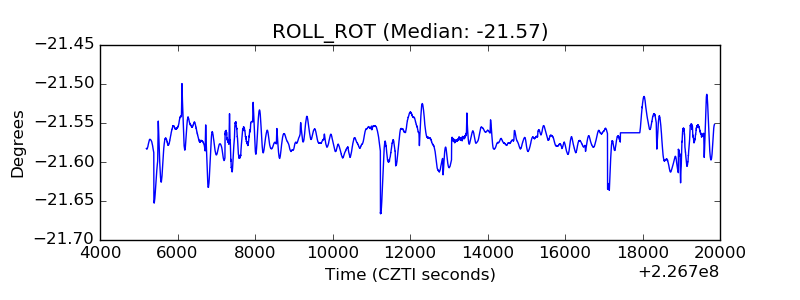

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

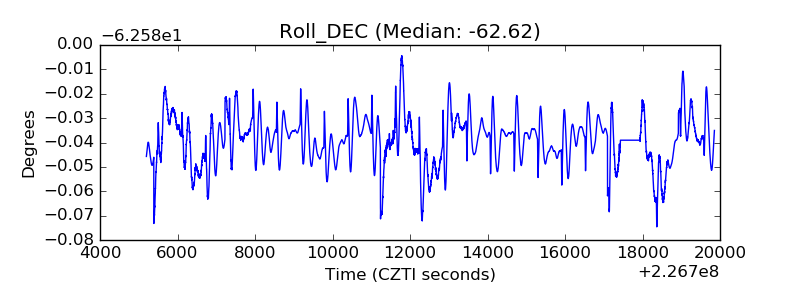

| _Roll_DEC |  |

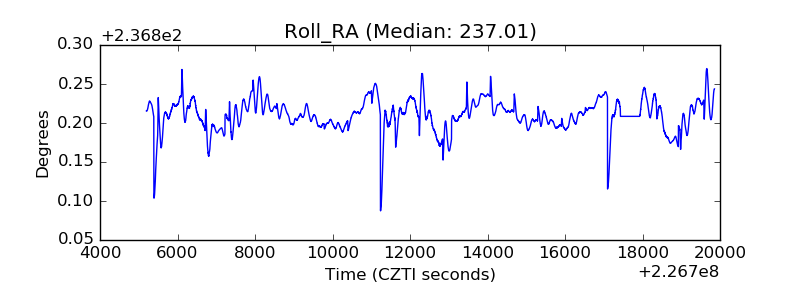

| _Roll_RA |  |

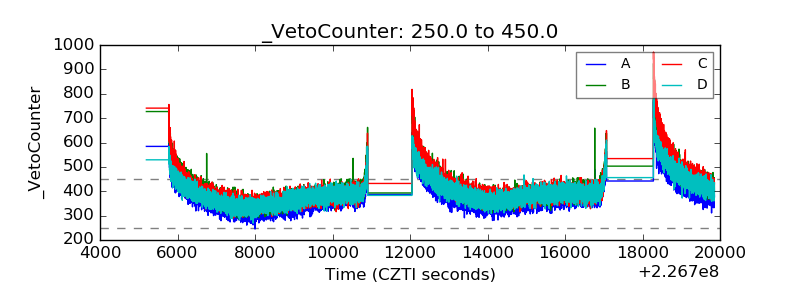

| Veto Counter |  |
