| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_077T02_9000001076_07818cztM0_level2.evt | modeM0/AS1G06_077T02_9000001076_07818cztM0_level2_quad_clean.evt |
| Size (bytes) | 817,295,040 | 133,925,760 |
| Size | 779.4 MB | 127.7 MB |
| Events in quadrant A | 5,135,508 | 824,034 |
| Events in quadrant B | 5,370,730 | 850,349 |
| Events in quadrant C | 5,192,770 | 846,691 |
| Events in quadrant D | 8,327,004 | 792,517 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22213 | 3 |
| B | 0 | 22844 | 2 |
| C | 0 | 22514 | 2 |
| D | 0 | 32155 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 218 | 0 |
| B | 0 | 218 | 0 |
| C | 0 | 218 | 0 |
| D | 0 | 218 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10720 | 145 | 1.352612% |
| B | 10720 | 159 | 1.483209% |
| C | 10720 | 108 | 1.007463% |
| D | 10720 | 1105 | 10.307836% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12760 | 10721 | 1 | 1 | 0.01% | 0.01% |  |
| B | 12760 | 10721 | 8 | 8 | 0.06% | 0.07% |  |
| C | 12760 | 10722 | 15 | 15 | 0.12% | 0.14% |  |
| D | 12760 | 10721 | 981 | 981 | 7.69% | 9.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 94976 | 358.84 | 1302 | 1276 | 261.1 |
| A | 13 | 14 | 18037 | 64.19 | 1302 | 1276 | 261.1 |
| A | 3 | 1 | 12372 | 42.49 | 1302 | 1276 | 261.1 |
| B | 4 | 239 | 73619 | 293.16 | 1307 | 1277 | 246.8 |
| B | 10 | 246 | 70164 | 279.16 | 1307 | 1277 | 246.8 |
| B | 0 | 214 | 47887 | 188.88 | 1307 | 1277 | 246.8 |
| C | 9 | 54 | 145980 | 491.27 | 1280 | 1291 | 294.5 |
| C | 1 | 16 | 38326 | 125.75 | 1280 | 1291 | 294.5 |
| C | 13 | 61 | 9809 | 28.92 | 1280 | 1291 | 294.5 |
| D | 12 | 33 | 1103998 | 3651.95 | 1245 | 1211 | 302.0 |
| D | 12 | 48 | 684646 | 2263.24 | 1245 | 1211 | 302.0 |
| D | 12 | 32 | 656758 | 2170.89 | 1245 | 1211 | 302.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

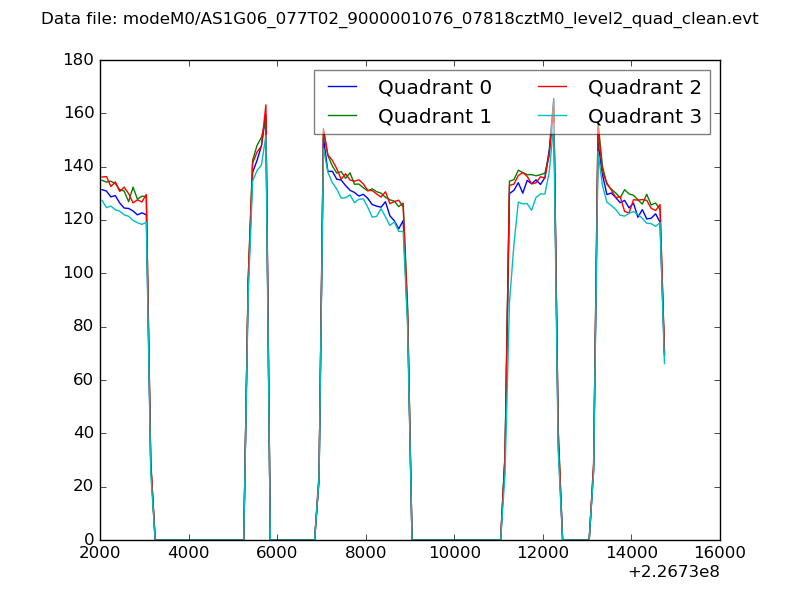

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

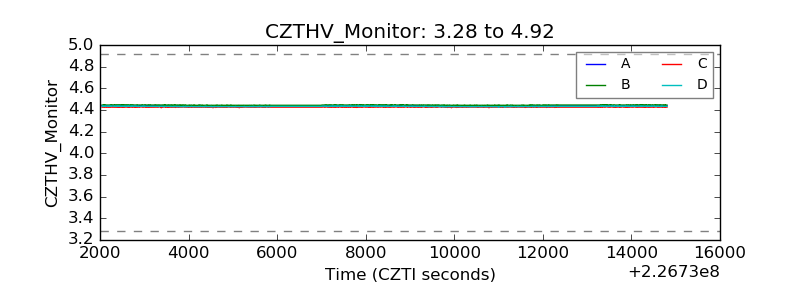

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

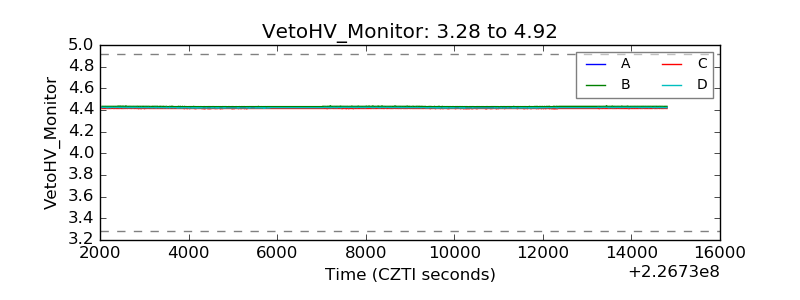

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

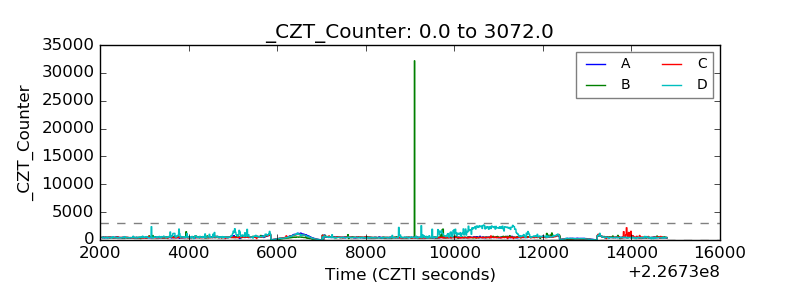

| CZT Counter |  |
| +2.5 Volts monitor |  |

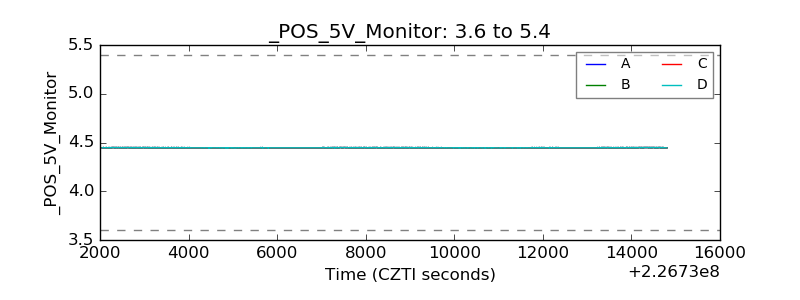

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
