| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_077T02_9000001076_07843cztM0_level2.evt | modeM0/AS1G06_077T02_9000001076_07843cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,801,920 | 105,160,320 |
| Size | 462.3 MB | 100.3 MB |
| Events in quadrant A | 3,073,673 | 681,938 |
| Events in quadrant B | 3,470,756 | 707,983 |
| Events in quadrant C | 4,539,186 | 691,112 |
| Events in quadrant D | 3,164,138 | 657,333 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13373 | 3 |
| B | 0 | 14530 | 2 |
| C | 0 | 17674 | 2 |
| D | 0 | 13869 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6402 | 20 | 0.312402% |
| B | 6402 | 109 | 1.702593% |
| C | 6402 | 162 | 2.530459% |
| D | 6403 | 31 | 0.484148% |

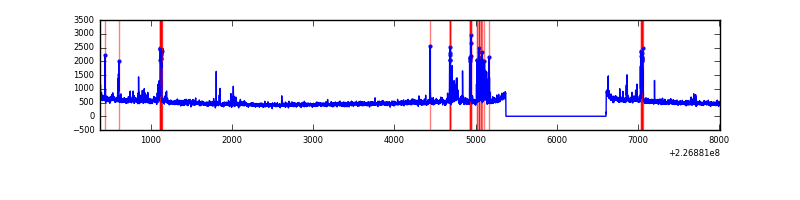

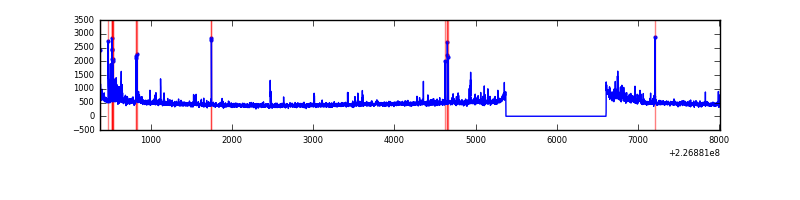

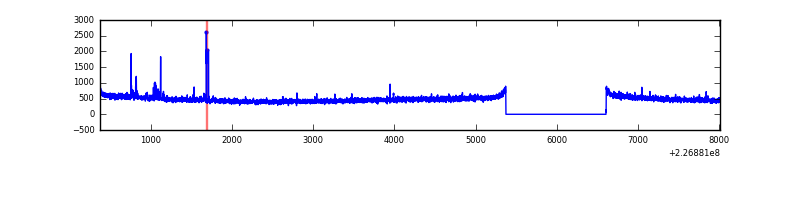

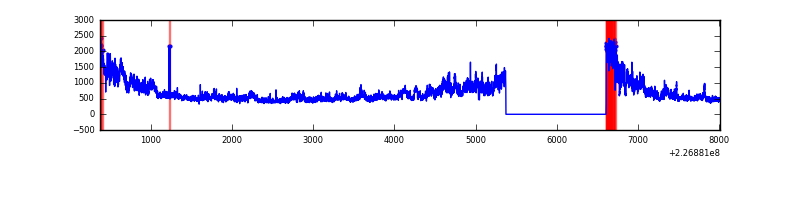

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7637 | 6403 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7637 | 6403 | 52 | 52 | 0.68% | 0.81% |  |
| C | 7637 | 6403 | 64 | 64 | 0.84% | 1.00% |  |
| D | 7638 | 6404 | 18 | 18 | 0.24% | 0.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 50406 | 316.47 | 783 | 771 | 156.8 |
| A | 15 | 239 | 7821 | 44.95 | 783 | 771 | 156.8 |
| A | 0 | 226 | 7450 | 42.58 | 783 | 771 | 156.8 |
| B | 4 | 239 | 229481 | 1529.92 | 799 | 784 | 149.5 |
| B | 0 | 214 | 33632 | 219.74 | 799 | 784 | 149.5 |
| B | 15 | 204 | 32212 | 210.25 | 799 | 784 | 149.5 |
| C | 1 | 16 | 1484687 | 8320.72 | 773 | 782 | 178.3 |
| C | 8 | 229 | 24776 | 134.54 | 773 | 782 | 178.3 |
| C | 12 | 4 | 8131 | 41.21 | 773 | 782 | 178.3 |
| D | 2 | 136 | 92224 | 487.08 | 766 | 745 | 187.8 |
| D | 2 | 152 | 45852 | 240.17 | 766 | 745 | 187.8 |
| D | 2 | 14 | 43024 | 225.11 | 766 | 745 | 187.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

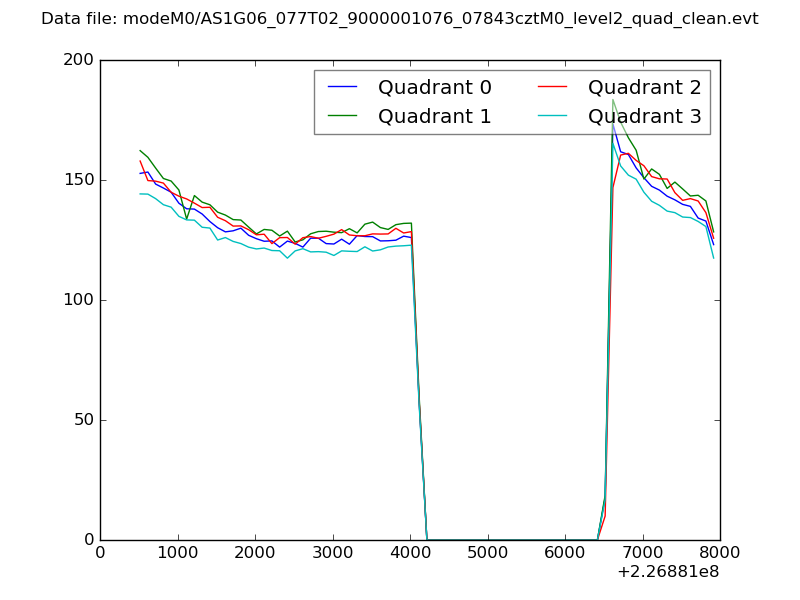

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

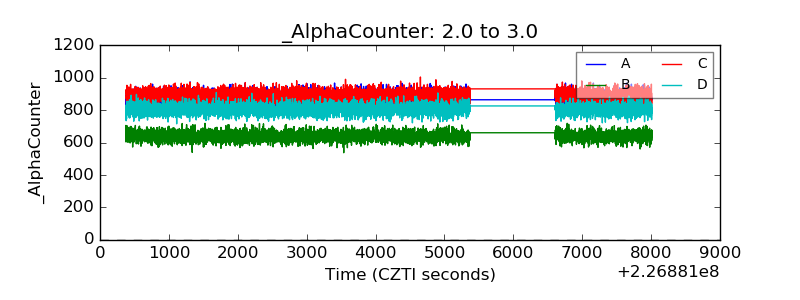

| Alpha Counter |  |
| _CPM_Rate |  |

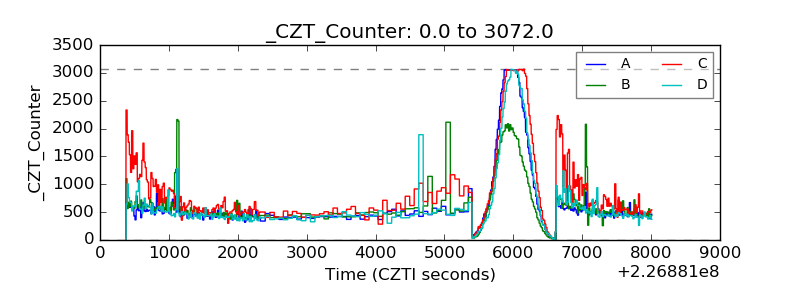

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

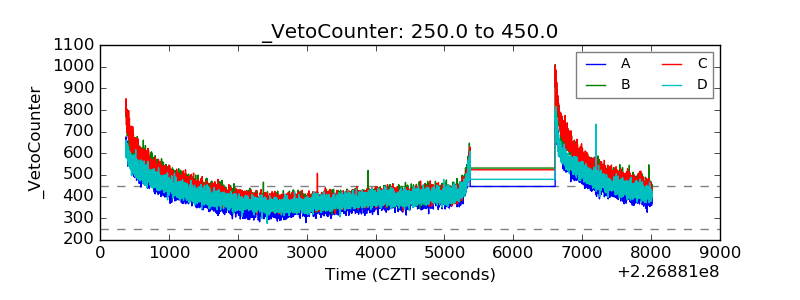

| Veto Counter |  |
