| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_077T02_9000001076_07848cztM0_level2.evt | modeM0/AS1G06_077T02_9000001076_07848cztM0_level2_quad_clean.evt |
| Size (bytes) | 812,923,200 | 138,689,280 |
| Size | 775.3 MB | 132.3 MB |
| Events in quadrant A | 5,209,024 | 853,763 |
| Events in quadrant B | 5,929,030 | 875,074 |
| Events in quadrant C | 6,415,667 | 872,631 |
| Events in quadrant D | 6,308,195 | 824,155 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22998 | 3 |
| B | 0 | 24938 | 2 |
| C | 0 | 26614 | 2 |
| D | 0 | 26444 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 228 | 0 |
| B | 0 | 228 | 0 |
| C | 0 | 228 | 0 |
| D | 0 | 228 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11188 | 214 | 1.912764% |
| B | 11188 | 380 | 3.396496% |
| C | 11188 | 176 | 1.573114% |
| D | 11188 | 409 | 3.655703% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12468 | 11191 | 2 | 2 | 0.02% | 0.02% |  |
| B | 12468 | 11191 | 123 | 123 | 0.99% | 1.10% |  |
| C | 12468 | 11191 | 1 | 1 | 0.01% | 0.01% |  |
| D | 12468 | 11191 | 205 | 205 | 1.64% | 1.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 18416 | 63.43 | 1337 | 1308 | 269.7 |
| A | 0 | 128 | 15992 | 54.44 | 1337 | 1308 | 269.7 |
| A | 8 | 15 | 12963 | 43.21 | 1337 | 1308 | 269.7 |
| B | 4 | 239 | 496318 | 1948.47 | 1337 | 1305 | 254.1 |
| B | 4 | 81 | 51756 | 198.58 | 1337 | 1305 | 254.1 |
| B | 4 | 173 | 42793 | 163.3 | 1337 | 1305 | 254.1 |
| C | 1 | 16 | 1185400 | 3927.83 | 1314 | 1326 | 301.5 |
| C | 8 | 229 | 76111 | 248.08 | 1314 | 1326 | 301.5 |
| C | 8 | 128 | 15152 | 45.86 | 1314 | 1326 | 301.5 |
| D | 12 | 233 | 555562 | 1739.88 | 1303 | 1262 | 318.6 |
| D | 13 | 137 | 225737 | 704.6 | 1303 | 1262 | 318.6 |
| D | 2 | 152 | 216495 | 675.59 | 1303 | 1262 | 318.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

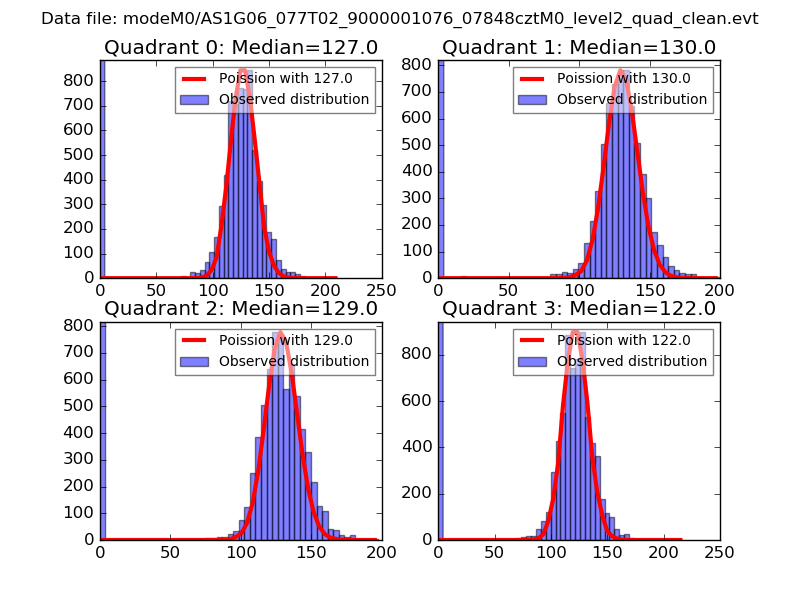

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

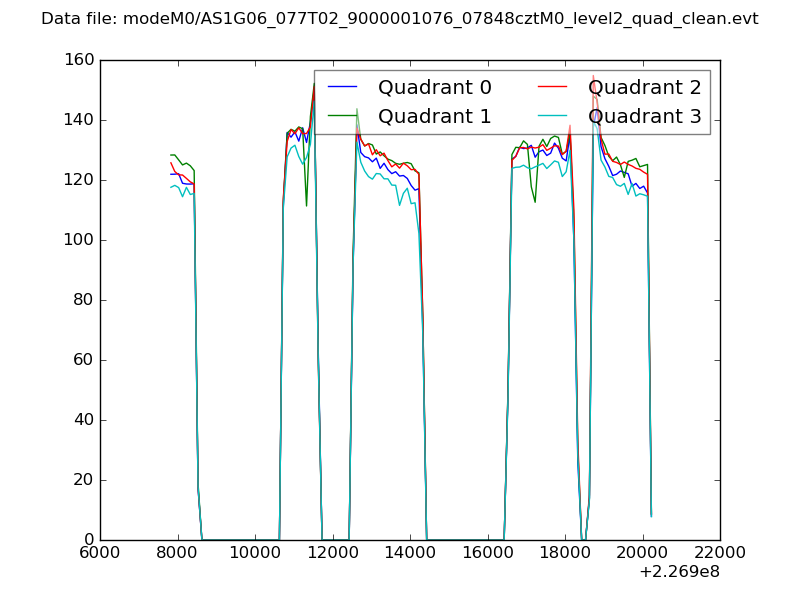

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

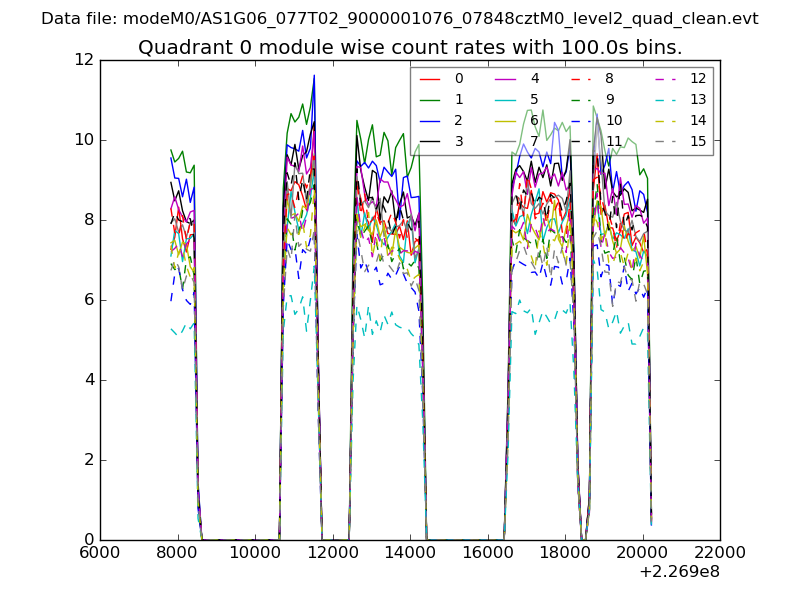

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

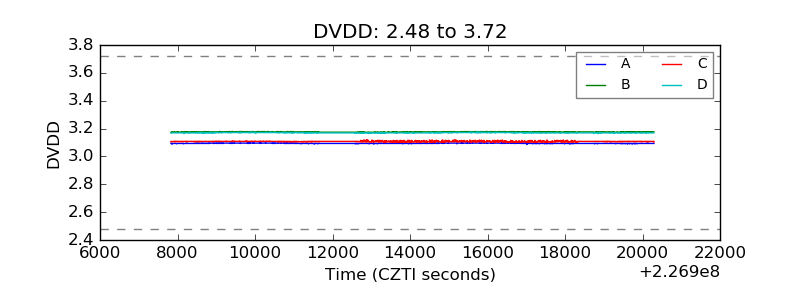

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

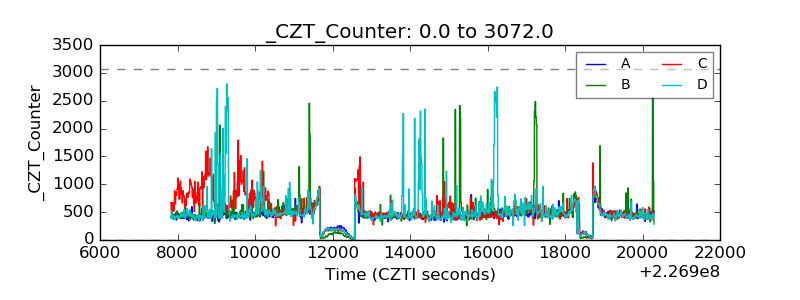

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
