| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_077T02_9000001076_07857cztM0_level2.evt | modeM0/AS1G06_077T02_9000001076_07857cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,254,080 | 99,034,560 |
| Size | 437.0 MB | 94.4 MB |
| Events in quadrant A | 3,012,460 | 640,133 |
| Events in quadrant B | 3,705,718 | 653,618 |
| Events in quadrant C | 3,576,427 | 652,192 |
| Events in quadrant D | 3,156,485 | 614,372 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13083 | 3 |
| B | 0 | 15028 | 2 |
| C | 0 | 14792 | 2 |
| D | 0 | 13704 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6288 | 24 | 0.381679% |
| B | 6288 | 199 | 3.164758% |
| C | 6288 | 31 | 0.493003% |
| D | 6288 | 56 | 0.890585% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7503 | 6289 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7503 | 6289 | 116 | 116 | 1.55% | 1.84% |  |
| C | 7503 | 6289 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7503 | 6289 | 27 | 27 | 0.36% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 23953 | 150.28 | 770 | 757 | 154.4 |
| A | 15 | 174 | 9113 | 54.14 | 770 | 757 | 154.4 |
| A | 0 | 226 | 7262 | 42.14 | 770 | 757 | 154.4 |
| B | 4 | 239 | 355667 | 2445.8 | 777 | 761 | 145.1 |
| B | 4 | 173 | 141351 | 968.86 | 777 | 761 | 145.1 |
| B | 0 | 219 | 78359 | 534.76 | 777 | 761 | 145.1 |
| C | 1 | 16 | 574210 | 3265.85 | 761 | 766 | 175.6 |
| C | 10 | 22 | 19277 | 105.42 | 761 | 766 | 175.6 |
| C | 12 | 4 | 9613 | 50.38 | 761 | 766 | 175.6 |
| D | 13 | 104 | 148388 | 807.85 | 749 | 727 | 182.8 |
| D | 2 | 152 | 46377 | 249.75 | 749 | 727 | 182.8 |
| D | 1 | 52 | 24885 | 132.17 | 749 | 727 | 182.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

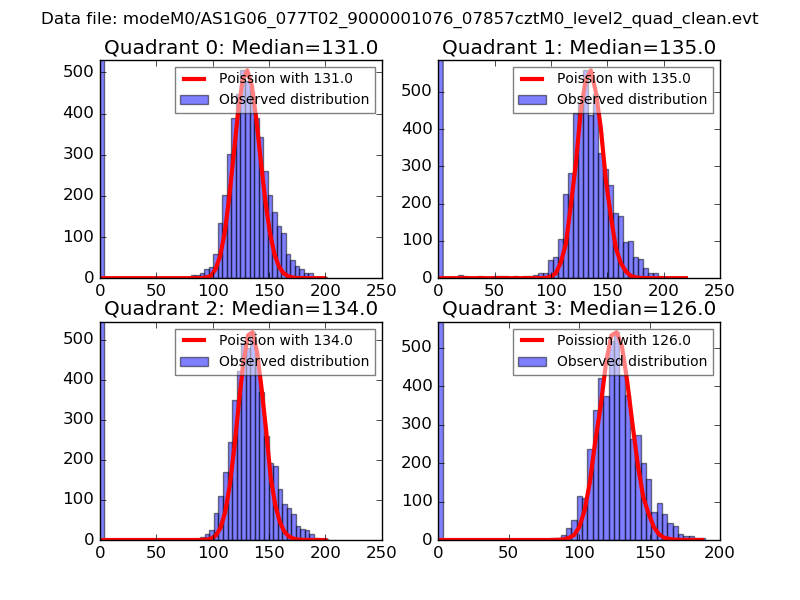

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

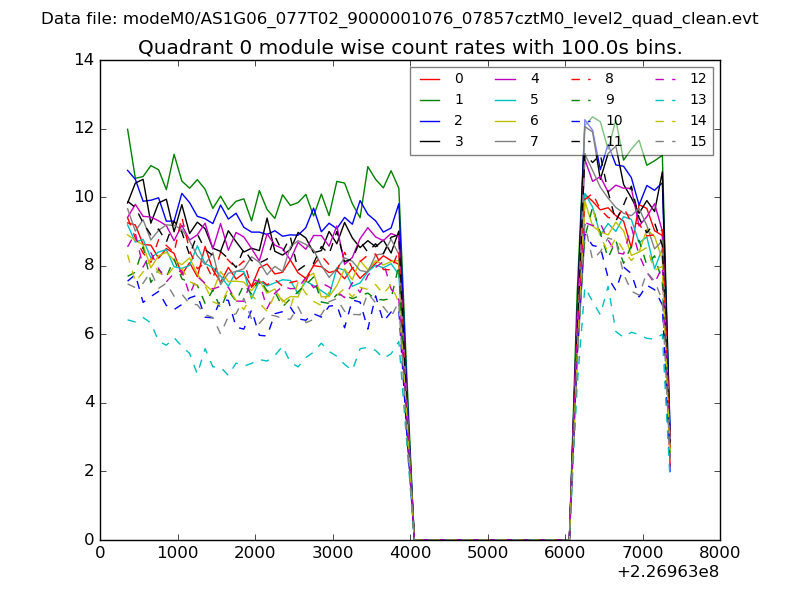

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

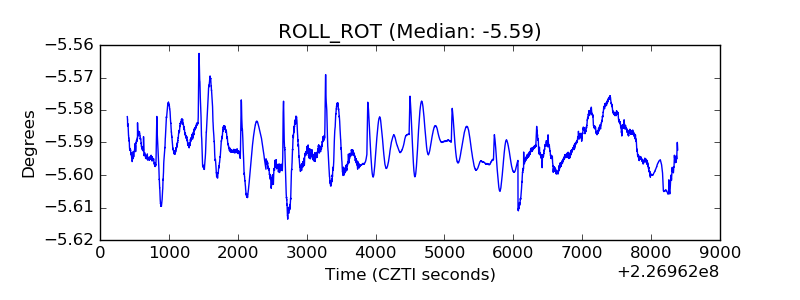

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

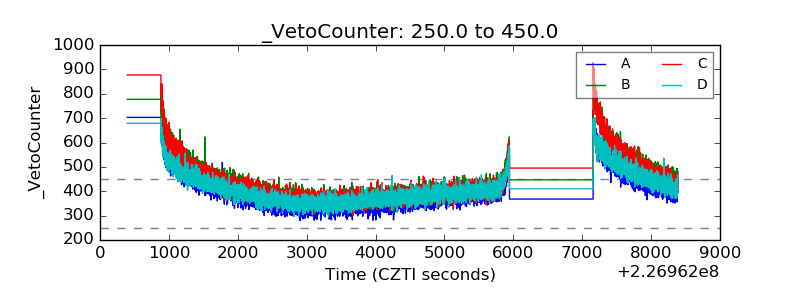

| Veto Counter |  |
