| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_077T02_9000001076_07867cztM0_level2.evt | modeM0/AS1G06_077T02_9000001076_07867cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,052,179,200 | 164,649,600 |
| Size | 1003.4 MB | 157.0 MB |
| Events in quadrant A | 8,801,689 | 1,008,489 |
| Events in quadrant B | 7,096,552 | 1,039,087 |
| Events in quadrant C | 8,274,527 | 1,038,439 |
| Events in quadrant D | 6,805,040 | 992,540 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34909 | 2 |
| B | 0 | 29549 | 2 |
| C | 0 | 33588 | 2 |
| D | 0 | 29281 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 266 | 0 |
| B | 0 | 266 | 0 |
| C | 0 | 266 | 0 |
| D | 0 | 266 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13135 | 802 | 6.105824% |
| B | 13135 | 644 | 4.902931% |
| C | 13135 | 401 | 3.052912% |
| D | 13135 | 427 | 3.250856% |

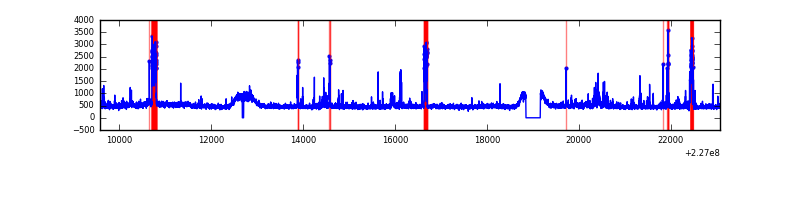

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13480 | 13137 | 256 | 256 | 1.90% | 1.95% |  |
| B | 13480 | 13137 | 140 | 140 | 1.04% | 1.07% |  |
| C | 13480 | 13137 | 2 | 2 | 0.01% | 0.02% |  |
| D | 13480 | 13137 | 41 | 41 | 0.30% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 2648729 | 8349.13 | 1563 | 1530 | 317.1 |
| A | 15 | 223 | 66815 | 205.91 | 1563 | 1530 | 317.1 |
| A | 13 | 251 | 19749 | 57.46 | 1563 | 1530 | 317.1 |
| B | 4 | 239 | 621338 | 2013.31 | 1589 | 1548 | 307.8 |
| B | 0 | 219 | 131253 | 421.33 | 1589 | 1548 | 307.8 |
| B | 4 | 173 | 63766 | 202.11 | 1589 | 1548 | 307.8 |
| C | 1 | 16 | 2158569 | 5992.56 | 1550 | 1559 | 359.9 |
| C | 8 | 229 | 47822 | 128.53 | 1550 | 1559 | 359.9 |
| C | 13 | 61 | 12033 | 29.1 | 1550 | 1559 | 359.9 |
| D | 2 | 152 | 347298 | 909.52 | 1547 | 1498 | 380.2 |
| D | 1 | 52 | 305253 | 798.94 | 1547 | 1498 | 380.2 |
| D | 2 | 136 | 98129 | 254.16 | 1547 | 1498 | 380.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

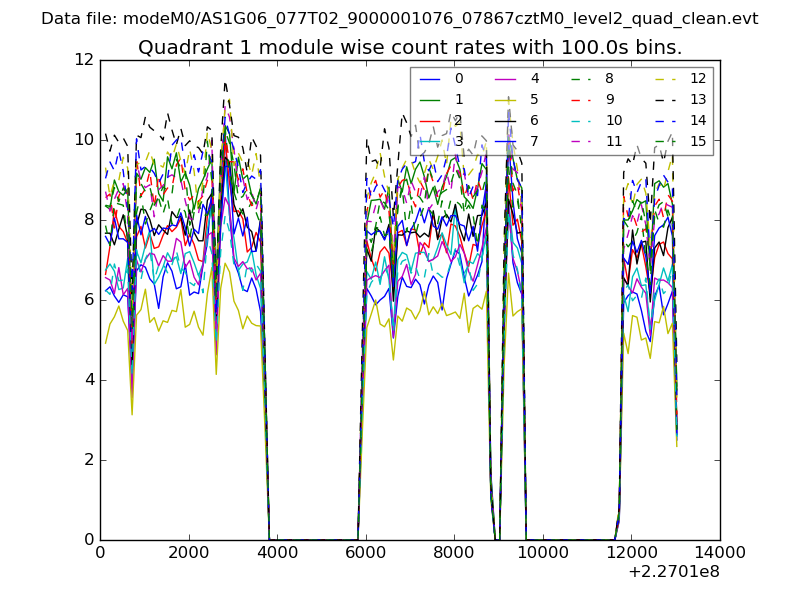

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

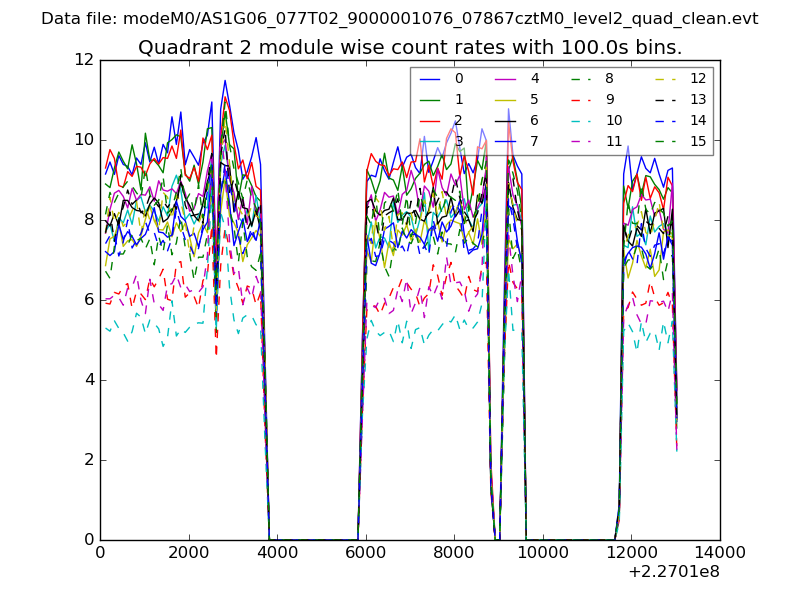

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

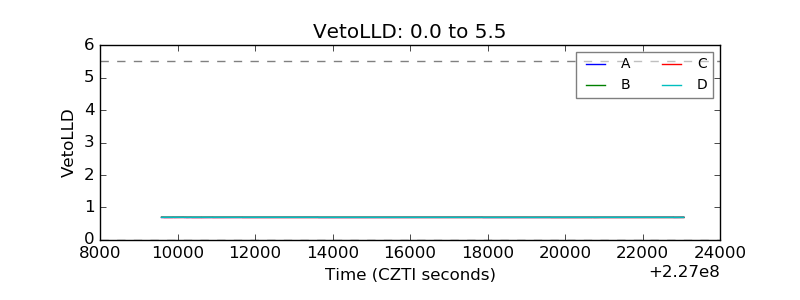

| Veto LLD |  |

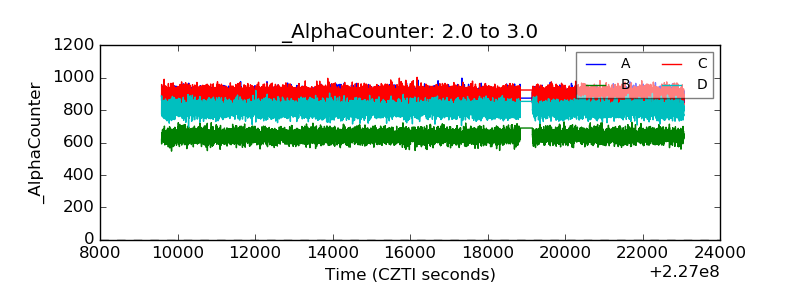

| Alpha Counter |  |
| _CPM_Rate |  |

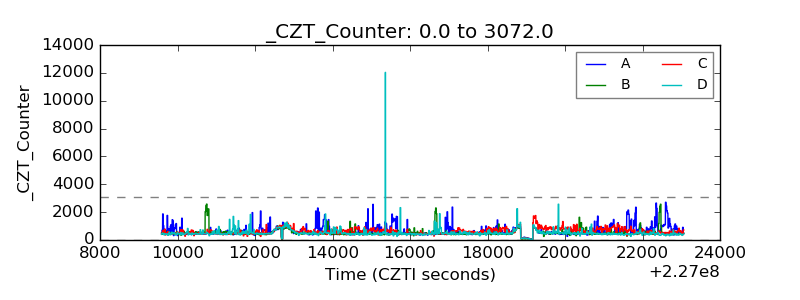

| CZT Counter |  |

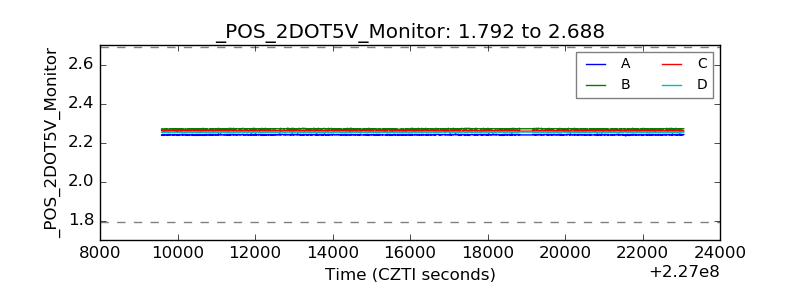

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

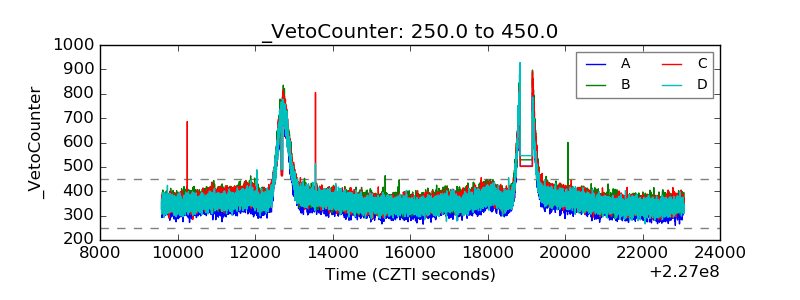

| Veto Counter |  |
