| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_071T01_9000001078_07871cztM0_level2.evt | modeM0/AS1A02_071T01_9000001078_07871cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,885,760 | 93,291,840 |
| Size | 517.7 MB | 89.0 MB |
| Events in quadrant A | 4,180,421 | 604,914 |
| Events in quadrant B | 3,188,701 | 626,550 |
| Events in quadrant C | 3,771,816 | 606,063 |
| Events in quadrant D | 4,876,860 | 551,433 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16667 | 2 |
| B | 0 | 13631 | 1 |
| C | 0 | 15400 | 1 |
| D | 0 | 18780 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6244 | 376 | 6.021781% |
| B | 6244 | 93 | 1.489430% |
| C | 6244 | 37 | 0.592569% |
| D | 6244 | 577 | 9.240871% |

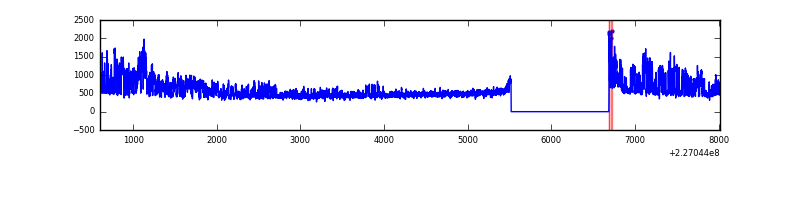

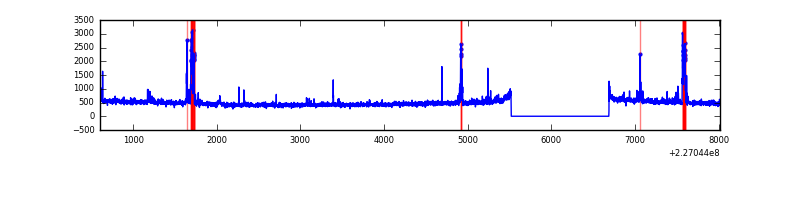

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7414 | 6245 | 251 | 251 | 3.39% | 4.02% |  |
| B | 7414 | 6245 | 44 | 44 | 0.59% | 0.70% |  |
| C | 7414 | 6245 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7414 | 6245 | 537 | 537 | 7.24% | 8.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 995442 | 6733.75 | 733 | 718 | 147.7 |
| A | 15 | 239 | 334886 | 2262.14 | 733 | 718 | 147.7 |
| A | 3 | 1 | 15497 | 100.05 | 733 | 718 | 147.7 |
| B | 4 | 239 | 206295 | 1429.79 | 755 | 739 | 143.8 |
| B | 0 | 214 | 18000 | 120.06 | 755 | 739 | 143.8 |
| B | 12 | 111 | 14210 | 93.7 | 755 | 739 | 143.8 |
| C | 1 | 16 | 915637 | 5402.63 | 727 | 732 | 169.3 |
| C | 10 | 22 | 8448 | 45.56 | 727 | 732 | 169.3 |
| C | 13 | 61 | 5552 | 28.46 | 727 | 732 | 169.3 |
| D | 1 | 52 | 1983078 | 11559.05 | 697 | 676 | 171.5 |
| D | 14 | 34 | 107566 | 623.26 | 697 | 676 | 171.5 |
| D | 12 | 233 | 62713 | 361.73 | 697 | 676 | 171.5 |

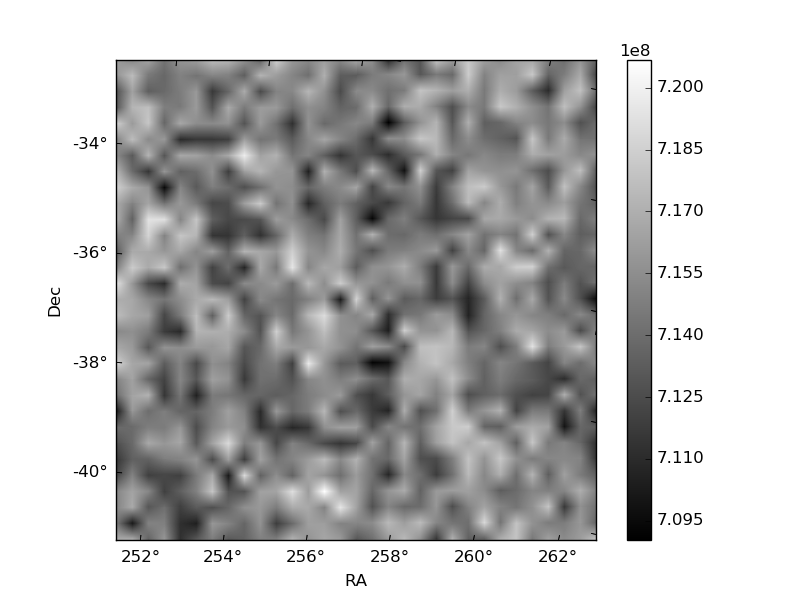

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

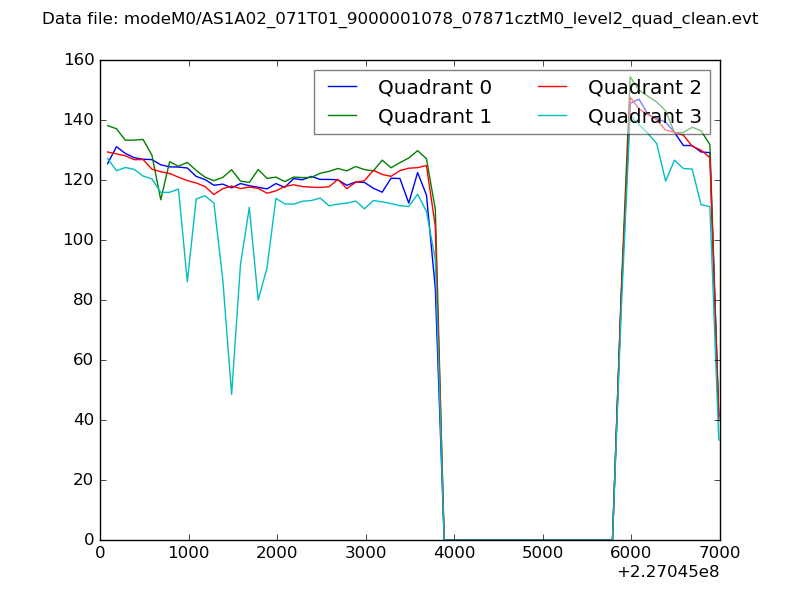

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

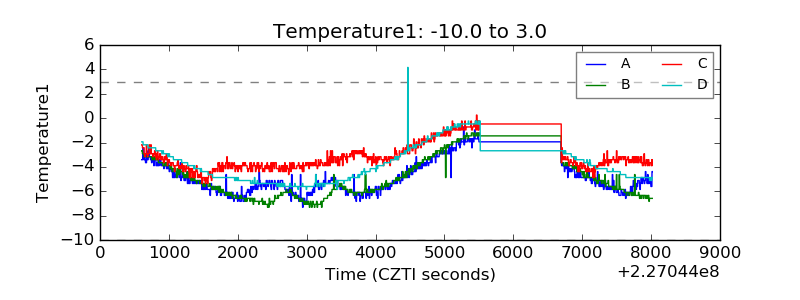

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

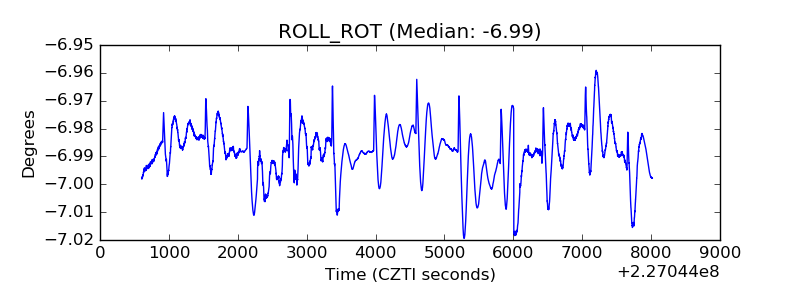

| _ROLL_ROT |  |

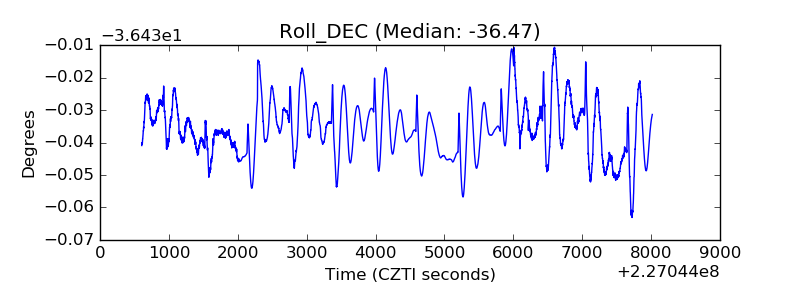

| _Roll_DEC |  |

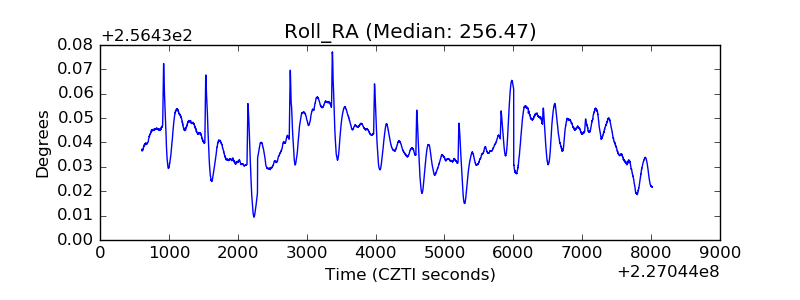

| _Roll_RA |  |
| Veto Counter |  |
