| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_071T01_9000001078_07872cztM0_level2.evt | modeM0/AS1A02_071T01_9000001078_07872cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,869,440 | 101,839,680 |
| Size | 460.5 MB | 97.1 MB |
| Events in quadrant A | 3,592,567 | 665,128 |
| Events in quadrant B | 3,344,861 | 686,888 |
| Events in quadrant C | 3,780,141 | 665,425 |
| Events in quadrant D | 3,479,601 | 628,242 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14836 | 3 |
| B | 0 | 14117 | 2 |
| C | 0 | 15395 | 2 |
| D | 0 | 14649 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6277 | 95 | 1.513462% |
| B | 6277 | 119 | 1.895810% |
| C | 6277 | 63 | 1.003664% |
| D | 6277 | 90 | 1.433806% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7532 | 6278 | 23 | 23 | 0.31% | 0.37% |  |
| B | 7532 | 6278 | 53 | 53 | 0.70% | 0.84% |  |
| C | 7532 | 6278 | 13 | 13 | 0.17% | 0.21% |  |
| D | 7532 | 6278 | 100 | 100 | 1.33% | 1.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 500985 | 3264.52 | 760 | 743 | 153.2 |
| A | 2 | 79 | 145154 | 942.41 | 760 | 743 | 153.2 |
| A | 13 | 14 | 12018 | 73.58 | 760 | 743 | 153.2 |
| B | 4 | 239 | 208977 | 1417.61 | 776 | 758 | 146.9 |
| B | 4 | 81 | 44930 | 300.73 | 776 | 758 | 146.9 |
| B | 4 | 97 | 24254 | 159.97 | 776 | 758 | 146.9 |
| C | 1 | 16 | 846078 | 4911.07 | 749 | 756 | 172.1 |
| C | 8 | 229 | 5695 | 28.69 | 749 | 756 | 172.1 |
| C | 13 | 61 | 5661 | 28.5 | 749 | 756 | 172.1 |
| D | 1 | 52 | 568534 | 3159.67 | 739 | 717 | 179.7 |
| D | 12 | 233 | 32952 | 179.37 | 739 | 717 | 179.7 |
| D | 2 | 152 | 27815 | 150.79 | 739 | 717 | 179.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

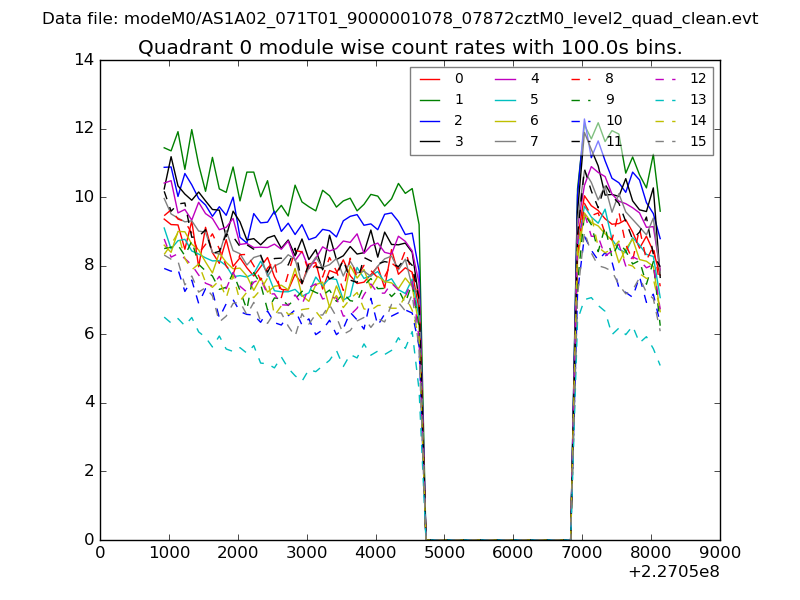

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

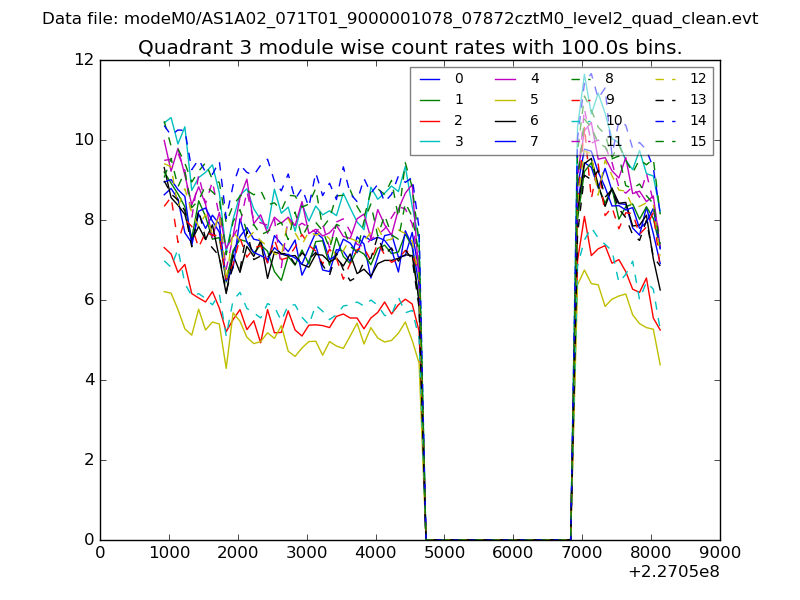

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

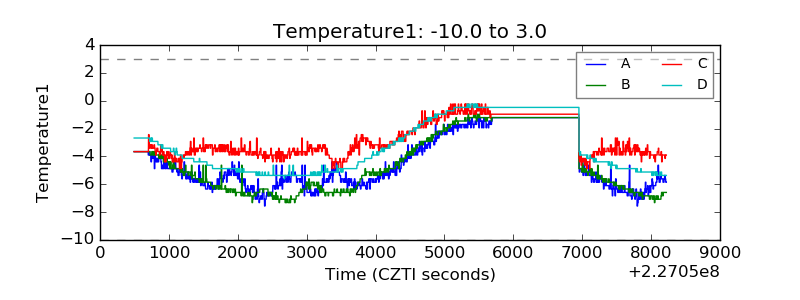

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

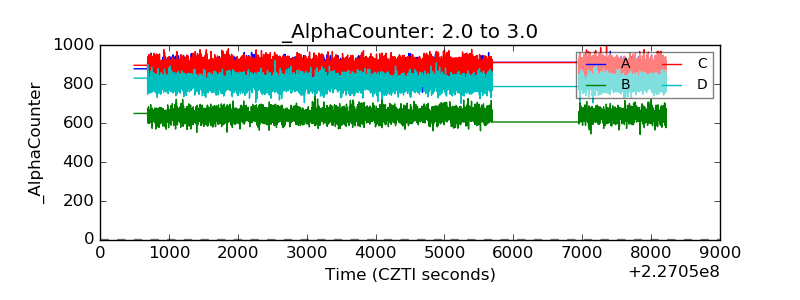

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

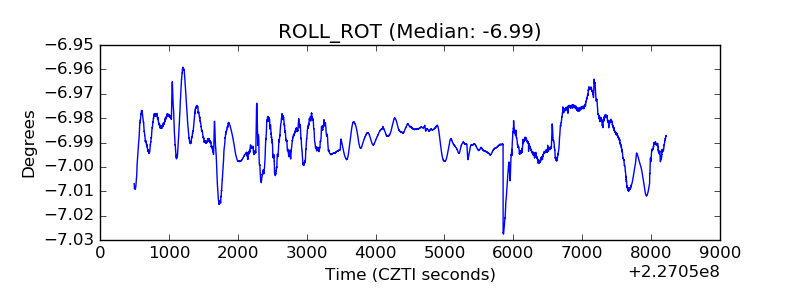

| _ROLL_ROT |  |

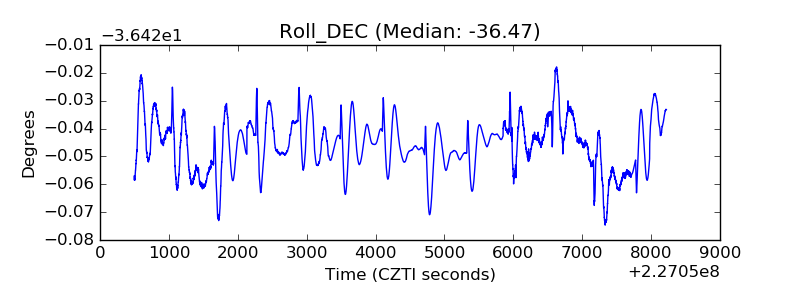

| _Roll_DEC |  |

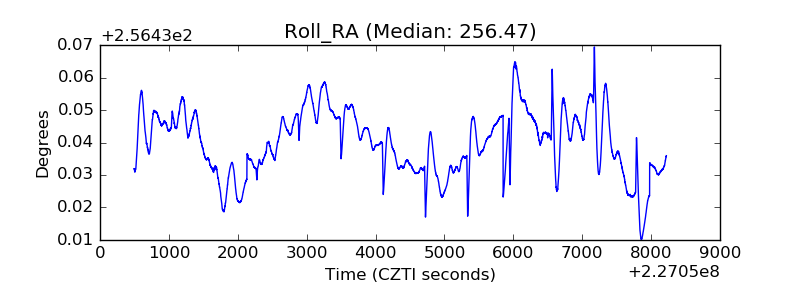

| _Roll_RA |  |
| Veto Counter |  |
