| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_071T01_9000001078_07882cztM0_level2.evt | modeM0/AS1A02_071T01_9000001078_07882cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,015,585,280 | 345,533,760 |
| Size | 1.9 GB | 329.5 MB |
| Events in quadrant A | 15,065,003 | 2,125,314 |
| Events in quadrant B | 14,721,079 | 2,166,109 |
| Events in quadrant C | 13,278,911 | 2,149,733 |
| Events in quadrant D | 16,001,441 | 2,014,087 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 594 | 0 |
| B | 0 | 594 | 0 |
| C | 0 | 594 | 0 |
| D | 0 | 594 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 64868 | 5 |
| B | 0 | 63353 | 4 |
| C | 0 | 60198 | 4 |
| D | 0 | 68126 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 29221 | 1300 | 4.448855% |
| B | 29221 | 1014 | 3.470107% |
| C | 29221 | 515 | 1.762431% |
| D | 29221 | 1164 | 3.983437% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 31381 | 29224 | 401 | 401 | 1.28% | 1.37% |  |
| B | 31381 | 29225 | 181 | 181 | 0.58% | 0.62% |  |
| C | 31381 | 29225 | 0 | 0 | 0.00% | 0.00% |  |
| D | 31381 | 29225 | 435 | 435 | 1.39% | 1.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 1672104 | 2424.17 | 3396 | 3322 | 688.4 |
| A | 15 | 174 | 196429 | 280.52 | 3396 | 3322 | 688.4 |
| A | 15 | 223 | 66120 | 91.22 | 3396 | 3322 | 688.4 |
| B | 4 | 239 | 1101721 | 1664.98 | 3446 | 3357 | 659.7 |
| B | 0 | 214 | 71233 | 102.89 | 3446 | 3357 | 659.7 |
| B | 12 | 111 | 67307 | 96.94 | 3446 | 3357 | 659.7 |
| C | 1 | 16 | 154129 | 194.67 | 3363 | 3375 | 774.4 |
| C | 13 | 61 | 25955 | 29.16 | 3363 | 3375 | 774.4 |
| C | 12 | 4 | 10876 | 9.69 | 3363 | 3375 | 774.4 |
| D | 13 | 112 | 1225577 | 1509.92 | 3323 | 3217 | 809.6 |
| D | 13 | 104 | 598486 | 735.31 | 3323 | 3217 | 809.6 |
| D | 2 | 136 | 386611 | 473.59 | 3323 | 3217 | 809.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

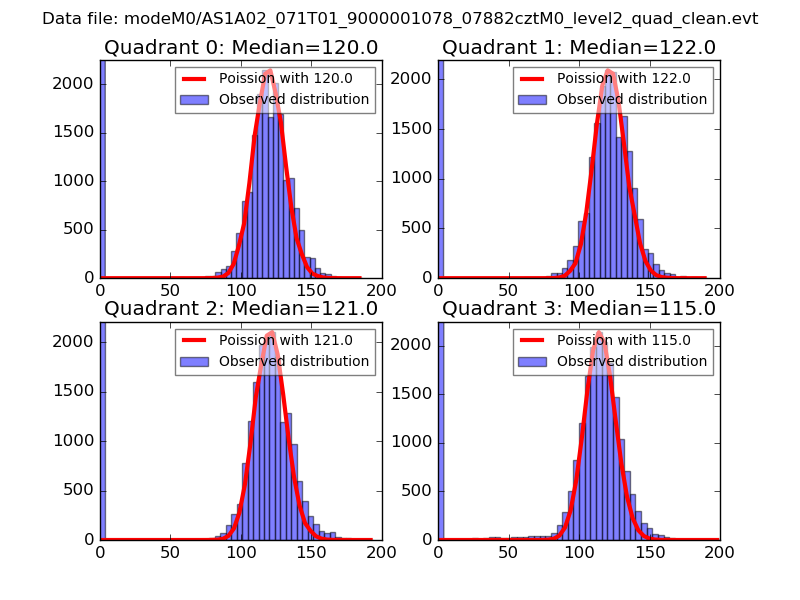

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

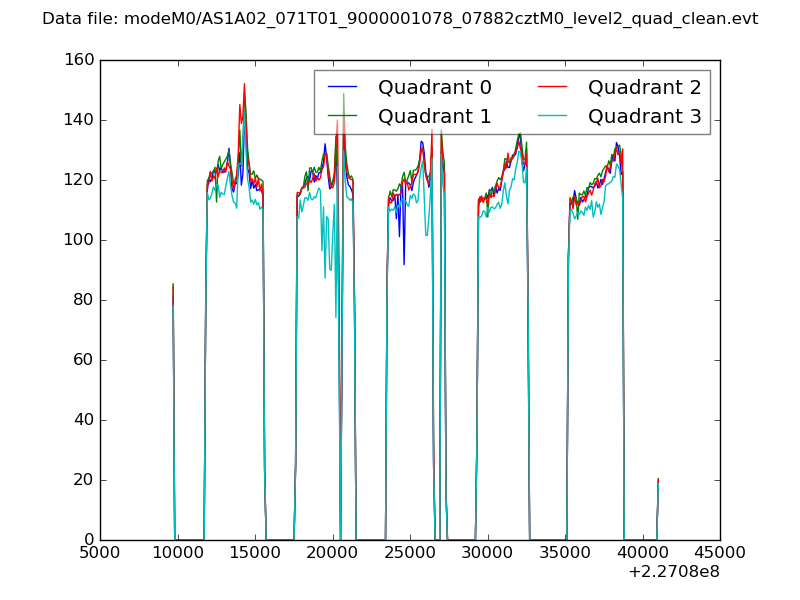

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
