| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_071T01_9000001078_07883cztM0_level2.evt | modeM0/AS1A02_071T01_9000001078_07883cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,807,735,040 | 513,198,720 |
| Size | 2.6 GB | 489.4 MB |
| Events in quadrant A | 20,508,857 | 3,195,382 |
| Events in quadrant B | 20,774,366 | 3,259,545 |
| Events in quadrant C | 19,176,972 | 3,226,352 |
| Events in quadrant D | 21,787,646 | 3,032,192 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 836 | 0 |
| B | 0 | 836 | 0 |
| C | 0 | 836 | 0 |
| D | 0 | 836 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 89392 | 7 |
| B | 0 | 89517 | 6 |
| C | 0 | 85784 | 6 |
| D | 0 | 93863 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 35 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 41216 | 1442 | 3.498641% |
| B | 41216 | 1308 | 3.173525% |
| C | 41216 | 639 | 1.550369% |
| D | 41216 | 1374 | 3.333657% |

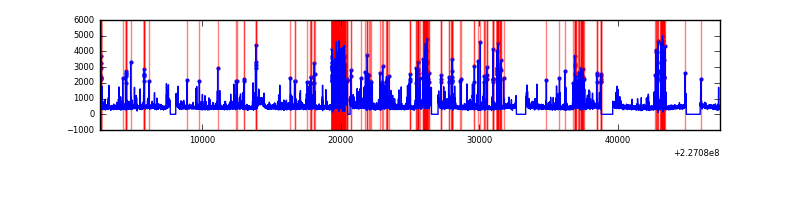

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 44781 | 41221 | 403 | 403 | 0.90% | 0.98% |  |
| B | 44781 | 41222 | 264 | 264 | 0.59% | 0.64% |  |
| C | 44781 | 41222 | 0 | 0 | 0.00% | 0.00% |  |
| D | 44781 | 41222 | 515 | 515 | 1.15% | 1.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 1699132 | 1759.4 | 4784 | 4682 | 963.1 |
| A | 15 | 174 | 200514 | 203.34 | 4784 | 4682 | 963.1 |
| A | 15 | 223 | 78458 | 76.6 | 4784 | 4682 | 963.1 |
| B | 4 | 239 | 1554160 | 1674.28 | 4843 | 4719 | 925.4 |
| B | 11 | 51 | 120391 | 124.99 | 4843 | 4719 | 925.4 |
| B | 12 | 111 | 94339 | 96.84 | 4843 | 4719 | 925.4 |
| C | 1 | 16 | 709103 | 648.11 | 4729 | 4745 | 1086.8 |
| C | 13 | 61 | 36383 | 29.11 | 4729 | 4745 | 1086.8 |
| C | 12 | 4 | 24465 | 18.15 | 4729 | 4745 | 1086.8 |
| D | 13 | 112 | 1443329 | 1260.15 | 4683 | 4540 | 1141.8 |
| D | 13 | 104 | 642015 | 558.33 | 4683 | 4540 | 1141.8 |
| D | 2 | 136 | 393778 | 340.91 | 4683 | 4540 | 1141.8 |

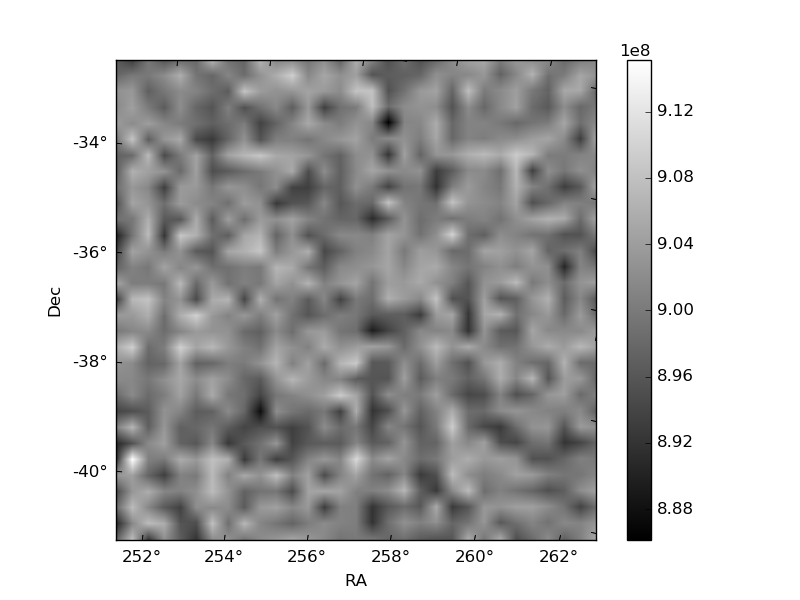

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

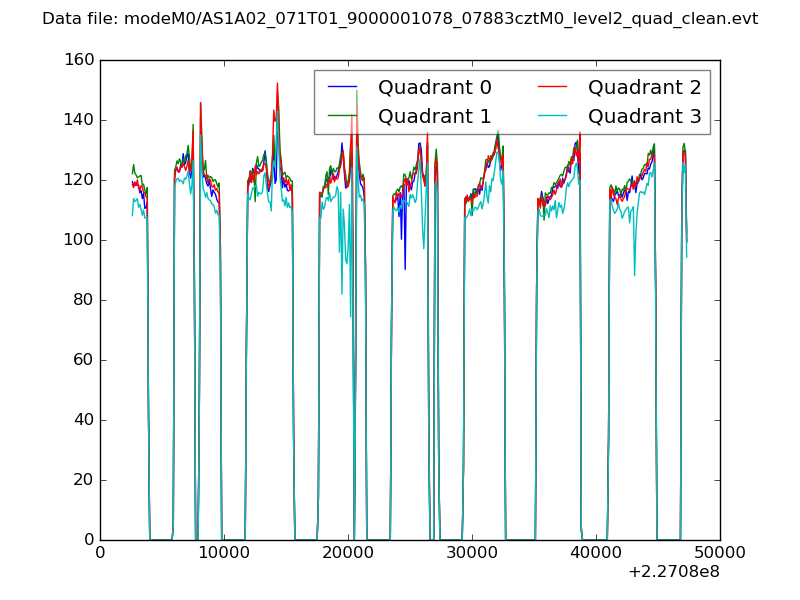

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

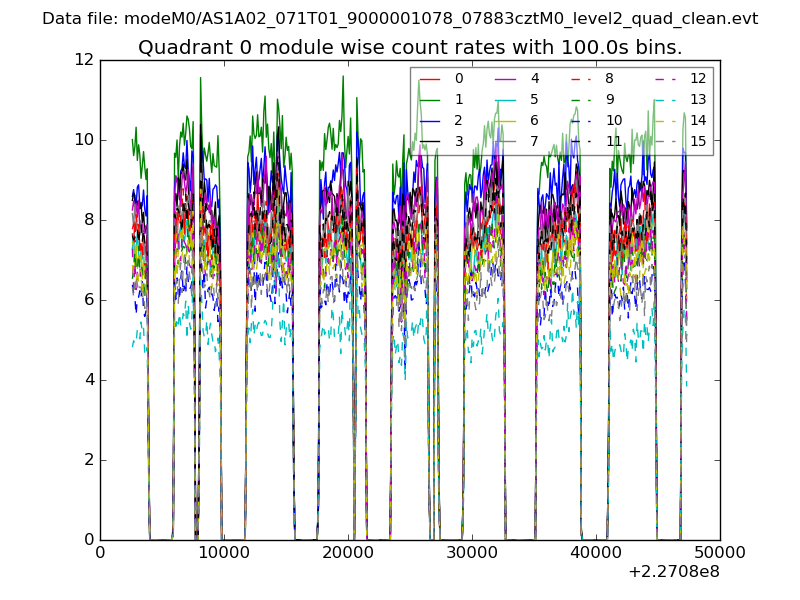

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

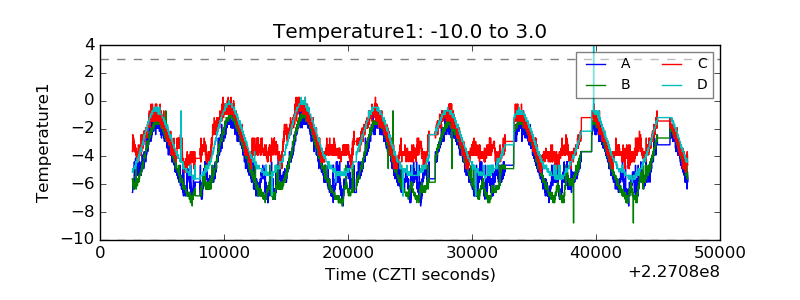

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

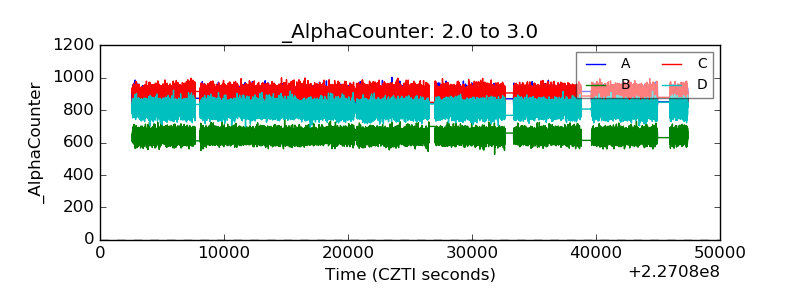

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

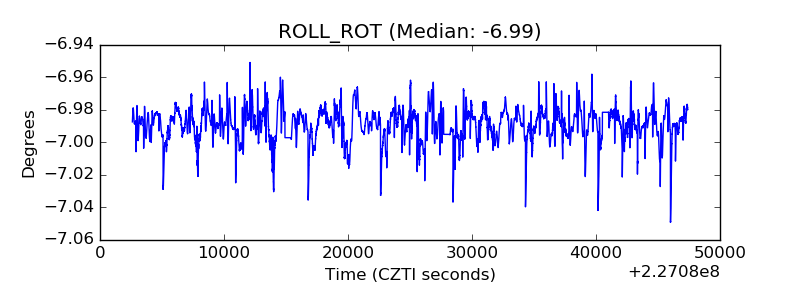

| _ROLL_ROT |  |
| _Roll_DEC |  |

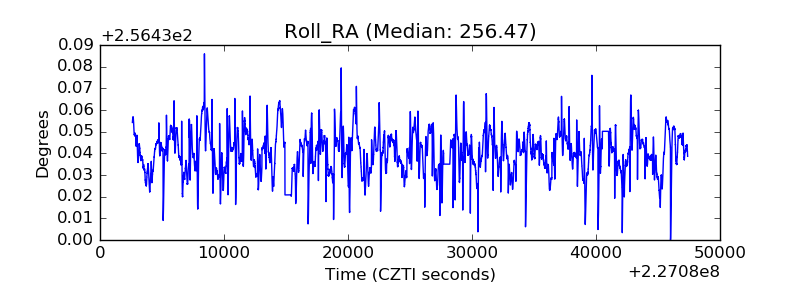

| _Roll_RA |  |
| Veto Counter |  |
