| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_158T01_9000001080_07898cztM0_level2.evt | modeM0/AS1A02_158T01_9000001080_07898cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,692,800 | 76,858,560 |
| Size | 431.7 MB | 73.3 MB |
| Events in quadrant A | 2,854,570 | 478,686 |
| Events in quadrant B | 3,037,444 | 486,052 |
| Events in quadrant C | 3,655,066 | 479,277 |
| Events in quadrant D | 3,745,432 | 454,340 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12617 | 2 |
| B | 0 | 13078 | 1 |
| C | 0 | 14893 | 1 |
| D | 0 | 15420 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6149 | 46 | 0.748089% |
| B | 6149 | 54 | 0.878192% |
| C | 6149 | 50 | 0.813140% |
| D | 6149 | 97 | 1.577492% |

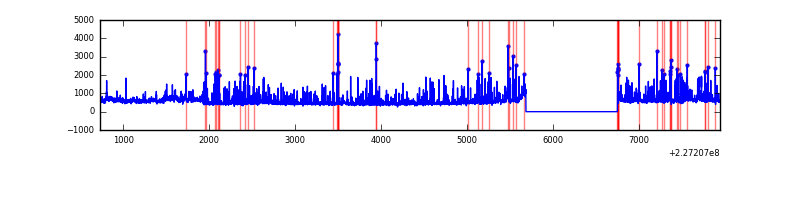

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7214 | 6150 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7214 | 6150 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7214 | 6150 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7214 | 6150 | 52 | 52 | 0.72% | 0.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 14713 | 92.09 | 733 | 718 | 152.0 |
| A | 8 | 15 | 13078 | 81.33 | 733 | 718 | 152.0 |
| A | 0 | 226 | 6921 | 40.82 | 733 | 718 | 152.0 |
| B | 5 | 255 | 109760 | 769.33 | 738 | 722 | 141.7 |
| B | 4 | 239 | 29549 | 203.39 | 738 | 722 | 141.7 |
| B | 4 | 81 | 19247 | 130.71 | 738 | 722 | 141.7 |
| C | 1 | 16 | 843983 | 5091.19 | 712 | 715 | 165.6 |
| C | 9 | 68 | 23961 | 140.35 | 712 | 715 | 165.6 |
| C | 12 | 4 | 6779 | 36.61 | 712 | 715 | 165.6 |
| D | 1 | 20 | 923400 | 5331.66 | 706 | 684 | 173.1 |
| D | 1 | 52 | 57724 | 329.59 | 706 | 684 | 173.1 |
| D | 2 | 14 | 23957 | 134.48 | 706 | 684 | 173.1 |

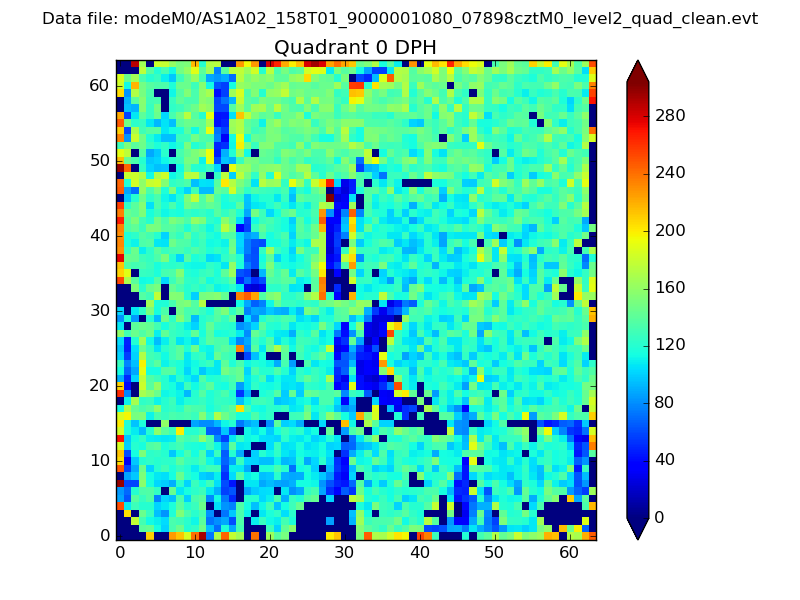

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

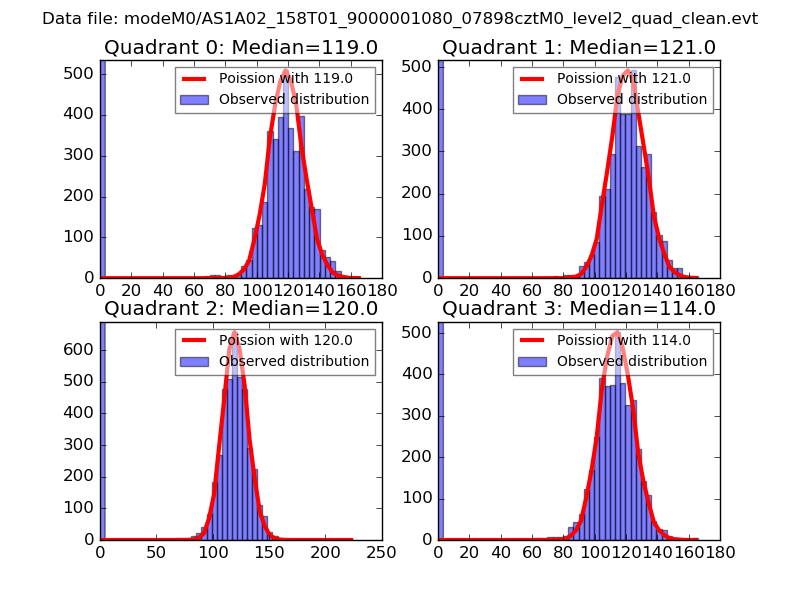

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

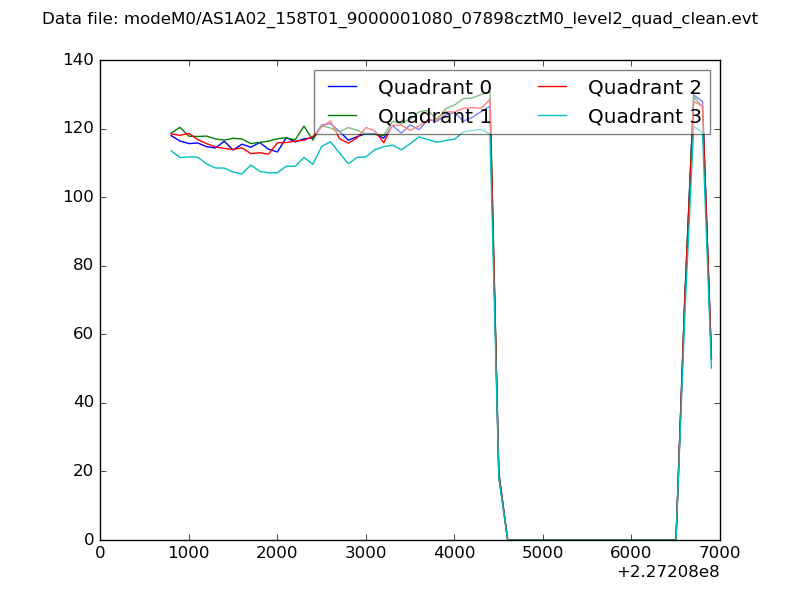

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

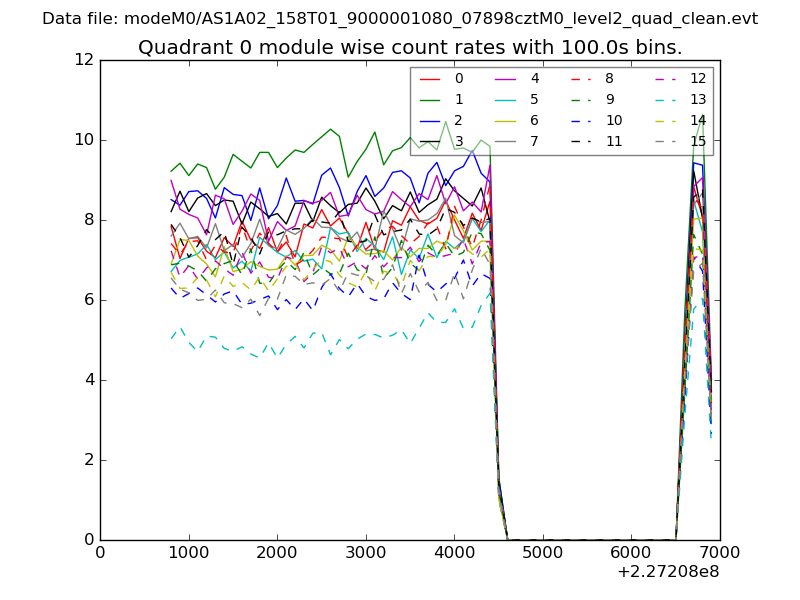

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

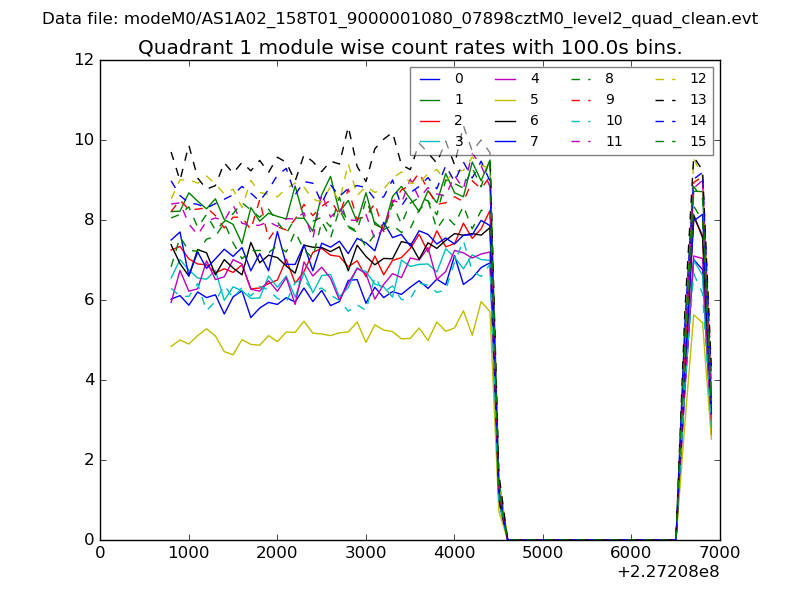

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

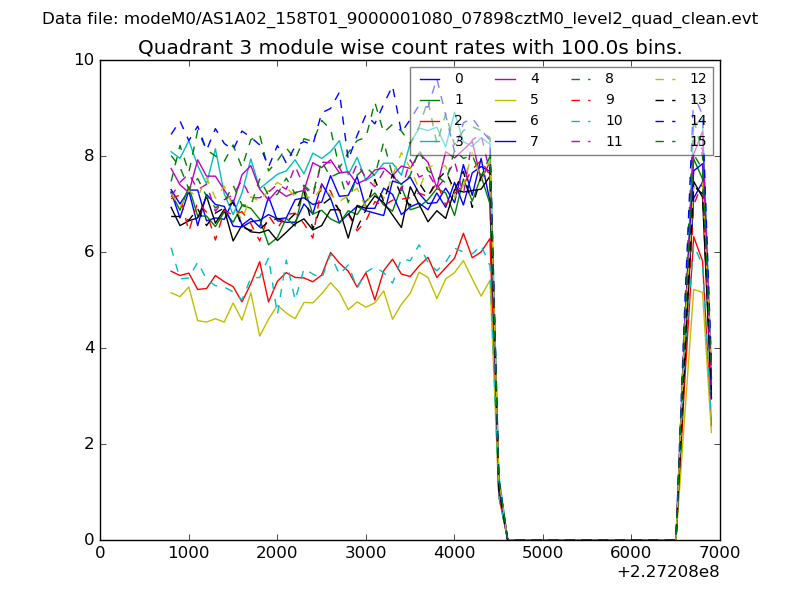

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

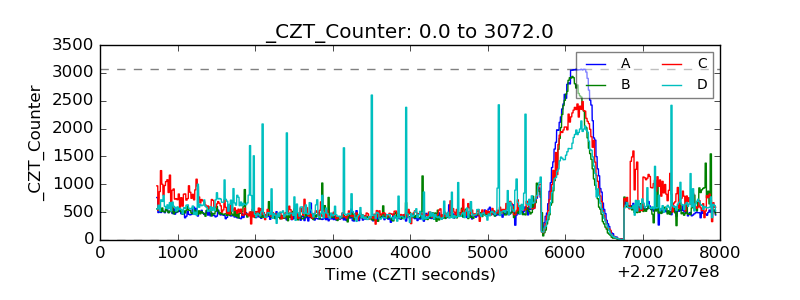

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
