| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_158T01_9000001080_07901cztM0_level2.evt | modeM0/AS1A02_158T01_9000001080_07901cztM0_level2_quad_clean.evt |
| Size (bytes) | 356,780,160 | 73,653,120 |
| Size | 340.3 MB | 70.2 MB |
| Events in quadrant A | 2,375,211 | 472,505 |
| Events in quadrant B | 2,489,040 | 486,838 |
| Events in quadrant C | 3,051,336 | 472,623 |
| Events in quadrant D | 2,552,066 | 450,663 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10336 | 1 |
| B | 0 | 10694 | 1 |
| C | 0 | 12357 | 1 |
| D | 0 | 11055 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4960 | 21 | 0.423387% |
| B | 4960 | 31 | 0.625000% |
| C | 4960 | 35 | 0.705645% |
| D | 4960 | 47 | 0.947581% |

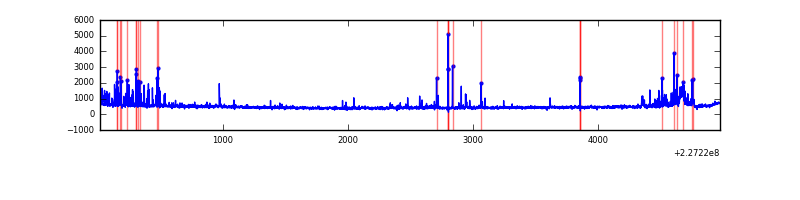

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4960 | 4960 | 1 | 1 | 0.02% | 0.02% |  |
| B | 4960 | 4960 | 5 | 5 | 0.10% | 0.10% |  |
| C | 4960 | 4960 | 3 | 3 | 0.06% | 0.06% |  |
| D | 4960 | 4960 | 26 | 26 | 0.52% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 22248 | 178.0 | 598 | 586 | 121.7 |
| A | 0 | 128 | 15015 | 118.57 | 598 | 586 | 121.7 |
| A | 13 | 251 | 11565 | 90.22 | 598 | 586 | 121.7 |
| B | 4 | 239 | 57944 | 503.28 | 607 | 594 | 114.0 |
| B | 4 | 173 | 38300 | 330.89 | 607 | 594 | 114.0 |
| B | 5 | 255 | 15364 | 129.62 | 607 | 594 | 114.0 |
| C | 1 | 16 | 759877 | 5631.33 | 586 | 588 | 134.8 |
| C | 13 | 61 | 4477 | 28.84 | 586 | 588 | 134.8 |
| C | 9 | 68 | 3433 | 21.1 | 586 | 588 | 134.8 |
| D | 1 | 52 | 181630 | 1268.58 | 579 | 561 | 142.7 |
| D | 1 | 20 | 120982 | 843.68 | 579 | 561 | 142.7 |
| D | 12 | 233 | 24949 | 170.86 | 579 | 561 | 142.7 |

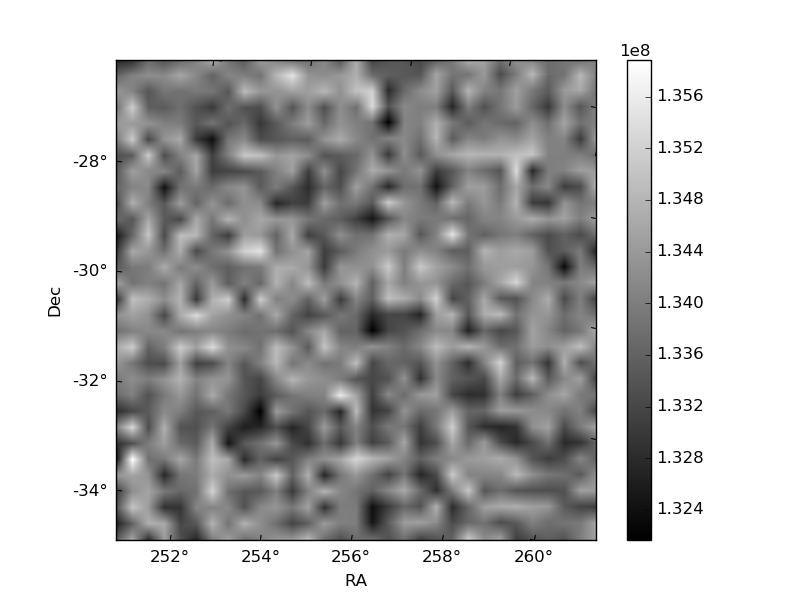

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

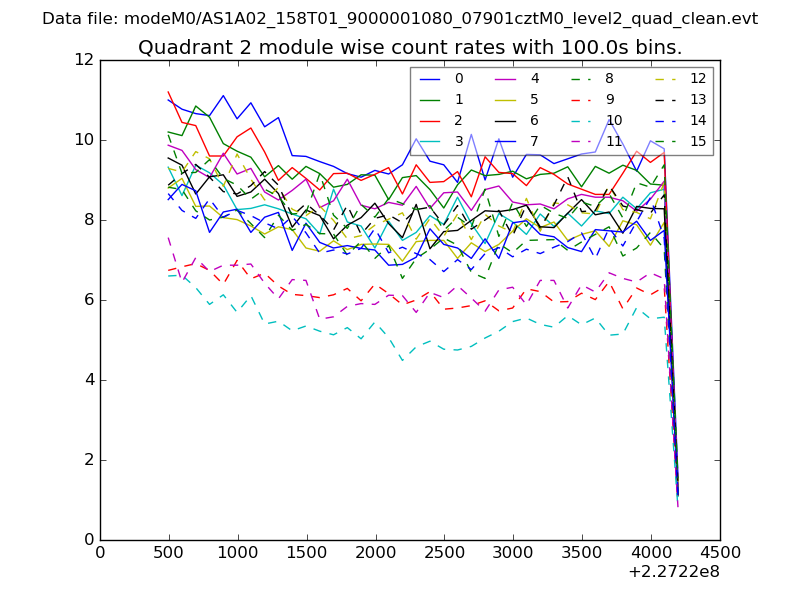

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

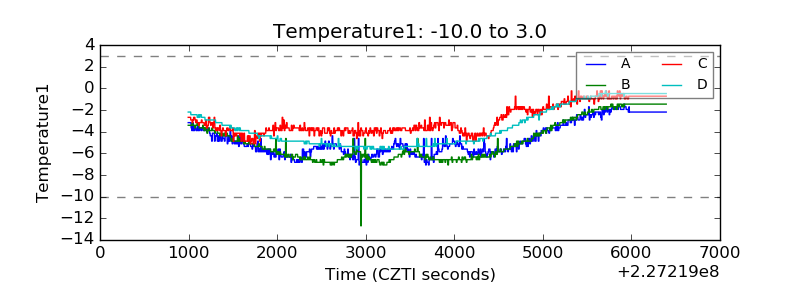

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

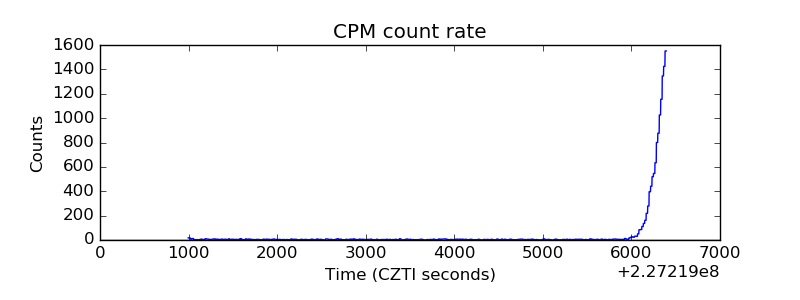

| _CPM_Rate |  |

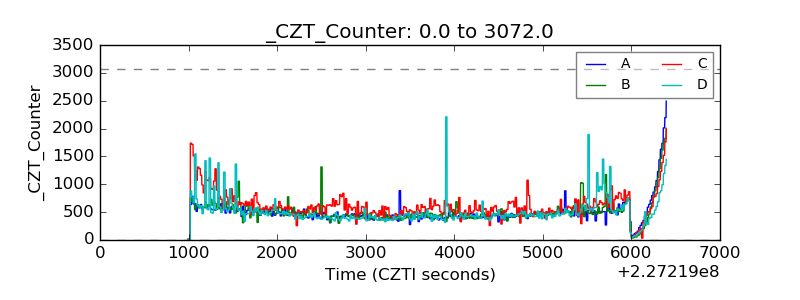

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

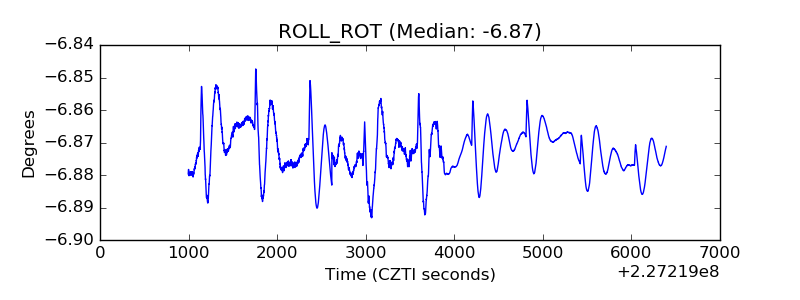

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

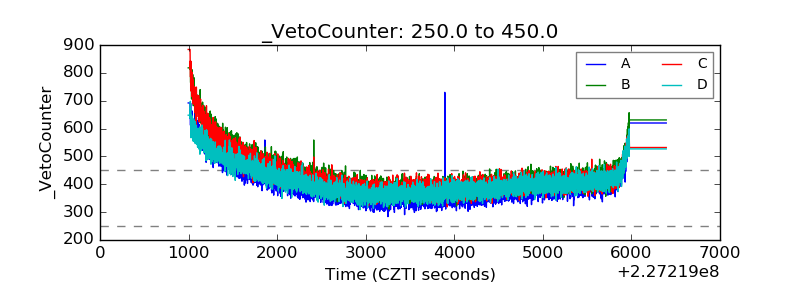

| Veto Counter |  |
