| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_027T01_9000001084_07920cztM0_level2.evt | modeM0/AS1A02_027T01_9000001084_07920cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,551,040 | 81,129,600 |
| Size | 424.0 MB | 77.4 MB |
| Events in quadrant A | 2,857,725 | 494,434 |
| Events in quadrant B | 3,077,040 | 511,486 |
| Events in quadrant C | 3,601,261 | 515,133 |
| Events in quadrant D | 3,495,078 | 491,928 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12984 | 2 |
| B | 0 | 13499 | 1 |
| C | 0 | 14862 | 1 |
| D | 0 | 14987 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6357 | 40 | 0.629228% |
| B | 6357 | 43 | 0.676420% |
| C | 6357 | 31 | 0.487651% |
| D | 6357 | 66 | 1.038226% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

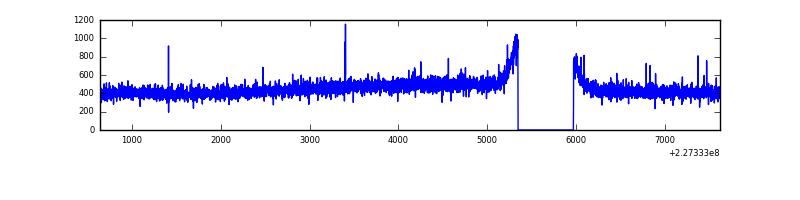

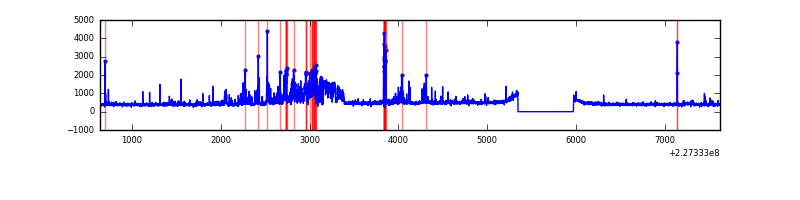

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6982 | 6358 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6982 | 6358 | 5 | 5 | 0.07% | 0.08% |  |
| C | 6982 | 6358 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6982 | 6358 | 44 | 44 | 0.63% | 0.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 7725 | 46.32 | 736 | 720 | 151.2 |
| A | 15 | 239 | 7005 | 41.56 | 736 | 720 | 151.2 |
| A | 0 | 226 | 6902 | 40.88 | 736 | 720 | 151.2 |
| B | 11 | 51 | 60789 | 422.82 | 744 | 727 | 142.1 |
| B | 4 | 239 | 45102 | 312.39 | 744 | 727 | 142.1 |
| B | 15 | 204 | 21605 | 146.98 | 744 | 727 | 142.1 |
| C | 1 | 16 | 799357 | 4768.14 | 717 | 720 | 167.5 |
| C | 13 | 61 | 5531 | 28.72 | 717 | 720 | 167.5 |
| C | 12 | 4 | 4036 | 19.79 | 717 | 720 | 167.5 |
| D | 1 | 52 | 428418 | 2430.76 | 714 | 692 | 176.0 |
| D | 5 | 233 | 224250 | 1270.48 | 714 | 692 | 176.0 |
| D | 13 | 104 | 46117 | 258.15 | 714 | 692 | 176.0 |

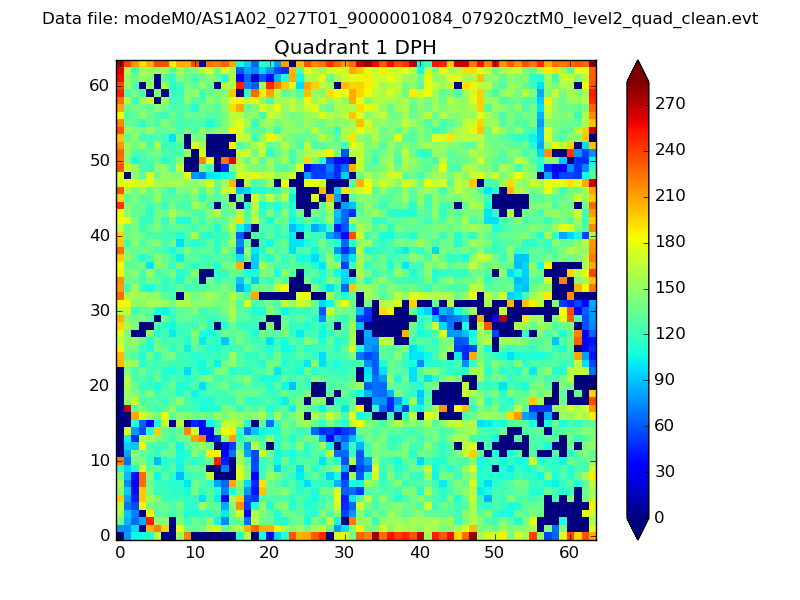

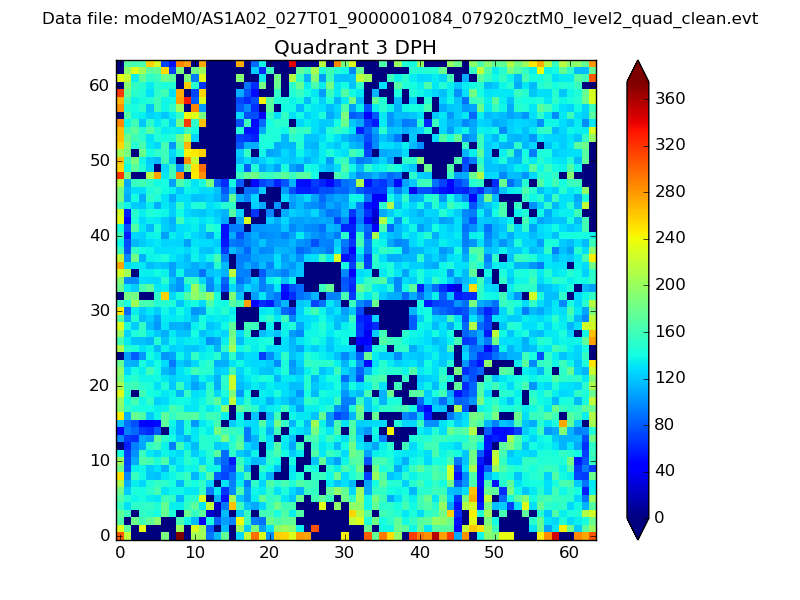

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

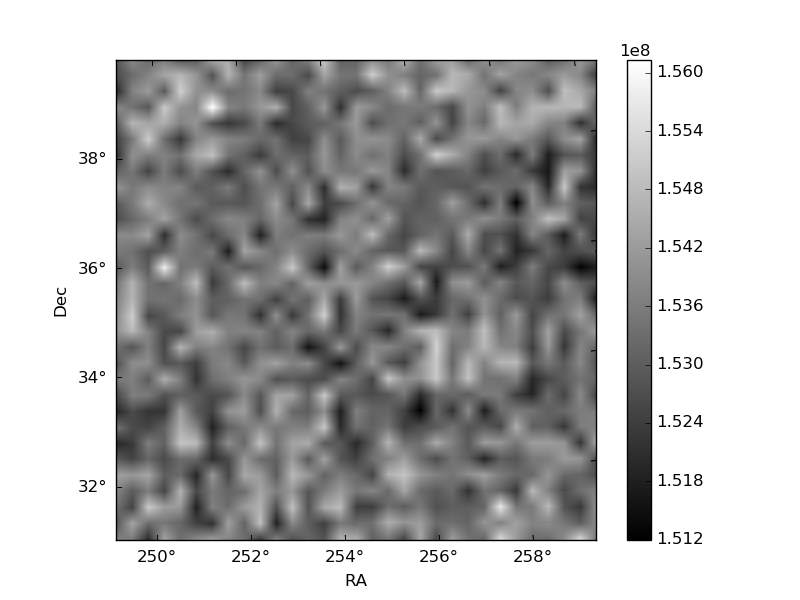

| Plot type | Count rate plots | Images |
|---|---|---|

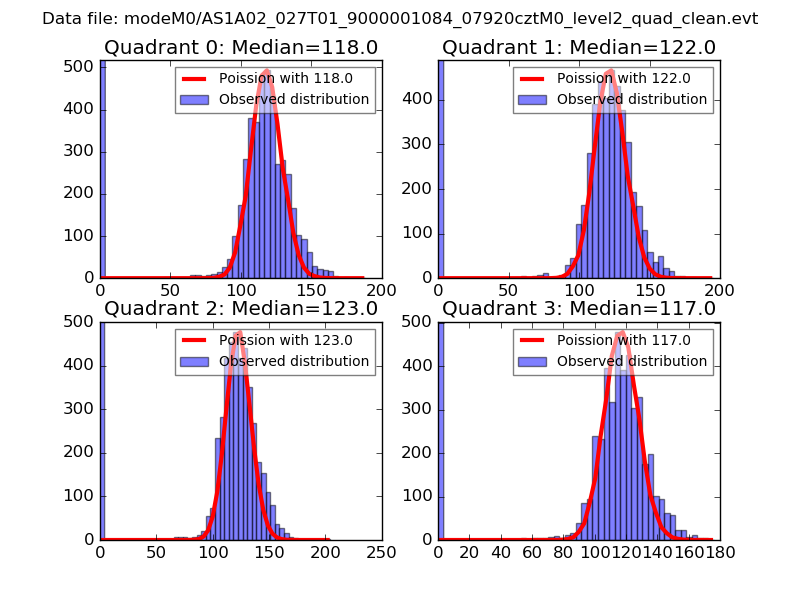

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

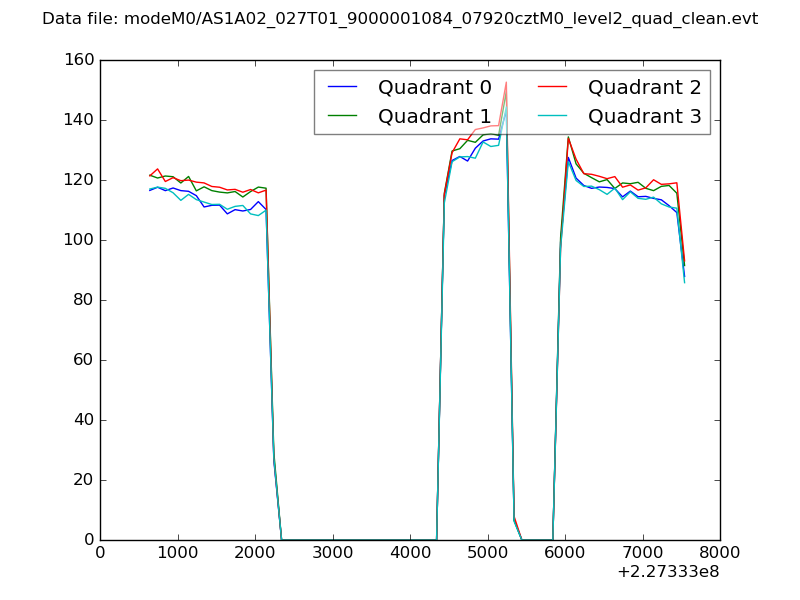

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

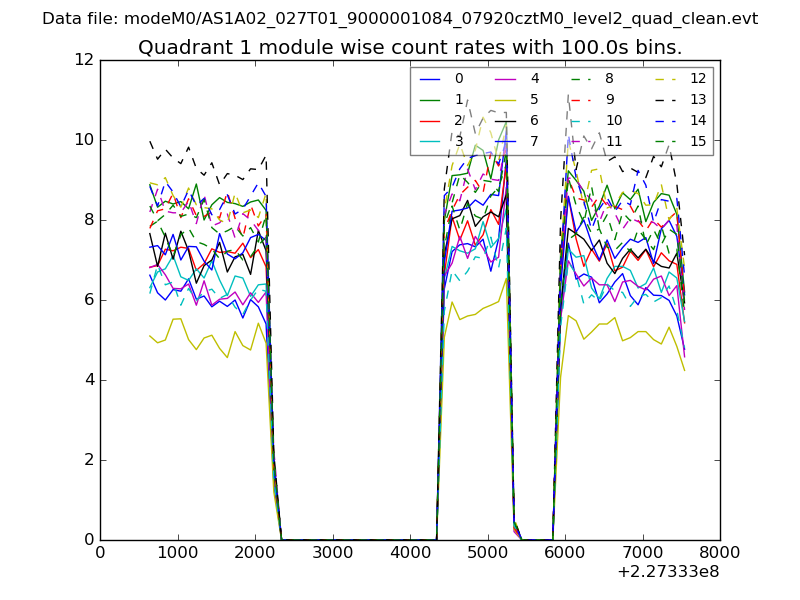

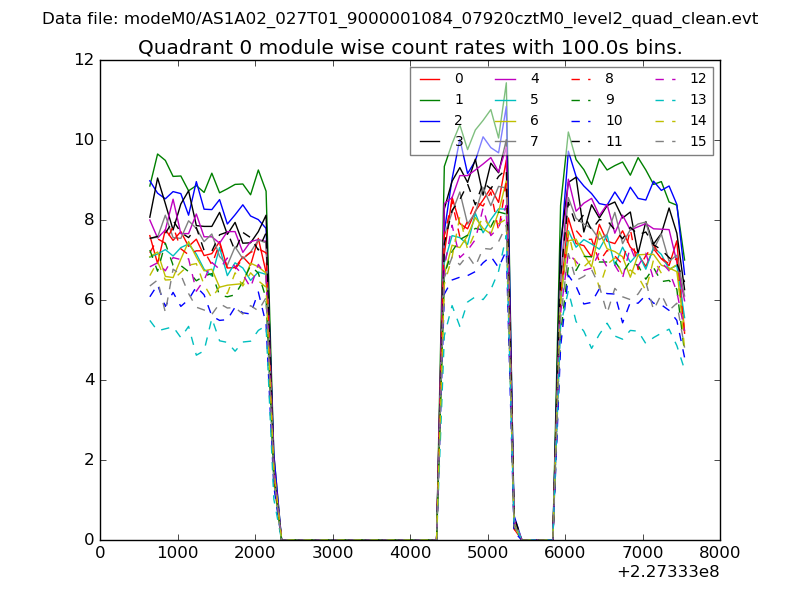

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

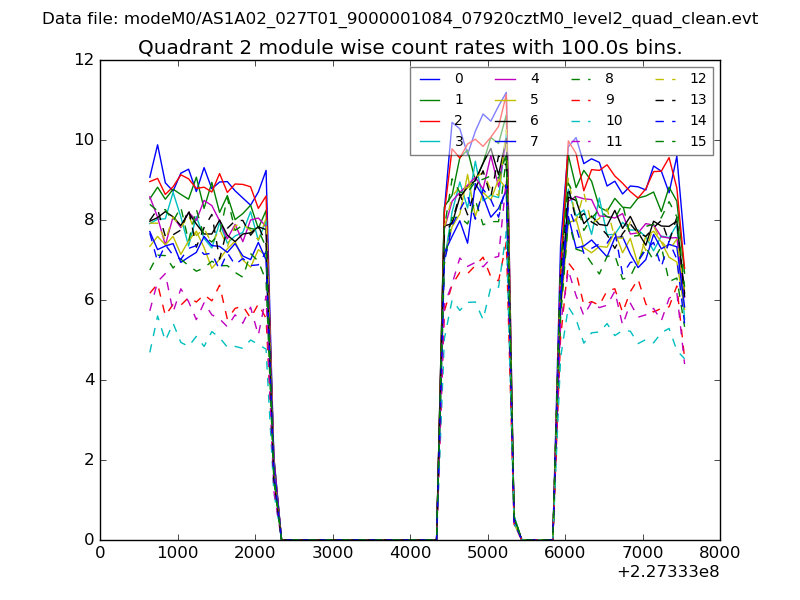

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

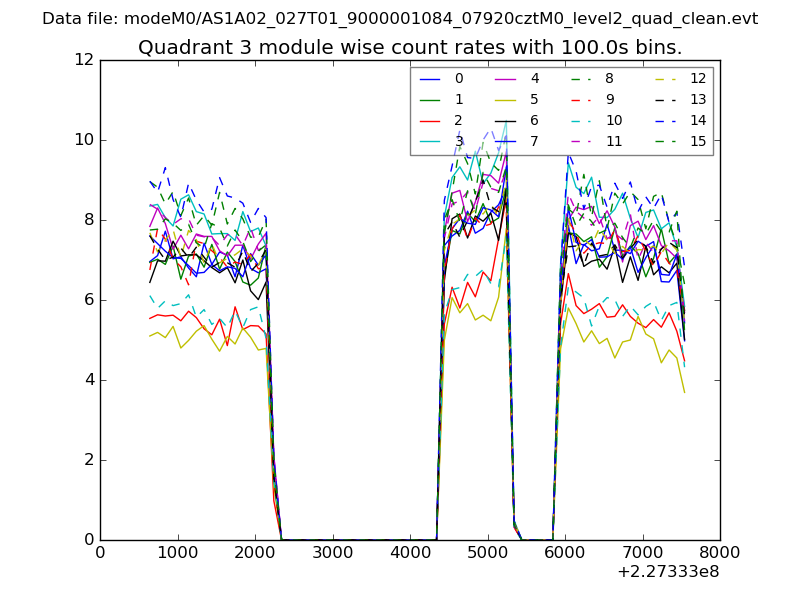

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

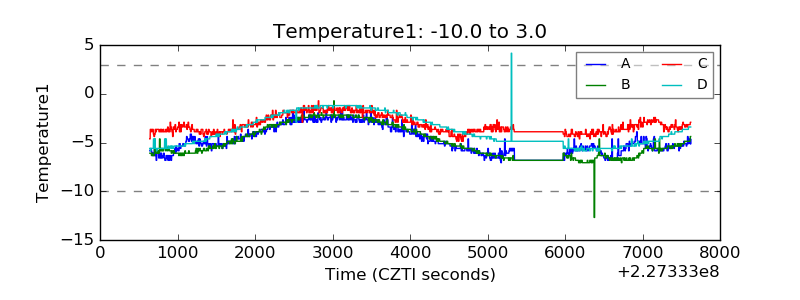

| Temperature 1 |  |

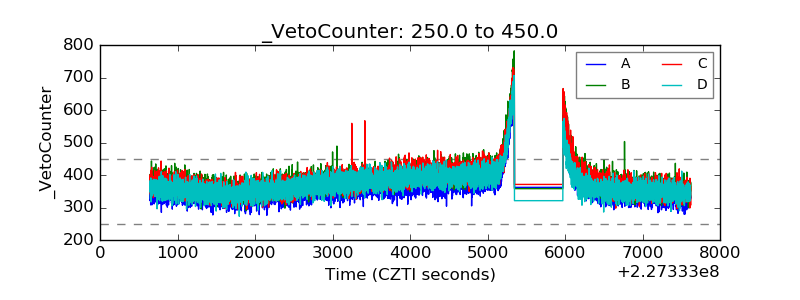

| Veto HV Monitor |  |
| Veto LLD |  |

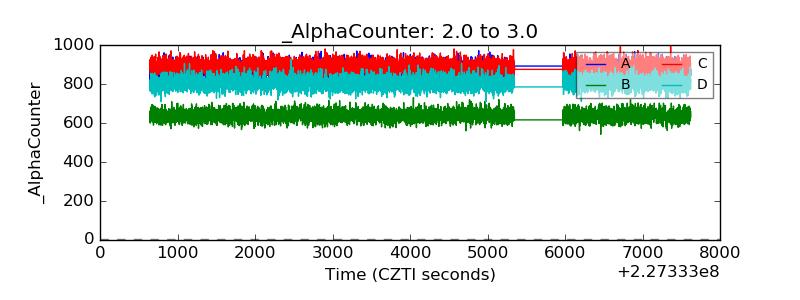

| Alpha Counter |  |

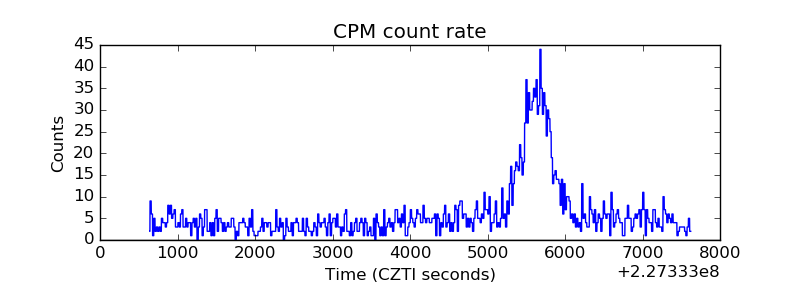

| _CPM_Rate |  |

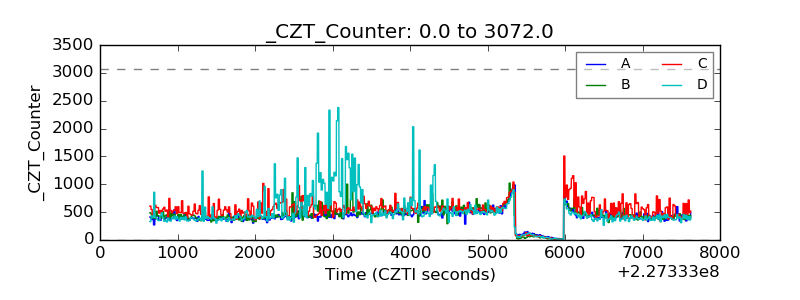

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

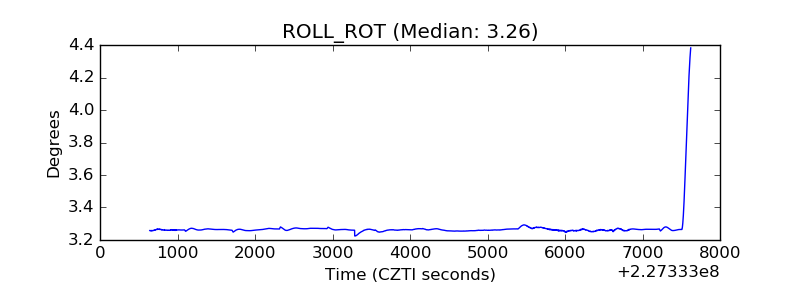

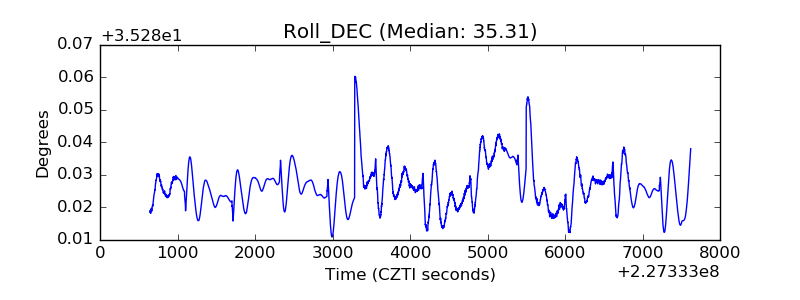

| _ROLL_ROT |  |
| _Roll_DEC |  |

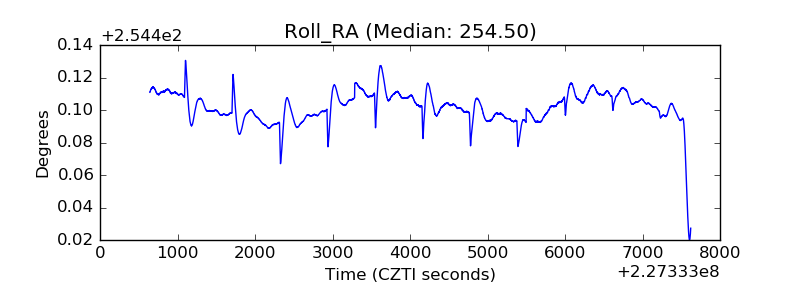

| _Roll_RA |  |
| Veto Counter |  |
