| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_117T01_9000001086_07936cztM0_level2.evt | modeM0/AS1G06_117T01_9000001086_07936cztM0_level2_quad_clean.evt |
| Size (bytes) | 558,668,160 | 98,769,600 |
| Size | 532.8 MB | 94.2 MB |
| Events in quadrant A | 3,931,816 | 603,190 |
| Events in quadrant B | 3,906,000 | 619,728 |
| Events in quadrant C | 3,725,669 | 623,095 |
| Events in quadrant D | 4,811,371 | 587,442 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17191 | 2 |
| B | 0 | 17118 | 1 |
| C | 0 | 16735 | 1 |
| D | 0 | 20054 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8008 | 360 | 4.495504% |
| B | 8008 | 373 | 4.657842% |
| C | 8008 | 202 | 2.522478% |
| D | 8007 | 334 | 4.171350% |

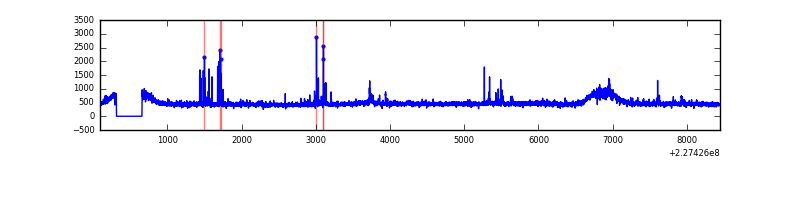

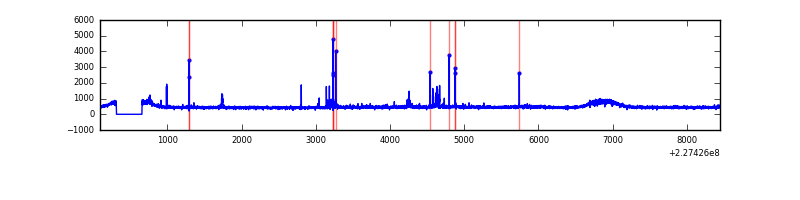

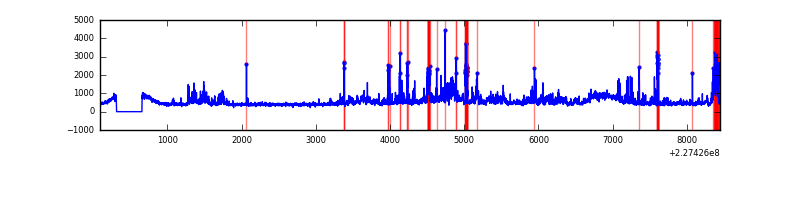

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8353 | 8009 | 6 | 6 | 0.07% | 0.07% |  |
| B | 8353 | 8009 | 11 | 11 | 0.13% | 0.14% |  |
| C | 8353 | 8009 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8353 | 8009 | 95 | 95 | 1.14% | 1.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 128222 | 632.76 | 963 | 938 | 201.2 |
| A | 13 | 251 | 42028 | 204.27 | 963 | 938 | 201.2 |
| A | 13 | 14 | 26623 | 127.69 | 963 | 938 | 201.2 |
| B | 10 | 16 | 55079 | 284.87 | 968 | 941 | 190.0 |
| B | 4 | 239 | 31279 | 159.63 | 968 | 941 | 190.0 |
| B | 12 | 111 | 21528 | 108.33 | 968 | 941 | 190.0 |
| C | 8 | 128 | 22358 | 97.65 | 944 | 944 | 219.3 |
| C | 8 | 112 | 9477 | 38.91 | 944 | 944 | 219.3 |
| C | 8 | 144 | 8592 | 34.88 | 944 | 944 | 219.3 |
| D | 1 | 52 | 654823 | 2874.31 | 935 | 902 | 227.5 |
| D | 14 | 34 | 252984 | 1108.02 | 935 | 902 | 227.5 |
| D | 4 | 95 | 181865 | 795.42 | 935 | 902 | 227.5 |

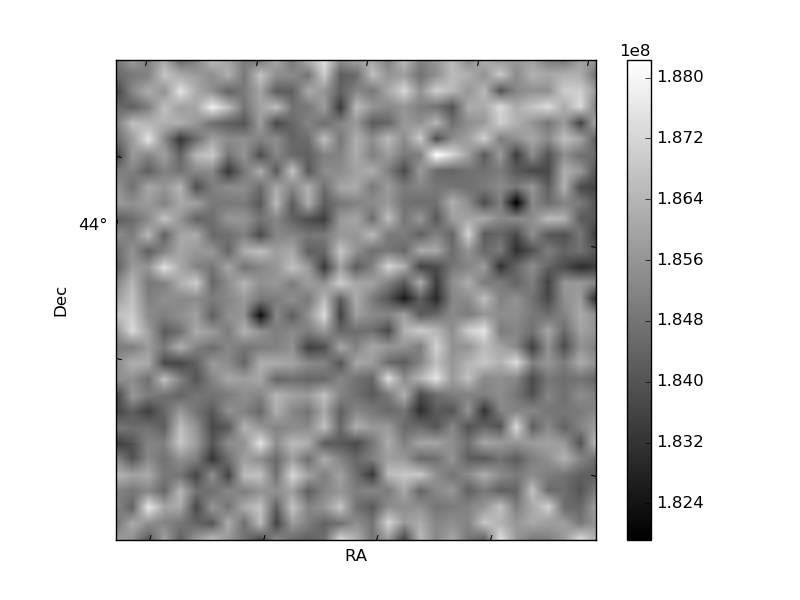

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

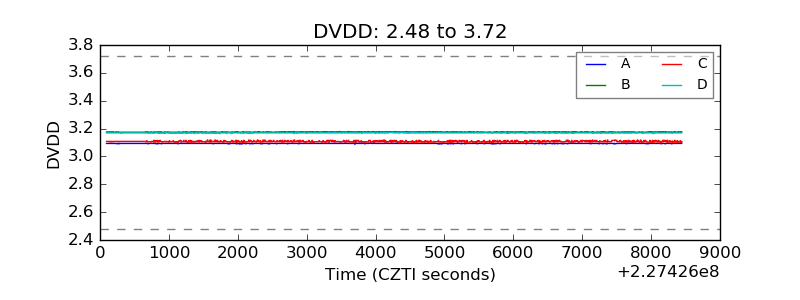

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

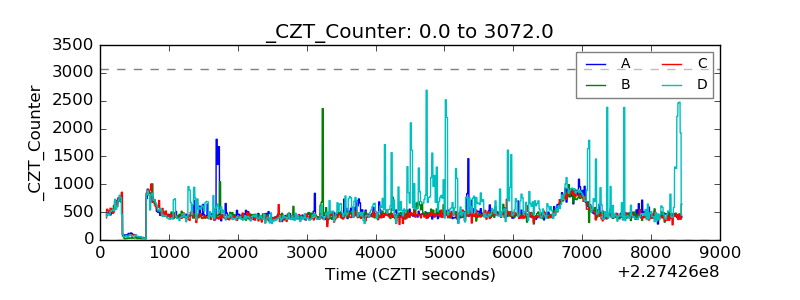

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

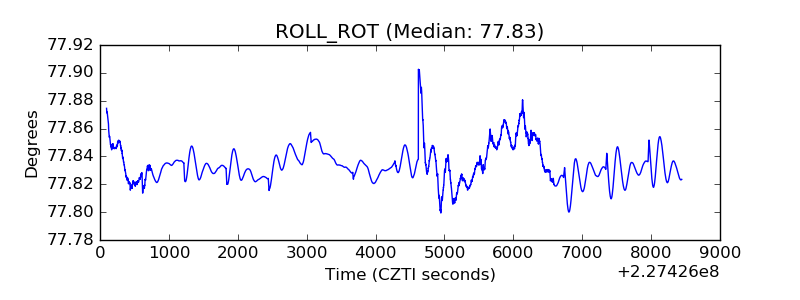

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

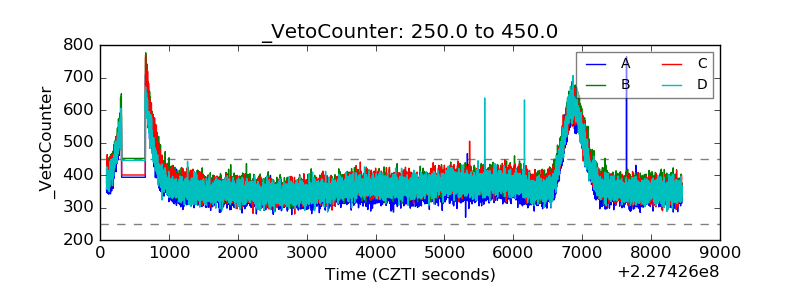

| Veto Counter |  |
