| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_117T01_9000001086_07943cztM0_level2.evt | modeM0/AS1G06_117T01_9000001086_07943cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,513,600 | 99,014,400 |
| Size | 441.1 MB | 94.4 MB |
| Events in quadrant A | 3,145,858 | 630,637 |
| Events in quadrant B | 3,423,229 | 642,014 |
| Events in quadrant C | 3,491,300 | 644,709 |
| Events in quadrant D | 3,489,525 | 612,267 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14034 | 3 |
| B | 0 | 14754 | 2 |
| C | 0 | 15034 | 2 |
| D | 0 | 15167 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6723 | 76 | 1.130448% |
| B | 6723 | 158 | 2.350141% |
| C | 6723 | 143 | 2.127027% |
| D | 6723 | 105 | 1.561803% |

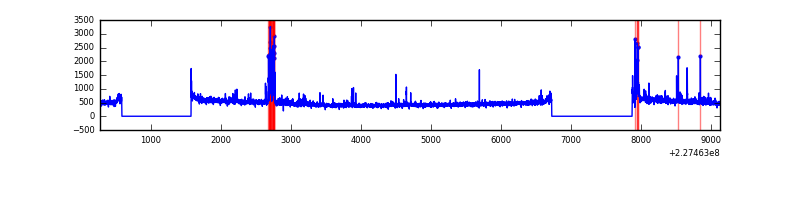

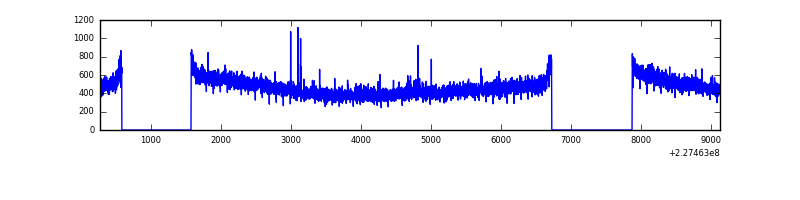

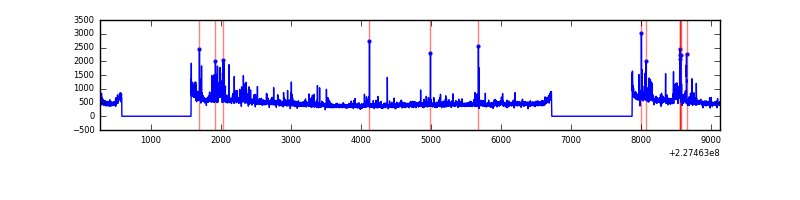

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8863 | 6725 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8863 | 6725 | 32 | 32 | 0.36% | 0.48% |  |
| C | 8863 | 6725 | 10 | 10 | 0.11% | 0.15% |  |
| D | 8863 | 6725 | 13 | 13 | 0.15% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 253 | 10960 | 62.01 | 812 | 794 | 163.9 |
| A | 13 | 248 | 7611 | 41.58 | 812 | 794 | 163.9 |
| A | 0 | 226 | 7503 | 40.92 | 812 | 794 | 163.9 |
| B | 4 | 239 | 111471 | 713.29 | 817 | 796 | 155.2 |
| B | 11 | 51 | 50191 | 318.35 | 817 | 796 | 155.2 |
| B | 0 | 214 | 34593 | 217.82 | 817 | 796 | 155.2 |
| C | 1 | 16 | 354105 | 1907.62 | 802 | 806 | 185.2 |
| C | 13 | 61 | 5926 | 27.64 | 802 | 806 | 185.2 |
| C | 9 | 236 | 4994 | 22.61 | 802 | 806 | 185.2 |
| D | 1 | 52 | 256629 | 1303.27 | 801 | 776 | 196.3 |
| D | 5 | 233 | 60832 | 305.92 | 801 | 776 | 196.3 |
| D | 2 | 152 | 43666 | 218.47 | 801 | 776 | 196.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

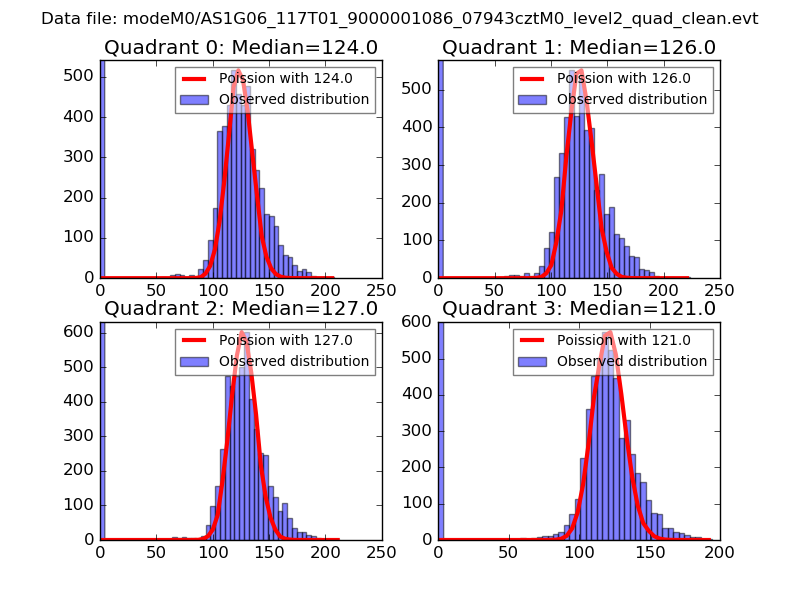

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

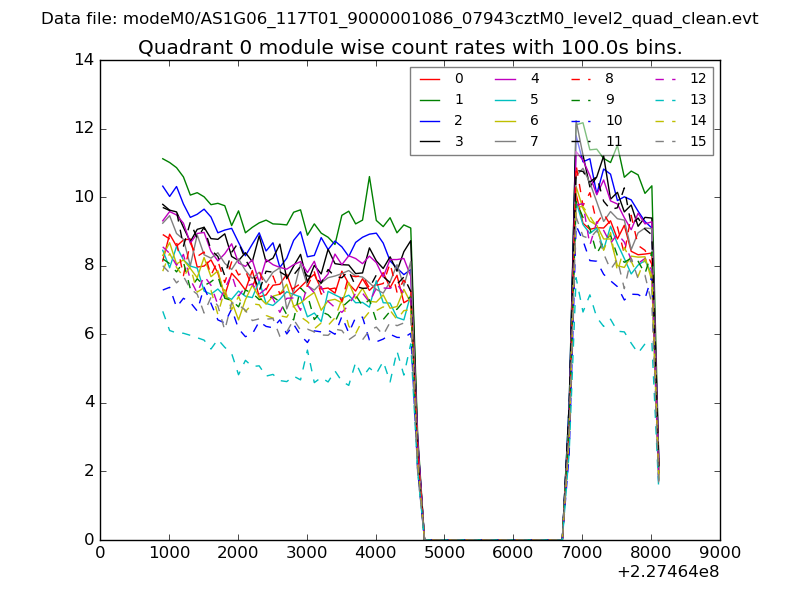

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

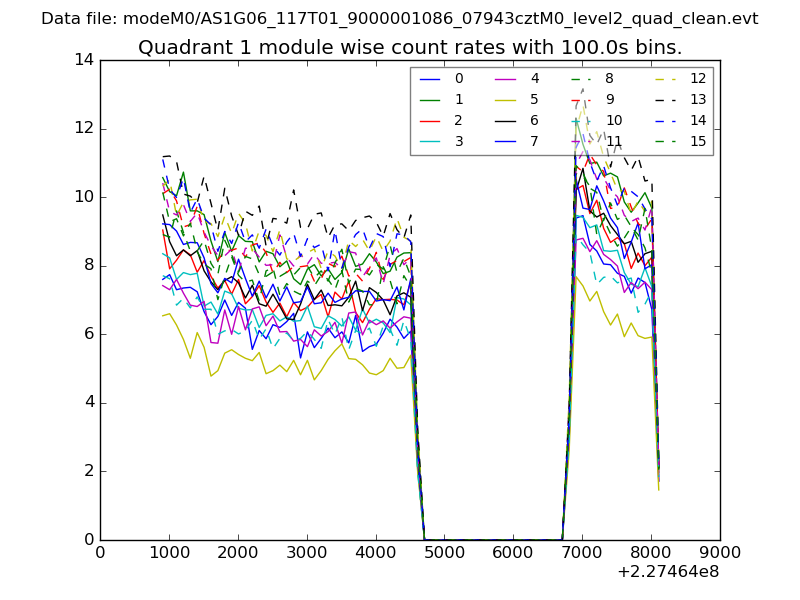

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

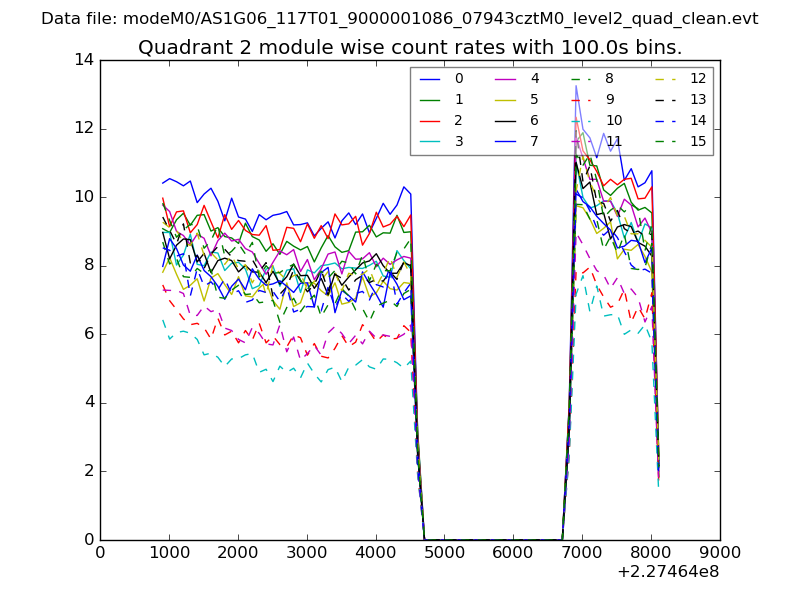

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

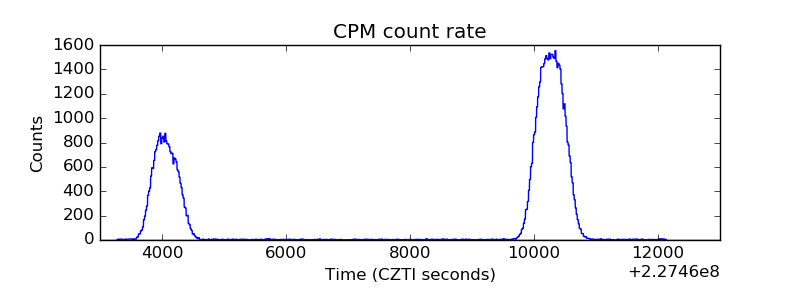

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
