| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_117T01_9000001086_07951cztM0_level2.evt | modeM0/AS1G06_117T01_9000001086_07951cztM0_level2_quad_clean.evt |
| Size (bytes) | 569,131,200 | 102,412,800 |
| Size | 542.8 MB | 97.7 MB |
| Events in quadrant A | 4,040,291 | 622,142 |
| Events in quadrant B | 4,178,170 | 639,018 |
| Events in quadrant C | 3,927,980 | 643,996 |
| Events in quadrant D | 4,515,385 | 608,867 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17983 | 8 |
| B | 0 | 18199 | 4 |
| C | 0 | 17755 | 4 |
| D | 0 | 19538 | 7 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8456 | 482 | 5.700095% |
| B | 8457 | 478 | 5.652123% |
| C | 8457 | 313 | 3.701076% |
| D | 8456 | 474 | 5.605487% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8577 | 8461 | 9 | 9 | 0.10% | 0.11% |  |
| B | 8577 | 8461 | 4 | 4 | 0.05% | 0.05% |  |
| C | 8577 | 8461 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8577 | 8461 | 127 | 127 | 1.48% | 1.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 86363 | 403.58 | 1022 | 994 | 211.5 |
| A | 8 | 15 | 10504 | 44.96 | 1022 | 994 | 211.5 |
| A | 0 | 226 | 9369 | 39.59 | 1022 | 994 | 211.5 |
| B | 10 | 245 | 92290 | 451.29 | 1026 | 997 | 202.3 |
| B | 10 | 16 | 50436 | 244.39 | 1026 | 997 | 202.3 |
| B | 11 | 51 | 28462 | 135.77 | 1026 | 997 | 202.3 |
| C | 14 | 67 | 8764 | 33.07 | 1002 | 1002 | 234.7 |
| C | 13 | 61 | 7682 | 28.46 | 1002 | 1002 | 234.7 |
| C | 1 | 16 | 4064 | 13.05 | 1002 | 1002 | 234.7 |
| D | 1 | 52 | 666942 | 2728.87 | 997 | 962 | 244.0 |
| D | 2 | 136 | 32776 | 130.36 | 997 | 962 | 244.0 |
| D | 2 | 234 | 30995 | 123.06 | 997 | 962 | 244.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

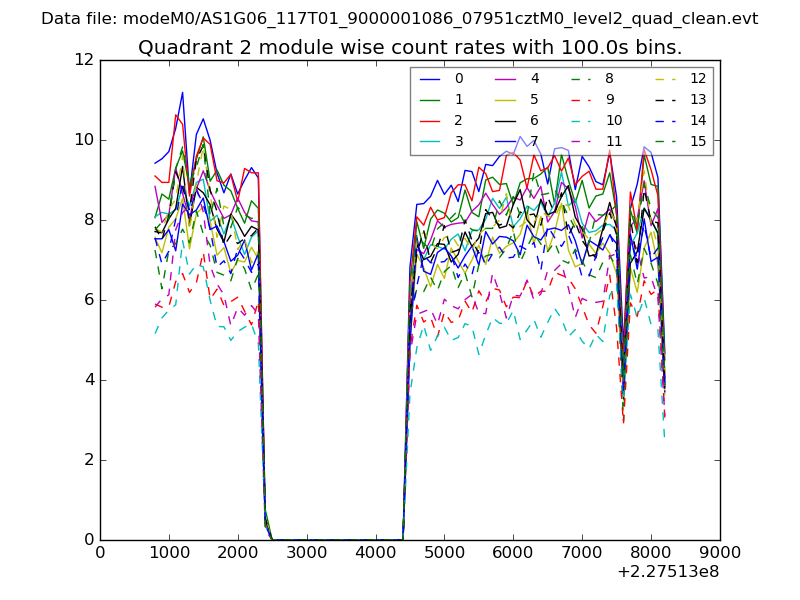

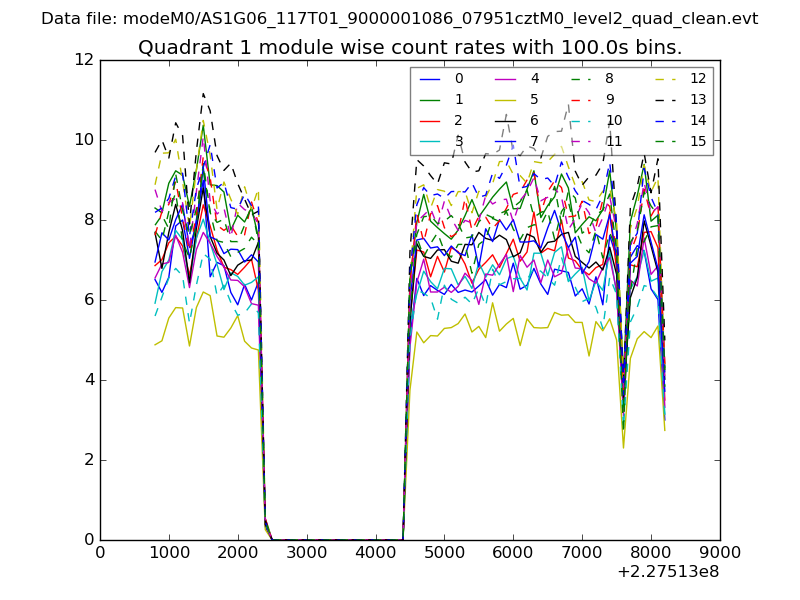

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

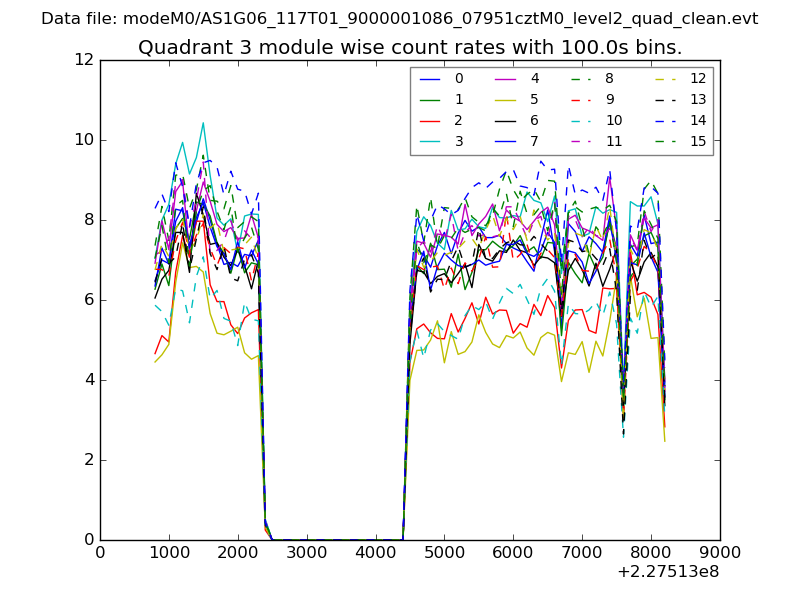

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

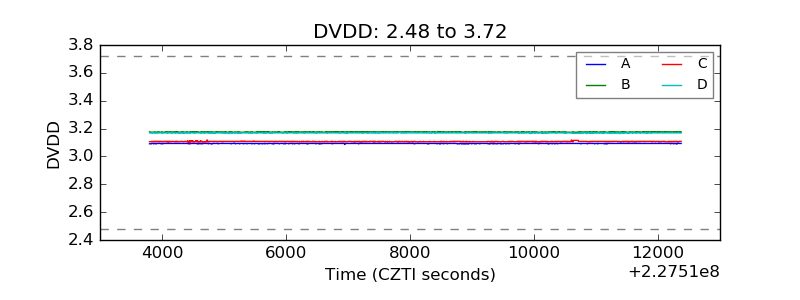

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

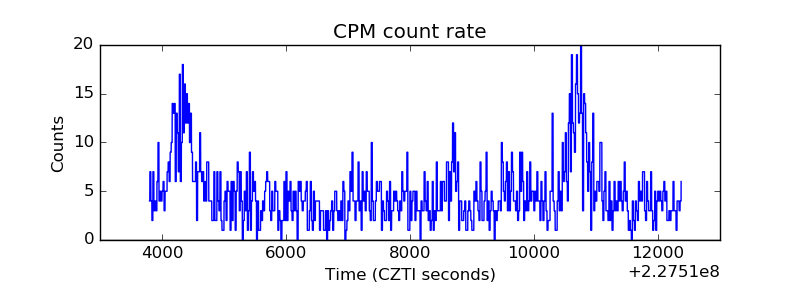

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

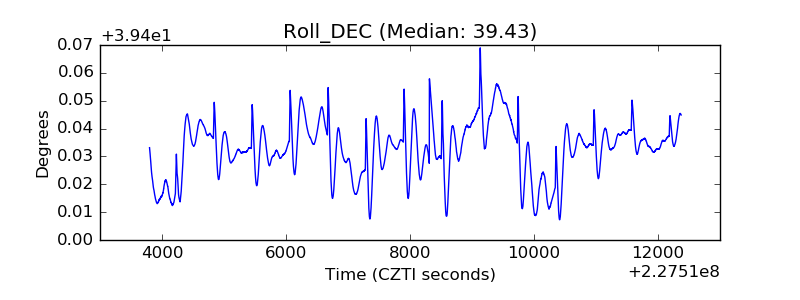

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
