| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_071T01_9000001088_07955cztM0_level2.evt | modeM0/AS1G06_071T01_9000001088_07955cztM0_level2_quad_clean.evt |
| Size (bytes) | 647,899,200 | 107,974,080 |
| Size | 617.9 MB | 103.0 MB |
| Events in quadrant A | 4,496,080 | 660,635 |
| Events in quadrant B | 4,983,532 | 667,328 |
| Events in quadrant C | 4,500,794 | 659,952 |
| Events in quadrant D | 5,000,604 | 626,689 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19758 | 4 |
| B | 0 | 20988 | 5 |
| C | 0 | 19814 | 4 |
| D | 0 | 21332 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 196 | 0 |
| B | 0 | 196 | 0 |
| C | 0 | 196 | 0 |
| D | 0 | 196 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9437 | 145 | 1.536505% |
| B | 9437 | 195 | 2.066335% |
| C | 9437 | 86 | 0.911307% |
| D | 9438 | 144 | 1.525747% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10763 | 9439 | 18 | 18 | 0.17% | 0.19% |  |
| B | 10763 | 9439 | 43 | 43 | 0.40% | 0.46% |  |
| C | 10763 | 9440 | 0 | 0 | 0.00% | 0.00% |  |
| D | 10763 | 9440 | 32 | 32 | 0.30% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 164839 | 725.61 | 1102 | 1076 | 225.7 |
| A | 8 | 15 | 62071 | 270.26 | 1102 | 1076 | 225.7 |
| A | 13 | 14 | 12332 | 49.87 | 1102 | 1076 | 225.7 |
| B | 4 | 239 | 310475 | 1469.93 | 1104 | 1075 | 210.5 |
| B | 11 | 51 | 159482 | 752.58 | 1104 | 1075 | 210.5 |
| B | 10 | 16 | 156517 | 738.49 | 1104 | 1075 | 210.5 |
| C | 1 | 16 | 303035 | 1207.3 | 1075 | 1080 | 250.1 |
| C | 13 | 61 | 8088 | 28.02 | 1075 | 1080 | 250.1 |
| C | 8 | 222 | 3699 | 10.47 | 1075 | 1080 | 250.1 |
| D | 1 | 52 | 330562 | 1256.69 | 1075 | 1044 | 262.2 |
| D | 7 | 55 | 138789 | 525.32 | 1075 | 1044 | 262.2 |
| D | 5 | 233 | 137495 | 520.39 | 1075 | 1044 | 262.2 |

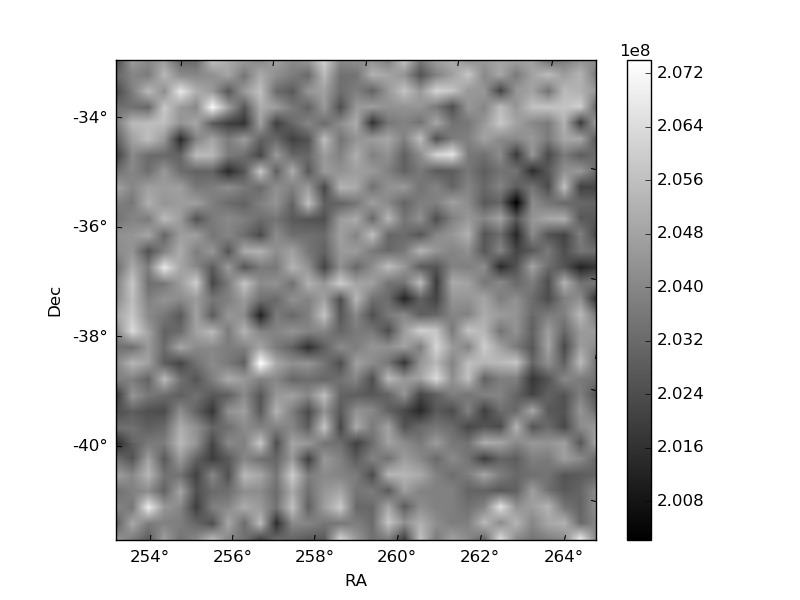

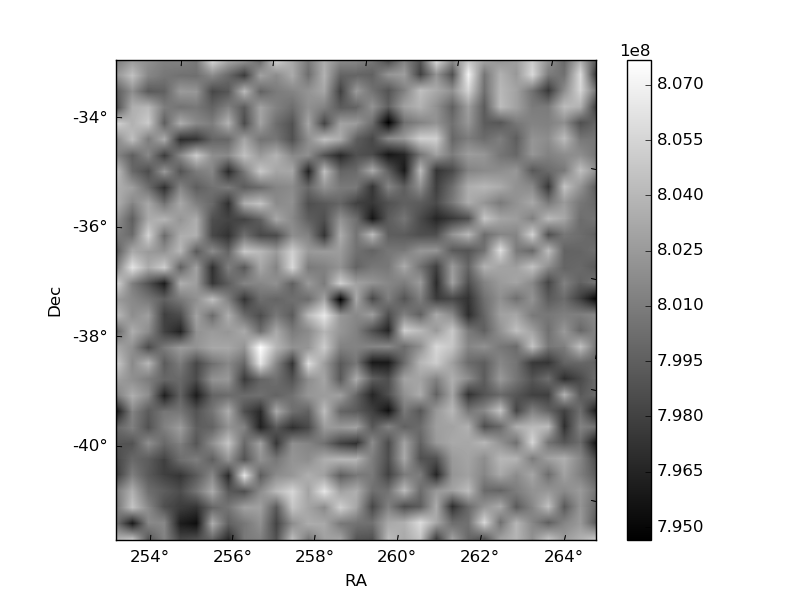

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

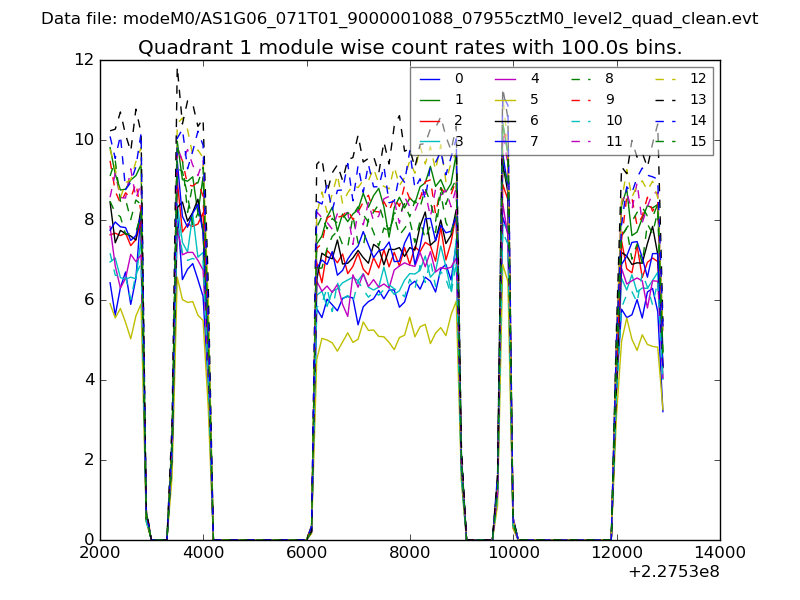

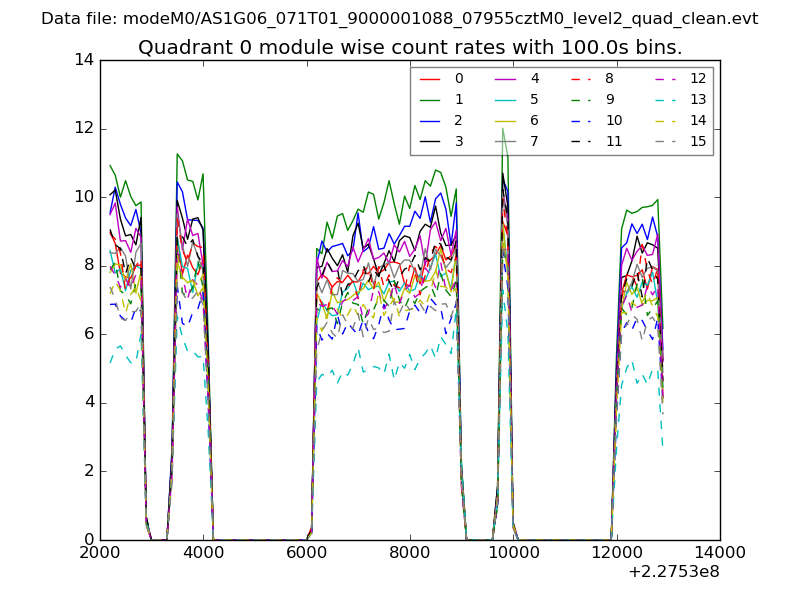

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

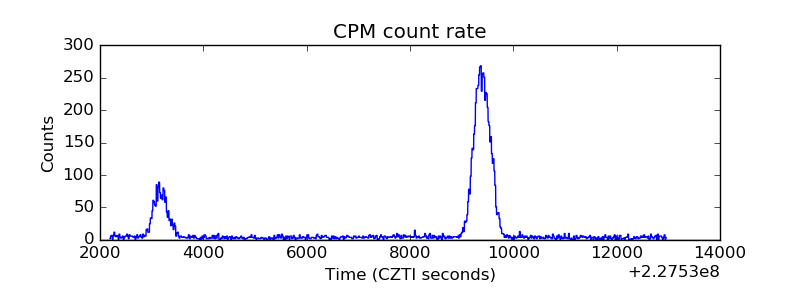

| _CPM_Rate |  |
| CZT Counter |  |

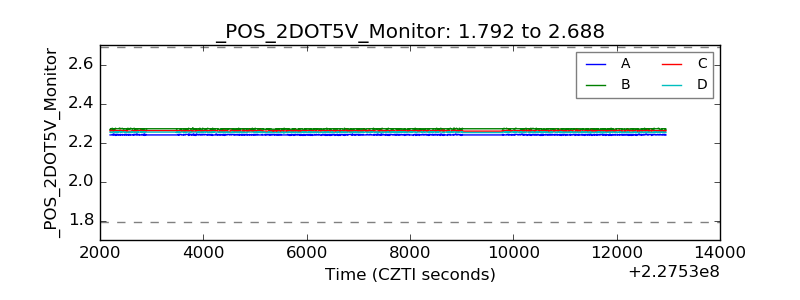

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

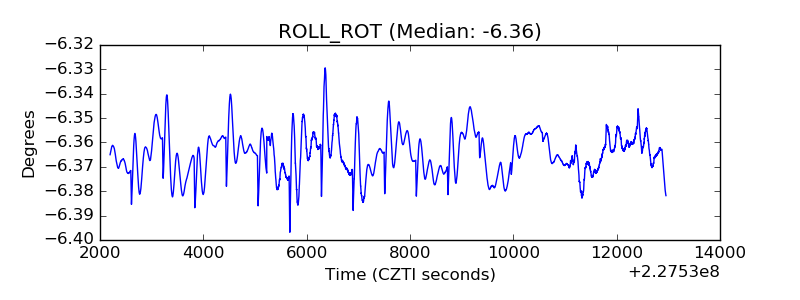

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

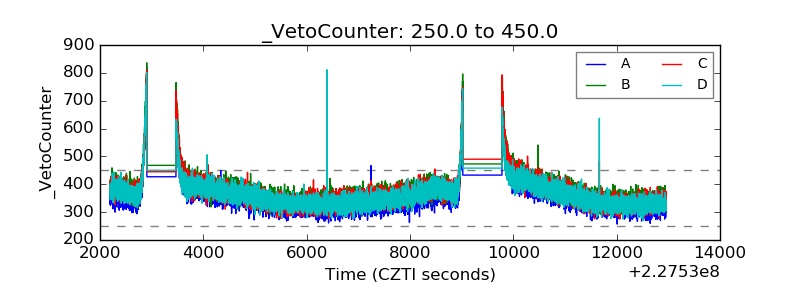

| Veto Counter |  |
