| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_077T01_9000001090_07956cztM0_level2.evt | modeM0/AS1G06_077T01_9000001090_07956cztM0_level2_quad_clean.evt |
| Size (bytes) | 631,054,080 | 83,471,040 |
| Size | 601.8 MB | 79.6 MB |
| Events in quadrant A | 3,166,905 | 540,636 |
| Events in quadrant B | 3,348,099 | 553,675 |
| Events in quadrant C | 3,179,045 | 549,667 |
| Events in quadrant D | 8,963,405 | 416,038 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13915 | 3 |
| B | 0 | 14507 | 2 |
| C | 0 | 13996 | 2 |
| D | 0 | 31227 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6703 | 63 | 0.939878% |
| B | 6703 | 84 | 1.253170% |
| C | 6703 | 45 | 0.671341% |
| D | 6703 | 2397 | 35.760107% |

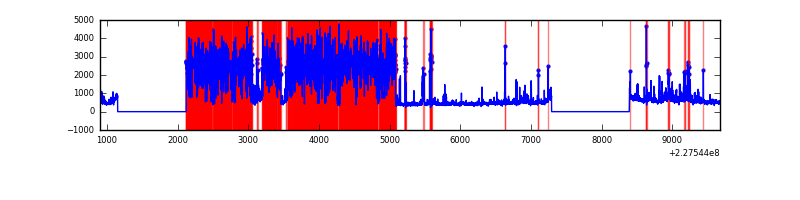

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

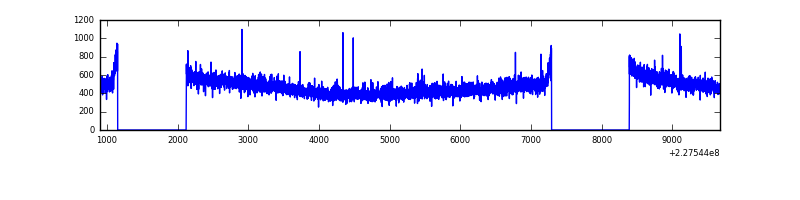

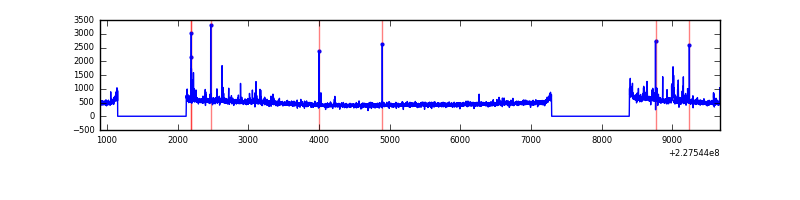

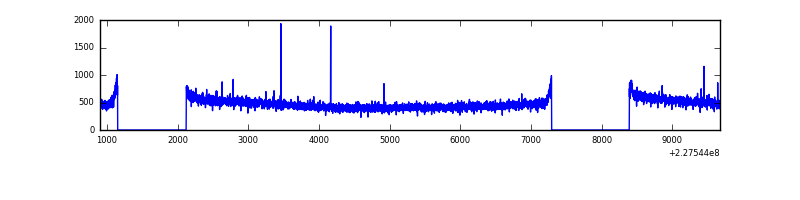

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8773 | 6705 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8773 | 6705 | 7 | 7 | 0.08% | 0.10% |  |
| C | 8773 | 6705 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8773 | 6705 | 2131 | 2131 | 24.29% | 31.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 17117 | 99.01 | 814 | 794 | 164.9 |
| A | 13 | 253 | 8013 | 43.79 | 814 | 794 | 164.9 |
| A | 0 | 226 | 7598 | 41.27 | 814 | 794 | 164.9 |
| B | 4 | 239 | 59863 | 378.07 | 820 | 800 | 156.2 |
| B | 5 | 255 | 42165 | 264.79 | 820 | 800 | 156.2 |
| B | 11 | 51 | 30799 | 192.03 | 820 | 800 | 156.2 |
| C | 1 | 16 | 40375 | 212.82 | 802 | 805 | 185.9 |
| C | 12 | 4 | 6760 | 32.03 | 802 | 805 | 185.9 |
| C | 13 | 61 | 6079 | 28.37 | 802 | 805 | 185.9 |
| D | 1 | 52 | 6294789 | 39377.31 | 654 | 635 | 159.8 |
| D | 1 | 20 | 46988 | 289.99 | 654 | 635 | 159.8 |
| D | 12 | 233 | 41194 | 253.74 | 654 | 635 | 159.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

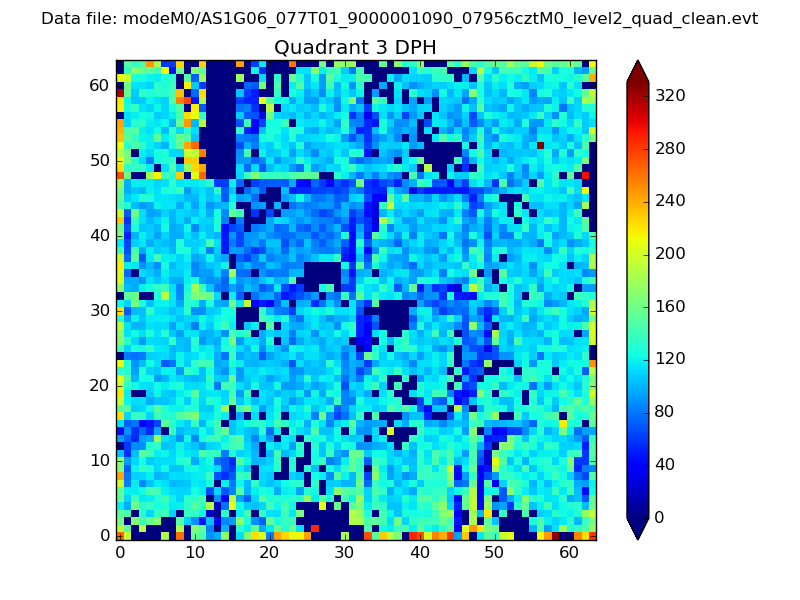

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

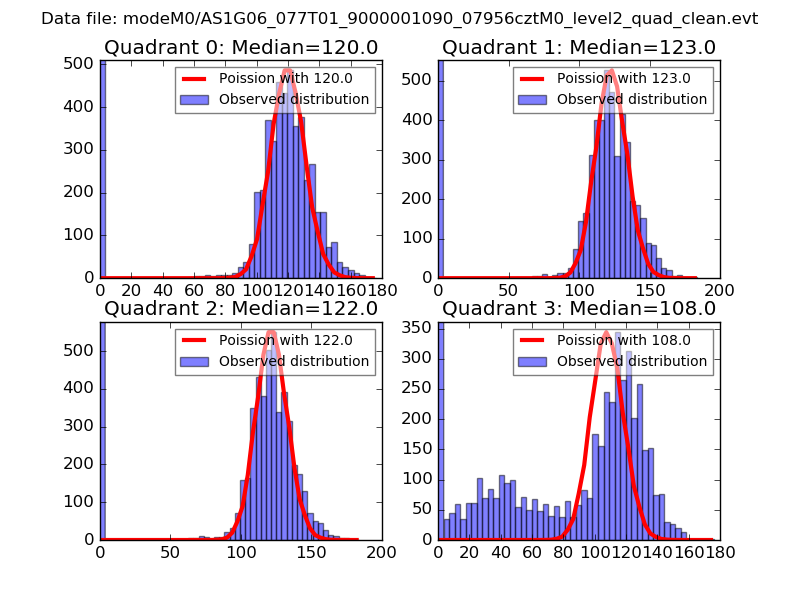

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

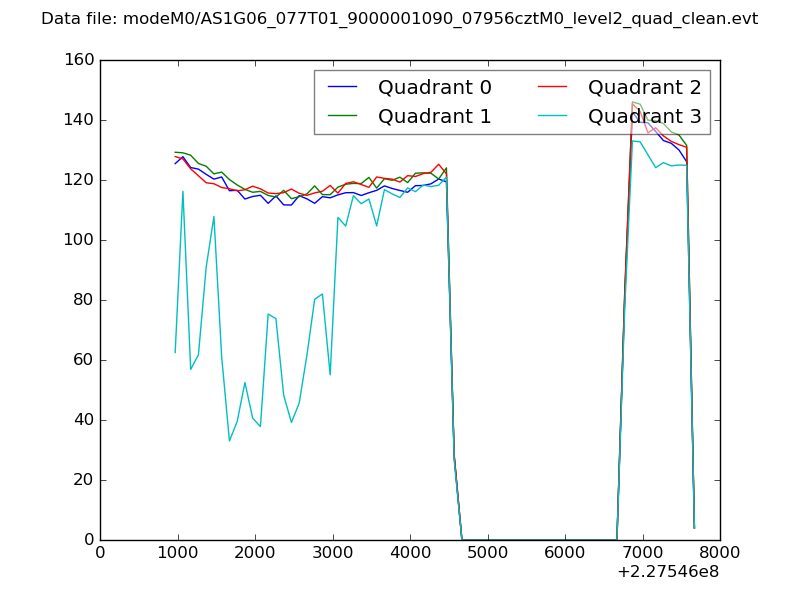

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

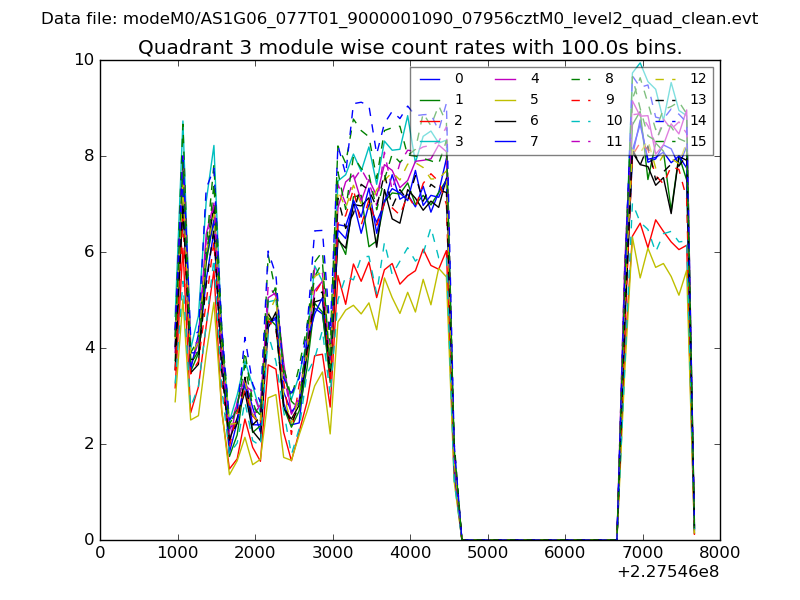

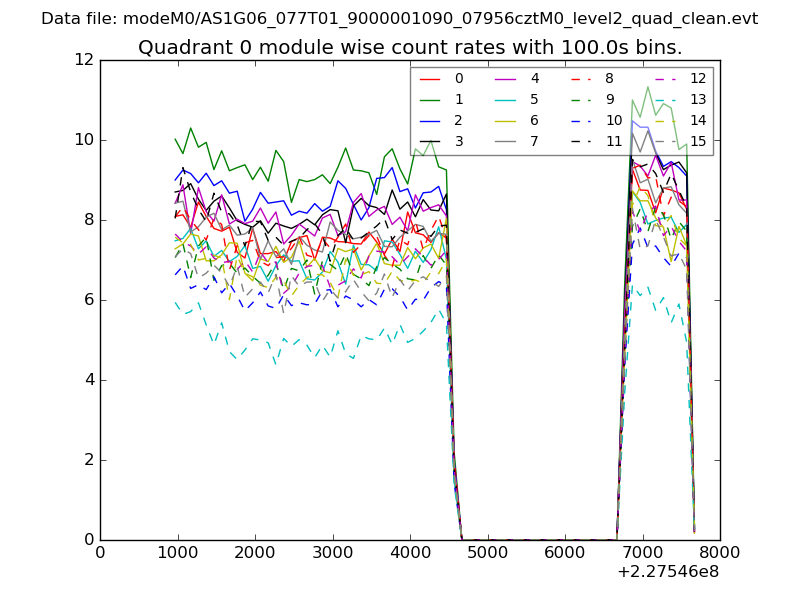

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

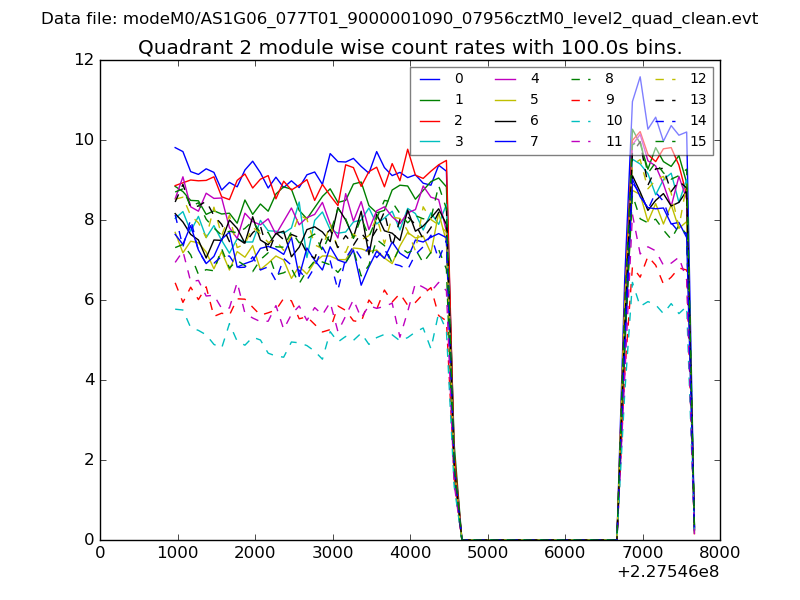

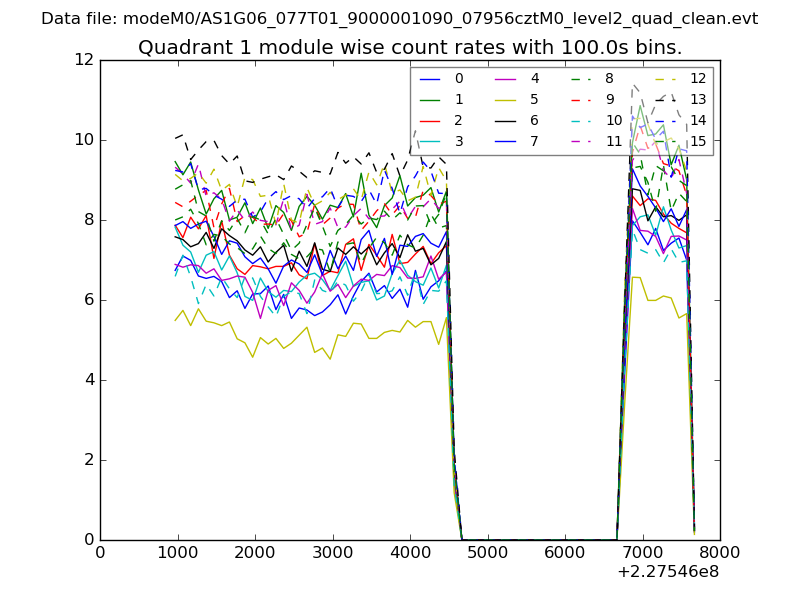

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

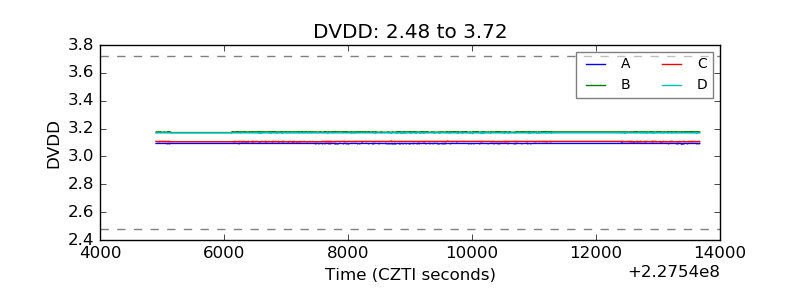

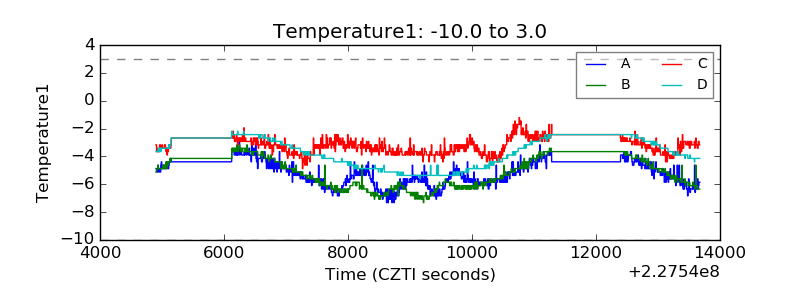

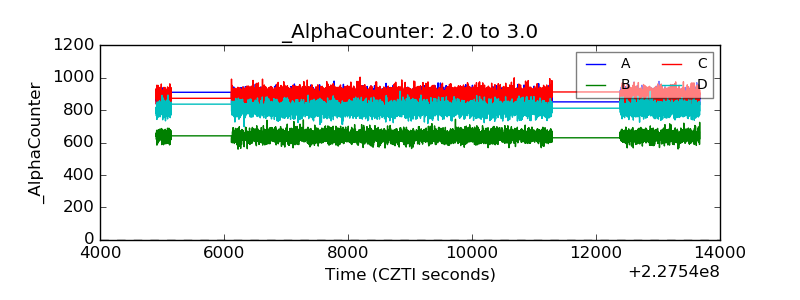

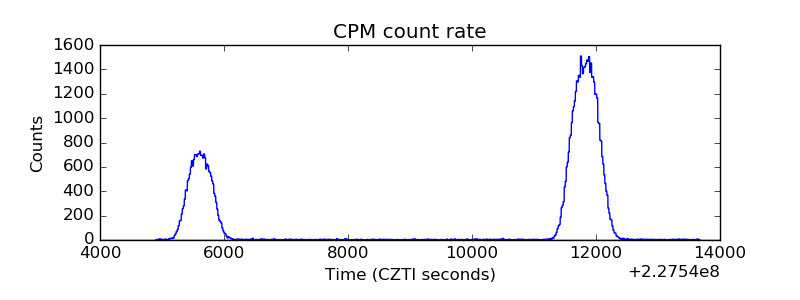

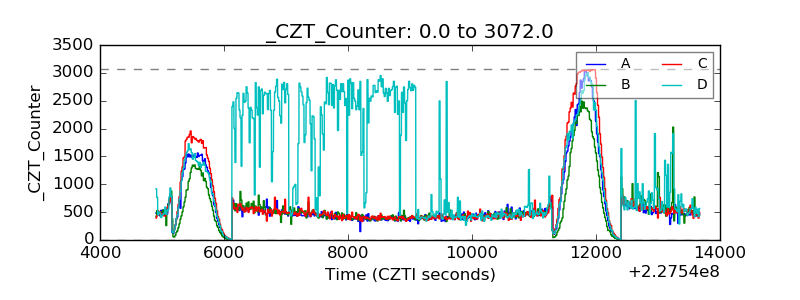

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

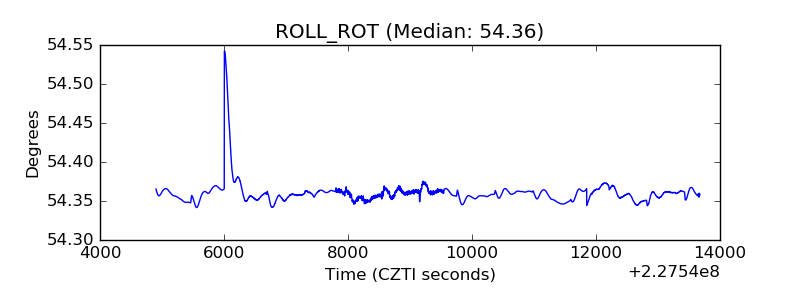

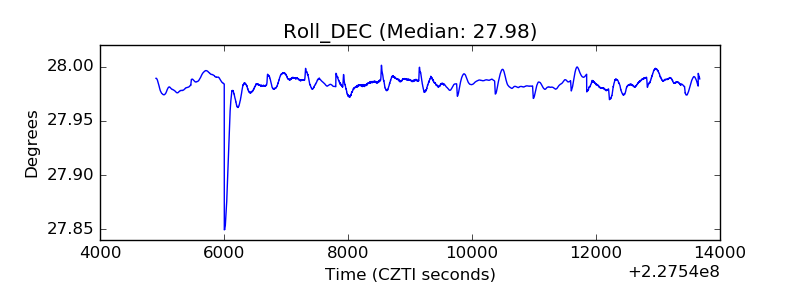

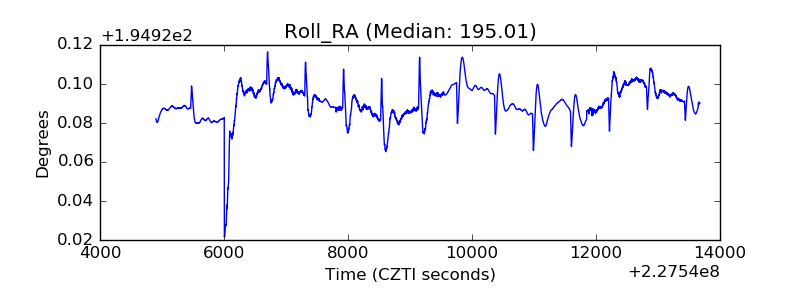

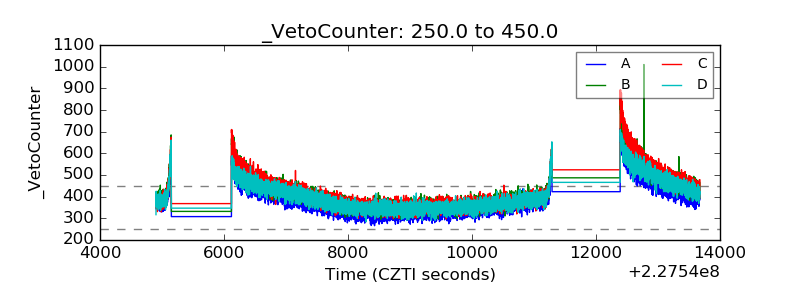

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
