| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_077T01_9000001090_07979cztM0_level2.evt | modeM0/AS1G06_077T01_9000001090_07979cztM0_level2_quad_clean.evt |
| Size (bytes) | 541,716,480 | 106,608,960 |
| Size | 516.6 MB | 101.7 MB |
| Events in quadrant A | 4,378,554 | 656,433 |
| Events in quadrant B | 3,752,110 | 684,489 |
| Events in quadrant C | 3,718,524 | 683,018 |
| Events in quadrant D | 4,019,796 | 654,759 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 2 |
| B | 0 | 162 | 2 |
| C | 0 | 162 | 2 |
| D | 0 | 162 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18343 | 214 |
| B | 0 | 16725 | 173 |
| C | 0 | 16762 | 177 |
| D | 0 | 17722 | 132 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7907 | 336 | 4.249399% |
| B | 7905 | 308 | 3.896268% |
| C | 7906 | 148 | 1.871996% |
| D | 7922 | 211 | 2.663469% |

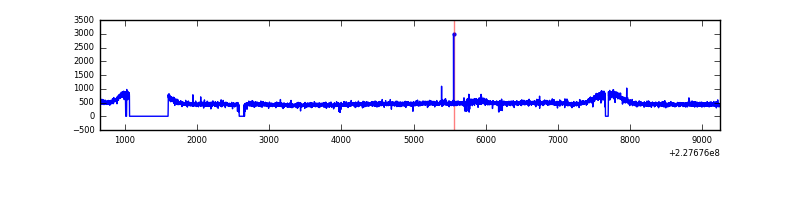

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8586 | 7924 | 13 | 13 | 0.15% | 0.16% |  |
| B | 8586 | 7932 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8586 | 7933 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8586 | 7939 | 23 | 23 | 0.27% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 573327 | 2919.19 | 948 | 924 | 196.1 |
| A | 0 | 128 | 136857 | 693.24 | 948 | 924 | 196.1 |
| A | 13 | 251 | 13118 | 62.19 | 948 | 924 | 196.1 |
| B | 12 | 111 | 21253 | 107.93 | 960 | 936 | 188.2 |
| B | 11 | 111 | 17059 | 85.65 | 960 | 936 | 188.2 |
| B | 11 | 51 | 13575 | 67.14 | 960 | 936 | 188.2 |
| C | 1 | 16 | 62267 | 283.09 | 933 | 935 | 216.6 |
| C | 13 | 61 | 7178 | 28.81 | 933 | 935 | 216.6 |
| C | 8 | 128 | 5220 | 19.78 | 933 | 935 | 216.6 |
| D | 1 | 52 | 209747 | 841.85 | 924 | 899 | 248.1 |
| D | 2 | 152 | 204988 | 822.67 | 924 | 899 | 248.1 |
| D | 13 | 169 | 75195 | 299.48 | 924 | 899 | 248.1 |

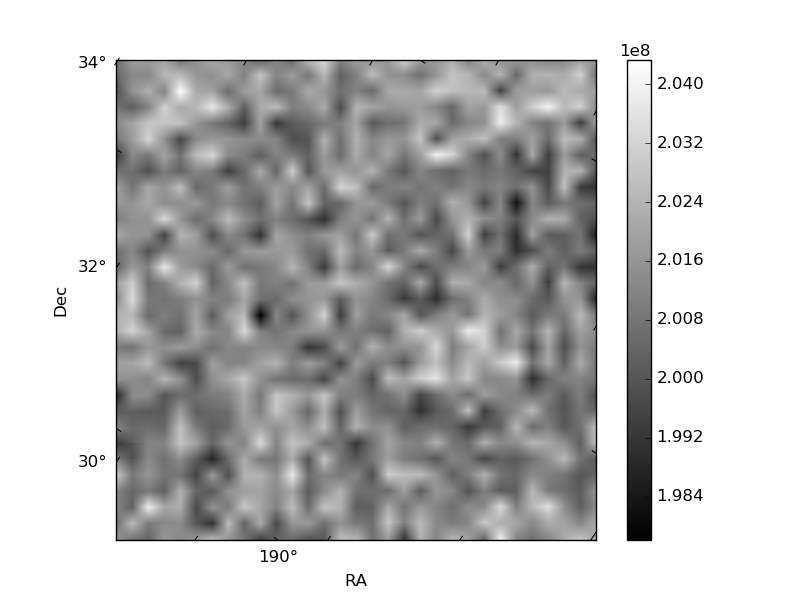

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

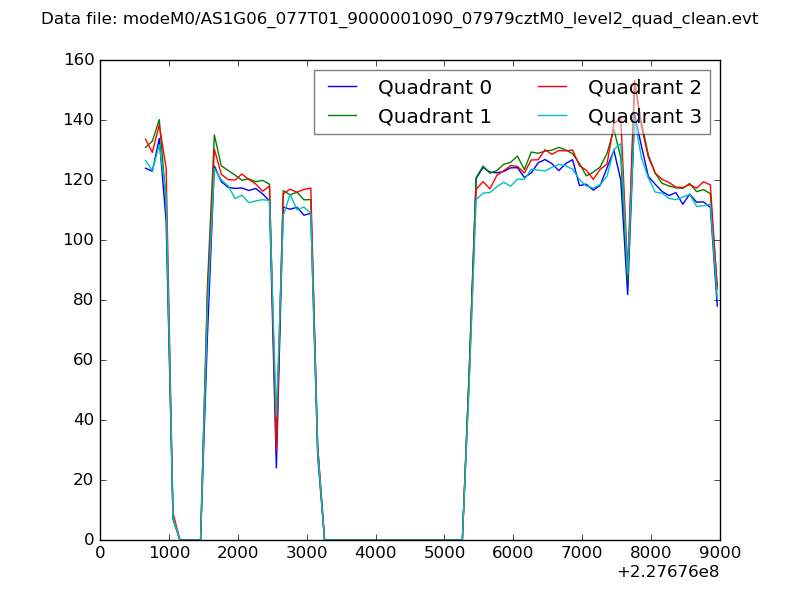

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

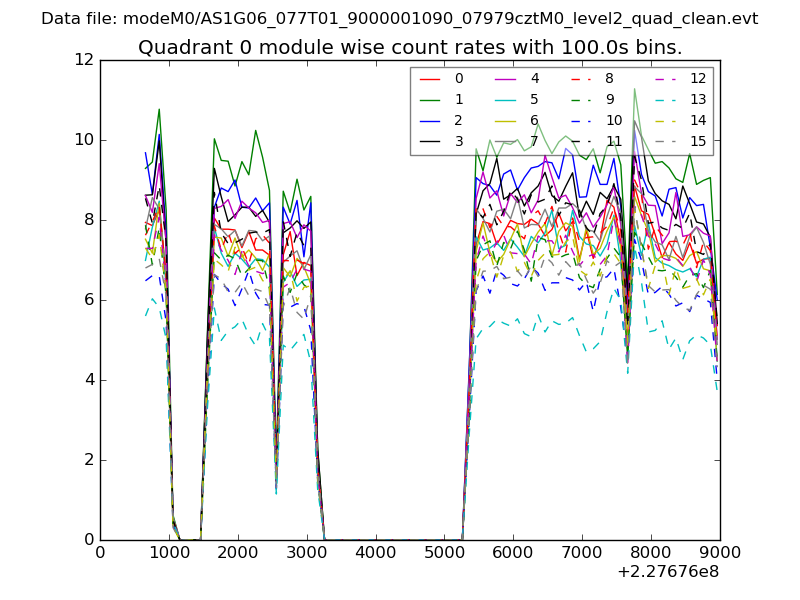

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

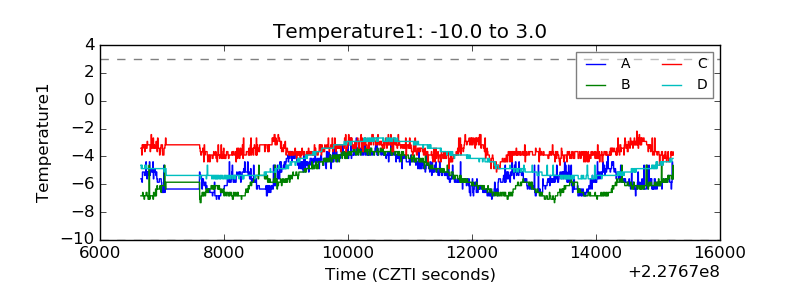

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

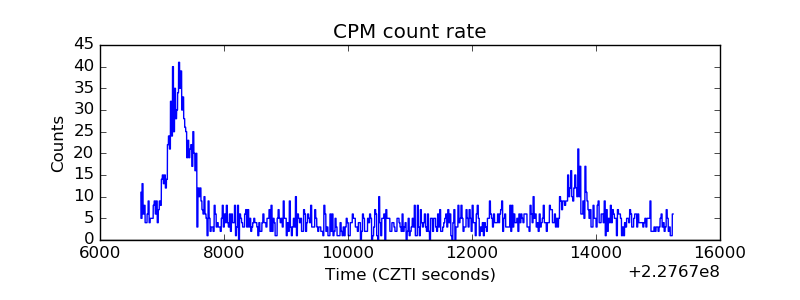

| _CPM_Rate |  |

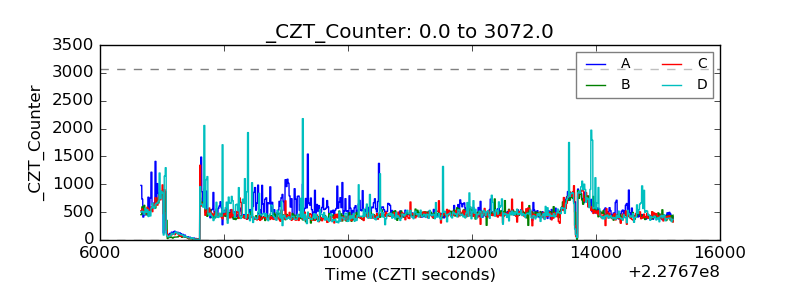

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

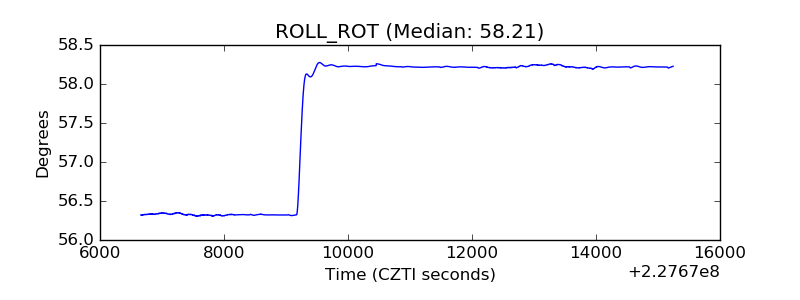

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
