| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_028T01_9000001094_07989cztM0_level2.evt | modeM0/AS1G06_028T01_9000001094_07989cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,399,680 | 86,996,160 |
| Size | 533.5 MB | 83.0 MB |
| Events in quadrant A | 4,728,691 | 540,557 |
| Events in quadrant B | 3,640,177 | 561,067 |
| Events in quadrant C | 4,273,395 | 569,557 |
| Events in quadrant D | 3,888,823 | 539,697 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18383 | 2 |
| B | 0 | 14843 | 1 |
| C | 0 | 16643 | 1 |
| D | 0 | 15477 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6063 | 190 | 3.133762% |
| B | 6063 | 169 | 2.787399% |
| C | 6063 | 210 | 3.463632% |
| D | 6063 | 283 | 4.667656% |

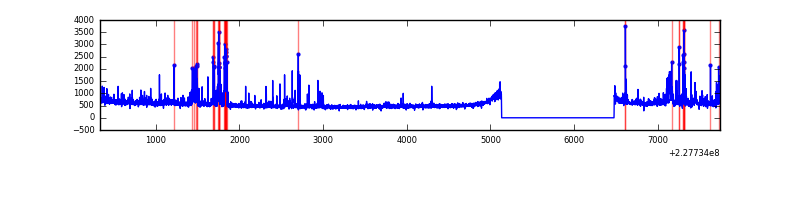

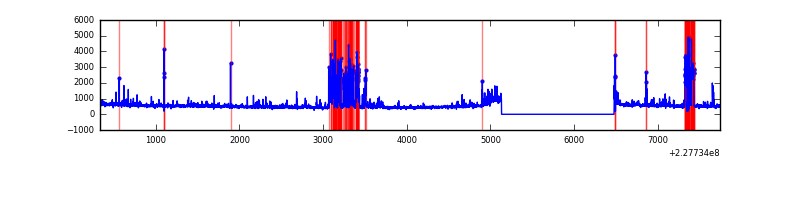

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7408 | 6064 | 19 | 19 | 0.26% | 0.31% |  |
| B | 7408 | 6064 | 42 | 42 | 0.57% | 0.69% |  |
| C | 7408 | 6064 | 72 | 72 | 0.97% | 1.19% |  |
| D | 7408 | 6064 | 192 | 192 | 2.59% | 3.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 1501636 | 9333.99 | 795 | 782 | 160.8 |
| A | 4 | 2 | 142921 | 883.98 | 795 | 782 | 160.8 |
| A | 15 | 239 | 7764 | 43.42 | 795 | 782 | 160.8 |
| B | 4 | 239 | 271893 | 1804.47 | 808 | 792 | 150.2 |
| B | 11 | 51 | 104235 | 688.52 | 808 | 792 | 150.2 |
| B | 10 | 16 | 49565 | 324.64 | 808 | 792 | 150.2 |
| C | 1 | 16 | 1132987 | 6176.76 | 801 | 809 | 183.3 |
| C | 8 | 143 | 15322 | 79.18 | 801 | 809 | 183.3 |
| C | 13 | 61 | 6068 | 28.69 | 801 | 809 | 183.3 |
| D | 1 | 52 | 774581 | 3713.47 | 779 | 763 | 208.4 |
| D | 2 | 136 | 64955 | 308.05 | 779 | 763 | 208.4 |
| D | 12 | 233 | 42383 | 199.73 | 779 | 763 | 208.4 |

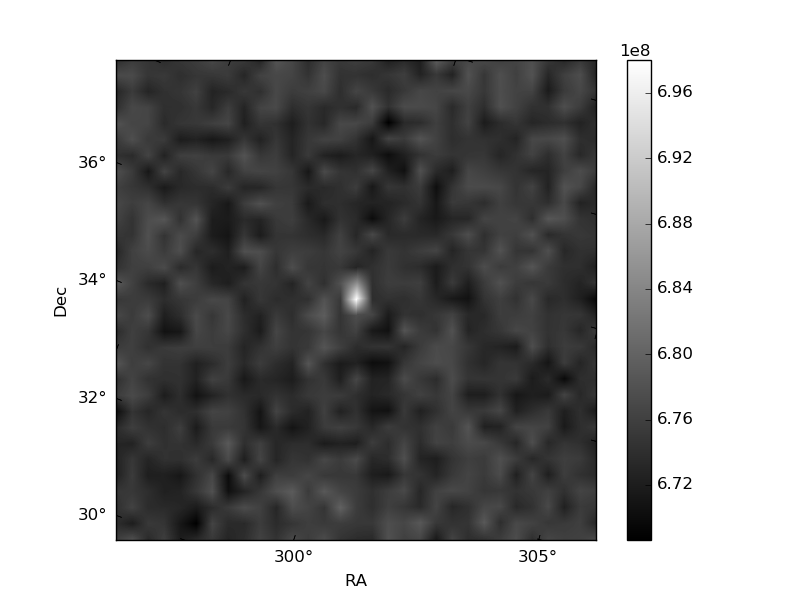

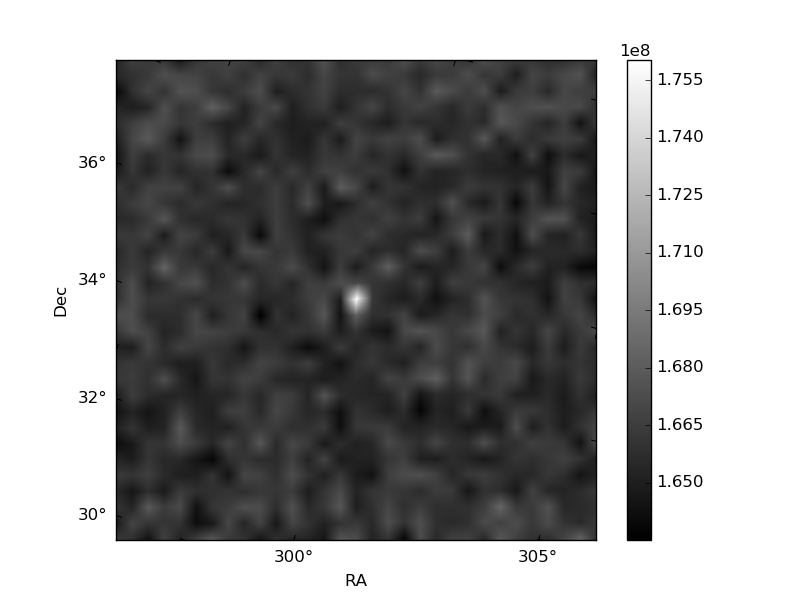

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

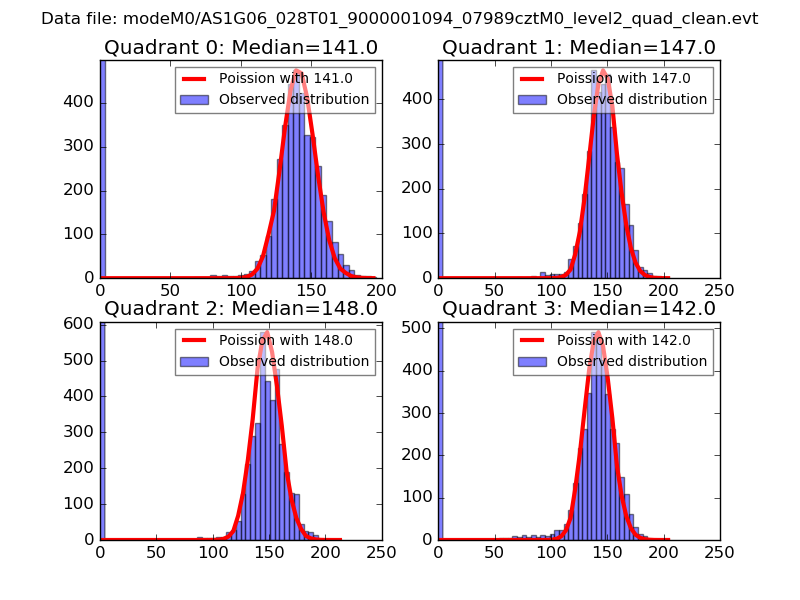

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

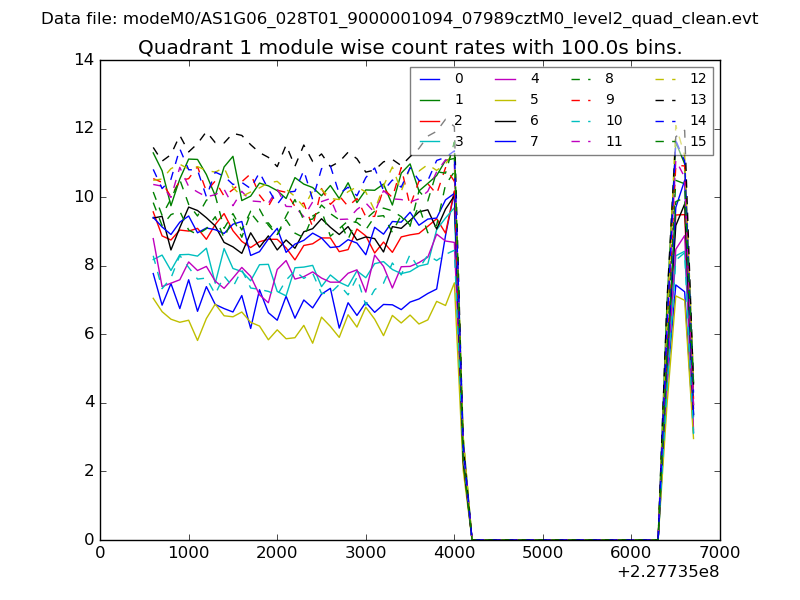

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

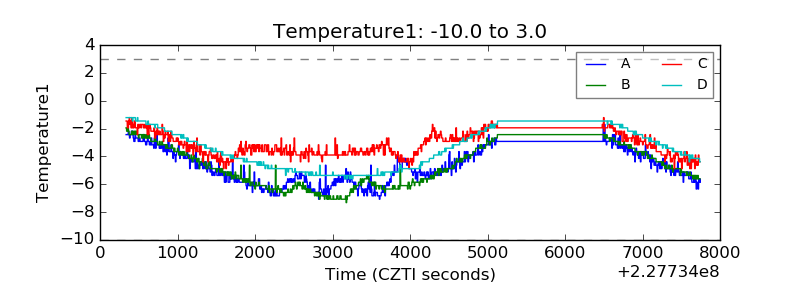

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

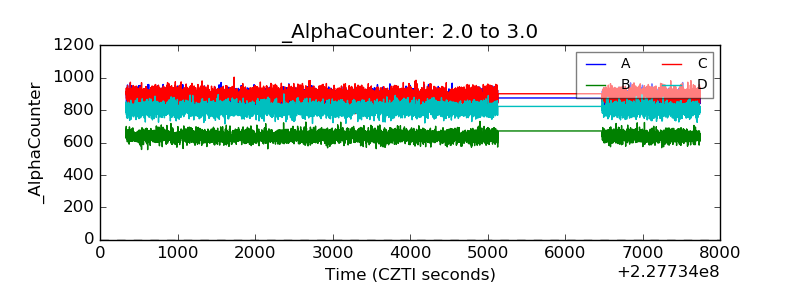

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
