| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_154T01_9000001100_08010cztM0_level2.evt | modeM0/AS1G06_154T01_9000001100_08010cztM0_level2_quad_clean.evt |
| Size (bytes) | 247,003,200 | 50,515,200 |
| Size | 235.6 MB | 48.2 MB |
| Events in quadrant A | 1,644,786 | 323,830 |
| Events in quadrant B | 1,685,256 | 334,233 |
| Events in quadrant C | 1,676,670 | 332,851 |
| Events in quadrant D | 2,239,479 | 295,959 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 2 |
| B | 0 | 74 | 2 |
| C | 0 | 74 | 6 |
| D | 0 | 74 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7517 | 301 |
| B | 0 | 7563 | 330 |
| C | 0 | 7541 | 315 |
| D | 0 | 9338 | 333 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3422 | 198 | 5.786090% |
| B | 3408 | 191 | 5.604460% |
| C | 3416 | 109 | 3.190867% |
| D | 3411 | 359 | 10.524773% |

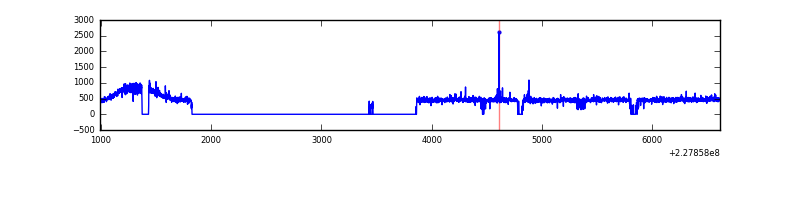

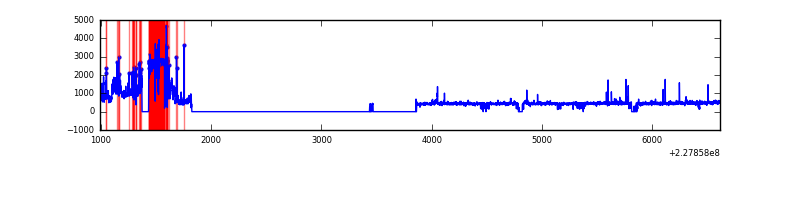

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

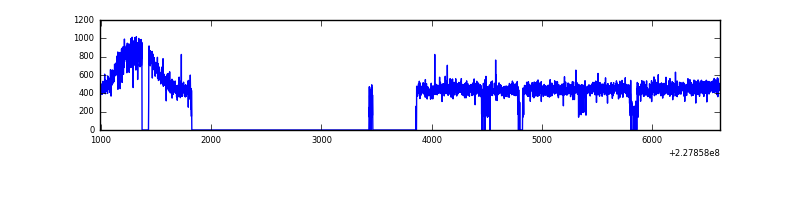

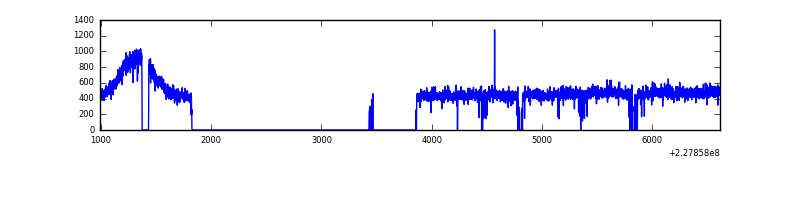

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5620 | 3475 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5619 | 3466 | 1 | 1 | 0.02% | 0.03% |  |
| C | 5619 | 3477 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5619 | 3472 | 171 | 171 | 3.04% | 4.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 3914 | 38.28 | 427 | 415 | 91.4 |
| A | 12 | 194 | 3653 | 35.42 | 427 | 415 | 91.4 |
| A | 3 | 137 | 1762 | 14.74 | 427 | 415 | 91.4 |
| B | 4 | 173 | 12501 | 140.52 | 426 | 414 | 86.0 |
| B | 12 | 111 | 9953 | 110.9 | 426 | 414 | 86.0 |
| B | 11 | 51 | 8839 | 97.95 | 426 | 414 | 86.0 |
| C | 8 | 128 | 9641 | 92.14 | 423 | 424 | 100.0 |
| C | 8 | 144 | 3681 | 32.56 | 423 | 424 | 100.0 |
| C | 8 | 112 | 3655 | 32.3 | 423 | 424 | 100.0 |
| D | 1 | 52 | 690375 | 7171.24 | 393 | 381 | 96.2 |
| D | 2 | 14 | 26006 | 266.33 | 393 | 381 | 96.2 |
| D | 11 | 144 | 16435 | 166.85 | 393 | 381 | 96.2 |

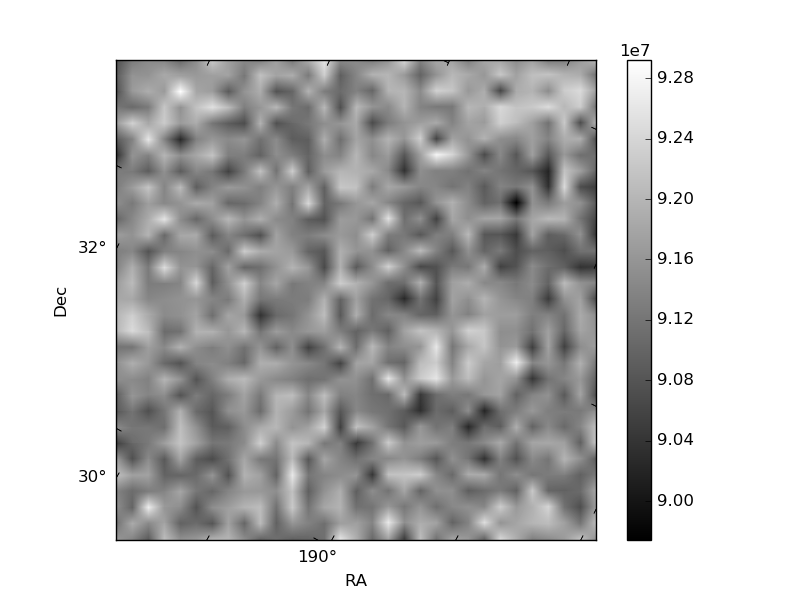

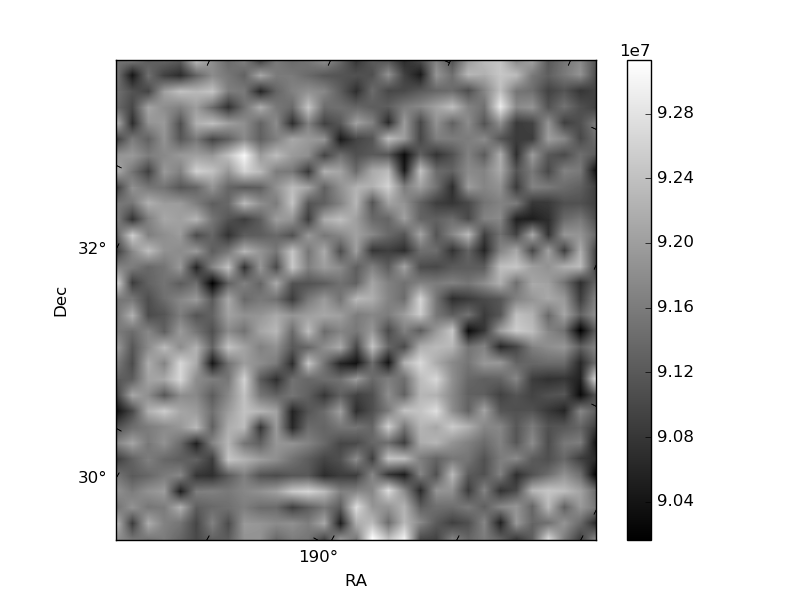

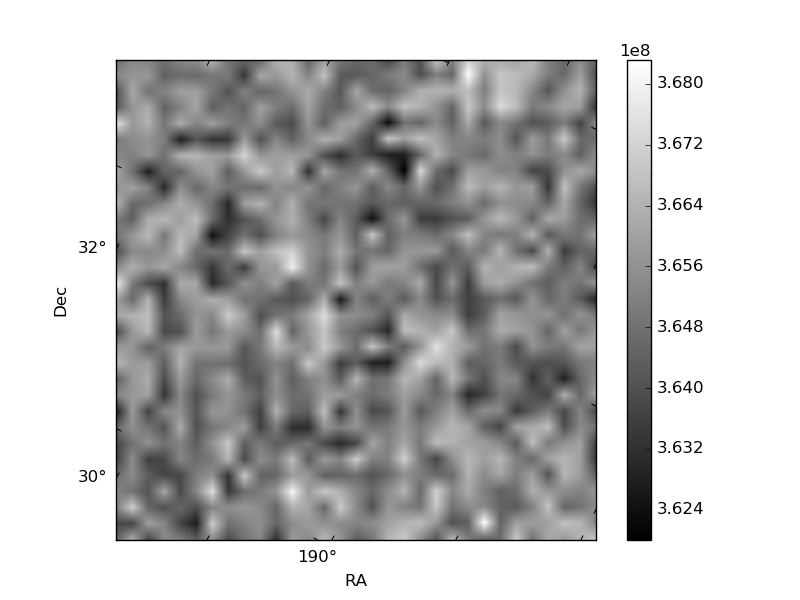

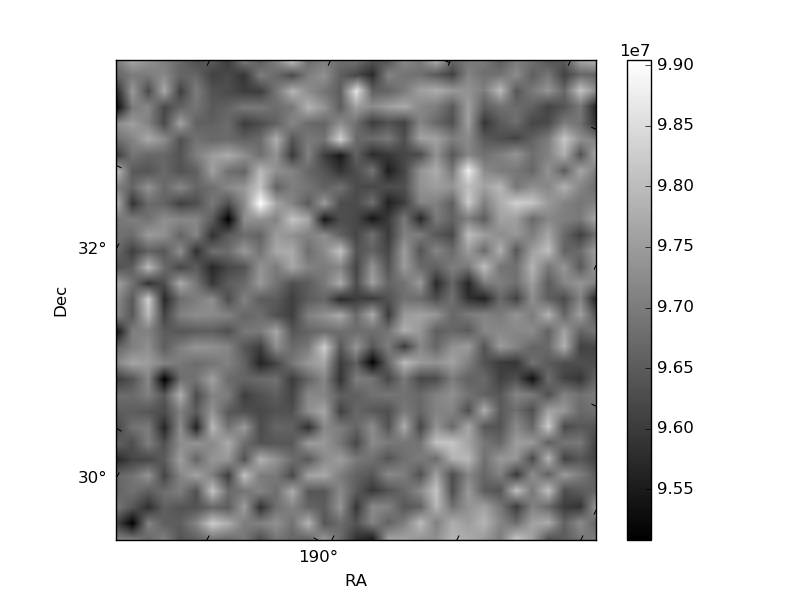

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

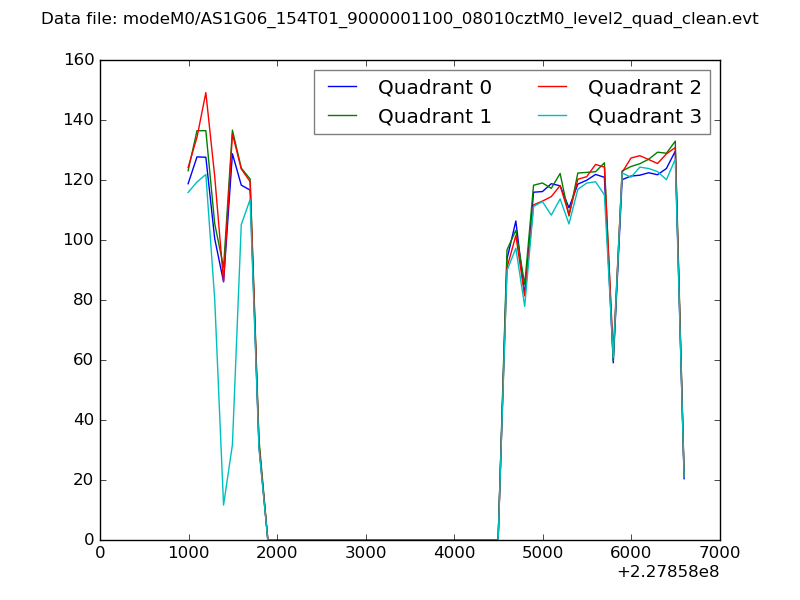

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

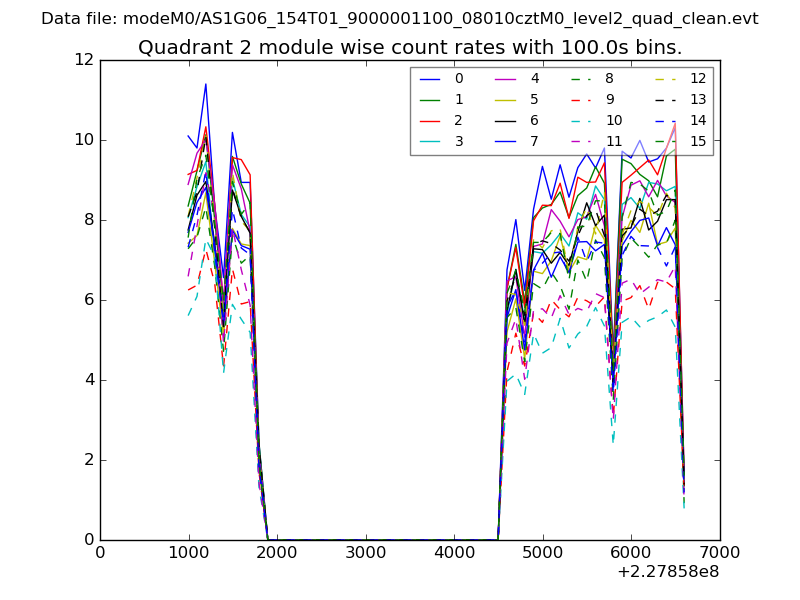

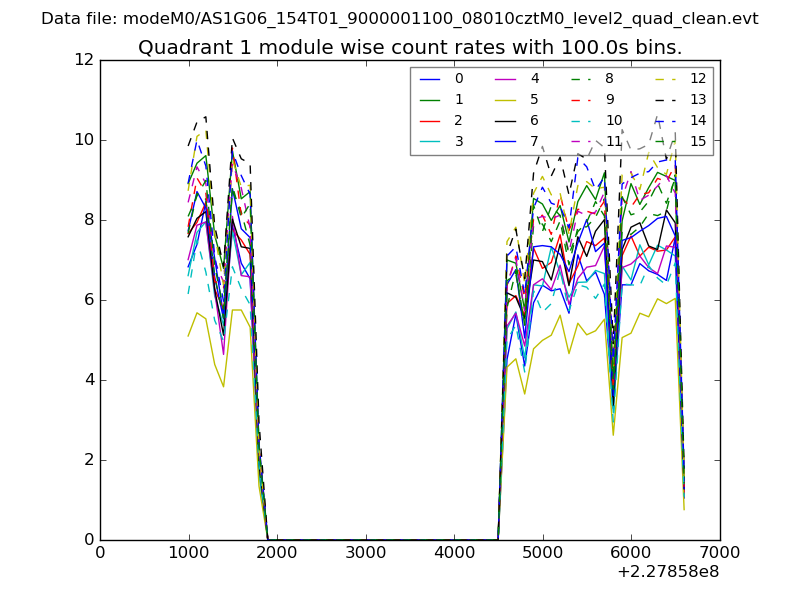

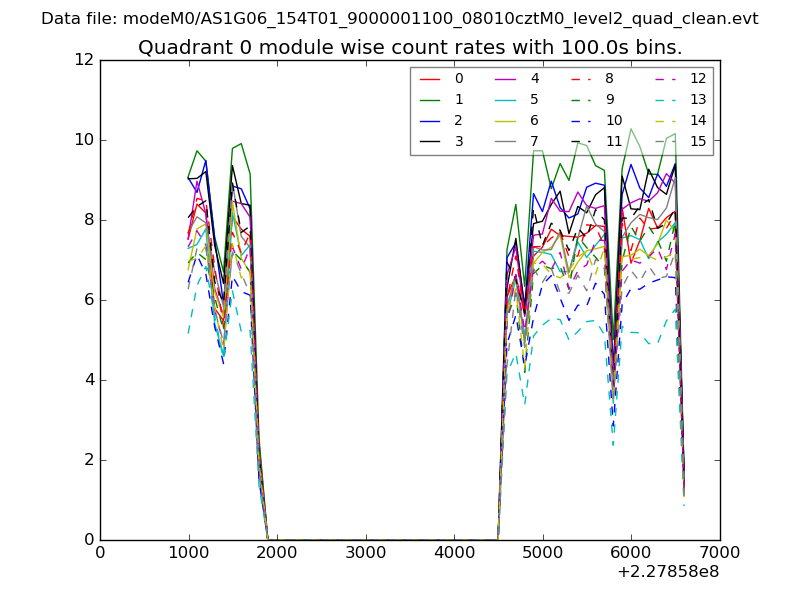

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

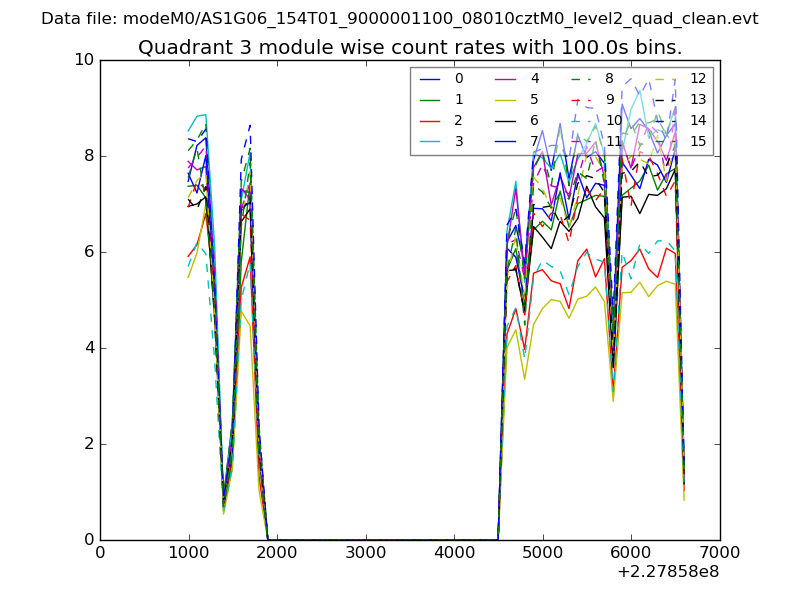

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

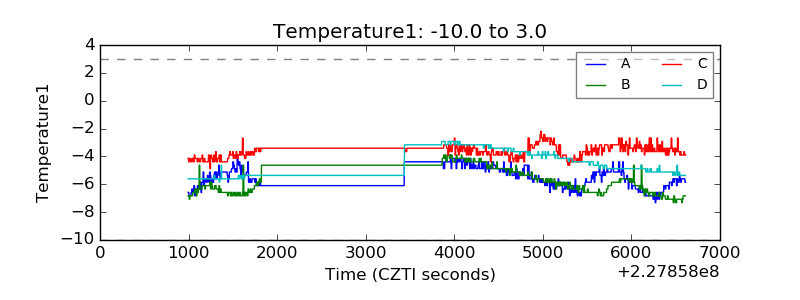

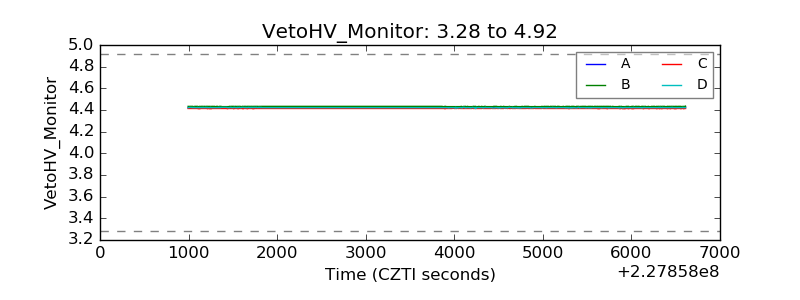

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

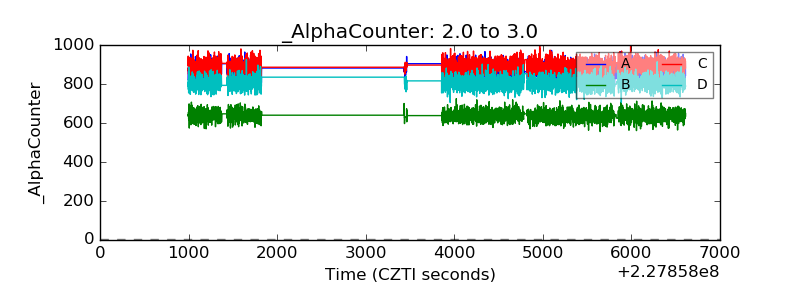

| Alpha Counter |  |

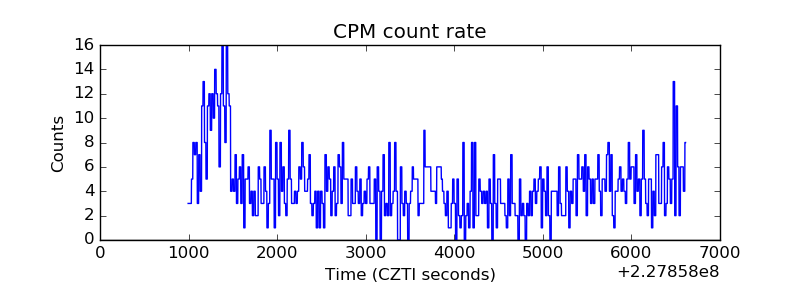

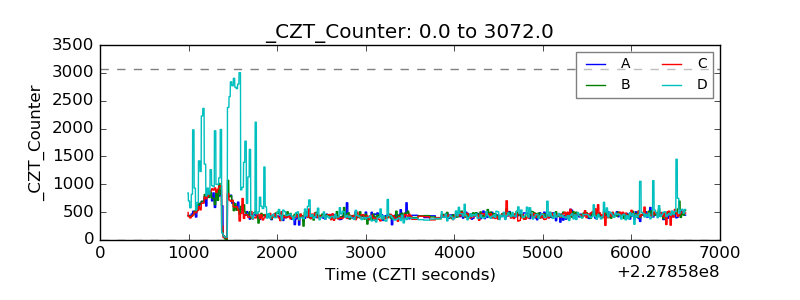

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

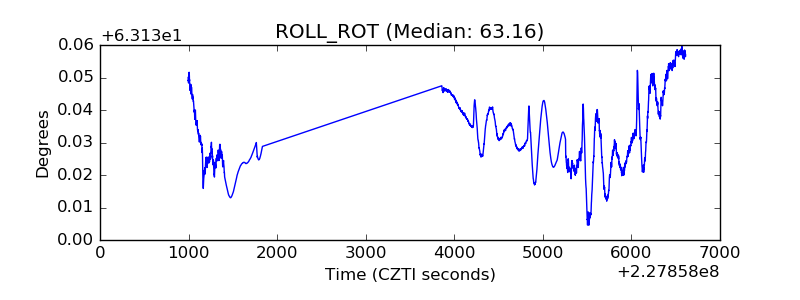

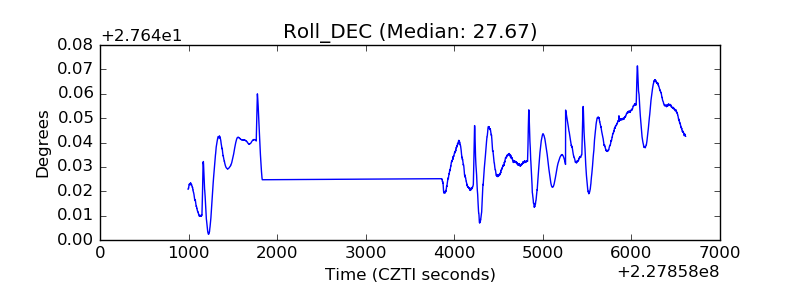

| _ROLL_ROT |  |
| _Roll_DEC |  |

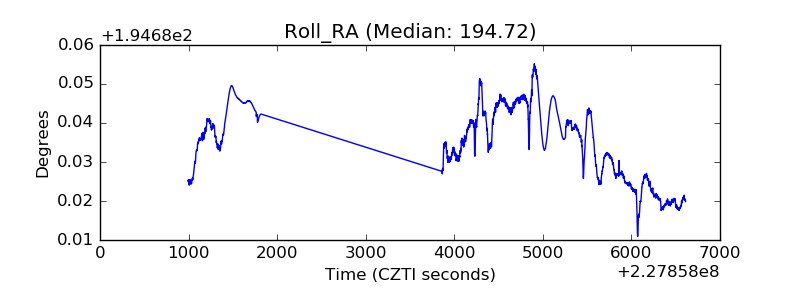

| _Roll_RA |  |

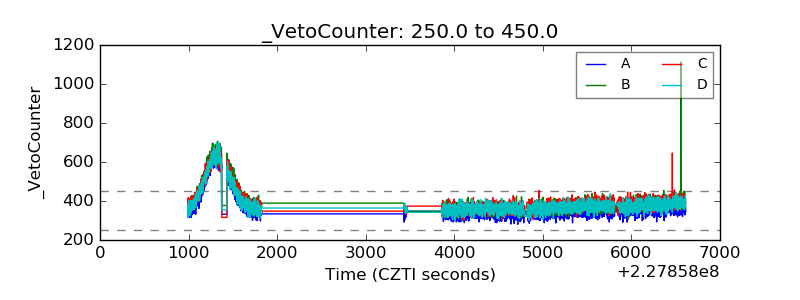

| Veto Counter |  |
