| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_154T01_9000001100_08014cztM0_level2.evt | modeM0/AS1G06_154T01_9000001100_08014cztM0_level2_quad_clean.evt |
| Size (bytes) | 269,274,240 | 55,428,480 |
| Size | 256.8 MB | 52.9 MB |
| Events in quadrant A | 1,939,872 | 343,518 |
| Events in quadrant B | 1,969,088 | 350,481 |
| Events in quadrant C | 1,945,940 | 347,440 |
| Events in quadrant D | 2,010,359 | 338,187 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 86 | 0 |
| B | 0 | 86 | 0 |
| C | 0 | 86 | 0 |
| D | 0 | 86 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8722 | 1 |
| B | 0 | 8720 | 1 |
| C | 0 | 8672 | 1 |
| D | 0 | 8917 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4240 | 73 | 1.721698% |
| B | 4240 | 62 | 1.462264% |
| C | 4240 | 59 | 1.391509% |
| D | 4240 | 57 | 1.344340% |

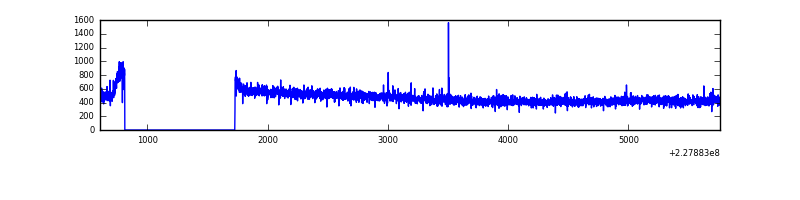

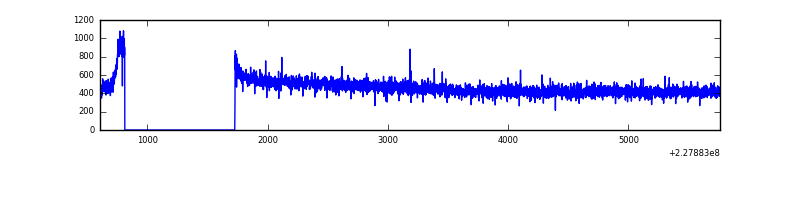

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5155 | 4240 | 3 | 3 | 0.06% | 0.07% |  |
| B | 5155 | 4240 | 0 | 0 | 0.00% | 0.00% |  |
| C | 5155 | 4240 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5155 | 4241 | 3 | 3 | 0.06% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 8574 | 78.23 | 501 | 489 | 103.3 |
| A | 0 | 226 | 4660 | 40.35 | 501 | 489 | 103.3 |
| A | 12 | 194 | 4264 | 36.52 | 501 | 489 | 103.3 |
| B | 12 | 111 | 10942 | 105.91 | 505 | 491 | 98.7 |
| B | 11 | 111 | 9126 | 87.51 | 505 | 491 | 98.7 |
| B | 14 | 111 | 6809 | 64.03 | 505 | 491 | 98.7 |
| C | 1 | 16 | 4837 | 37.0 | 497 | 499 | 117.2 |
| C | 13 | 61 | 3561 | 26.12 | 497 | 499 | 117.2 |
| C | 12 | 4 | 1813 | 11.21 | 497 | 499 | 117.2 |
| D | 1 | 52 | 75573 | 625.07 | 494 | 481 | 120.1 |
| D | 2 | 14 | 40782 | 335.47 | 494 | 481 | 120.1 |
| D | 11 | 144 | 18757 | 152.13 | 494 | 481 | 120.1 |

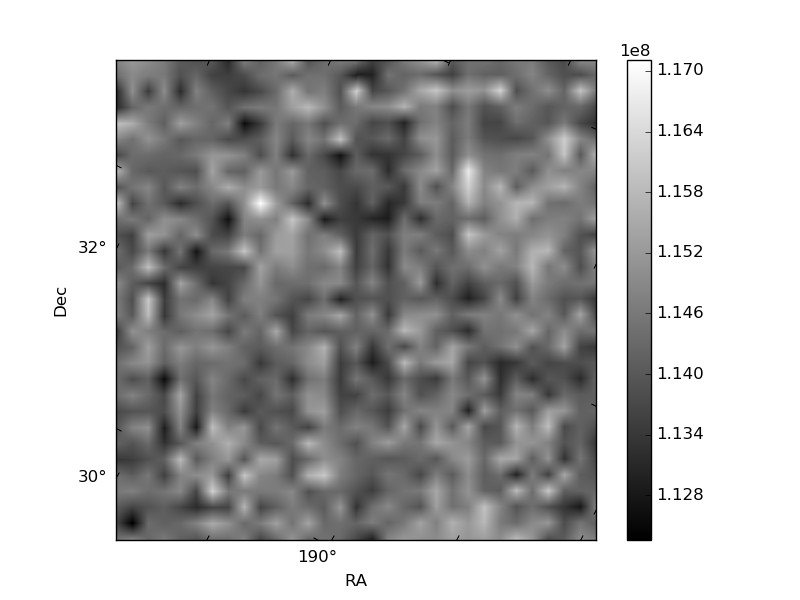

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

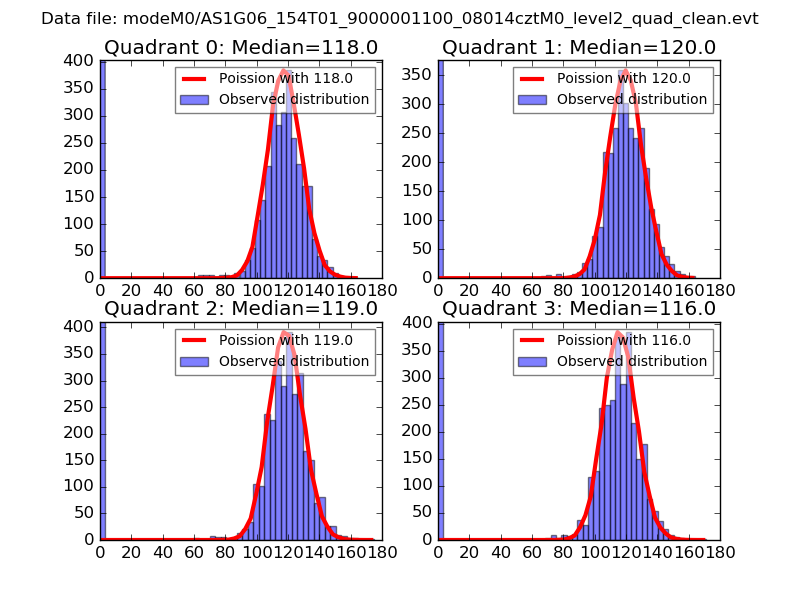

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

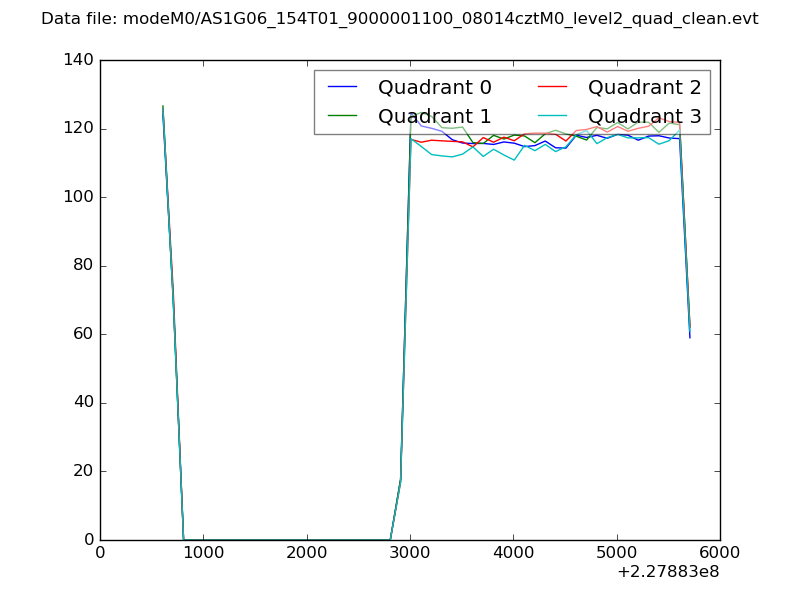

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

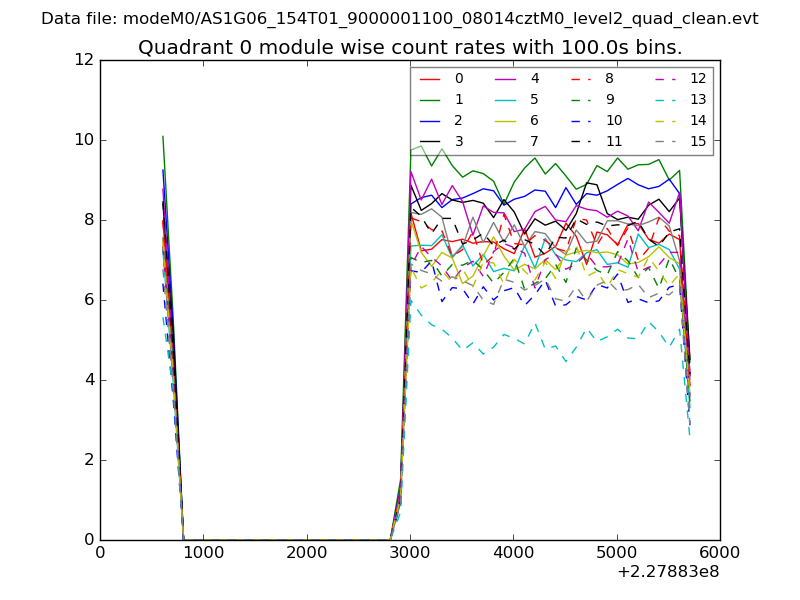

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

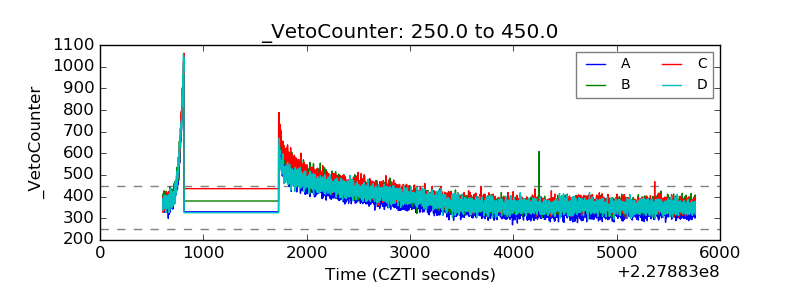

| Veto Counter |  |
