| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_154T02_9000001102_08021cztM0_level2.evt | modeM0/AS1G06_154T02_9000001102_08021cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,508,160 | 91,621,440 |
| Size | 410.6 MB | 87.4 MB |
| Events in quadrant A | 3,126,111 | 567,097 |
| Events in quadrant B | 3,177,417 | 585,551 |
| Events in quadrant C | 3,125,904 | 585,413 |
| Events in quadrant D | 3,145,877 | 562,573 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14031 | 3 |
| B | 0 | 14065 | 2 |
| C | 0 | 14063 | 2 |
| D | 0 | 14310 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6802 | 49 | 0.720376% |
| B | 6802 | 63 | 0.926198% |
| C | 6802 | 28 | 0.411644% |
| D | 6802 | 22 | 0.323434% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8732 | 6804 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8732 | 6804 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8732 | 6804 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8732 | 6804 | 5 | 5 | 0.06% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 14887 | 85.68 | 806 | 790 | 164.5 |
| A | 0 | 226 | 7491 | 40.73 | 806 | 790 | 164.5 |
| A | 12 | 194 | 7107 | 38.39 | 806 | 790 | 164.5 |
| B | 12 | 111 | 17829 | 108.44 | 813 | 792 | 157.1 |
| B | 11 | 111 | 14518 | 87.36 | 813 | 792 | 157.1 |
| B | 14 | 111 | 11272 | 66.7 | 813 | 792 | 157.1 |
| C | 1 | 16 | 24981 | 131.0 | 793 | 798 | 184.6 |
| C | 13 | 61 | 6094 | 28.69 | 793 | 798 | 184.6 |
| C | 12 | 4 | 3451 | 14.37 | 793 | 798 | 184.6 |
| D | 1 | 52 | 92853 | 485.1 | 785 | 767 | 189.8 |
| D | 2 | 136 | 36771 | 189.67 | 785 | 767 | 189.8 |
| D | 2 | 14 | 33495 | 172.41 | 785 | 767 | 189.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

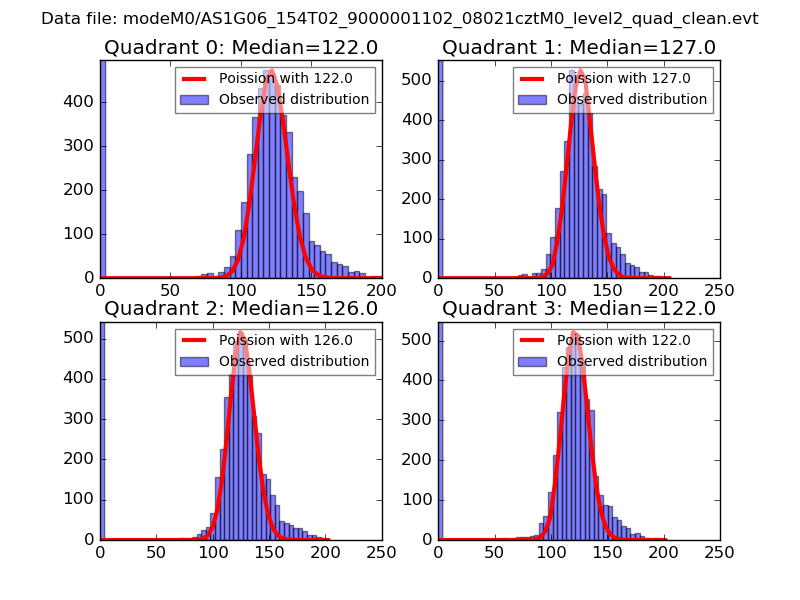

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

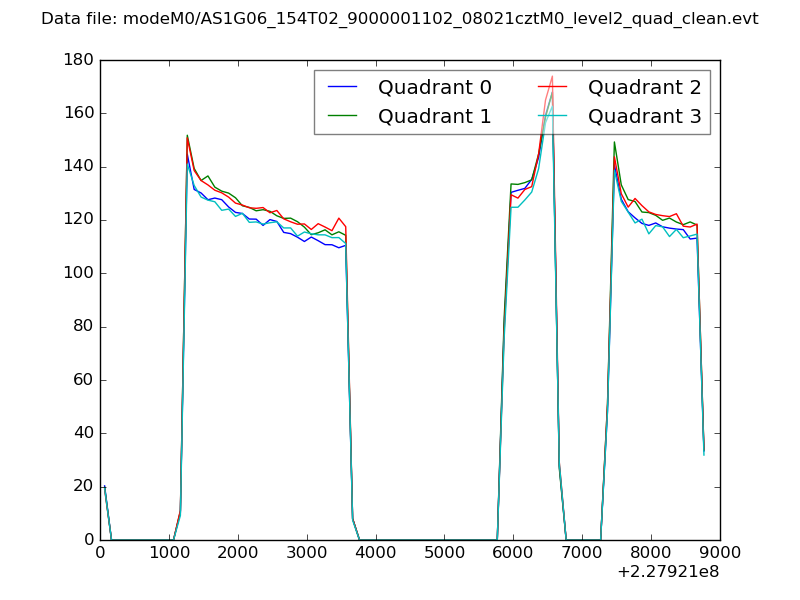

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

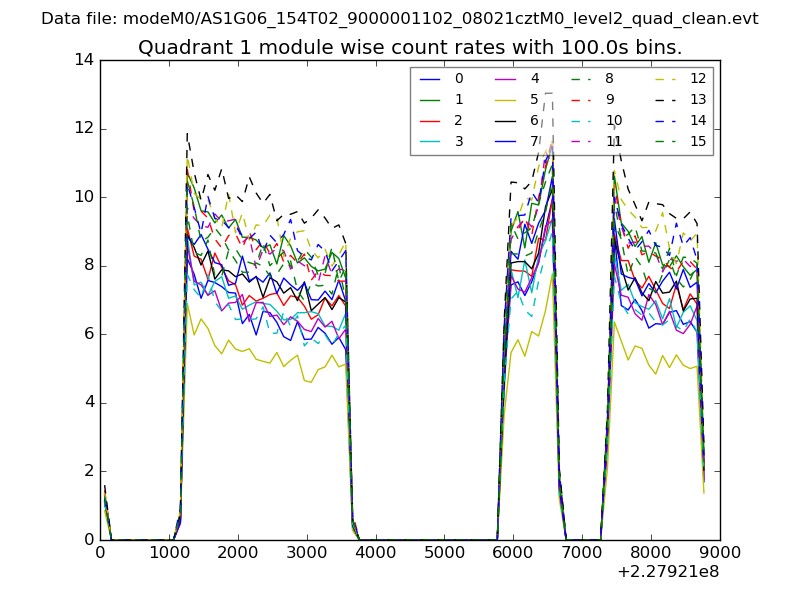

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

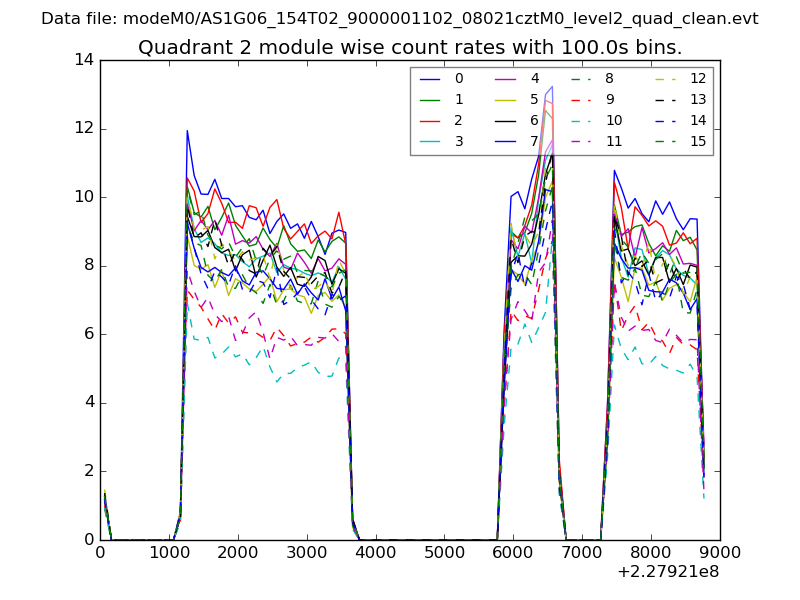

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

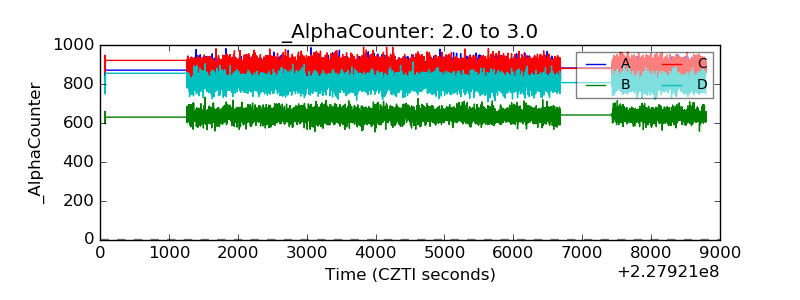

| Alpha Counter |  |

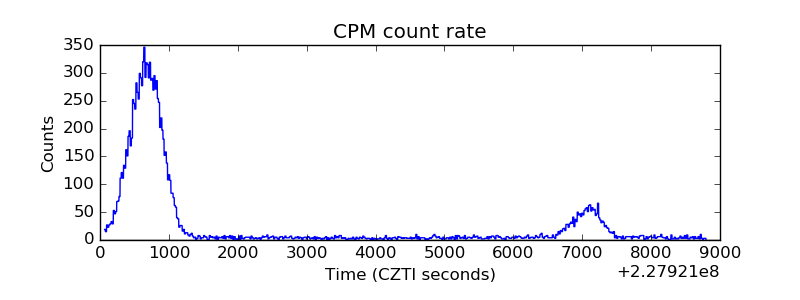

| _CPM_Rate |  |

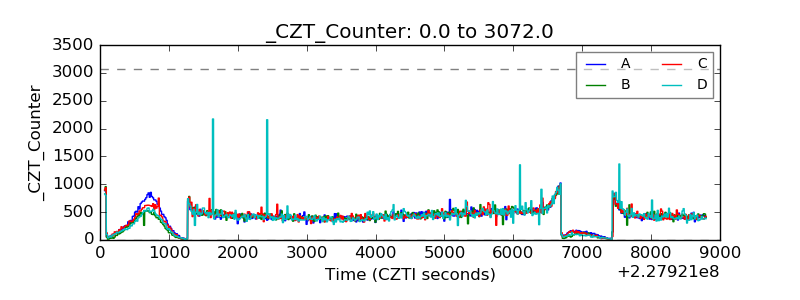

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
