| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_154T02_9000001102_08022cztM0_level2.evt | modeM0/AS1G06_154T02_9000001102_08022cztM0_level2_quad_clean.evt |
| Size (bytes) | 537,462,720 | 117,054,720 |
| Size | 512.6 MB | 111.6 MB |
| Events in quadrant A | 3,854,745 | 737,513 |
| Events in quadrant B | 3,941,210 | 753,992 |
| Events in quadrant C | 3,833,241 | 758,329 |
| Events in quadrant D | 4,090,687 | 725,103 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17133 | 3 |
| B | 0 | 17192 | 2 |
| C | 0 | 17132 | 2 |
| D | 0 | 18123 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8203 | 177 | 2.157747% |
| B | 8203 | 232 | 2.828234% |
| C | 8203 | 87 | 1.060588% |
| D | 8203 | 143 | 1.743265% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9103 | 8205 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9103 | 8205 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9103 | 8205 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9103 | 8205 | 46 | 46 | 0.51% | 0.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 22868 | 107.71 | 994 | 970 | 203.3 |
| A | 0 | 226 | 9133 | 40.15 | 994 | 970 | 203.3 |
| A | 12 | 194 | 8677 | 37.91 | 994 | 970 | 203.3 |
| B | 12 | 111 | 22740 | 111.58 | 1001 | 974 | 195.1 |
| B | 4 | 81 | 21696 | 106.23 | 1001 | 974 | 195.1 |
| B | 11 | 111 | 18208 | 88.35 | 1001 | 974 | 195.1 |
| C | 1 | 16 | 12086 | 48.66 | 978 | 979 | 228.3 |
| C | 13 | 61 | 7389 | 28.08 | 978 | 979 | 228.3 |
| C | 8 | 222 | 4777 | 16.64 | 978 | 979 | 228.3 |
| D | 1 | 52 | 268291 | 1149.75 | 966 | 940 | 232.5 |
| D | 2 | 14 | 117671 | 502.0 | 966 | 940 | 232.5 |
| D | 14 | 34 | 32559 | 135.98 | 966 | 940 | 232.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

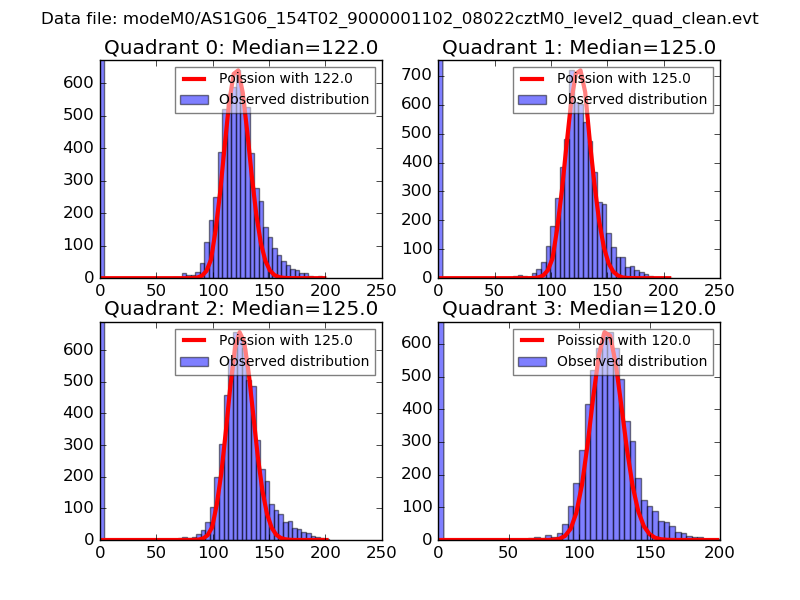

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

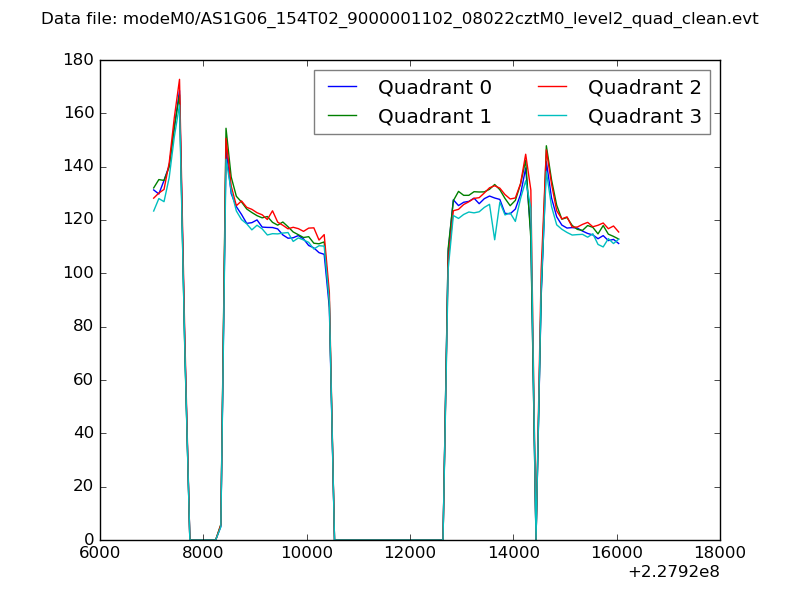

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

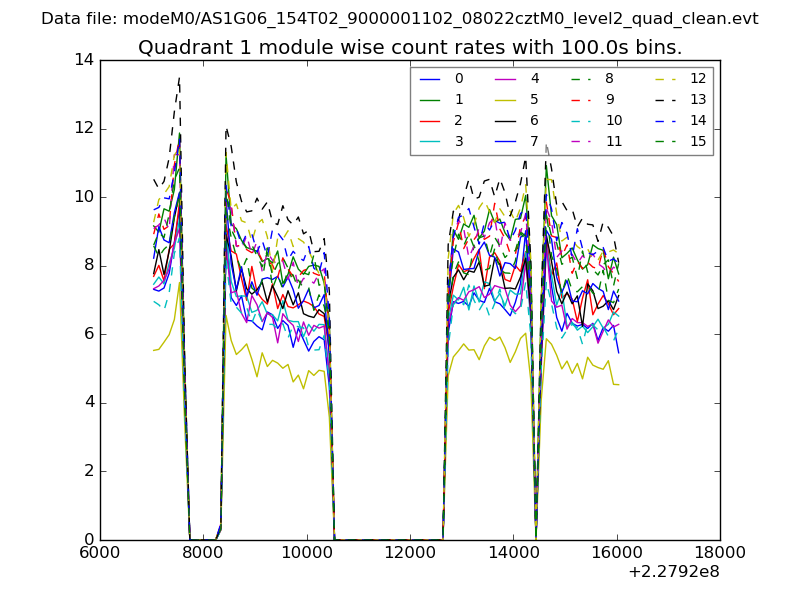

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

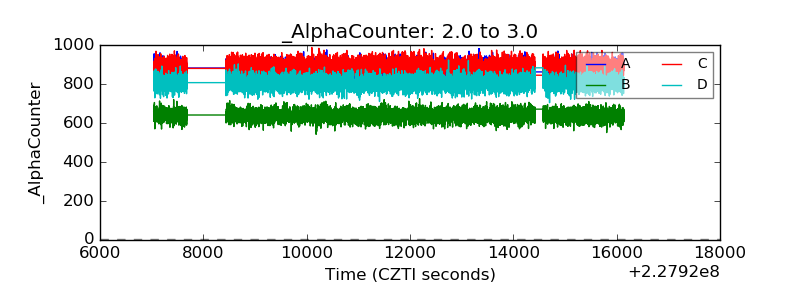

| Alpha Counter |  |
| _CPM_Rate |  |

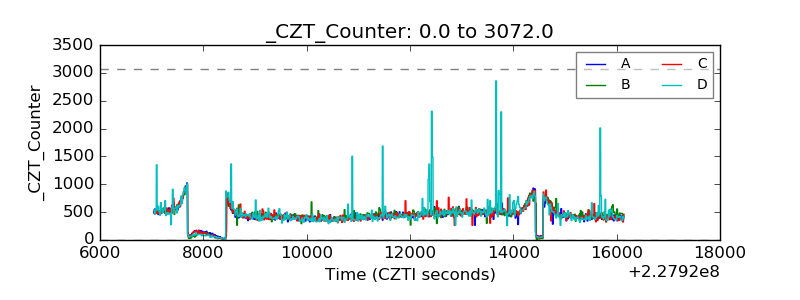

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

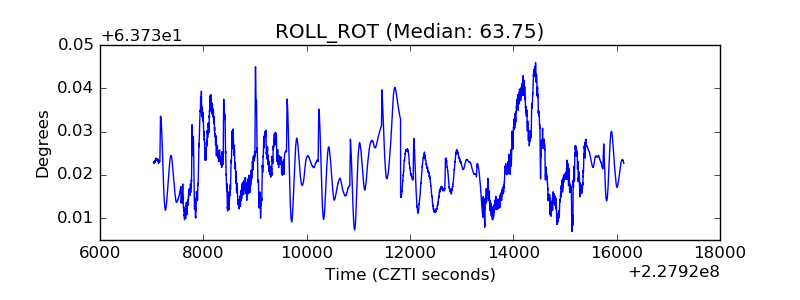

| _ROLL_ROT |  |
| _Roll_DEC |  |

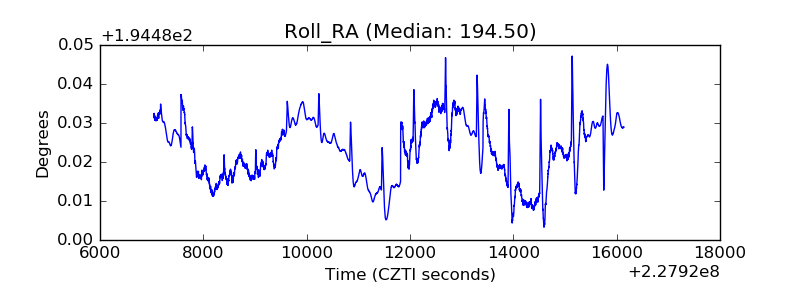

| _Roll_RA |  |
| Veto Counter |  |
