| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_080T01_9000001104_08032cztM0_level2.evt | modeM0/AS1A02_080T01_9000001104_08032cztM0_level2_quad_clean.evt |
| Size (bytes) | 678,032,640 | 90,907,200 |
| Size | 646.6 MB | 86.7 MB |
| Events in quadrant A | 3,298,699 | 640,128 |
| Events in quadrant B | 3,484,519 | 656,006 |
| Events in quadrant C | 2,946,188 | 625,224 |
| Events in quadrant D | 10,390,492 | 403,141 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13833 | 3 |
| B | 0 | 14377 | 2 |
| C | 0 | 12766 | 2 |
| D | 0 | 34935 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6114 | 109 | 1.782794% |
| B | 6114 | 153 | 2.502453% |
| C | 6114 | 28 | 0.457965% |
| D | 6114 | 2933 | 47.971868% |

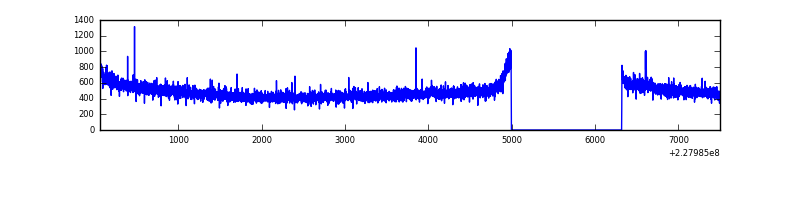

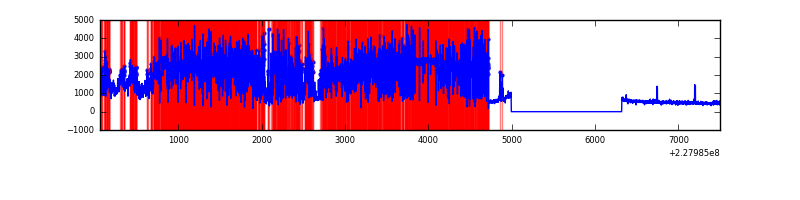

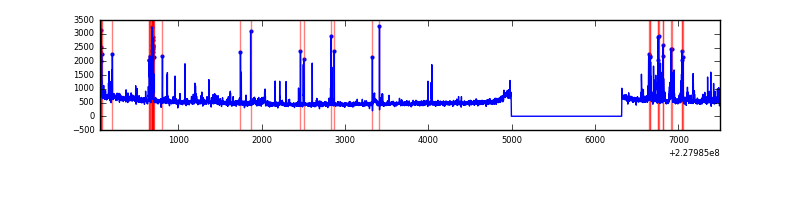

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7439 | 6115 | 19 | 19 | 0.26% | 0.31% |  |
| B | 7439 | 6115 | 51 | 51 | 0.69% | 0.83% |  |
| C | 7439 | 6115 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7439 | 6115 | 2578 | 2578 | 34.66% | 42.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 279022 | 1787.94 | 780 | 765 | 155.6 |
| A | 0 | 226 | 7411 | 42.7 | 780 | 765 | 155.6 |
| A | 13 | 251 | 6920 | 39.55 | 780 | 765 | 155.6 |
| B | 4 | 239 | 131901 | 907.68 | 785 | 769 | 144.5 |
| B | 0 | 187 | 128785 | 886.11 | 785 | 769 | 144.5 |
| B | 5 | 255 | 69593 | 476.39 | 785 | 769 | 144.5 |
| C | 1 | 16 | 15756 | 87.7 | 749 | 753 | 171.1 |
| C | 13 | 61 | 5786 | 29.42 | 749 | 753 | 171.1 |
| C | 1 | 3 | 4343 | 20.98 | 749 | 753 | 171.1 |
| D | 2 | 250 | 8017402 | 52580.77 | 573 | 558 | 152.5 |
| D | 1 | 52 | 56842 | 369.15 | 573 | 558 | 152.5 |
| D | 2 | 136 | 35701 | 230.5 | 573 | 558 | 152.5 |

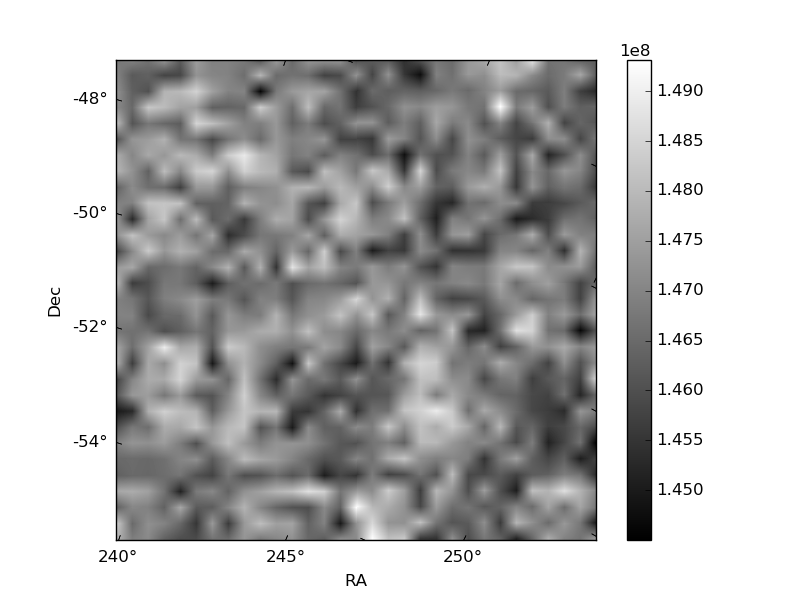

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

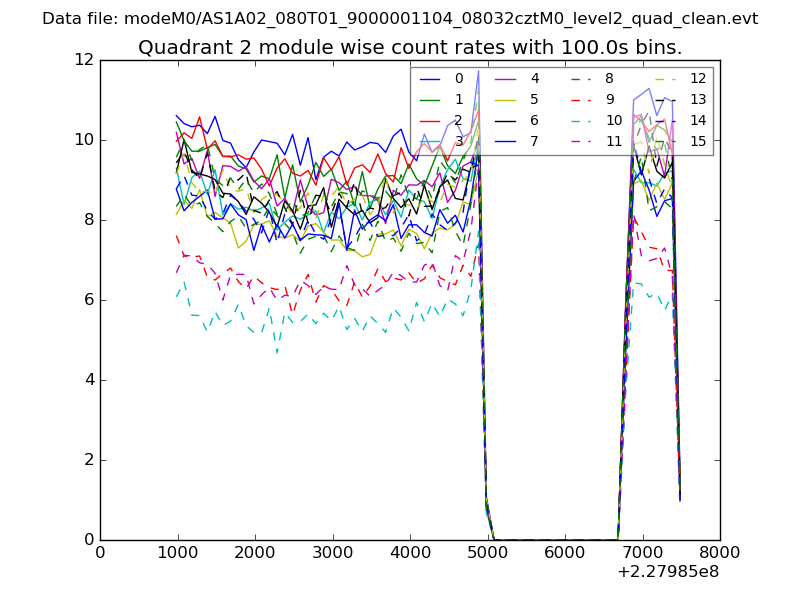

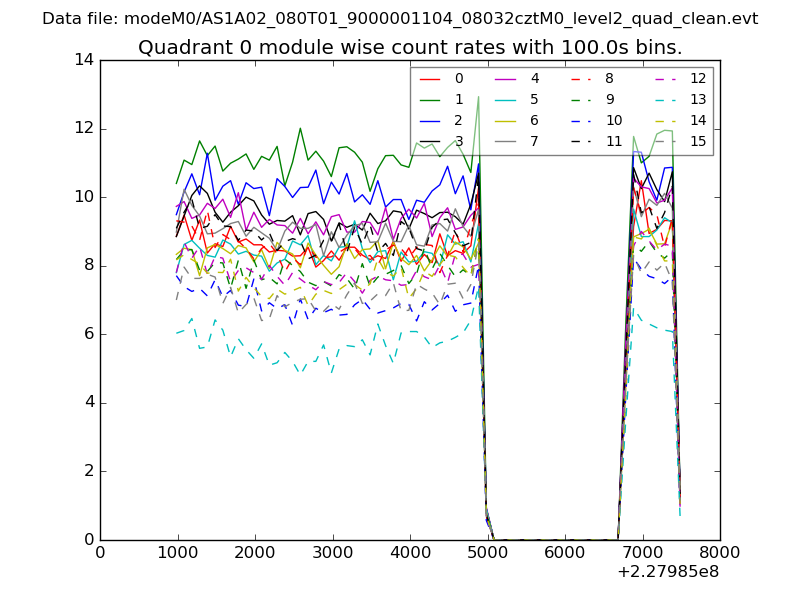

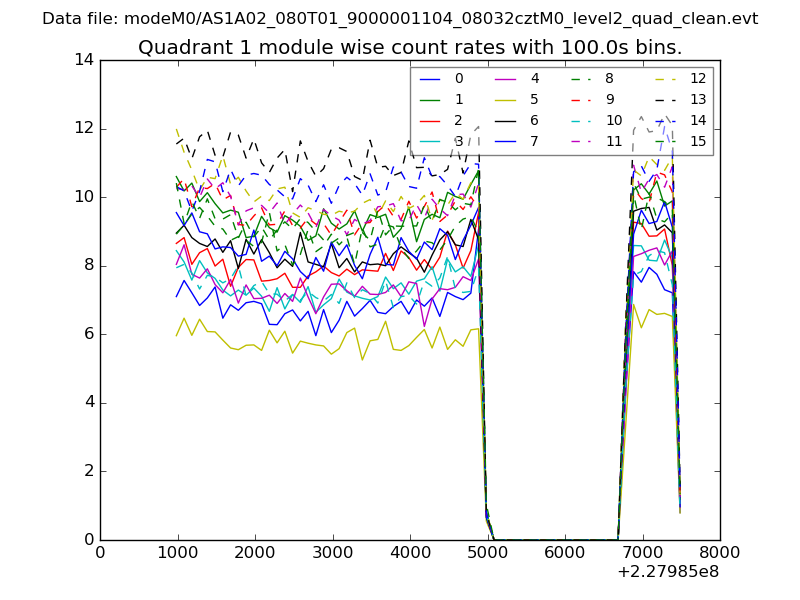

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

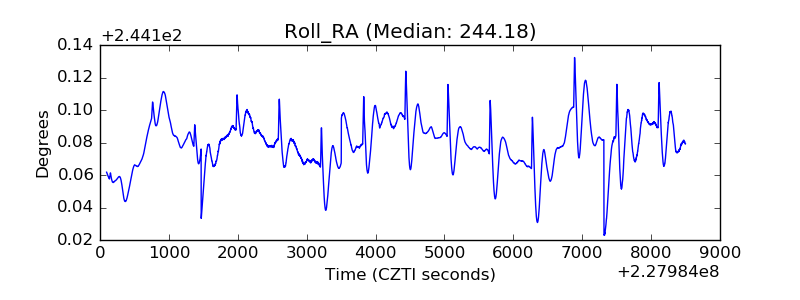

| _Roll_RA |  |
| Veto Counter |  |
