| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_168T22_9000001108_08049cztM0_level2.evt | modeM0/AS1G06_168T22_9000001108_08049cztM0_level2_quad_clean.evt |
| Size (bytes) | 273,804,480 | 48,070,080 |
| Size | 261.1 MB | 45.8 MB |
| Events in quadrant A | 2,469,104 | 296,525 |
| Events in quadrant B | 1,940,786 | 308,132 |
| Events in quadrant C | 1,651,038 | 310,555 |
| Events in quadrant D | 1,990,712 | 290,752 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9870 | 2 |
| B | 0 | 8091 | 1 |
| C | 0 | 7295 | 1 |
| D | 0 | 8336 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 72 | 0 |
| B | 0 | 72 | 0 |
| C | 0 | 72 | 0 |
| D | 0 | 72 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3522 | 96 | 2.725724% |
| B | 3522 | 97 | 2.754117% |
| C | 3522 | 11 | 0.312323% |
| D | 3522 | 65 | 1.845542% |

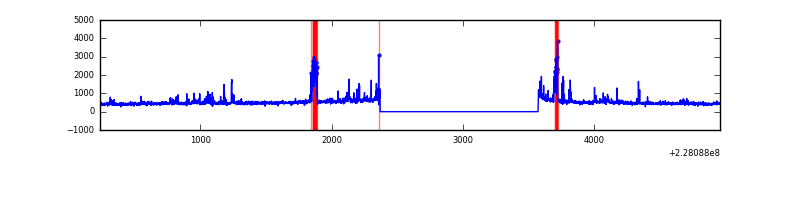

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4727 | 3523 | 7 | 7 | 0.15% | 0.20% |  |
| B | 4727 | 3523 | 34 | 34 | 0.72% | 0.97% |  |
| C | 4727 | 3523 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4727 | 3523 | 55 | 55 | 1.16% | 1.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 79 | 793606 | 9200.39 | 419 | 410 | 86.2 |
| A | 4 | 2 | 57153 | 658.17 | 419 | 410 | 86.2 |
| A | 13 | 14 | 6048 | 65.4 | 419 | 410 | 86.2 |
| B | 4 | 239 | 172693 | 2098.9 | 424 | 414 | 82.1 |
| B | 5 | 250 | 37342 | 449.9 | 424 | 414 | 82.1 |
| B | 4 | 81 | 36324 | 437.5 | 424 | 414 | 82.1 |
| C | 1 | 16 | 30467 | 310.86 | 415 | 415 | 96.7 |
| C | 13 | 61 | 3093 | 27.7 | 415 | 415 | 96.7 |
| C | 8 | 222 | 1544 | 11.68 | 415 | 415 | 96.7 |
| D | 1 | 52 | 320930 | 2881.32 | 406 | 395 | 111.2 |
| D | 2 | 14 | 53467 | 477.07 | 406 | 395 | 111.2 |
| D | 12 | 233 | 28352 | 251.31 | 406 | 395 | 111.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

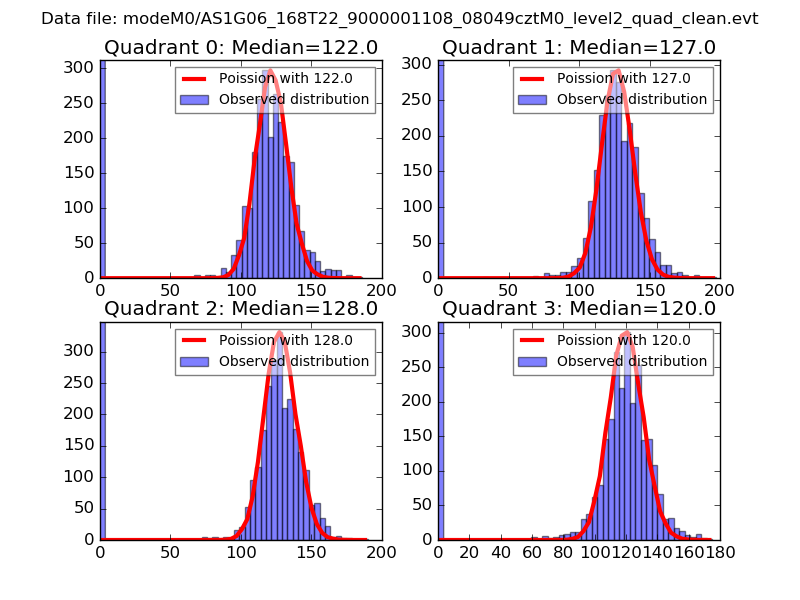

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

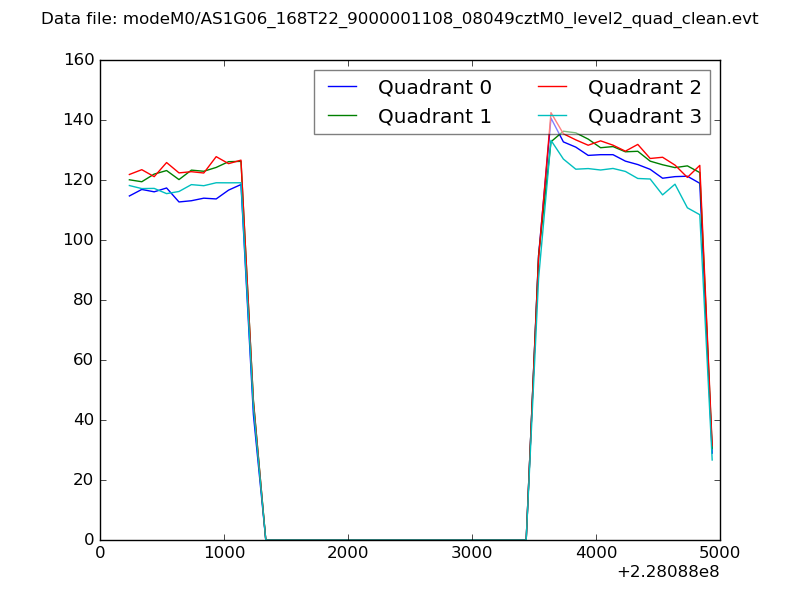

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

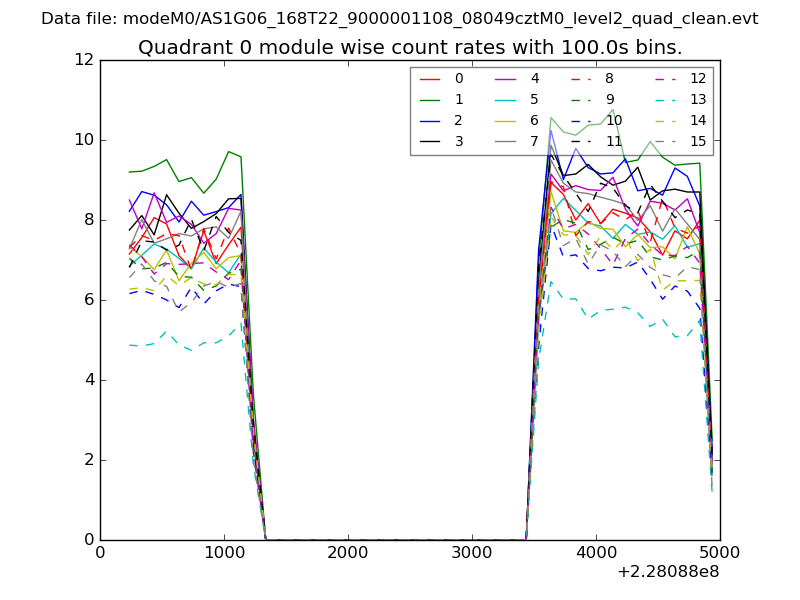

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

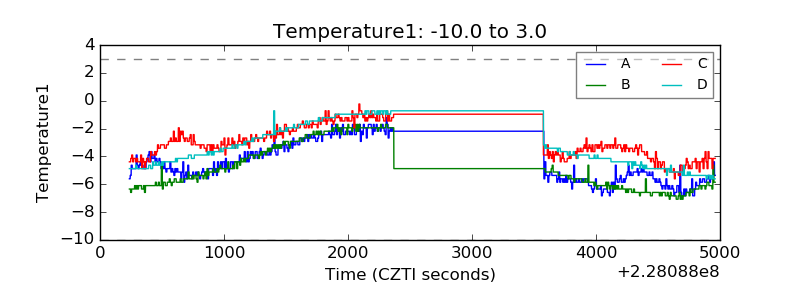

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

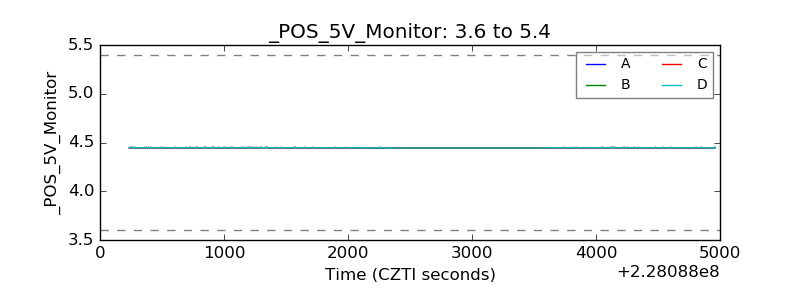

| +5 Volts monitor |  |
| _ROLL_ROT |  |

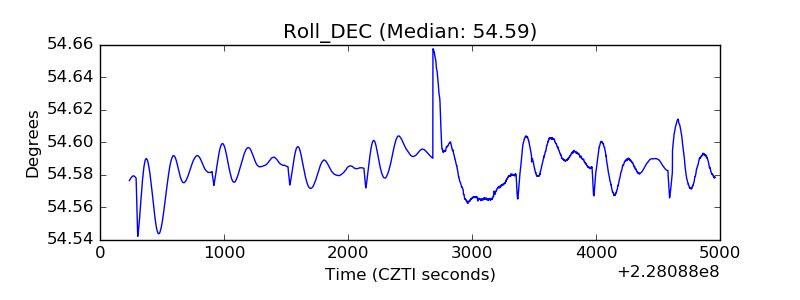

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
