| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_055T01_9000001114cztM0_level2.fits | modeM0/AS1A02_055T01_9000001114cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,468,514,240 | 2,561,728,320 |
| Size | 2.3 GB | 2.4 GB |
| Events in quadrant A | 14,818,584 | 15,300,892 |
| Events in quadrant B | 14,507,766 | 15,572,470 |
| Events in quadrant C | 14,944,246 | 15,197,521 |
| Events in quadrant D | 12,501,862 | 13,536,762 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 552574 | 0 |
| B | 0 | 567979 | 0 |
| C | 0 | 570048 | 0 |
| D | 0 | 661088 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 406 | 0 |
| B | 0 | 406 | 0 |
| C | 0 | 406 | 0 |
| D | 0 | 406 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5342 | 0 |
| B | 0 | 5344 | 0 |
| C | 0 | 5342 | 0 |
| D | 0 | 5344 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 262544 | 3347 | 1.274834% |
| B | 262525 | 4449 | 1.694696% |
| C | 262541 | 3910 | 1.489291% |
| D | 262542 | 13224 | 5.036908% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 303058 | 262354 | 0 | 0 | 0.00% | 0.00% |  |
| B | 303058 | 262516 | 0 | 0 | 0.00% | 0.00% |  |
| C | 303058 | 262559 | 0 | 0 | 0.00% | 0.00% |  |
| D | 303058 | 261348 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 29 | 14413 | 11.12 | 3858 | 3602 | 972.2 |
| A | 7 | 110 | 12262 | 8.91 | 3858 | 3602 | 972.2 |
| A | 0 | 30 | 11151 | 7.76 | 3858 | 3602 | 972.2 |
| B | 2 | 9 | 12704 | 12.08 | 3823 | 3625 | 751.6 |
| B | 14 | 254 | 9713 | 8.1 | 3823 | 3625 | 751.6 |
| B | 3 | 17 | 9683 | 8.06 | 3823 | 3625 | 751.6 |
| C | 1 | 80 | 11083 | 7.17 | 3948 | 3663 | 1034.2 |
| C | 1 | 81 | 10784 | 6.89 | 3948 | 3663 | 1034.2 |
| C | 12 | 241 | 10480 | 6.59 | 3948 | 3663 | 1034.2 |
| D | 6 | 231 | 9152 | 6.27 | 3572 | 3253 | 940.8 |
| D | 1 | 19 | 8803 | 5.9 | 3572 | 3253 | 940.8 |
| D | 10 | 189 | 8786 | 5.88 | 3572 | 3253 | 940.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

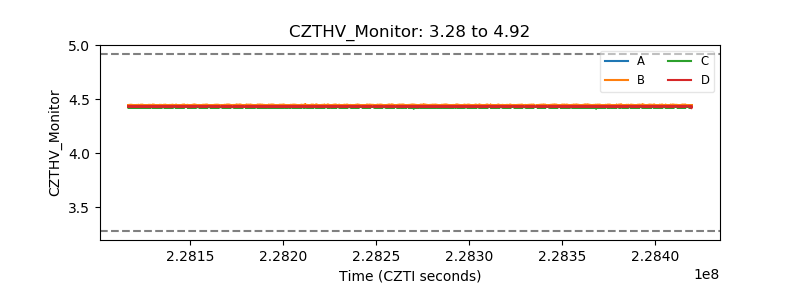

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

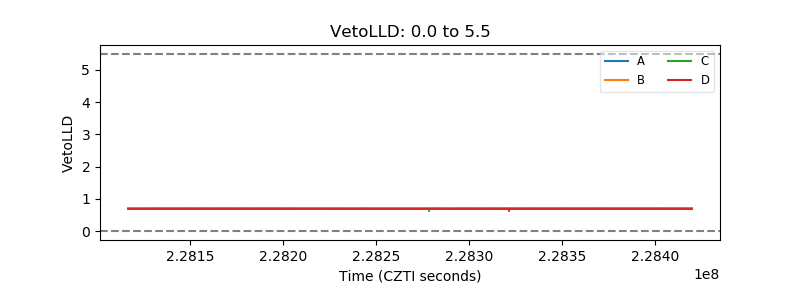

| Veto LLD |  |
| Alpha Counter |  |

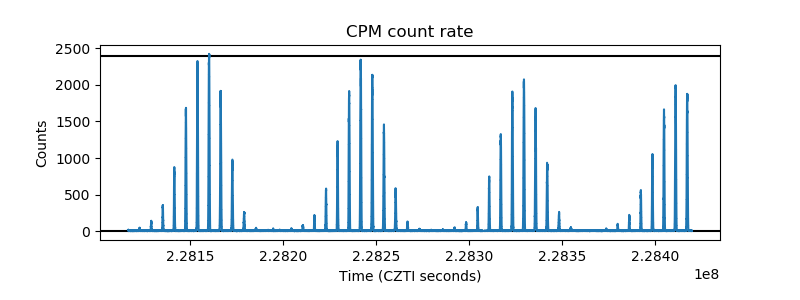

| _CPM_Rate |  |

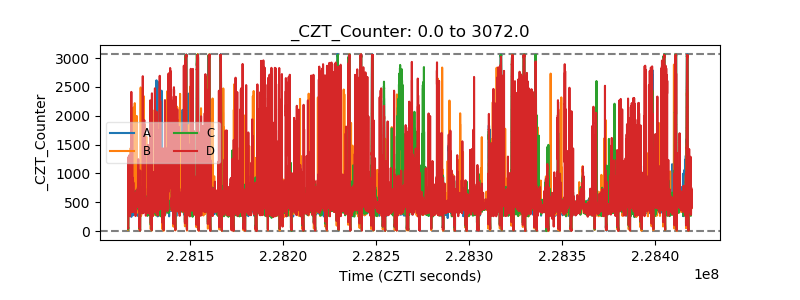

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

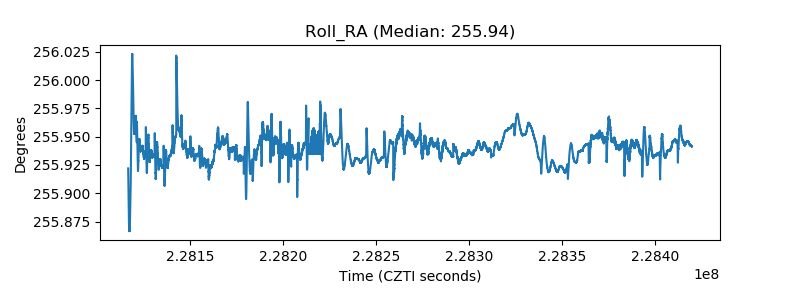

| _Roll_RA |  |
| Veto Counter |  |
