| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_055T01_9000001114_08066cztM0_level2.evt | modeM0/AS1A02_055T01_9000001114_08066cztM0_level2_quad_clean.evt |
| Size (bytes) | 686,070,720 | 111,576,960 |
| Size | 654.3 MB | 106.4 MB |
| Events in quadrant A | 3,982,545 | 697,843 |
| Events in quadrant B | 4,346,423 | 718,302 |
| Events in quadrant C | 4,038,171 | 727,376 |
| Events in quadrant D | 7,828,903 | 639,407 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17954 | 3 |
| B | 0 | 18787 | 2 |
| C | 0 | 18062 | 2 |
| D | 0 | 29472 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 174 | 0 |
| B | 0 | 174 | 0 |
| C | 0 | 174 | 0 |
| D | 0 | 174 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8585 | 78 | 0.908561% |
| B | 8585 | 199 | 2.317997% |
| C | 8585 | 60 | 0.698893% |
| D | 8585 | 1564 | 18.217822% |

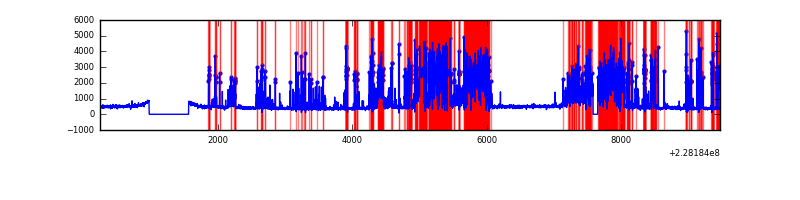

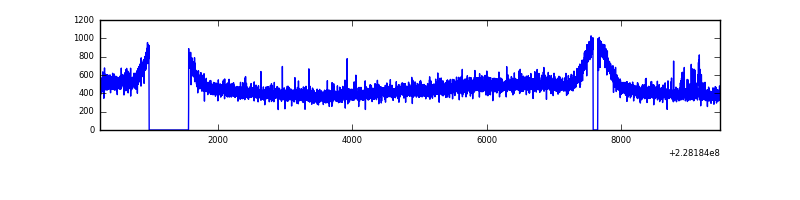

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9245 | 8587 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9245 | 8587 | 5 | 5 | 0.05% | 0.06% |  |
| C | 9245 | 8587 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9245 | 8587 | 1225 | 1225 | 13.25% | 14.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 17571 | 78.51 | 1030 | 1005 | 211.0 |
| A | 0 | 226 | 9607 | 40.77 | 1030 | 1005 | 211.0 |
| A | 12 | 194 | 9197 | 38.83 | 1030 | 1005 | 211.0 |
| B | 4 | 81 | 146677 | 726.11 | 1043 | 1017 | 200.6 |
| B | 11 | 51 | 54147 | 264.85 | 1043 | 1017 | 200.6 |
| B | 4 | 239 | 50475 | 246.55 | 1043 | 1017 | 200.6 |
| C | 1 | 16 | 49583 | 204.55 | 1018 | 1025 | 237.4 |
| C | 9 | 54 | 8059 | 29.63 | 1018 | 1025 | 237.4 |
| C | 13 | 61 | 7908 | 28.99 | 1018 | 1025 | 237.4 |
| D | 1 | 52 | 3730823 | 15650.0 | 887 | 866 | 238.3 |
| D | 1 | 83 | 675080 | 2828.84 | 887 | 866 | 238.3 |
| D | 2 | 234 | 26603 | 107.99 | 887 | 866 | 238.3 |

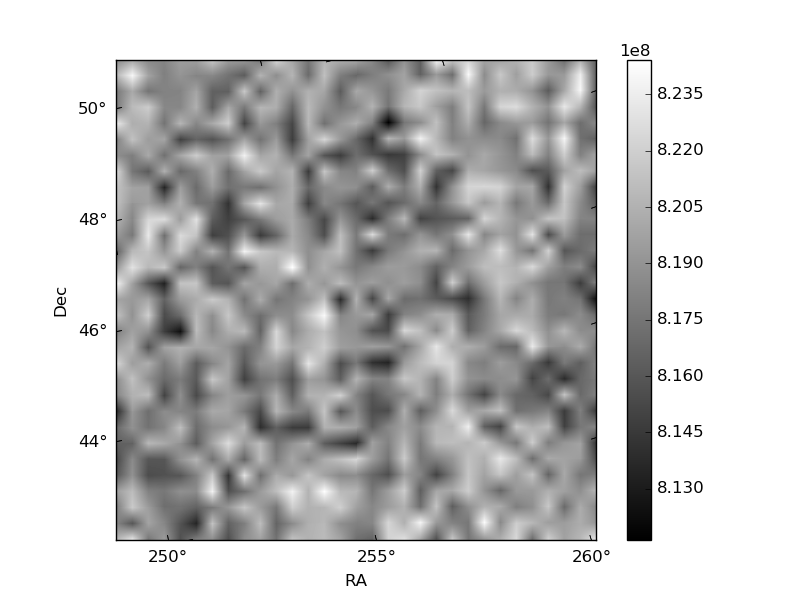

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

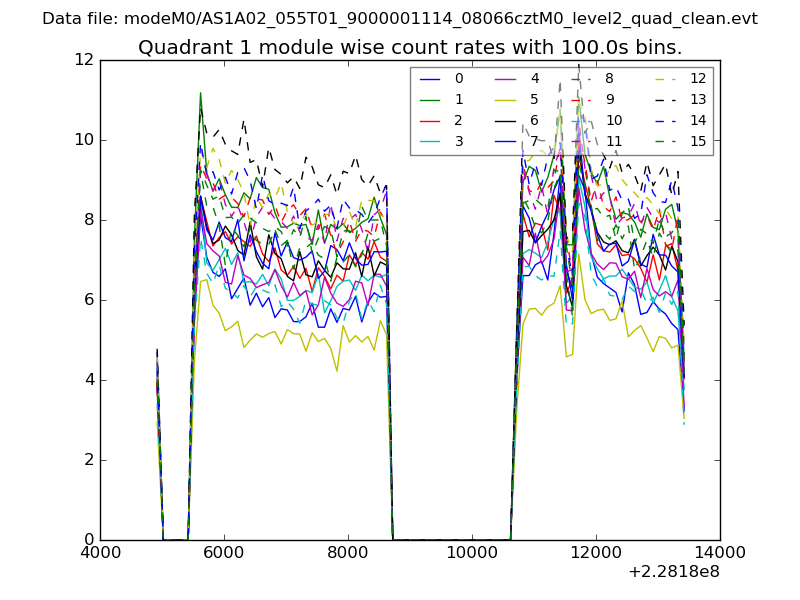

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

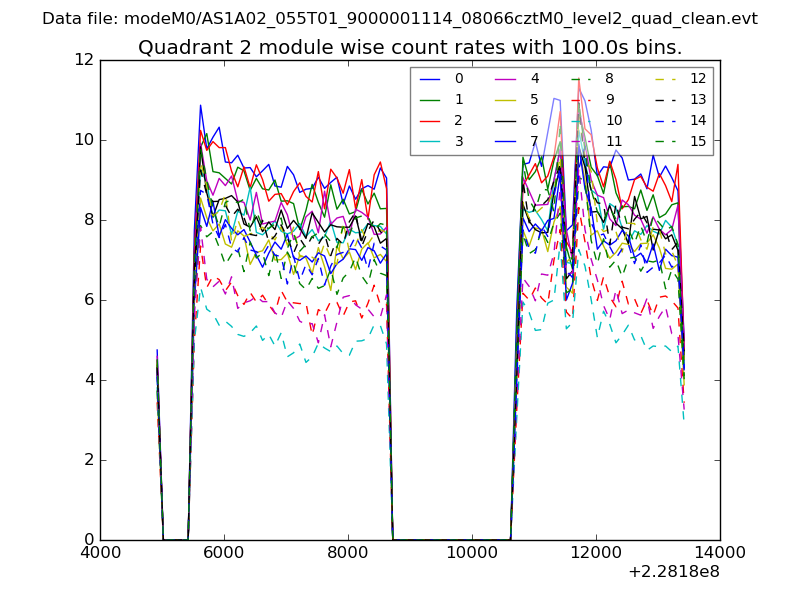

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

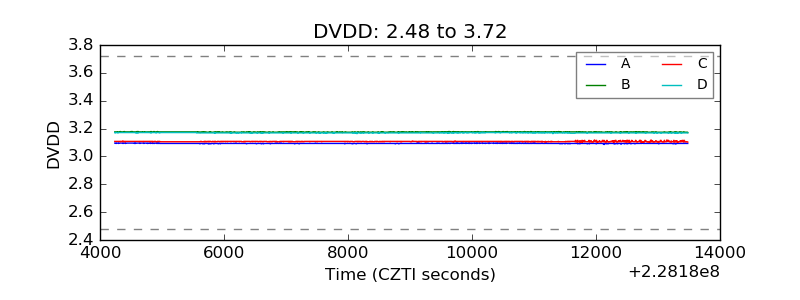

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

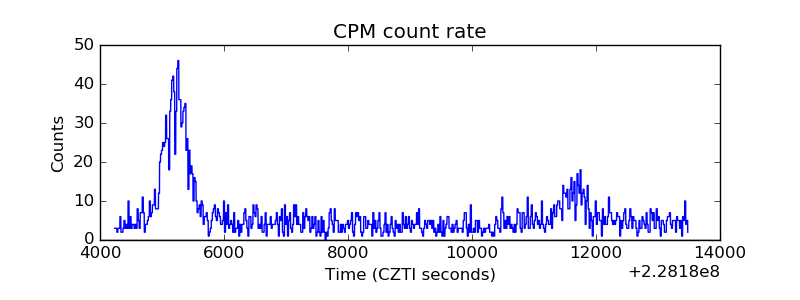

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

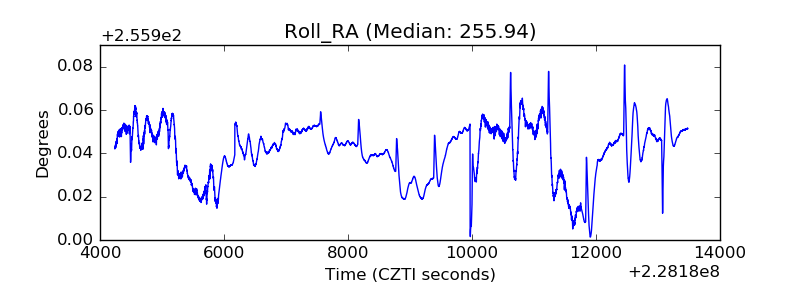

| _Roll_RA |  |
| Veto Counter |  |
