| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_055T01_9000001114_08071cztM0_level2.evt | modeM0/AS1A02_055T01_9000001114_08071cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,735,680 | 72,256,320 |
| Size | 479.4 MB | 68.9 MB |
| Events in quadrant A | 3,008,959 | 443,531 |
| Events in quadrant B | 3,228,032 | 457,187 |
| Events in quadrant C | 3,014,179 | 457,794 |
| Events in quadrant D | 5,526,660 | 369,605 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13405 | 2 |
| B | 0 | 13766 | 1 |
| C | 0 | 13357 | 1 |
| D | 0 | 20920 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6586 | 73 | 1.108412% |
| B | 6586 | 84 | 1.275433% |
| C | 6586 | 48 | 0.728819% |
| D | 6586 | 996 | 15.122988% |

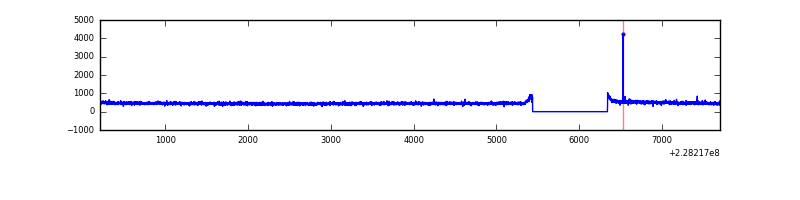

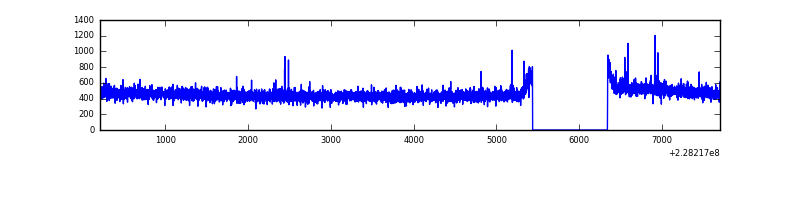

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7491 | 6587 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7491 | 6587 | 10 | 10 | 0.13% | 0.15% |  |
| C | 7491 | 6587 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7491 | 6586 | 813 | 813 | 10.85% | 12.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 254 | 14370 | 86.02 | 778 | 761 | 158.2 |
| A | 0 | 226 | 7363 | 41.73 | 778 | 761 | 158.2 |
| A | 12 | 194 | 6857 | 38.53 | 778 | 761 | 158.2 |
| B | 10 | 16 | 98572 | 650.78 | 780 | 762 | 150.3 |
| B | 11 | 51 | 43749 | 286.02 | 780 | 762 | 150.3 |
| B | 0 | 214 | 39322 | 256.56 | 780 | 762 | 150.3 |
| C | 1 | 16 | 54919 | 308.63 | 757 | 760 | 175.5 |
| C | 1 | 3 | 6794 | 34.39 | 757 | 760 | 175.5 |
| C | 13 | 61 | 5820 | 28.83 | 757 | 760 | 175.5 |
| D | 1 | 52 | 2811542 | 16908.52 | 669 | 650 | 166.2 |
| D | 2 | 14 | 72827 | 434.17 | 669 | 650 | 166.2 |
| D | 12 | 233 | 59605 | 354.64 | 669 | 650 | 166.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

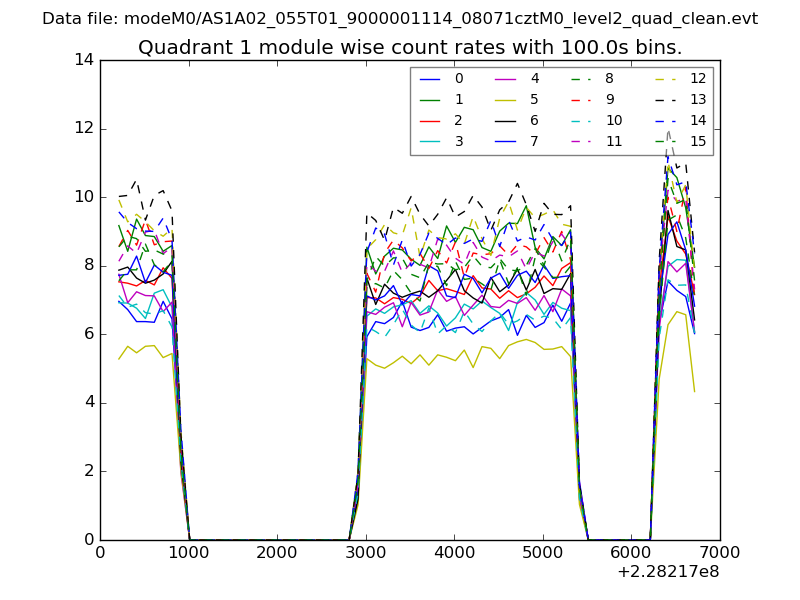

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

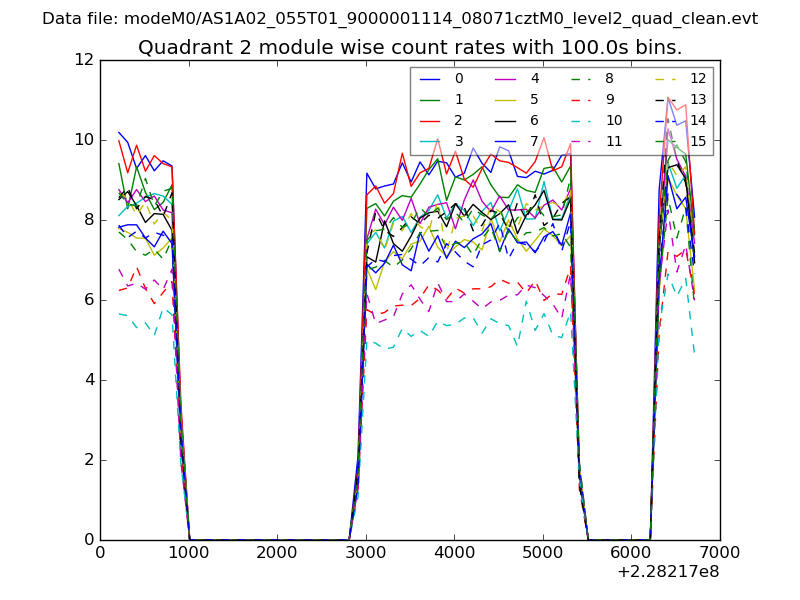

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

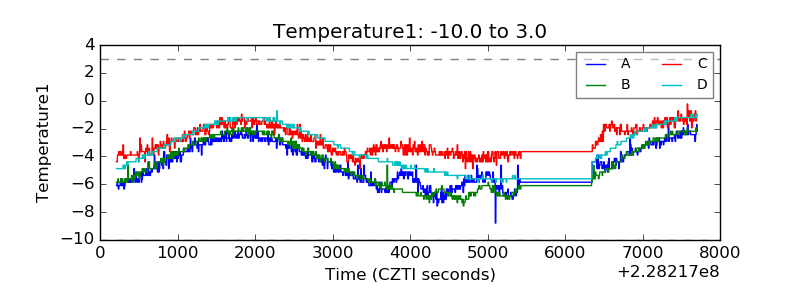

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

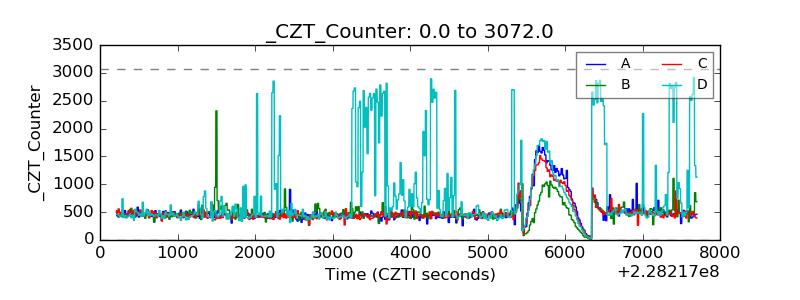

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

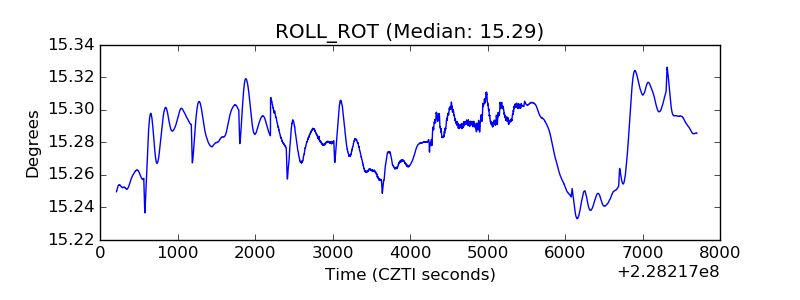

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

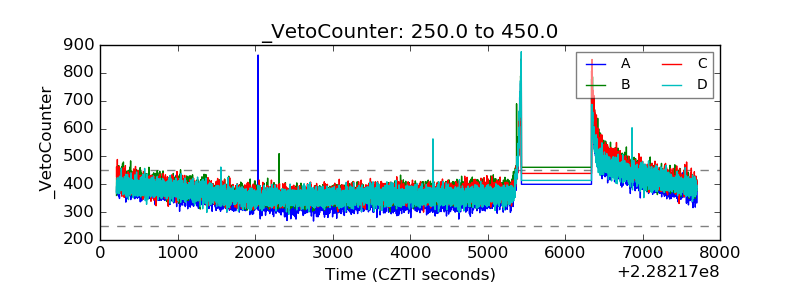

| Veto Counter |  |
