| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_055T01_9000001114_08073cztM0_level2.evt | modeM0/AS1A02_055T01_9000001114_08073cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,500,480 | 64,451,520 |
| Size | 525.0 MB | 61.5 MB |
| Events in quadrant A | 3,144,106 | 385,719 |
| Events in quadrant B | 3,339,555 | 393,533 |
| Events in quadrant C | 3,131,712 | 395,132 |
| Events in quadrant D | 6,604,256 | 312,182 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13732 | 3 |
| B | 0 | 14095 | 2 |
| C | 0 | 13637 | 2 |
| D | 0 | 24102 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6659 | 57 | 0.855984% |
| B | 6659 | 62 | 0.931071% |
| C | 6659 | 47 | 0.705812% |
| D | 6659 | 1389 | 20.858988% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7729 | 6660 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7729 | 6660 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7729 | 6660 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7729 | 6660 | 1235 | 1235 | 15.98% | 18.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 254 | 13367 | 75.7 | 813 | 794 | 166.1 |
| A | 0 | 226 | 7648 | 41.27 | 813 | 794 | 166.1 |
| A | 12 | 194 | 7325 | 39.32 | 813 | 794 | 166.1 |
| B | 11 | 51 | 87155 | 556.29 | 815 | 795 | 155.2 |
| B | 10 | 16 | 33838 | 212.85 | 815 | 795 | 155.2 |
| B | 0 | 214 | 32146 | 201.95 | 815 | 795 | 155.2 |
| C | 1 | 16 | 38419 | 205.41 | 791 | 795 | 183.2 |
| C | 1 | 3 | 6948 | 33.59 | 791 | 795 | 183.2 |
| C | 13 | 61 | 6143 | 29.2 | 791 | 795 | 183.2 |
| D | 1 | 52 | 3905754 | 22241.72 | 669 | 652 | 175.6 |
| D | 12 | 233 | 51506 | 289.64 | 669 | 652 | 175.6 |
| D | 7 | 71 | 45293 | 254.26 | 669 | 652 | 175.6 |

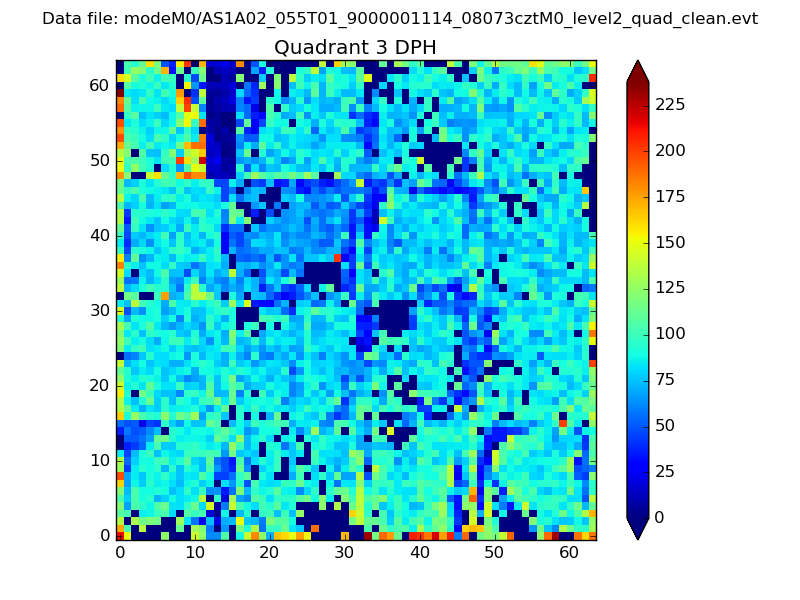

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

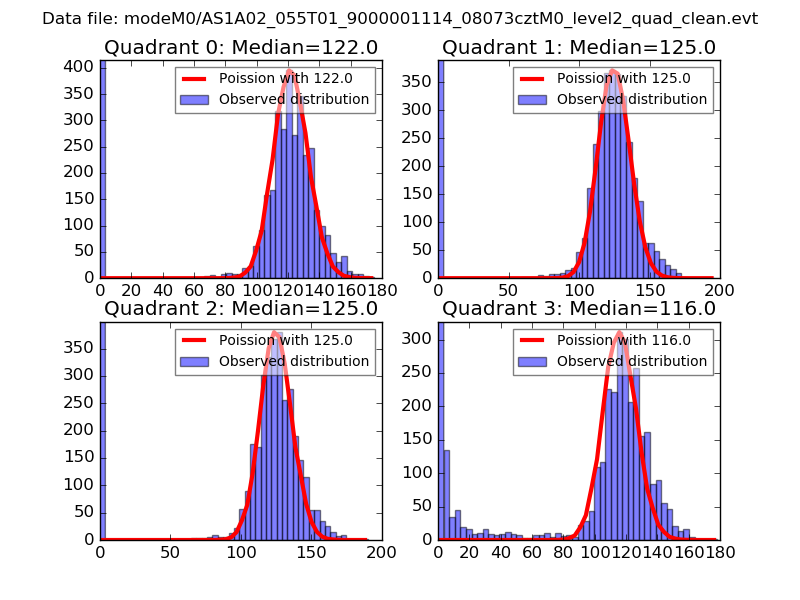

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

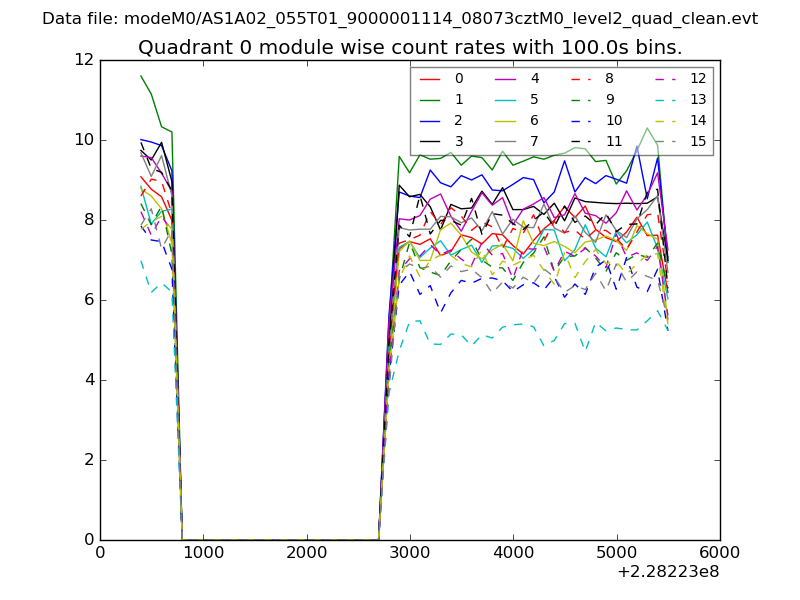

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

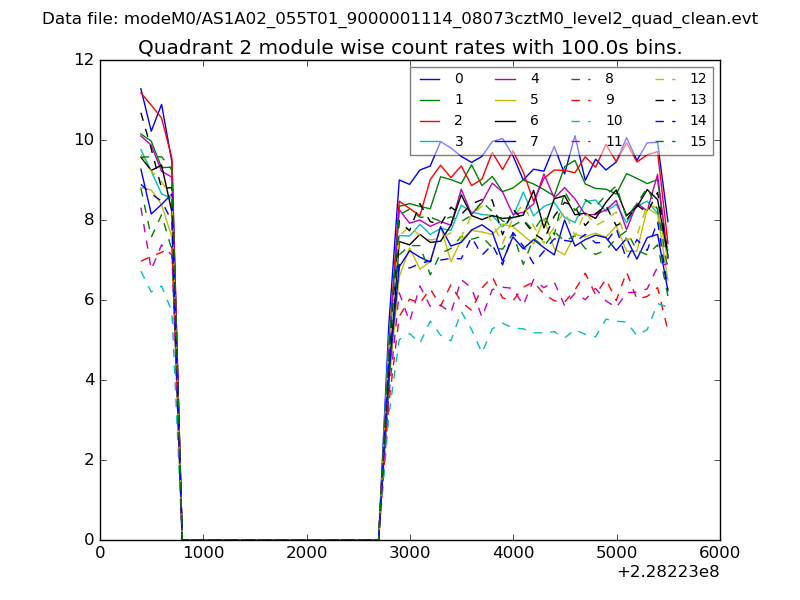

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

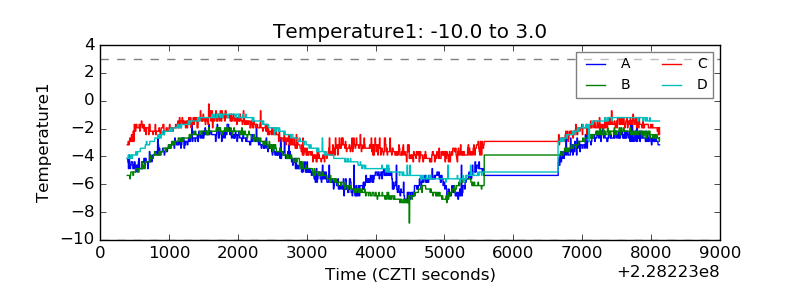

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

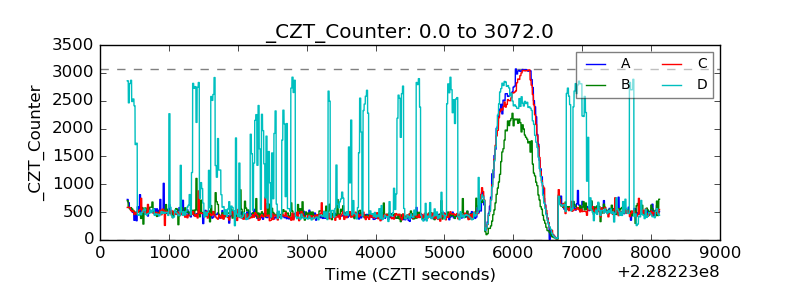

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

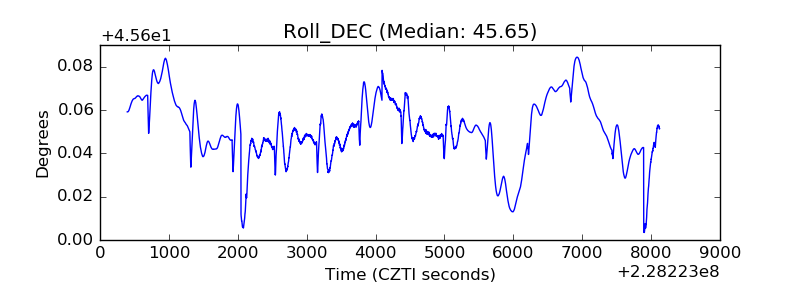

| _Roll_DEC |  |
| _Roll_RA |  |

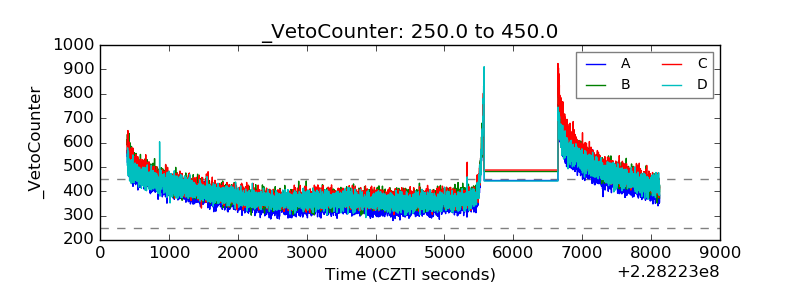

| Veto Counter |  |
